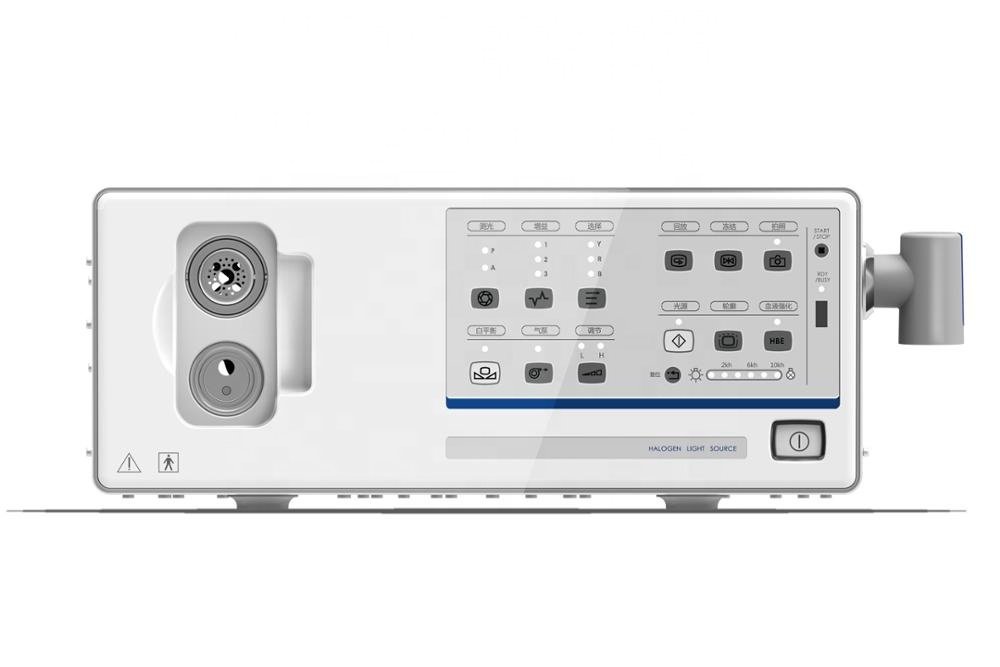

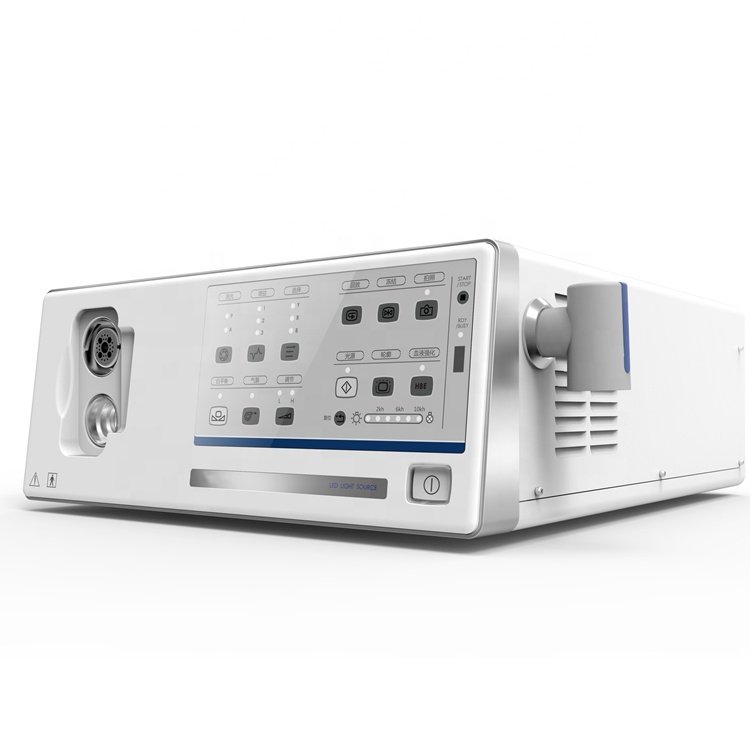

Medical Throat Endoscopy LED Light Source MDLVME23
- LED Light Source for qualified endoscopic images
- VME-2300 Imaging Processor for video signal outputs and image enhancement
- Freeze and save up to 16 endoscopic images for review
- Gain control and white balance adjustment for image quality
- Equipped with an air pump for efficient air flow and pressure
- LED bulb with color temperature of ≥3200K
- Suitable for medical throat endoscopy procedures
- SKU
- MDLVME23
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Medical Throat Endoscopy LED Light Source MDLVME23
Professional-grade LED light source system designed for high-quality throat endoscopy imaging. Integrated with the VME-2300 imaging processor, this system delivers enhanced diagnostic clarity with multiple video signal outputs and advanced image adjustment capabilities. Ideal for ENT clinics, hospitals, and diagnostic centers requiring reliable, long-lasting endoscopic visualization.
Clinical overview
The MDLVME23 LED Light Source system represents a modern advancement in endoscopic visualization technology. Equipped with a built-in LED light source, it provides qualified endoscopic images with significantly extended operational lifetime, minimizing both maintenance time and running costs compared to traditional halogen systems. The integrated VME-2300 imaging processor enables real-time image enhancement, color tone and brightness adjustment, and the ability to freeze, save, and review up to 16 endoscopic images for diagnostic documentation and clinical review.
This system is engineered for professional medical environments where reliability, image quality, and ease of use are critical. The multiple video signal output options (Y/C, DVI, RGB, SYNC, AV) ensure compatibility with existing diagnostic infrastructure, while the efficient air pump system (≥5L/min airflow, 30–80 kPa pressure) supports clear visualization during procedures. Dual voltage compatibility (~110V/220V AC) makes the system suitable for deployment across diverse clinical settings globally.
Key features & surgeon benefits
Enhanced Diagnostic Clarity
- LED light source with color temperature ≥3200K for accurate tissue visualization
- Profile enhancement to increase sharpness of endoscopic images
- E-stressed mucosal morphology detection for improved diagnostic sensitivity
Intuitive Image Control
- Color tone adjustment (R, B channels): ±50 steps for precise color balance
- Brightness adjustment (Y channel): ±50 steps for optimal exposure
- White balance adjustment with dedicated switch for rapid calibration
Reduced Operating Costs
- Long-lasting LED bulb reduces replacement frequency and maintenance burden
- Lower power consumption compared to halogen alternatives
- Minimal maintenance requirements extend service intervals
Image Capture & Review
- Freeze function for real-time image capture during procedures
- Save up to 16 endoscopic images for clinical documentation
- Review capability for post-procedure analysis and patient consultation
Technical specifications
| Indications | Throat endoscopy, laryngeal and pharyngeal visualization, diagnostic imaging |
|---|---|
| Light Source | LED with color temperature ≥3200K |
| Video Signal Outputs | Y/C, DVI, RGB, SYNC, AV |
| Image Enhancement | Profile enhancement, E-stressed mucosal morphology detection, color tone (±50 steps), brightness (±50 steps), white balance adjustment |
| Image Storage | Freeze, save, and review up to 16 endoscopic images |
| Gain Control | OFF, 1, 2, 3 |
| Metering Mode | Average; Peak |
| Air Pump Airflow | ≥5L/min |
| Air Pump Pressure | 30–80 kPa |
| Power Supply | ~110V/220V AC (±10%), 50Hz/60Hz |
| Packaging | Professional transport case with protective foam |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| LED Light Source Unit | Main light source with integrated LED and control interface | 1 |
| VME-2300 Imaging Processor | Image processing and video output module with adjustment controls | 1 |
| Power Cable | Dual voltage compatible AC power cable (~110V/220V) | 1 |
| Air Pump Unit | Integrated air pump with ≥5L/min airflow and 30–80 kPa pressure | 1 |
| Video Output Cables | Y/C, DVI, RGB, SYNC, AV connectors and cables | 1 set |
| User Manual | Comprehensive operation and maintenance guide | 1 |
| Transport Case | Professional protective carrying case with foam insert | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, schedule a product demonstration, or discuss integration with your existing diagnostic infrastructure. We provide comprehensive support for installation, training, and ongoing technical assistance.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
