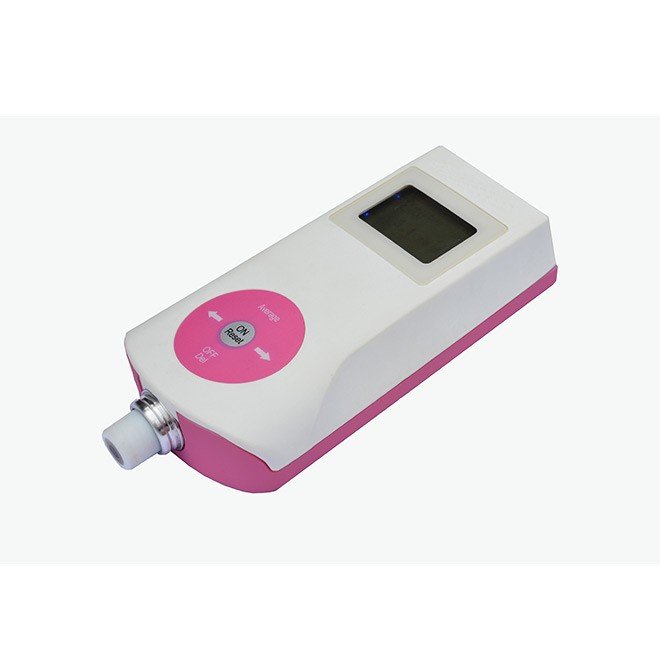

Percutaneous Jaundice Tester MDLJM01
4.3(3 reviews)- Measures jaundice levels through light reflective technology
- LED light source for accurate readings
- LCD display for clear results
- Indicates errors within a range of 0 ~ 25 mg/dL ± 1.0 mg/dL
- Powered by a lithium battery with long-lasting usage
- Can display results in both mg/dL and μmol/L simultaneously
- Stores up to 200 measuring data with average calculation function
- Easy to use with no preparation needed
- Features battery voltage detection and automatic shutdown for convenience
- SKU
- MDLJM01
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Diagnostic & Monitoring Device
Percutaneous Jaundice Tester MDLJM01
Non-invasive light reflective measurement for rapid and accurate neonatal jaundice detection. Dual-unit display in mg/dL and μmol/L with data storage for up to 200 measurements. Lithium battery provides over 800 measurements per charge with automatic charging protection.
Ordering Ref.
MDLJM01
ConfigurationSingle Device
MaterialLithium Battery (DC3.6V, 1000mAh)
ApplicationNeonatal Jaundice Screening
OEM customisation and bulk configurations available upon request. Contact sales for volume pricing.
Clinical overview
The Percutaneous Jaundice Tester MDLJM01 provides rapid, non-invasive measurement of transcutaneous bilirubin levels using advanced light reflective technology. Designed for neonatal screening and monitoring, this device eliminates the need for blood sampling in initial jaundice assessment, reducing patient discomfort and enabling faster clinical decision-making in maternity and paediatric settings.
With dual-unit display capability (mg/dL and μmol/L), automatic averaging of multiple measurements, and storage of up to 200 records, the MDLJM01 supports consistent clinical protocols and facilitates longitudinal monitoring. The device's quick-start operation, low-battery warning, and automatic shutdown features ensure reliable performance in high-volume clinical environments.
Key features & surgeon benefits
Measurement Accuracy
Precise Light Reflective Detection
- Indication error ±1.0 mg/dL across 0–25 mg/dL range
- LED light source with calibrated white and yellow reference endpoints
- Eliminates subjective visual assessment
Workflow Efficiency
Rapid Non-Invasive Testing
- No preparation required; immediate measurement capability
- Automatic averaging function for 2–5 consecutive measurements
- Storage of 200 measurement records for trend analysis
Operational Reliability
Extended Battery Performance
- Over 800 measurements per full charge
- Low-battery warning and automatic shutdown after 10 minutes inactivity
- Automatic charging protection at 4.2V ±0.05V
Dual-Unit Display
Flexible Clinical Reporting
- Simultaneous display in mg/dL and μmol/L
- LCD screen with clear, easy-to-read output
- Battery voltage and charging status indicators
Technical specifications
| Measurement Method | Light reflective |
|---|---|
| Light Source | LED |
| Display Type | LCD |
| Measurement Range | 0–25 mg/dL |
| Indication Error | ±1.0 mg/dL |
| Power Supply | Lithium battery (DC3.6V, 1000mAh ±20%) |
| Measurements per Charge | Over 800 |
| Data Storage Capacity | 200 measurement records |
| Dual-Unit Display | mg/dL and μmol/L simultaneously |
| Auto-Shutdown | 10 minutes inactivity |
| Charging Protection | Automatic at 4.2V ±0.05V |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Percutaneous Jaundice Tester | MDLJM01 main device with LCD display and LED measurement head | 1 |
| Lithium Battery | DC3.6V, 1000mAh ±20% rechargeable battery | 1 |
| USB Charging Cable | Standard USB charging interface with automatic protection | 1 |
| Carrying Case | Protective case for transport and storage | 1 |
| User Manual | Multilingual operating and maintenance guide | 1 |
