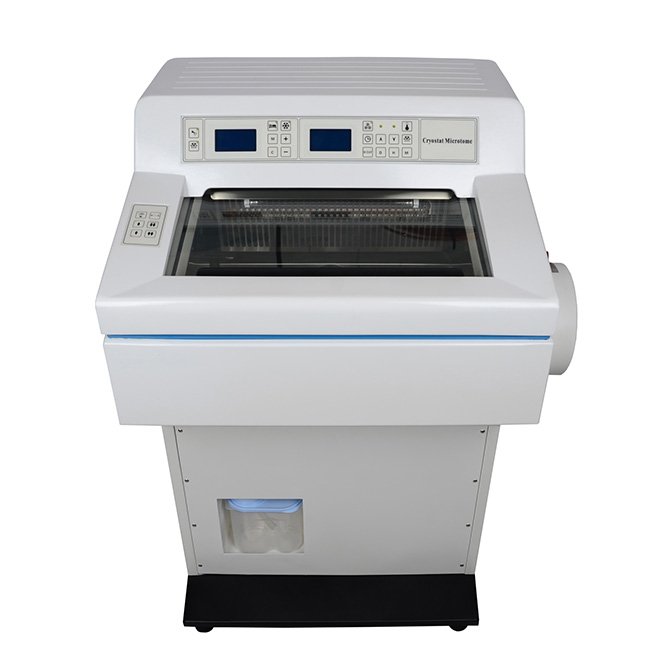

Semi-automatic Tissue Cryostat Microtome Machine MDLK232
- The MDLK232 Semi-automatic Tissue Cryostat Microtome Machine is a rapid pathological section instrument for tissues
- Voltage: AC 220V±22V, Frequency: 50Hz±1Hz, Power: 600W
- Largest start-up current: 45A, Refrigerant: R404a, 300±10g
- Section thickness range: 1-100μm adjustable, Trimming thickness range: 10-400μm adjustable
- Specimen retraction: 0-80μm adjustable, Maximum specimen size: 45mm×50mm
- Chamber temperature: -10℃ to -40℃ adjustable, Specimen head temperature: -10℃ to -40℃ adjustable
- Model MDLK232 is suitable for hospitals, medical colleges, legal medical experts, and research institutes
- SKU
- MDLK232
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- Out of stock
- ✓ Worldwide shipping
Semi-automatic Tissue Cryostat Microtome Machine MDLK232
Precision rapid-freezing microtome for pathological tissue sectioning. Features dual Danfoss compressor cooling, adjustable section thickness from 1–100μm, and ultra-quiet operation at 52dB(A). Ideal for diagnostic pathology, research, and forensic applications in hospitals, medical institutions, and laboratories.
Clinical overview
The MDLK232 is a rapid pathological section instrument designed for human and animal tissue analysis. It combines semi-automatic operation with precision cooling technology, making it suitable for hospitals, medical colleges, research institutes, and forensic laboratories. The instrument integrates a computer-controlled panel, constant low-temperature chamber, mechanical transmission system, and dual-compressor cooling unit into a compact, clinician-friendly design.
With adjustable section thickness ranging from 1–100μm and trimming thickness from 10–400μm, the MDLK232 delivers consistent, high-quality tissue sections for diagnostic and research applications. Its dual Peltier units achieve −60°C in just 15 minutes, enabling rapid specimen preparation without compromising tissue integrity or morphology.
Key features & surgeon benefits
Dual Danfoss Compressor System
- Double Danfoss compressor with R404a refrigerant for efficient, reliable cooling
- Dual Peltier units reach −60°C in just 15 minutes
- Chamber temperature adjustable from −10°C to −40°C; freezing shelf minimum −45°C
Adjustable Sectioning Control
- Section thickness range 1–100μm with fine increments (1μm, 2μm, or 5μm)
- Trimming thickness 10–400μm for efficient specimen preparation
- Specimen retraction 0–80μm adjustable; 26 freezing stations for batch processing
Quiet, Low-Noise Operation
- Working noise just 52dB(A) for a quieter laboratory environment
- Compact footprint: 660mm × 640mm × 1150mm; 135kg total weight
- 600W power consumption; 45A maximum startup current
Large Specimen Support
- Maximum specimen size 45mm × 50mm accommodates diverse tissue types
- 20mm horizontal and 60mm vertical strokes for flexible positioning
- Semi-automatic operation reduces manual handling and improves consistency
Technical specifications
| Indications | Pathological diagnosis, tissue analysis, and research in medical, veterinary, and legal medicine applications |
|---|---|
| Sizes / range | Section thickness 1–100μm; trimming thickness 10–400μm; specimen size up to 45mm × 50mm |
| Material | Stainless steel chamber, precision optics, compressor-grade components |
| Sterilisation | As applicable; device operates in controlled low-temperature environment |
| Packaging | Standard protective packaging; custom shipping available |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Control Panel Assembly | Computer-controlled digital display with temperature and status monitoring | 1 |
| Cooling Chamber | Constant low-temperature chamber with adjustable temperature control | 1 |
| Specimen Head | Precision-machined specimen holder with retraction adjustment | 1 |
| Microtome Blade | High-precision cutting blade for tissue sectioning | 1 |
| Freezing Shelf | Multi-station freezing platform (26 stations) | 1 |
| Dual Danfoss Compressor Unit | Double compressor with R404a refrigerant and EMKARATE RL-22S oil | 1 |
| Dual Peltier Cooling Units | Rapid cooling elements for −60°C capability | 2 |
| Motor & Drive System | Mechanical transmission and motor assembly | 1 |
