- Portable Electric Dermatome Machine MDLEDP02 for precise skin grafting procedures
- Features skin thickness adjustment in increments of 0.05 mm
- Adjustable skin widths of 2.5 cm, 3.8 cm, 5.1 cm, 7.6 cm, and 10.2 cm
- Easy-to-operate handheld control for user convenience
- Entire machine can be sterilized under high temperature and pressure
- Lightweight design weighing only 1.18 kg
- Compact dimensions of 232 mm x 138 mm x 170 mm
Precision skin grafting and dermatological procedures made portable and efficient. The MDLEDP02 delivers consistent, adjustable skin thickness harvesting with five selectable widths, handheld control, and full autoclavable sterilization for operating room readiness.

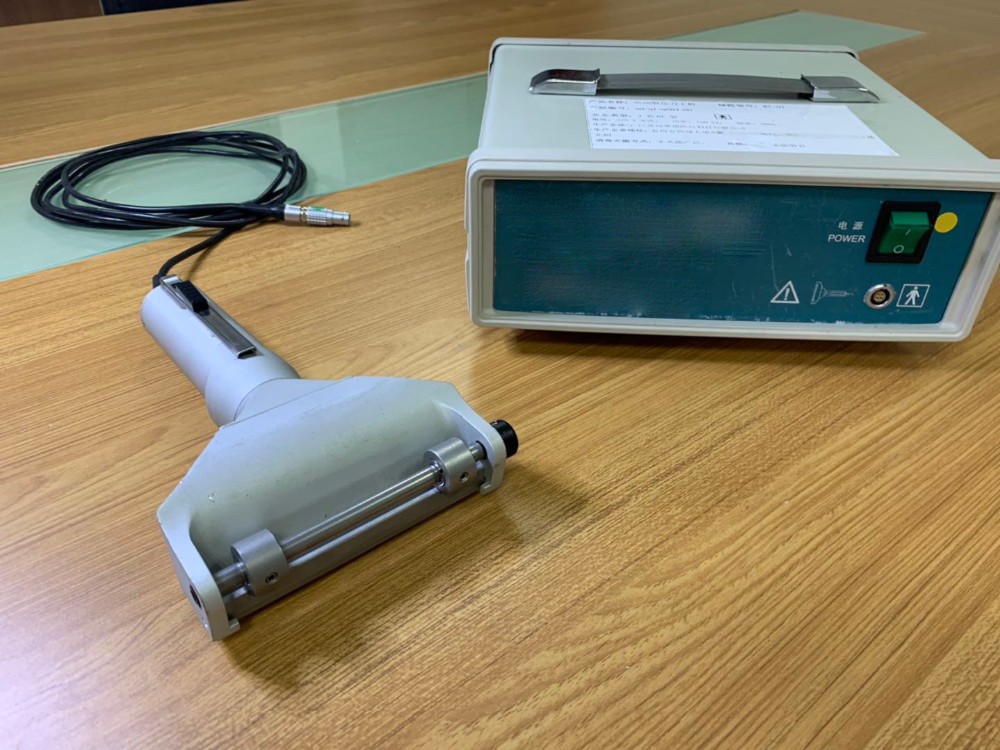

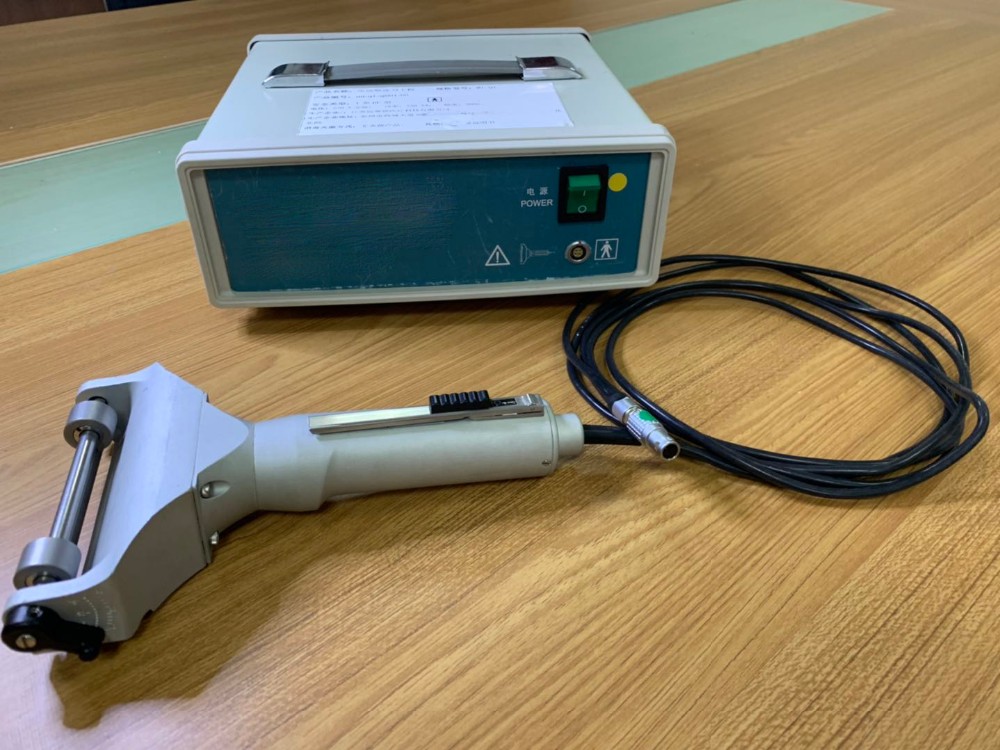

The MDLEDP02 is a compact, lightweight electric dermatome engineered for precision skin harvesting in grafting and reconstructive procedures. Weighing just 1.18 kg with dimensions of 232 × 138 × 170 mm, it combines portability with clinical reliability. The device features five preset skin widths (2.5, 3.8, 5.1, 7.6, and 10.2 cm) and fine-grain thickness control in 0.05 mm increments across a 0–0.75 mm range, enabling surgeons to achieve consistent, reproducible graft thickness for optimal take rates and aesthetic outcomes.
Designed for OR integration, the MDLEDP02 is fully autoclavable under high-temperature, high-pressure sterilization protocols. Its handheld control mode and removable handle connection line simplify setup and intraoperative handling. Powered by a stable AC110V/220V ± 10% supply at 50/60Hz ± 1 Hz, with 14.5V DC output and 4.3A maximum current, the device meets IEC safety standards (BF-type protection, Class I) and delivers reliable performance across European and international healthcare facilities.
| Indications | Skin graft harvesting, dermatological surgery, burn reconstruction, reconstructive procedures |
|---|---|
| Skin thickness range | 0–0.75 mm with 0.05 mm incremental adjustment |
| Skin width options | 2.5 cm, 3.8 cm, 5.1 cm, 7.6 cm, 10.2 cm |
| Power supply | AC110V/220V ± 10%; 50/60Hz ± 1 Hz |
| Power output | 14.5V DC, 4.3A maximum |
| Power consumption | 150 VA |
| Weight | 1.18 kg |
| Dimensions | 232 mm (L) × 138 mm (H) × 170 mm (W) |
| Control mode | Handheld with removable handle connection line |
| Sterilisation | High-temperature, high-pressure autoclave compatible; whole machine sterilizable |
| Safety classification | IEC Class I, BF-type protection |
| Packaging | Protective case with foam insert |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Dermatome unit | Portable electric dermatome machine with integrated motor and control panel | 1 |

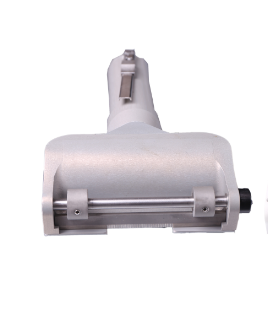

| Handheld head | Removable handheld cutting head with adjustable thickness and width settings | 1 |
| Handle connection line | Removable power and control cable assembly | 1 |
| Power cord | AC110V/220V mains cable with safety connector | 1 |
| Protective case | Foam-lined carrying case for transport and storage | 1 |
| User manual | Multilingual operating and maintenance guide with safety protocols | 1 |
Contact our clinical sales team to discuss the MDLEDP02 for your facility, request a demonstration, or explore customisation options for your surgical programme.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
