Useful triage device
Good for deciding who needs formal bilirubin testing and the calibration check is quick. Consistent results across repeated measurements on the same infant.
Dr. Greta Sandberg, MDVerified buyerFeb 28, 2026
MDL

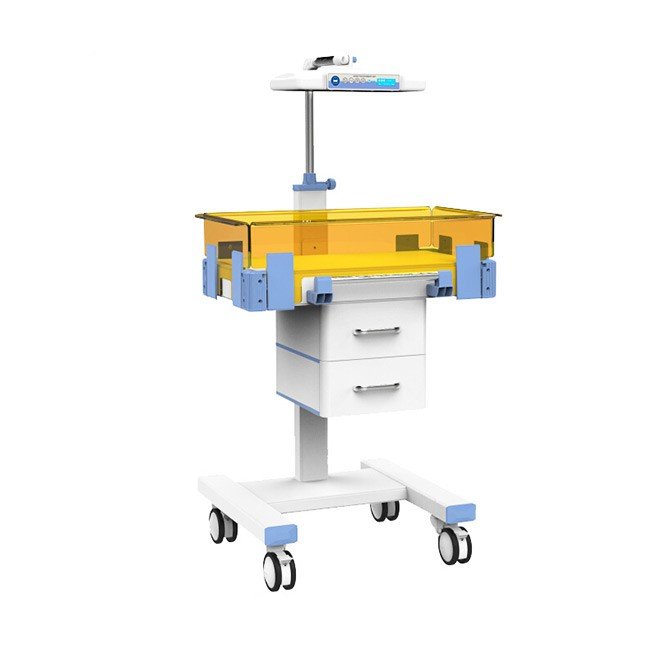

Neonatal Jaundice Tester MDLHD03
4.3(3 reviews)- The Neonatal Jaundice Tester MDLHD03 is a reliable and approved phototherapy device for treating neonatal high bilirubin blood illness
- Features double side phototherapy for more effective radiation
- Adjustable irradiation levels (Low, Medium, High) and LCD screen display for therapy time
- Utilizes blue LED bulbs for efficient treatment and independent air cooling fan
- Adjustable light head and stand column for flexible positioning
- Anti-rusty aluminum alloy base with drawers and lockable castors for easy mobility
- Automatically records total therapy time for monitoring and control
- SKU
- MDLHD03
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Neonatal Phototherapy
Neonatal Jaundice Tester MDLHD03
Dual-side phototherapy system for effective neonatal jaundice treatment. Features adjustable irradiation levels, LCD display with timer management, and 360° horizontal and 180° vertical light head adjustability. Constructed with durable anti-rust aluminum alloy and equipped with lockable castors for easy mobility.
Ordering Ref.
MDLHD03
ConfigurationDual-side phototherapy
MaterialAnti-rust aluminum alloy
ApplicationNeonatal jaundice treatment
Customisation available for OEM integration and clinical workflow requirements. Contact sales for bespoke configurations.
Clinical overview
Neonatal jaundice (hyperbilirubinemia) is a common condition in newborns requiring effective phototherapy treatment. The MDLHD03 employs blue-green light phototherapy to induce actinic isomerization of bilirubin, converting indirect bilirubin into water-soluble products that are readily excreted via the liver and biliary system. This evidence-based approach is recognized as a simple and effective clinical method for managing pathological jaundice in neonatal departments.
The dual-side phototherapy configuration—combining upside and downside irradiation—delivers superior coverage and treatment efficacy. Independent control of upper and lower light sources allows clinicians to optimize therapy intensity based on individual patient requirements and bilirubin levels, reducing treatment duration while maintaining safety and comfort for the neonate.
Key features & surgeon benefits
Coverage
Dual-Side Phototherapy
- Upside and downside phototherapy units operate independently or simultaneously
- Uniform, efficient light distribution across treatment area
- Highest total irradiance: 1500 μW/cm² on effective area
Workflow
Intuitive Operation & Positioning
- LCD display with timer and countdown for therapy time management
- 360° horizontal and 180° vertical light head adjustability
- Adjustable height range 1300–1600 mm for optimal patient positioning
Economics
Long-Life LED Technology
- Blue LED bulbs with ≥20,000-hour lifespan reduce replacement costs
- Low power consumption: 45 VA input
- Automatic therapy time recording for clinical documentation and billing
Mobility & Storage
Clinical Convenience
- Lockable castors for secure positioning and easy mobility
- Two integrated drawers for storage of accessories and supplies
- Foldable protective boards for safe clinical use and patient comfort
Technical specifications
| Indications | Neonatal pathological jaundice, hyperbilirubinemia in newborns |
|---|---|
| Phototherapy type | Dual-side (upside and downside) blue light phototherapy |
| Light wavelength | 440–480 nm (blue spectrum) |
| Irradiance (downside) | Highest total: 1500 μW/cm² on effective area |
| Irradiation levels | Low, Medium, High (adjustable) |
| LED lifespan | ≥20,000 hours |
| Height adjustable range | 1300–1600 mm (light head to floor) |
| Light head adjustability | 360° horizontal, 180° vertical |
| Power supply | AC 100–110V/240V ±22 V, 50/60 Hz ±1 Hz |
| Power input | 45 VA |
| Material | Anti-rust aluminum alloy base and frame |
| Infant bed | Integrated with foldable protective boards |
| Mobility | Lockable castors; stand column adjustable ±360° |
| Storage | Two integrated drawers |
| Operating temperature | −10 °C to +55 °C |
| Operating humidity | ≤95% relative humidity |
| Atmospheric pressure | 700–1060 hPa |
| Packaging dimensions | 80 × 79 × 134.5 cm |
| Net weight | 40 kg |
| Gross weight | 65 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main body | LED radiant source, control system, upside phototherapy unit, downside blue LED phototherapy unit, infant bed, bracket | 1 |
| Mattress | Comfortable, washable mattress for infant bed | 1 |
| Transparent foldable protector | Protective boards for clinical use and patient safety | 1 |
| Castors | Lockable wheels for mobility and positioning | 4 |
| Storage drawers | Integrated drawers for accessory and supply storage | 2 |
Get in touch for pricing & availability
Contact our sales team to discuss the MDLHD03 neonatal phototherapy system, pricing, delivery timelines, and customisation options for your clinical facility.
Phone: (424) 270-9077
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.3· 3 reviewsReassuring bedside screening
Transcutaneous readings have correlated well with serum bilirubin in our term infants, letting us avoid a number of heel pricks. The probe sits comfortably on the forehead and reads in seconds.
Dr. Frances Whitlock, MDVerified buyerJun 14, 2024
Fast and gentle
Parents appreciate the non-invasive check and the display is easy to read in a dim nursery. It over-reads a little after phototherapy, so timing of measurement matters.
Dr. Obi Nwachukwu, MDAug 19, 2025
Related products
See all →
MDL

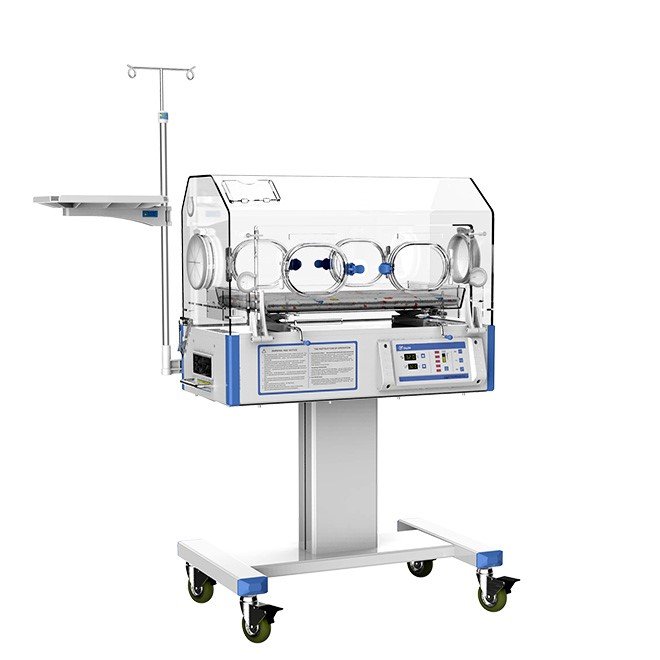

Baby Incubator For Hospital Use MDLBI01
- High quality infant baby incubator designed for hospital use - Features LED temperature display for easy monitoring - Alarm functions for power failure, over temperature, and more - Keypad lock prevents inadvertent setting changes - Adjustable infant bed inclination angle for comfort - Humidity control through natural airway - Second thermal cut-out function for enhanced safety
$6,990.00
$6,890.00
MDL

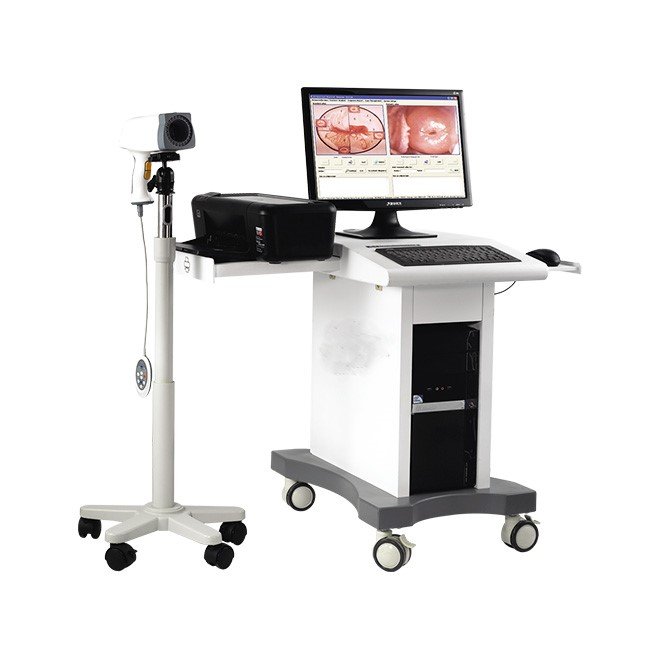

Colposcope Video Machine for Gynaecology MDLCE06
- High Resolution CCD camera with 550 TV lines - Adjustable super cold LED light source - Vertical stand with adjustable height - Unique foot switch for convenient picture taking - Control handle for easy adjustments - Integrated computer imaging and data analysis functions - LCD screen for real-time dynamic image observation (optional)
$6,890.00
$5,890.00
MDL

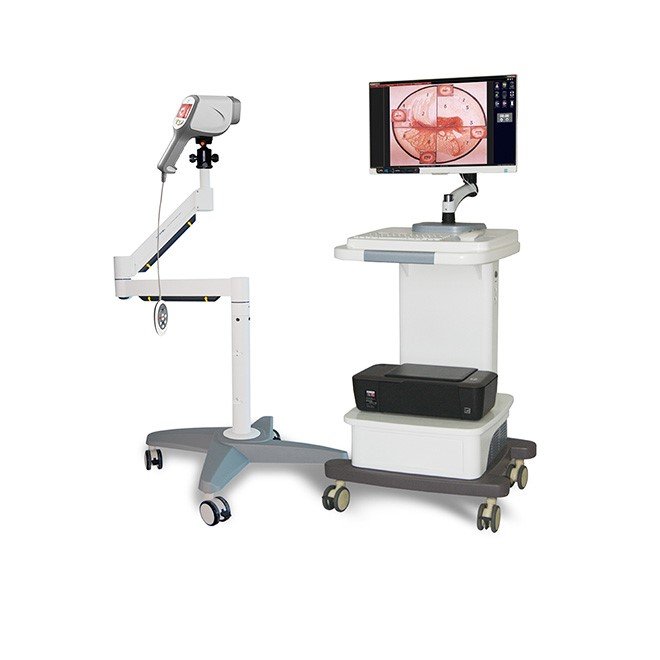

Portable Gynaecology Digital Colposcope System MDLCE07
- Portable Gynaecology Digital Colposcope System MDLCE07 - High Resolution CCD camera with 550 TV lines and video output - Unique adjustable super cold LED light source design for brightness control - Swing arm for height adjustments and locking - Unique foot switch for convenient picture taking - Control handle for easy adjustments like focal length, zoom, and white balance - Integrated computer imaging with multiple language support and case report templates - Optional 2.5" LCD screen for real-time image observation.
$8,890.00
$7,790.00
MDL

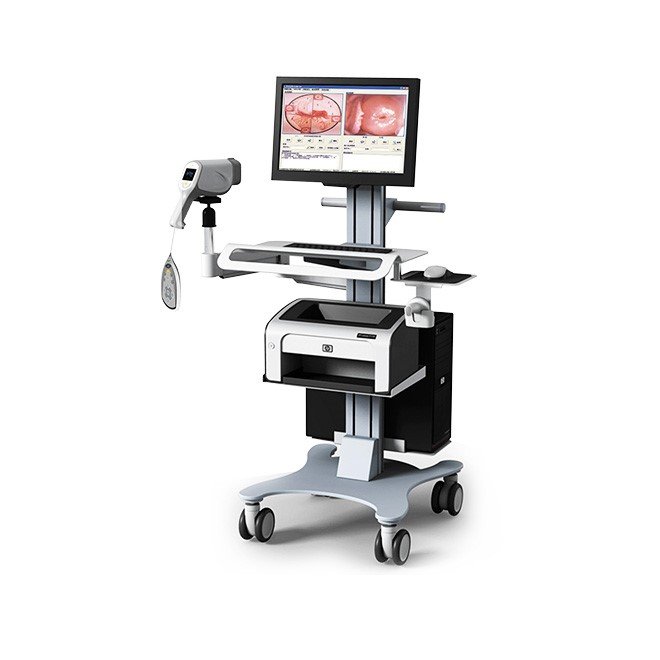

Multi-functional Trolley Colposcope Video Machine MDLCE08
4.7(3)
- High resolution colorful digital CCD camera with 550 TV lines - Fast auto-focus and manual focus control - Adjustable super cold LED light source with brightness control - Multi-functional trolley with adjustable height and locking mechanism - Unique foot switch design for convenient picture taking - Control handle for easy adjustment of focal length, zoom, light settings, etc. - Integrated computer imaging for data management and analysis - Optional 2.5" LCD screen for real-time image observation - Optional wireless transmission function and scanner for quick medical history access
$7,990.00
$6,990.00
MDL

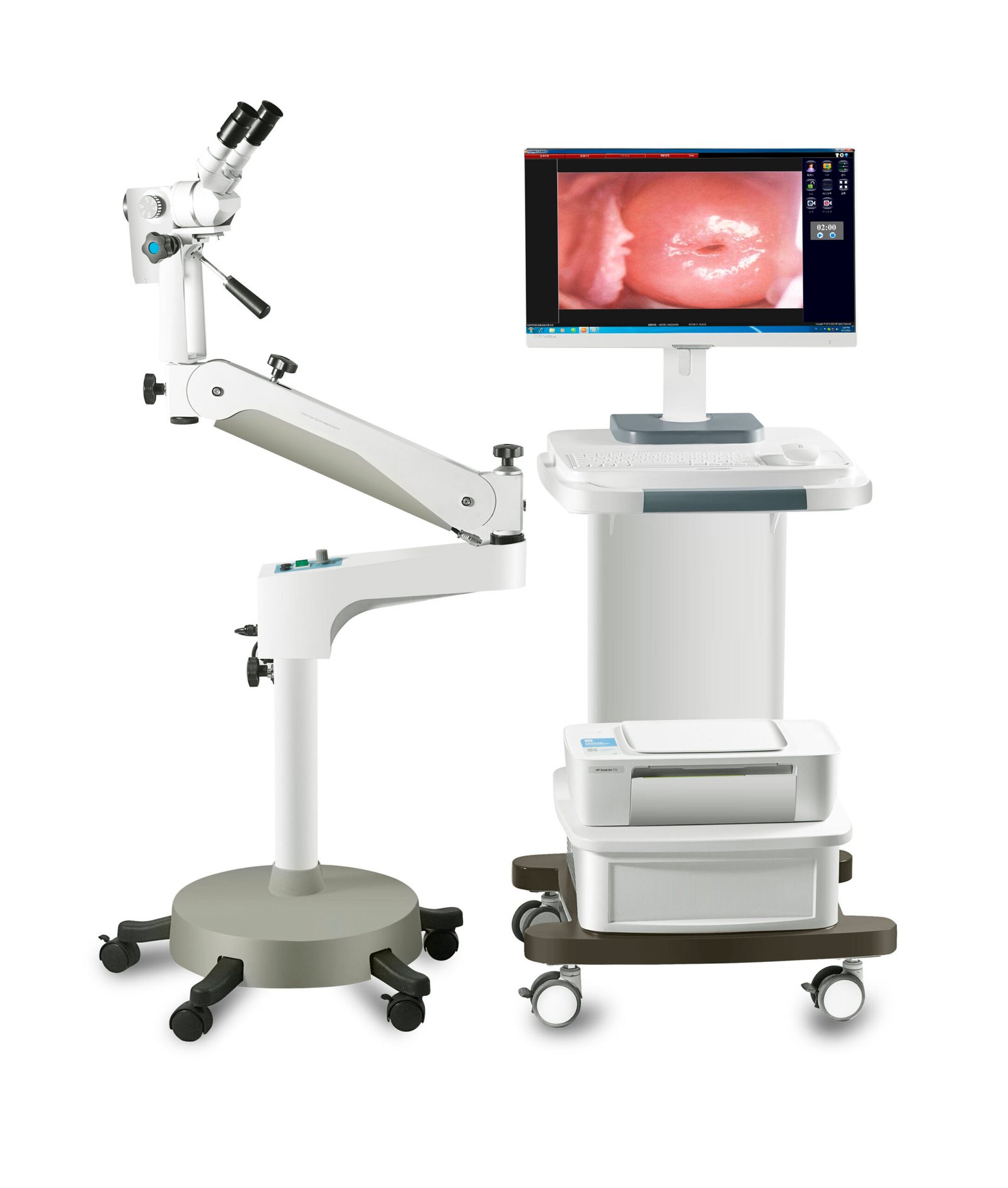

Digital Colposcope Video Machine MDLCE09
- High Resolution and Definition Camera System - Synchronous observation through the optical scope and the computer - Video output capability - Built-in scale in the observation system for measuring lesion size - Integrated computer imaging, data management, and analysis function - Unique foot switch for more convenient picture taking - Unique light source design with integrative halogen light source and ring fiber - Multi-functional specialized software for image processing and management
$9,700.00
$8,990.00
MDL

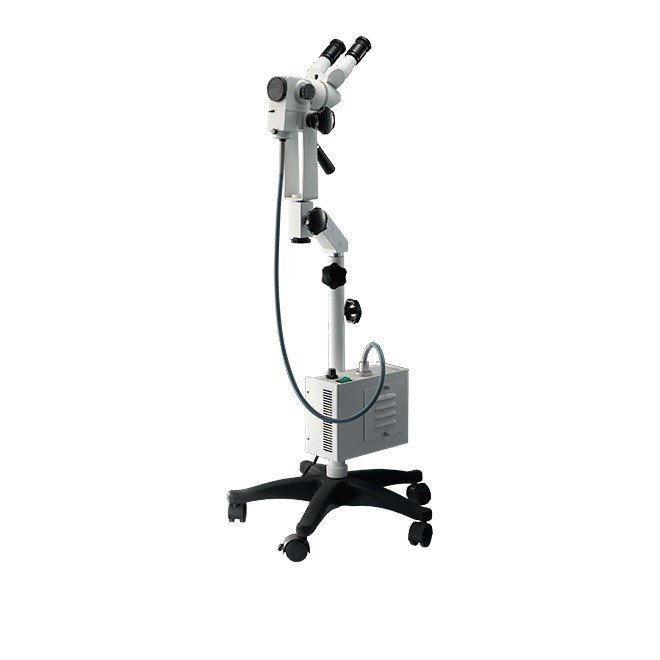

Portable Full Digital Optical Colposcope MDLCE10
4.3(3)
- High Resolution and Definition Camera System - Optimal combination of optical and digital systems for clearer view - Synchronous observation through optical scope and computer - 1/3” High resolution color CCD for detailed imaging - 5-speed Optical Amplification for enhanced magnification - Video output capability for easy recording and sharing - Unique spectral grating and fine-tuning for precise observation - Green filter included for easier detection of capillary lesions - Integrative Halogen light source with adjustable brightness for optimal illumination
$8,990.00
$8,390.00
MDL

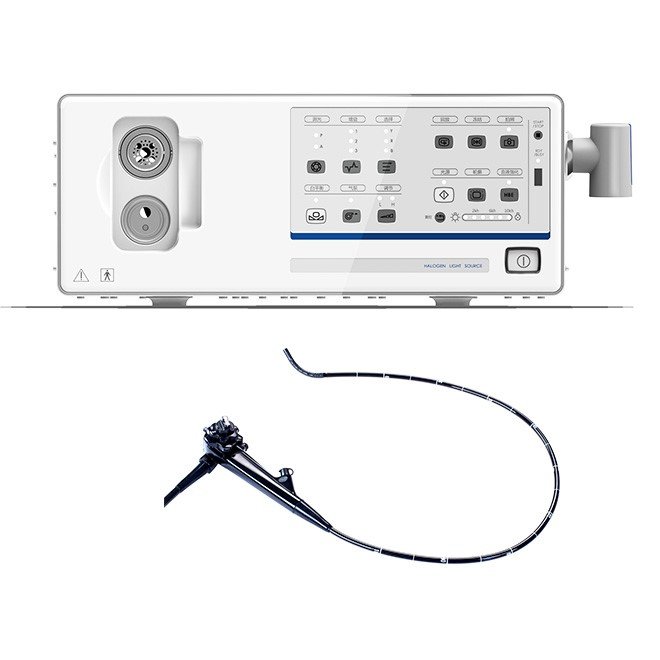

Medical Throat Endoscopy LED Light Source MDLVME23
