ECG1200G Electrocardiograph
- Collects 12-lead ECG signal simultaneously
- Prints ECG waveform with a thermal printing system
- Offers AUTO/Manual mode for recording and displaying ECG waveform
- Features auto-analysis and auto-diagnosis for routine ECG parameters
- Has multiple printing modes and formats for convenience
- Stores up to 1000 cases in built-in memory
- Multi-language interface available for broader usability
- SKU
- MDL-B75C714551
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping

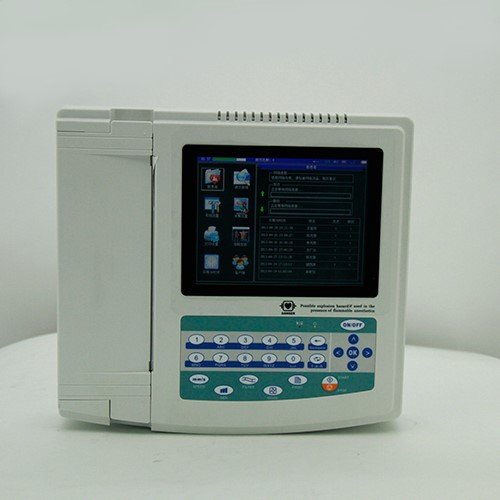

ECG1200G Electrocardiograph
A compact, portable 12-lead electrocardiograph with simultaneous signal collection, advanced digital signal processing, and comprehensive auto-analysis capabilities. Ideal for clinical settings, home visits, and body examinations with extended battery life and multi-language support.
Clinical overview
The ECG1200G is a professional-grade electrocardiograph designed for simultaneous 12-lead ECG signal collection with thermal printing capabilities. Featuring advanced digital signal processing technology, the device delivers high-quality ECG waveforms with effective power frequency, baseline, and EMG filtering. The system supports multiple display and printing modes, enabling clinicians to view and analyze ECG data in 3/6/12-lead formats on a single screen for comprehensive diagnostic comparison.
With built-in auto-analysis and auto-diagnosis functions, the ECG1200G automatically measures and interprets routine ECG parameters including heart rate, PR interval, QRS duration, QT interval, and axis calculations. The device stores up to 1000 cases in memory, supports 12 languages for global deployment, and offers exceptional battery performance with up to 10 hours of standby time and over 3 hours of continuous printing. Its compact design makes it ideal for clinical departments, mobile health services, and point-of-care testing environments.
Key features & surgeon benefits
Simultaneous 12-Lead Collection
- Synchronous 12-lead ECG signal capture with digital signal processing
- Advanced filtering: power frequency, baseline, and EMG noise reduction
- High-quality waveform output for accurate clinical diagnosis
Flexible Viewing & Printing Modes
- Multiple display formats: 3/6/12-lead on single screen
- 12+ printing modes including auto 12x1, 6x2, 3x4, and rhythm strips
- Trend charts and P-R interval histograms for comprehensive analysis
Automated Interpretation
- Auto-analysis and auto-diagnosis of routine ECG parameters
- Automatic measurement: HR, PR, QRS, QT, axis calculations
- Reduces clinician workload with intelligent diagnostic conclusions
Mobile-Ready Design
- Compact form factor suitable for home visits and body examinations
- Up to 10-hour battery standby; 3+ hours continuous operation
- Multi-language interface (12 languages) and case database management
Technical specifications
| Indications | Cardiac assessment, arrhythmia detection, ECG monitoring and diagnosis |
|---|---|
| Lead Configuration | 12-lead simultaneous collection |
| Display Modes | 3/6/12-lead formats |
| Printing Modes | Auto 12x1, 6x2+1, 6x2+1_H, 6x2, 6x2_H, 3x4+1, 3x4+2, rhythm 12/10/8/6, manual |
| Paper Speed | 5, 6.25, 10, 12.5, 25, 50 mm/s |
| Auto-Analysis Parameters | HR, PR interval, P duration, QRS duration, T duration, QT interval, QTc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1) |
| Memory Capacity | Up to 1000 cases |
| Battery Life | Up to 10 hours standby; 3+ hours continuous printing; 300 ECG recordings |
| Languages | Turkish, French, Chinese, English, German, Kazakstan, Polish, Portuguese, Russian, Slovenian, Spanish, Ukrainian |
| Power Supply | AC/DC |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG1200G Main Unit | 12-lead electrocardiograph with thermal printer and display | 1 |
| Patient Cable Assembly | 12-lead patient cable with standard connectors | 1 |
| Thermal Paper Roll | ECG thermal recording paper | 2 |
| Power Supply | AC adapter and battery pack | 1 |
| User Manual | Multi-language operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss ECG1200G specifications, pricing, delivery timelines, and customisation options for your clinical facility or distribution network.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
