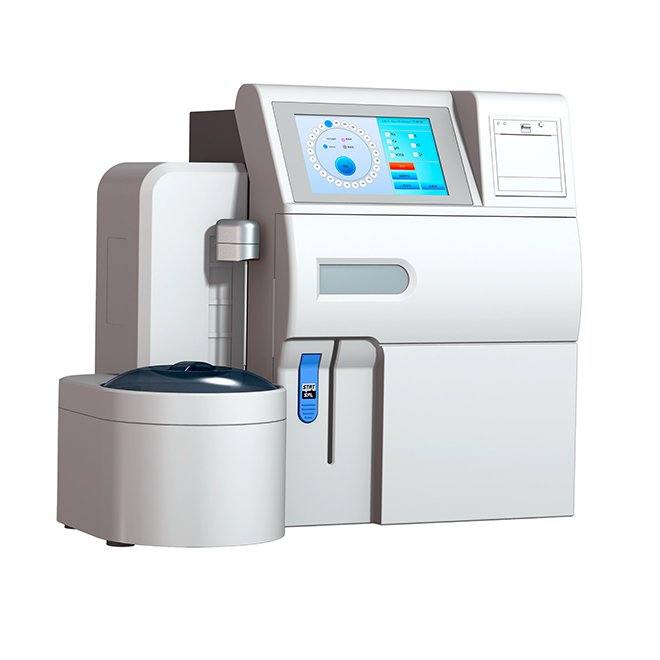

Blood Gas Electrolyte Analyzer MDLEA15
- Compact design with dimensions of 337x192x402mm for the mainframe
- Multiple sampler options: 6.5kg for the small sampler and 10kg for the big sampler
- Versatile power supply of AC100~240V, 50/60Hz for flexibility in usage
- Wide sample type compatibility including whole blood, serum, plasma, and urine
- High workload capacity of 40 Samples/Hour with TCo, 60 Samples/Hour without TCo
- Efficient sample loader with 25 positions for the small sampler and 40 positions for the big sampler
- Compatible with primary tubes or cuvettes for convenient sample handling
- SKU
- MDLEA15
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Blood Gas Electrolyte Analyzer MDLEA15
High-performance automated blood gas and electrolyte analysis system designed for clinical laboratories and point-of-care settings. Delivers rapid, accurate results from whole blood, serum, plasma, and urine samples with minimal sample volume requirements and flexible sample loading configurations.
Clinical overview
The MDLEA15 is a compact, high-throughput blood gas and electrolyte analyzer engineered for rapid turnaround in clinical laboratories and point-of-care environments. With sample throughput up to 60 samples per hour and support for multiple sample types—whole blood, serum, plasma, and urine—the system accommodates diverse clinical workflows. The analyzer operates reliably across a wide ambient temperature range (5–40°C) and accepts both primary tubes and cuvettes, providing flexibility in sample preparation and handling.
Designed with clinician efficiency in mind, the MDLEA15 requires minimal sample volume (65–150µL) and offers configurable sample loading with 25 or 40 position capacity. Its modular design—available in three form factors (mainframe, small sampler, and big sampler)—allows laboratories to select the configuration that best fits their space and throughput requirements. The system is backed by a 2-year manufacturer warranty and comprehensive lifetime support.
Key features & surgeon benefits
High-speed analysis
- 40 samples/hour with TCo measurement
- 60 samples/hour without TCo
- Minimal sample volume: 65–150µL
Flexible sample handling
- Supports whole blood, serum, plasma, urine
- Compatible with primary tubes or cuvettes
- 25 or 40 position sample loader options
Robust operation
- Wide power supply range: AC100–110V/240V, 50/60Hz
- Ambient temperature tolerance: 5–40°C
- Humidity tolerance: ≤85% relative humidity
Modular configuration
- Three size options for space optimization
- Lightweight: 6.5–17kg depending on configuration
- Compact footprint for bench-top placement
Technical specifications
| Indications | Blood gas analysis, electrolyte measurement, acid-base status assessment |
|---|---|
| Sample types | Whole blood, serum, plasma, urine |
| Sample volume | 65–150µL |
| Sample loader capacity | 25 or 40 positions |
| Throughput | 40 samples/hour (with TCo), 60 samples/hour (without TCo) |
| Dimensions (Mainframe) | 337×192×402mm |
| Dimensions (Small sampler) | 347×277×451mm |
| Dimensions (Big sampler) | 570×425×380mm |
| Weight (Mainframe) | 17kg |
| Weight (Small sampler) | 6.5kg |
| Weight (Big sampler) | 10kg |
| Power supply | AC100–110V/240V, 50/60Hz |
| Ambient temperature | 5–40°C |
| Relative humidity | ≤85% |
| Sample tube compatibility | Primary tube or cuvette |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Mainframe unit | Core analyzer module with measurement chamber and electronics | 1 |
| Sample loader | 25 or 40 position carousel (customer selectable) | 1 |
| Power cable | AC power supply cord with appropriate regional connector | 1 |
| User manual | Comprehensive operating and maintenance documentation | 1 |
| Quality control materials | Calibration and QC solution set (initial supply) | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your laboratory's specific requirements, request a detailed quote, or arrange a product demonstration of the MDLEA15 analyzer.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →
Medical Enteral Feeding Pump with Optional Liquid Warmer MDLIS29
- The Medical Enteral Feeding Pump MDLIS29 is a reliable and accurate device for enteral feeding. - It offers a flow rate of 1-2000 ml/h in various increments for precise control. - The pump features alarms for occlusion, air-in-line, and other malfunctions to ensure patient safety. - With additional features like real-time infused volume and history log, monitoring and tracking are made easy. - Optional features include a liquid warmer with over-temperature alarm for patient comfort. - The pump can be powered by AC, battery, or even in a vehicle with a 12 V power supply. - Designed for safety, it has IPX5 fluid ingress protection and is classified as Class II, type CF.

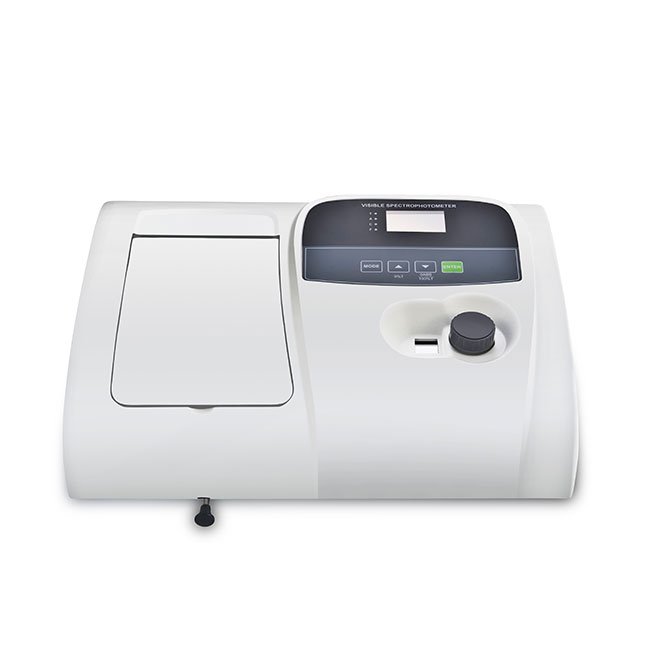

Visible Spectrophotometer Machine MDLUV08
- Single beam visible spectrophotometer ideal for routine analysis - Microprocessor controlled for easy operation - High resolution with 12000 line grating monochromator - Equipped with USB port for data output to PC - Compact design for easy portability - Four display modes for different measurements - Wavelength range: 325-1000nm - Spectral bandwidth: 4nm - Photometric accuracy: ±0.5%T

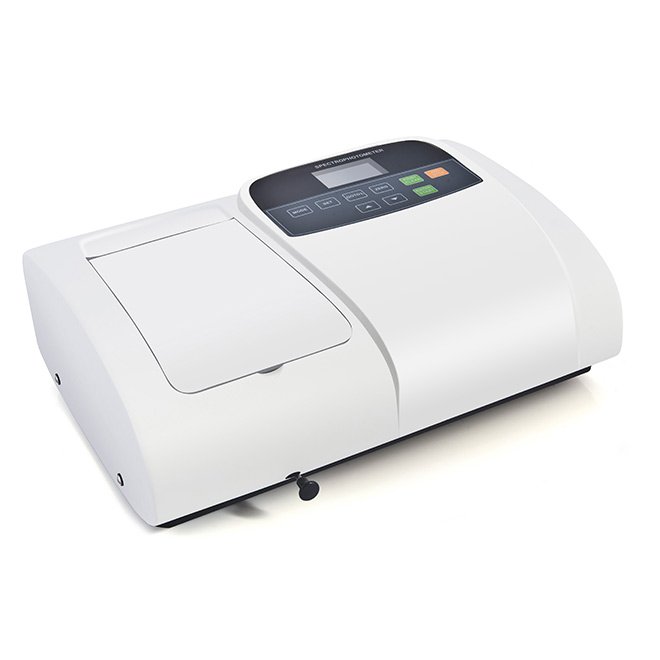

LCD Screen Uv Visible Spectrophotometer MDLUV09
- LCD screen UV visible spectrophotometer model MDLUV09 - Equipped with a 2.5' LCD screen for clear display of standard curves and results - Can set up various standard curves for different solutions - Imported deuterium lamp for low stray light and accurate results - USB port for data output and connectivity to PC - Multiple results readout for wavelength, absorption, and transmittance - Automatic wavelength setting to avoid errors

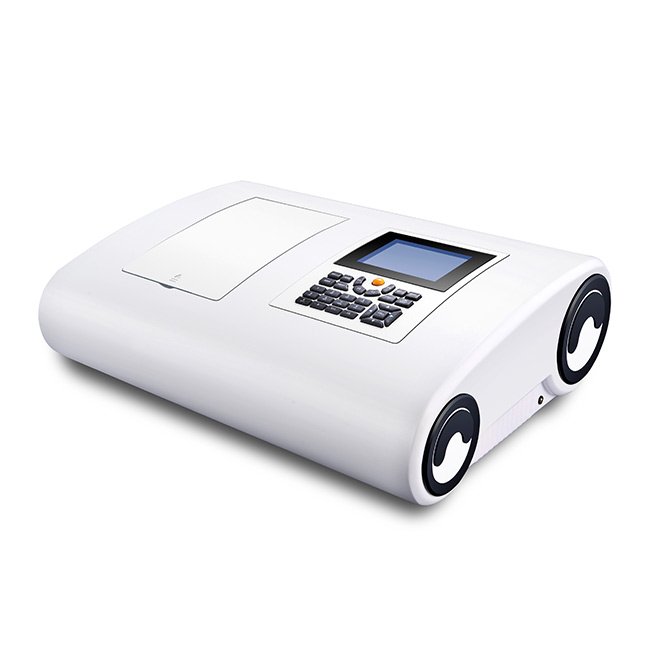

Double Beam Uv Visible Spectrophotometer MDLUV12
- Wide screen double beam spectrophotometer MDLUV12 - Features long light path design for stability and accuracy - Powerful software functions for spectrum scanning, standard curve, kinetics, and more - Unique 520mm long light path design for improved resolution - Equipped with a 6 inches LCD display for easy viewing of results and curves - Calibration system for automatic calibration of baseline, wavelength, and dark current - USB port for data output and connection to a PC

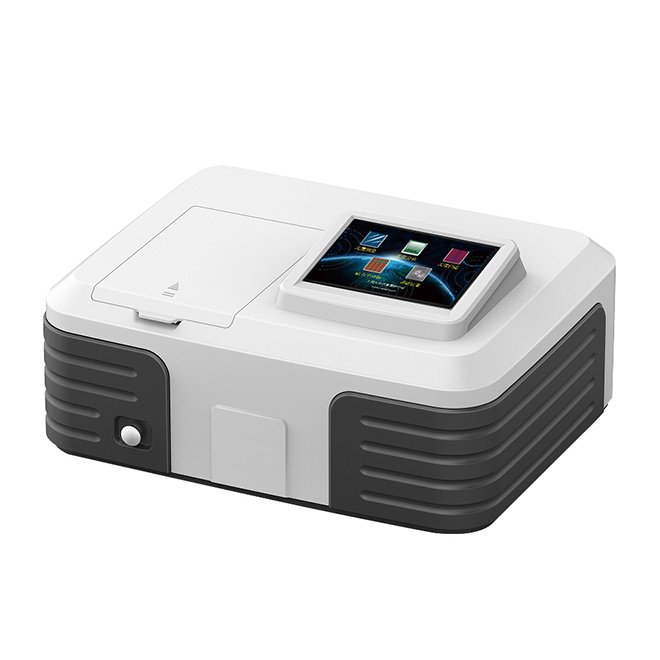

Portable Uv/vis Spectrophotometer MDLUV15
- Touch Screen Portable UV/VIS spectrophotometer MDLUV15 with intelligent alarm function and system encryption - Features an 800x480 touch screen display for clear graphs and data viewing - Stand-alone system for spectrum measurement, quantitative analysis, and more - Rigid 8mm die-case aluminum base for stability and reliability - Automatic system calibration and positioning for accuracy - Can print data and graphs in A4 format directly via USB connection to a printer - Wavelength range: 190-1000nm, spectral bandwidth: 2nm - Photometric accuracy: ±0.2%T(0-100%T), baseline flatness: ±0.001A

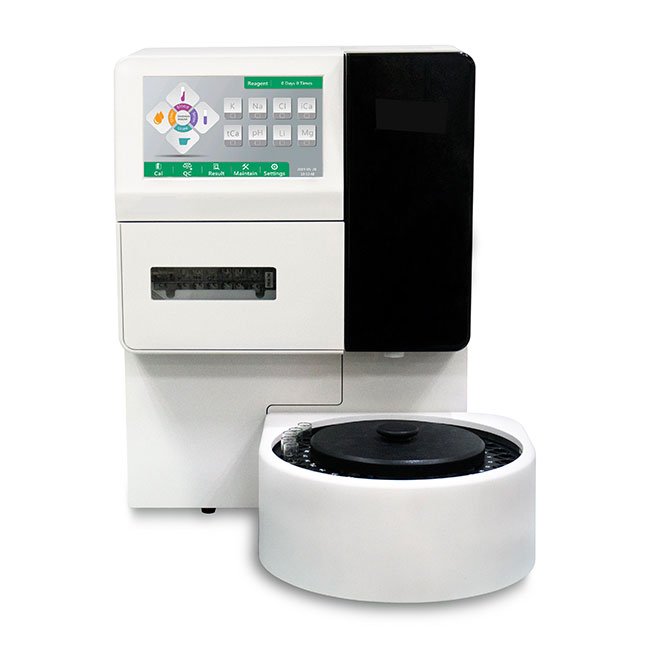

Automatic Blood & Gas Electrolyte Analyzer Machine MDLEA03
- Ion selective electrode method for accurate results - Measures K+, Na+, Cl-, Ca++, Li+, and pH parameters - Offers various combinations of parameter tests - Throughput of 100 samples per hour for efficient testing - Supports different sample types including whole blood, serum, and urine - Automatic and manual calibration options for accuracy - Features collision detection and automatic probe cleaning - Equipped with a 7-inch color touch screen and built-in printer - Multiple interface options for connectivity and data transfer

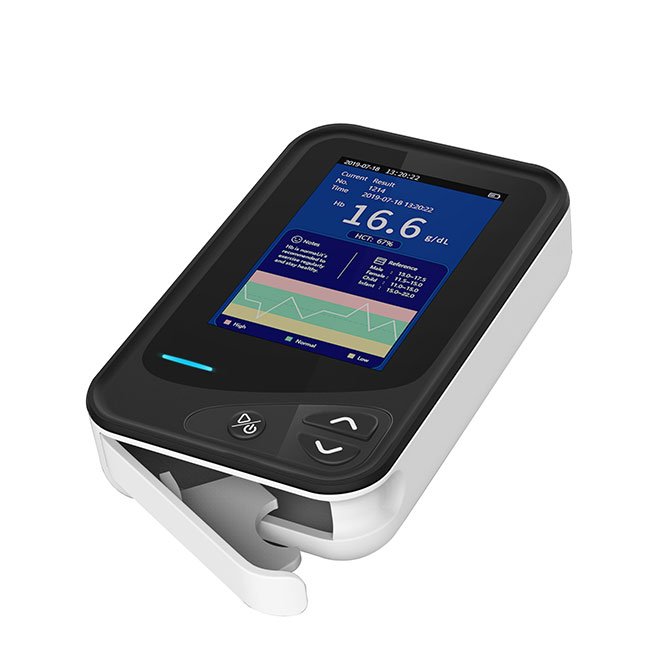

Hemoglobin Analyzer Meter Machine MDLAH01
