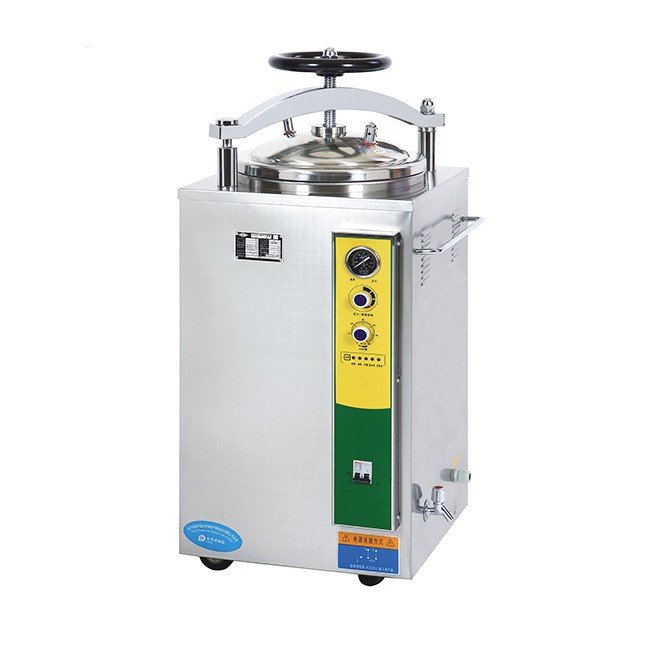

Steam Sterilizer Autoclave | Vertical Autoclave MDLPS10 35L
- 35L chamber volume (φ318×450)mm
- Working pressure of 0.22MPa
- Working temperature of 134℃
- Max working pressure of 0.23 Mpa
- Heat average of ≤±1℃
- Timer range from 0 to 60 minutes
- Power of 2.5Kw/AC220V.50Hz
- SKU
- MDLPS10
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Steam Sterilizer Autoclave | Vertical Autoclave MDLPS10 35L
Compact vertical steam sterilizer with 35L chamber capacity, designed for efficient space utilization in medical and laboratory environments. Delivers precise temperature control from 105°C to 134°C with heat accuracy of ±1°C and adjustable timer settings up to 60 minutes for reliable sterilization outcomes.
Clinical overview
The MDLPS10 vertical steam sterilizer is engineered for medical facilities and laboratories requiring dependable, space-efficient sterilization. Its compact footprint (450×450×1010mm) and lightweight design (56kg net weight) facilitate easy installation and relocation without compromising chamber capacity or performance. The device operates at 0.22MPa working pressure with a maximum of 0.23MPa, delivering consistent steam penetration across diverse instrument loads.
Precision temperature control spanning 105°C to 134°C, combined with heat accuracy of ±1°C and programmable timer intervals from 0 to 60 minutes, ensures reproducible sterilization cycles tailored to specific material requirements. The 2.5kW power consumption at AC110V/220V, 50/60Hz makes it suitable for standard medical facility electrical infrastructure, while the robust construction supports continuous clinical and laboratory workflows.
Key features & surgeon benefits
Optimized Chamber Volume
- 35L standard capacity with expandable options (50L, 75L, 100L)
- Vertical design maximizes floor space efficiency
- Accommodates diverse instrument sets and laboratory equipment
Temperature & Timing Accuracy
- Adjustable temperature range 105°C to 134°C
- Heat accuracy of ±1°C for consistent results
- Programmable timer: 0–60 minutes for flexible cycle management
Compact & Lightweight Design
- Overall dimensions: 450×450×1010mm
- Net weight: 56kg for easy transport and installation
- Minimal footprint without sacrificing performance
Scalable Solutions
- Multiple chamber sizes available for different facility needs
- OEM and custom configuration support
- Adaptable power specifications for regional requirements
Technical specifications
| Indications | Medical instruments, laboratory equipment, general sterilization |
|---|---|
| Chamber Volume | 35L (φ318×450mm); expandable to 50L, 75L, 100L |
| Working Pressure | 0.22MPa (35L–75L); 0.14MPa (100L) |
| Maximum Pressure | 0.23MPa (35L–75L); 0.165MPa (100L) |
| Working Temperature | 134°C (35L–75L); 126°C (100L) |
| Temperature Adjustment Range | 105°C to 134°C (35L–75L); 105°C to 126°C (100L) |
| Heat Accuracy | ±1°C |
| Timer Range | 0–60 minutes |
| Power Consumption | 2.5kW at AC110V/220V, 50/60Hz (35L); 3kW (50L); 4.5kW (75L–100L) |
| Overall Dimensions | 450×450×1010mm (35L); 510×470×1130mm (50L); 560×560×1120mm (75L); 540×560×1250mm (100L) |
| Net Weight | 56kg (35L); 68kg (50L); 80kg (75L); 85kg (100L) |
| Sterilisation Method | Steam sterilization |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| MDLPS10 Autoclave Unit | Complete vertical steam sterilizer with control panel and safety features | 1 |
| Power Cable | AC110V/220V, 50/60Hz connection cable | 1 |
| Water Supply Hose | For steam generation and chamber operation | 1 |
| Drain Hose | For condensate and waste water removal | 1 |
| User Manual | Operation, maintenance, and safety documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your sterilization requirements, explore multi-capacity configurations, and arrange delivery. We provide comprehensive support, technical guidance, and OEM customization options.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
