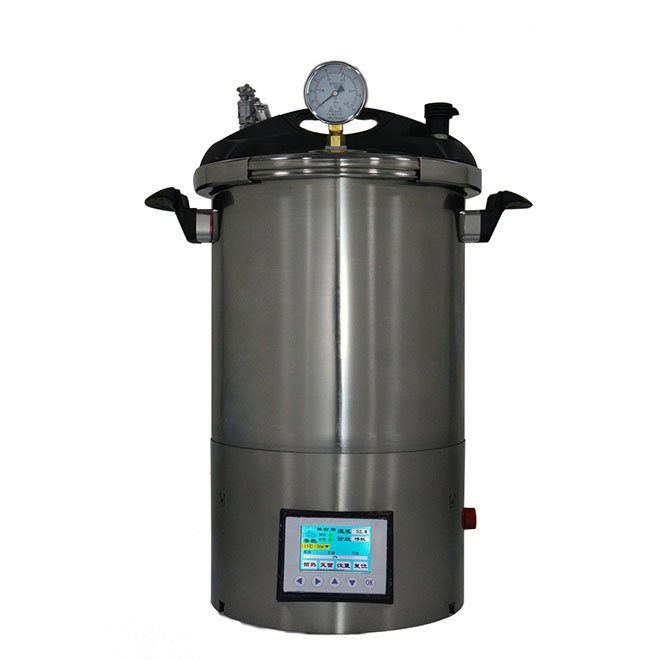

Portable Pressure Steam Sterilizer Machine MDLTA23
- High-quality stainless steel construction for durability
- Volume of sterilizing tank: 20 L with inner diameter of 280 mm
- Capacity of inner barrel: 12 L with inner diameter of 250 mm
- Working temperature range: 115℃~126℃ for effective sterilization
- Precise working pressure range: 0 MPa~0.15 MPa
- Sterilization timing range from 1 to 30 minutes for flexibility
- Energy-efficient operation with 1.5 kW power
- Compact and portable design with a net weight of 10 kg
- SKU
- MDLTA23
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Portable Pressure Steam Sterilizer Machine MDLTA23
Compact, high-performance portable autoclave engineered for clinics, dental practices, and surgical centers. Delivers reliable steam sterilization with precise temperature and pressure control in a lightweight, transportable design.
Clinical overview
The MDLTA23 is a portable pressure steam sterilizer designed for high-volume instrument processing in resource-constrained and mobile clinical environments. Built entirely from premium stainless steel (SS304), it delivers consistent, reliable sterilization across a wide range of surgical instruments, dental tools, and medical equipment. The 12 L inner barrel capacity accommodates standard instrument trays while maintaining compact footprint and portability.
With precise digital temperature control (±1°C accuracy), adjustable sterilization cycles (1–30 minutes), and working pressures up to 0.15 MPa, the MDLTA23 meets international sterilization standards. Its energy-efficient 1.5 kW power consumption and lightweight 10 kg design make it ideal for clinics, dental practices, surgical centers, and field medical operations requiring dependable, on-demand sterilization without compromising on safety or performance.
Key features & surgeon benefits
Premium Stainless Steel Construction
- Full SS304 tank, inner barrel, pipes, and heater assembly
- Corrosion-resistant and long-service life
- Withstands repeated high-pressure cycles without degradation
Rapid Cycle & Portability
- Adjustable sterilization timing from 1 to 30 minutes
- Lightweight 10 kg design for easy transport between facilities
- Compact benchtop footprint (445 × 315 × 580 mm)
Accurate Temperature & Pressure Control
- Operating range 115–126°C with ±1°C precision
- 0.1°C resolution for fine-tuned sterilization parameters
- Relative pressure 0–0.15 MPa for safe, consistent results
Energy Efficient & Cost-Effective
- 1.5 kW power consumption at 110V/220V (50/60Hz)
- Lower operating costs compared to larger autoclaves
- 12 L capacity ideal for small to mid-volume practices
Technical specifications
| Indications | Sterilization of surgical instruments, dental tools, medical equipment, and laboratory supplies |
|---|---|
| Sterilizing tank volume | 20 L (inner diameter 280 mm, height 280 mm) |
| Inner barrel capacity | 12 L (inner diameter 250 mm, height 250 mm) |
| External dimensions | Length 445 mm × Width 315 mm × Height 580 mm |
| Operating temperature | 115–126°C (resolution 0.1°C, precision ±1°C) |
| Working pressure | 0–0.15 MPa (relative pressure) |
| Sterilization timing | 1–30 minutes (adjustable) |
| Material | Stainless steel (SS304) — tank, inner barrel, pipes, heater |
| Power rating | 1.5 kW at 110V/220V AC (50/60Hz) |
| Net weight | 10 kg |
| Sterilisation method | Saturated steam pressure sterilization |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Portable Pressure Steam Sterilizer | Complete MDLTA23 unit with control panel, safety valve, and drain system | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your sterilization requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery options and customization for OEM and bulk orders.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
