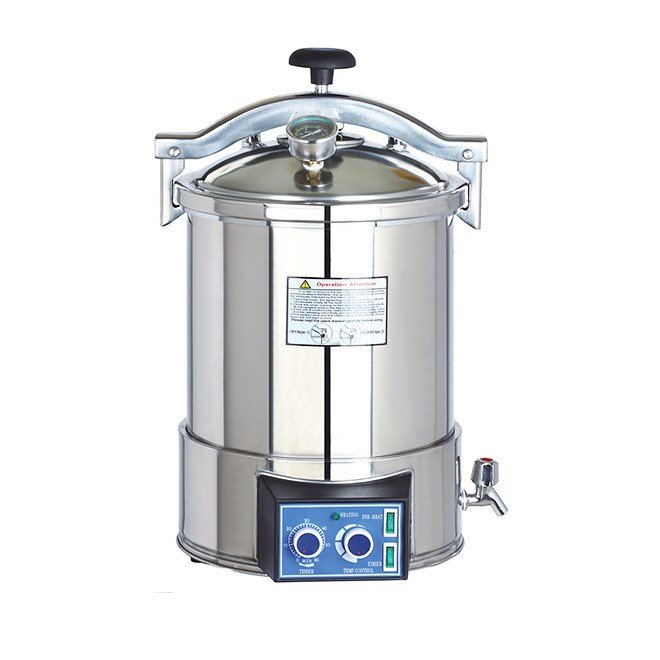

Portable Autoclave MDLPS17
- The Portable Autoclave MDLPS17 is available in two sizes: 18L (280*260mm) and 24L (280*390mm) sterilizing room volumes
- Offers a working pressure range of 0.14-0.16MPa and a working temperature of 126℃
- Adjustable temperature range from 105℃ to 126℃ for various sterilization needs
- Features a timer range of 0-60 minutes for precise sterilization cycles
- Equipped with a max safety pressure of 0.165Mpa for safe operation
- Ensures heat average of ≤±1℃ for consistent sterilization results
- Operates on AC220V, 50Hz power with 2KW power consumption
- SKU
- MDLPS17
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Portable Autoclave MDLPS17
Compact, portable steam sterilization system designed for clinical and laboratory environments. Delivers consistent high-pressure steam sterilization with dual chamber options (18L or 24L), precise temperature control, and reliable performance in a lightweight, transportable unit.
Clinical overview
The Portable Autoclave MDLPS17 is a compact, high-performance steam sterilization system engineered for clinical, surgical, and laboratory environments where reliable sterilization and portability are essential. The unit combines precision pressure and temperature control with a lightweight, transportable design, making it ideal for mobile surgical units, field clinics, and distributed healthcare facilities.
With dual chamber options (18L and 24L), adjustable temperature settings (105–126°C), and a timer range up to 60 minutes, the MDLPS17 delivers consistent, validated sterilization cycles for a wide range of surgical instruments and medical devices. The robust safety features, including maximum pressure monitoring and temperature uniformity (±1°C), ensure reliable performance and operator safety in demanding clinical settings.
Key features & surgeon benefits
Lightweight & Compact
- Weighs only 12–14 kg for easy transport and relocation
- Compact dimensions: 410×410×630 mm (18L) or 410×410×750 mm (24L)
- Ideal for mobile surgical teams, field clinics, and distributed facilities
Reliable Sterilization Cycles
- Temperature control ±1°C for consistent results
- Adjustable temperature range: 105–126°C
- Programmable timer: 0–60 minutes for flexible cycle management
Robust Pressure Management
- Working pressure: 0.14–0.16 MPa with maximum safety limit of 0.165 MPa
- Integrated pressure monitoring and safety relief systems
- Meets clinical sterilization standards and regulatory requirements
Dual Chamber Options
- 18L chamber for smaller instrument sets and space-limited environments
- 24L chamber for larger surgical trays and higher throughput
- Choose the configuration that matches your clinical workflow
Technical specifications
| Indications | Sterilization of surgical instruments, laboratory equipment, and medical devices |
|---|---|
| Chamber Volumes | 18L (280×260 mm) or 24L (280×390 mm) |
| Working Pressure | 0.14–0.16 MPa |
| Maximum Safety Pressure | 0.165 MPa |
| Working Temperature | 126°C |
| Temperature Adjustment Range | 105–126°C |
| Temperature Uniformity | ±1°C |
| Timer Range | 0–60 minutes |
| Power Supply | AC 110V/220V, 50/60Hz, 2 kW |
| Dimensions (18L) | 410×410×630 mm |
| Dimensions (24L) | 410×410×750 mm |
| Weight (18L) | 12 kg (net), 13 kg (gross) |
| Weight (24L) | 14 kg (net), 15 kg (gross) |
| Sterilisation Method | Steam sterilization |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Portable Autoclave Unit | Complete sterilization chamber with integrated controls and safety systems | 1 |
| Power Cable | AC 110V/220V, 50/60Hz rated electrical connection | 1 |
| Instruction Manual | Operating and maintenance documentation | 1 |
| Safety Documentation | Regulatory compliance and safety information | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your sterilization requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery options and comprehensive support for all MDLPS17 installations.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
