Radiographic Contrast Media Injector Control Machine MDLGT04
- The Radiographic Contrast Media Injector Control Machine MDLGT04 is a high-tech medical device designed for precision injections.
- It features a color touch screen console that allows for easy operation and monitoring.
- With a syringe capacity of 65ml, it offers precise control over flow rates from 0.1 ml/sec. to 10 ml/sec.
- The machine has a pressure limit of 350 psi and can store up to 100 protocols for efficient workflow.
- It also includes an emergency stop function for added safety during procedures.
- The machine's autofill feature allows for customizable flow rates and volumes, while the hand switch enables convenient pause and continue injection control.
- The system ensures patient safety by expelling air locks before injections, and it offers test injection capabilities for accuracy checks.
- SKU
- MDLGT04
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Radiographic Contrast Media Injector Control Machine MDLGT04
Advanced automated contrast media injection system with precise flow control, multi-phase injection capability, and intuitive touch-screen interface. Designed for high-volume radiographic and fluoroscopic procedures with enhanced safety features and customizable injection protocols.
Clinical overview
The MDLGT04 is a fully automated radiographic contrast media injector control machine engineered for precision, reliability, and operator safety in high-volume imaging environments. The system combines an injector arm with pedestal, intuitive color touch-screen console, and main control box to deliver consistent, repeatable contrast injections across diverse radiographic and fluoroscopic protocols. With adjustable flow rates from 0.1 to 10 ml/sec and support for up to 8 injection phases, the MDLGT04 accommodates a wide range of clinical applications while maintaining strict pressure control at 350 psi.
The multilingual interface (English, French, German, Chinese) and extensive protocol storage (up to 100 custom protocols) enable rapid workflow optimization and seamless integration into existing imaging departments. Advanced safety features including emergency stop functionality, air-lock expel detection, and independent KVO (keep-vein-open) programming ensure patient safety and procedural reliability.
Key features & surgeon benefits
Accurate Flow & Volume Delivery
- Flow rate adjustable 0.1–10 ml/sec in 0.1 ml increments
- Volume control from 0.1 ml to 65 ml syringe capacity
- Up to 8 injection phases for complex protocols
Streamlined Operation & Automation
- Autofill feature with settable flow rates (3–8 ml/sec)
- Store and recall 100 custom injection protocols
- Multilingual touch-screen interface (English, French, German, Chinese)
Integrated Safety Systems
- Emergency stop function on any touch-screen point or arm button
- Air-lock expel detection prevents injection without purging
- Independent KVO program for consistent flow maintenance
Customizable & Adaptable
- Pause phases up to 999 seconds for scan delay coordination
- Test injection capability (0.1–5 ml/sec, 0.1–10 ml volume)
- Optional heat maintainer (35–38°C) for temperature-sensitive media
Technical specifications
| Indications | Radiographic and fluoroscopic imaging procedures requiring contrast media injection |
|---|---|
| Syringe Capacity | 65 ml |
| Flow Rate Range | 0.1–10 ml/sec in 0.1 ml increments |
| Volume Control | 0.1 ml to syringe capacity in 0.1 ml increments |
| Pressure Limit | 350 psi (2415 kPa) factory set |
| Injection Phases | Up to 8 phases with pause capability (0–999 sec) |
| Scan Delay | 0–3599 seconds in 1 sec increments |
| Hold Capability | More than 30 minutes |
| Protocol Storage | 100 custom protocols |
| Interface Languages | English, French, German, Chinese |
| Warranty | 2 Year Manufacturer Warranty |
System dimensions & specifications
| Component | Dimension | Weight |
|---|---|---|
| Injector Arm & Pedestal | 22.5″ L × 22.5″ W × 50.2″ H (57.2 × 57.2 × 127.5 cm) | 14 kg |
| Console | 4.55″ L × 12.68″ W × 9.77″ H (11.55 × 31.8 × 24.81 cm) | 4.1 kg |
| Main Control Box | 16.2″ L × 7.4″ W × 10.0″ H (41.2 × 18.8 × 25.3 cm) | 7.2 kg |
| Electrical Input (Arm) | AC 198–242V, 50/60 Hz, 200VA or 8Ah Lithium polymer battery | — |
| Electrical Input (Console) | DC 12V, 2A | — |
Standard system composition
| Item | Description | Qty |
|---|---|---|
| Injector Arm & Pedestal | Main injection mechanism with motorized syringe drive and positioning control | 1 |
| Color Touch-Screen Console | Multilingual interface (English, French, German, Chinese) with protocol management | 1 |
| Main Control Box | Central processing unit with electrical and safety control systems | 1 |
| Hand Switch | Wireless control for pause and continue injection functions | 1 |
| Power Supply & Cables | AC/DC power adapters and interconnect cables | 1 set |
| Syringe Holder & Accessories | 65 ml syringe accommodation and quick-change components | 1 set |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, pricing, delivery timelines, and integration support for your imaging department.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →

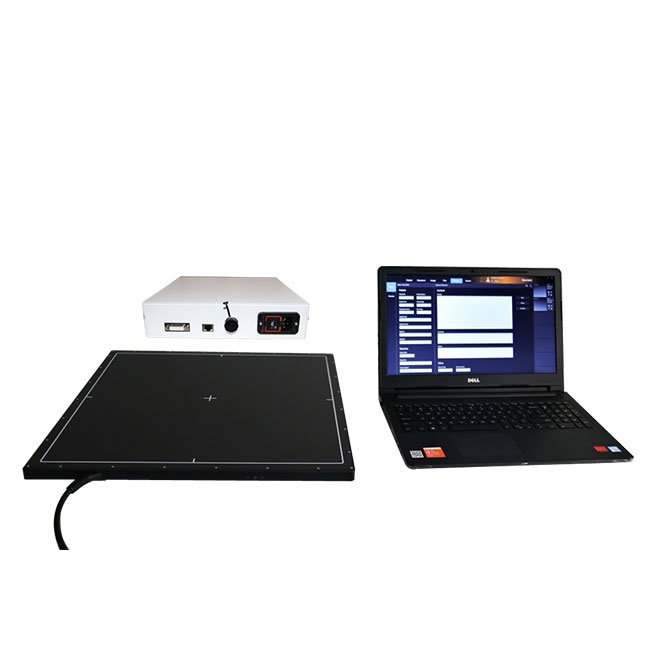

Portable High Resolution Flat Panel Detectors Machine MDLFP01
