- Gas driven portable ventilator suitable for adults and children
- Electronically controlled operation with LCD display
- Ventilation modes include IPPV, SIMV, A/C, SIGH, MANUAL, CPAP (optional)
- Tidal volume range from 0 to 1500ml with adjustable I:E ratio
- Monitoring parameters for tidal volume, minute volume, breathing rate, and airway pressure
- Alarms for low tidal volume, high minute volume, and high airway pressure
- Lightweight design (3.5kg) with dimensions of 310mm x 190mm x 115mm
- Battery operated with a minimum 2-hour battery life
- Ideal for respiratory depression, paralysis, and emergency rescue situations
Electronically controlled, gas-driven portable ventilator designed for emergency rescue in vehicles and portable stretchers. Supports both paediatric and adult patients with multiple ventilation modes, real-time LCD monitoring, and comprehensive alarm systems for critical care transport.

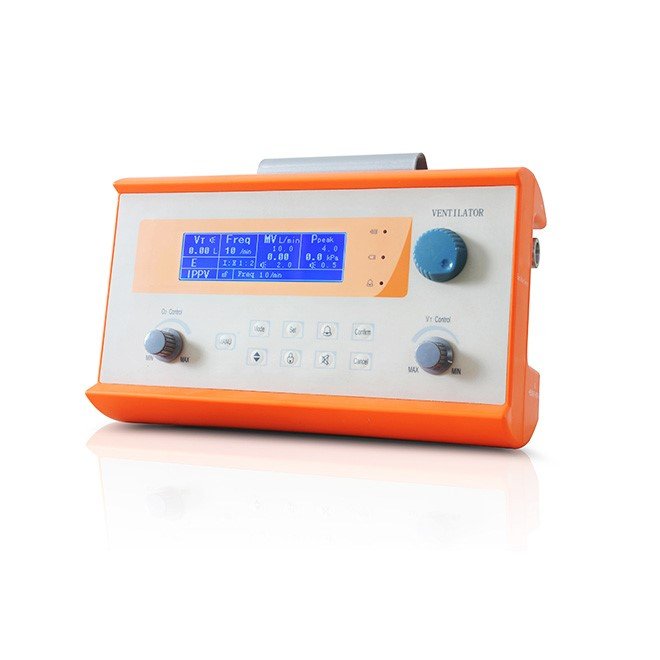

The MDLVM17 is a compact, electronically controlled portable ventilator engineered for emergency respiratory support in pre-hospital and transport settings. Suitable for both paediatric and adult patients, it delivers reliable ventilation during respiratory depression, paralysis, or acute failure. The gas-driven operation with electronic control ensures consistent performance across diverse field environments, from ambulances to portable stretchers.
With multiple ventilation modes (IPPV, SIMV, A/C, SIGH, MANUAL, and optional CPAP), adjustable tidal volumes up to 1500 ml, and real-time LCD monitoring of vital parameters, clinicians gain precise control and visibility. Integrated alarms for tidal volume, minute volume, and airway pressure provide critical safety oversight, while a 2-hour battery life ensures uninterrupted care during transport.
| Indications | Respiratory depression, respiratory paralysis, respiratory failure; emergency rescue in vehicles or portable stretchers |
|---|---|
| Patient population | Paediatric and adult |
| Drive system | Gas-driven with electronic control |
| Ventilation modes | IPPV, SIMV, A/C, SIGH, MANUAL, CPAP (optional) |
| Tidal volume | 0–1500 ml |
| Breathing rate | 4–99/min; 4–65/min under SIMV |
| I:E ratio | 3:1 to 1:5 |
| FiO₂ range | 48–100% |
| Gas source | Pure air or oxygen |
| Pressure trigger sensitivity | –2 to 0 kPa |
| PEEP | 0–20 cmH₂O (optional) |
| Display | LCD with monitoring of tidal volume, minute volume, breathing rate, airway pressure |
| Alarms | No VT, MV too high/low, airway pressure too high/low, AC power off, backup battery low; audio and visual alerts |
| Power supply | Battery (≥2 hours) and AC 110V/220V/50/60Hz |
| Dimensions | 310 × 190 × 115 mm (L × H × W) |
| Net weight | 3.5 kg |
| Operating temperature | 5–40 °C |
| Operating humidity | <80% relative humidity |
| Storage temperature | –10 to 40 °C |
| Storage humidity | <90% relative humidity |
| User manual | English (standard) |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Main body | Portable ventilator unit with electronic control and LCD display | 1 |
| Oxygen cylinder | 3 L oxygen cylinder for gas supply | 1 |
| Silicon mask/circuit | Medical-grade silicon mask and breathing circuit for patient interface | 1 |
| Accessories | Additional components required for basic operation | As required |
Contact our sales team to discuss the MDLVM17 portable ventilator, pricing, delivery timelines, and customisation options for your emergency transport or clinical programme.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
