Impressed all round
We've been using this in our department for a few weeks now and it feels solid and properly engineered. The finish is clean and professional. No complaints so far.
Dr. Victoria Evans, Orthopaedic SurgeonVerified buyerJun 14, 2026
MDL

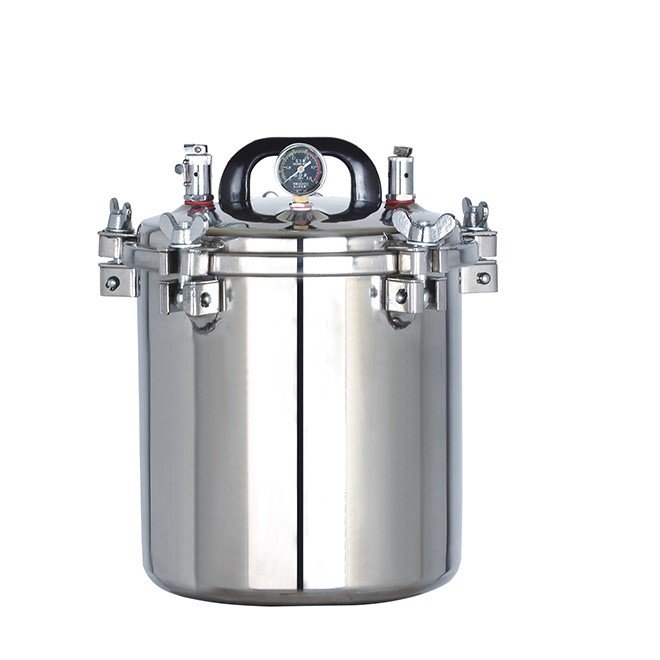

Portable Laboratory Autoclaves MDLPS13
4.0(3 reviews)- Sterilizing volume of 12L ideal for small laboratory settings
- Working pressure range of 0.14-0.16 Mpa for efficient sterilization
- Maximum safety pressure of 0.165 Mpa for added security
- Compact dimensions of 360×360×420 mm for easy placement
- Power consumption of AC220V/50Hz/2KW for energy efficiency
- Working temperature of 126℃ for thorough sterilization
- Lightweight design with a G.W/N.W of 12/11KG for portability
- SKU
- MDLPS13
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Sterilization Equipment
Portable Laboratory Autoclaves MDLPS13
Compact, portable sterilization solution designed for laboratories, clinics, and research facilities. The MDLPS13 delivers reliable steam sterilization with a 12-liter capacity, operating at consistent pressure and temperature parameters to ensure effective decontamination of laboratory instruments and equipment.
Ordering Ref.
MDLPS13
ConfigurationBenchtop Autoclave
MaterialStainless Steel Chamber
ApplicationLaboratory & Clinical
Customization available for OEM integration and facility-specific requirements. Contact sales for bespoke configurations.
Clinical overview
The MDLPS13 is a compact, portable laboratory autoclave engineered for efficient steam sterilization in resource-constrained and mobile clinical environments. With a 12-liter sterilizing chamber (240mm × 200mm), it accommodates standard laboratory instruments, glassware, and surgical tools. Operating at a controlled working temperature of 126°C and pressure range of 0.14–0.16 MPa, the device ensures consistent, validated sterilization cycles while maintaining user safety through a maximum safety pressure threshold of 0.165 MPa.
Designed for ease of use, the MDLPS13 features a user-friendly interface for straightforward operation and real-time monitoring. Its lightweight construction (11 kg net, 12 kg gross) and compact footprint (360 × 360 × 420 mm) enable rapid deployment across laboratory benches, clinic sterilization rooms, and field research stations. Powered by standard AC110V/220V/50/60Hz supply with 2 kW consumption, it integrates seamlessly into existing facility infrastructure without requiring specialized electrical modifications.
Key features & surgeon benefits
Capacity
Efficient 12-Liter Chamber
- 240mm × 200mm sterilizing volume accommodates diverse instrument sets
- Optimized for laboratory and clinical-scale operations
- Rapid cycle times for high-throughput sterilization needs
Workflow
Intuitive Operation & Monitoring
- User-friendly interface for straightforward cycle initiation and tracking
- Real-time pressure and temperature display
- Portable design enables flexible placement and relocation
Safety & Reliability
Validated Sterilization Parameters
- Consistent 126°C operating temperature with 0.14–0.16 MPa pressure control
- Maximum safety pressure of 0.165 MPa with integrated pressure relief
- Stainless steel construction for durability and corrosion resistance
Deployment
Compact & Portable
- Lightweight (11 kg net) for easy transport between facilities
- Benchtop footprint (360 × 360 × 420 mm) fits standard laboratory spaces
- Standard AC110V/220V/50/60Hz power supply with 2 kW consumption
Technical specifications
| Indications | Laboratory and clinical instrument sterilization |
|---|---|
| Sterilizing Volume | 12L (240mm × 200mm) |
| Working Pressure | 0.14–0.16 MPa |
| Working Temperature | 126°C |
| Maximum Safety Pressure | 0.165 MPa |
| Power / Consumption | AC110V/220V / 50/60Hz / 2 kW |
| Dimensions | 360 × 360 × 420 mm |
| Weight (Gross / Net) | 12 kg / 11 kg |
| Material | Stainless steel chamber |
| Sterilisation Method | Steam sterilization |
| Packaging | Standard shipping carton with protective foam |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Autoclave Unit | Portable laboratory autoclave with stainless steel chamber | 1 |
| Power Cord | AC110V/220V/50/60Hz connection cable | 1 |
| User Manual | Operation and maintenance guide | 1 |
| Warranty Certificate | 2-year manufacturer warranty documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your laboratory sterilization requirements, request detailed specifications, or arrange a product demonstration. We provide flexible ordering, customization options, and comprehensive post-sale support.
Phone: (424) 270-9077
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.0· 3 reviewsRecommended
We've been using this in our theatre for a few weeks now and the components fit and function exactly as described. The build quality is genuinely reassuring. Does precisely what we needed.
Dr. Sofia Thompson, MD, FRCS (Orth)Verified buyerJul 9, 2025
Meets expectations
After trialling a couple of options we went with this and it integrates neatly with the kit we already run. Delivery took a touch longer than quoted. Worth it on balance, with the caveats above.
Dr. Andrew Hughes, Orthopaedic SurgeonJul 12, 2025
