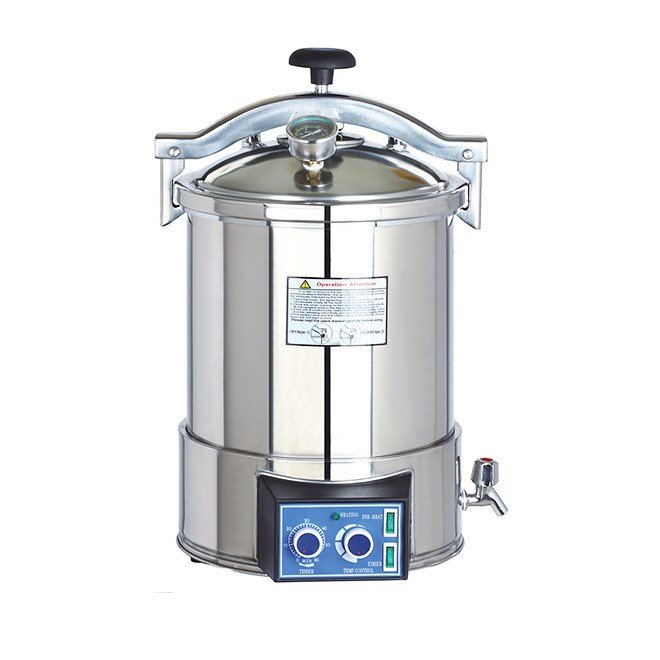

Portable Autoclave MDLPS17
Compact, portable steam sterilization system designed for clinical and laboratory environments. Delivers consistent high-pressure steam sterilization with dual chamber options (18L or 24L), precise temperature control, and reliable performance in a lightweight, transportable unit.
Clinical overview
The Portable Autoclave MDLPS17 is a compact, high-performance steam sterilization system engineered for clinical, surgical, and laboratory environments where reliable sterilization and portability are essential. The unit combines precision pressure and temperature control with a lightweight, transportable design, making it ideal for mobile surgical units, field clinics, and distributed healthcare facilities.
With dual chamber options (18L and 24L), adjustable temperature settings (105–126°C), and a timer range up to 60 minutes, the MDLPS17 delivers consistent, validated sterilization cycles for a wide range of surgical instruments and medical devices. The robust safety features, including maximum pressure monitoring and temperature uniformity (±1°C), ensure reliable performance and operator safety in demanding clinical settings.
Key features & surgeon benefits
Lightweight & Compact
- Weighs only 12–14 kg for easy transport and relocation
- Compact dimensions: 410×410×630 mm (18L) or 410×410×750 mm (24L)
- Ideal for mobile surgical teams, field clinics, and distributed facilities
Reliable Sterilization Cycles
- Temperature control ±1°C for consistent results
- Adjustable temperature range: 105–126°C
- Programmable timer: 0–60 minutes for flexible cycle management
Robust Pressure Management
- Working pressure: 0.14–0.16 MPa with maximum safety limit of 0.165 MPa
- Integrated pressure monitoring and safety relief systems
- Meets clinical sterilization standards and regulatory requirements
Dual Chamber Options
- 18L chamber for smaller instrument sets and space-limited environments
- 24L chamber for larger surgical trays and higher throughput
- Choose the configuration that matches your clinical workflow
Technical specifications
| Indications | Sterilization of surgical instruments, laboratory equipment, and medical devices |
|---|---|
| Chamber Volumes | 18L (280×260 mm) or 24L (280×390 mm) |
| Working Pressure | 0.14–0.16 MPa |
| Maximum Safety Pressure | 0.165 MPa |
| Working Temperature | 126°C |
| Temperature Adjustment Range | 105–126°C |
| Temperature Uniformity | ±1°C |
| Timer Range | 0–60 minutes |
| Power Supply | AC 220V, 50 Hz, 2 kW |
| Dimensions (18L) | 410×410×630 mm |
| Dimensions (24L) | 410×410×750 mm |
| Weight (18L) | 12 kg (net), 13 kg (gross) |
| Weight (24L) | 14 kg (net), 15 kg (gross) |
| Sterilisation Method | Steam sterilization |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Portable Autoclave Unit | Complete sterilization chamber with integrated controls and safety systems | 1 |
| Power Cable | AC 220V, 50 Hz rated electrical connection | 1 |
| Instruction Manual | Operating and maintenance documentation | 1 |
| Safety Documentation | Regulatory compliance and safety information | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your sterilization requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery options and comprehensive support for all MDLPS17 installations.
