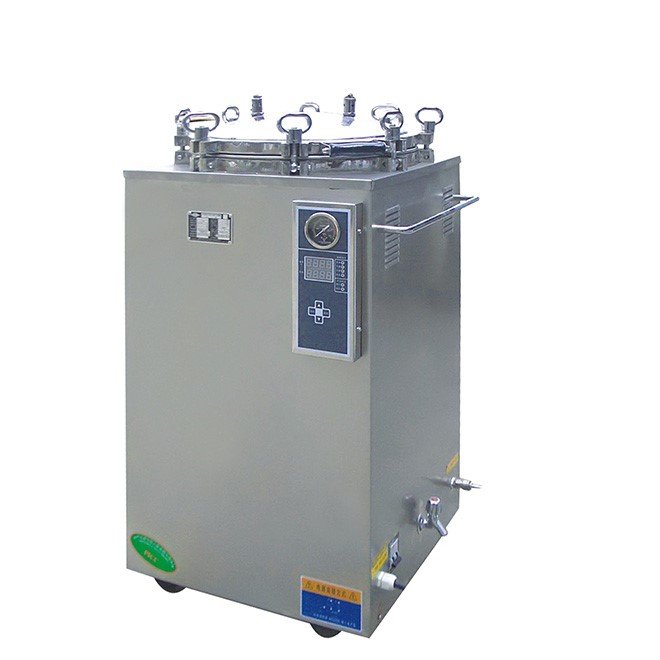

Microwave Steam Sterilizer | Autoclave Vertical MDLPS11 100L
Fully automatic vertical steam autoclave with chamber volumes from 35L to 100L. Precision temperature control (105–134°C), adjustable pressure (0.1–0.22 MPa), and flexible timer settings deliver reliable sterilization for surgical instruments, laboratory equipment, and medical devices in clinical and industrial settings.
Clinical overview
The MDLPS11 is a fully automatic vertical steam autoclave engineered for reliable, consistent sterilization across clinical, surgical, and laboratory environments. With chamber volumes ranging from 35L to 100L, it accommodates diverse instrument loads while maintaining precise temperature and pressure control. The automatic operation minimizes user intervention, reducing cycle time and operator fatigue while ensuring reproducible sterilization outcomes.
Equipped with adjustable temperature settings (105–134°C), flexible timer modes (0–99 minutes or 0–99 hours 59 minutes), and stable working pressure (0.1–0.22 MPa), the MDLPS11 delivers professional-grade sterilization performance. Its robust stainless-steel construction and thermal stability (±1°C heat average) make it suitable for high-volume facilities, surgical centers, and research laboratories requiring dependable, code-compliant sterilization.
Key features & surgeon benefits
Flexible Chamber Volumes
- Four size options: 35L, 50L, 75L, 100L
- Scalable for small clinics to large surgical centers
- Optimized chamber geometry for even steam distribution
Fully Automatic Operation
- Minimal operator intervention required
- Programmable timer: 0–99 min or 0–99 h 59 min
- Consistent cycle repeatability for compliance documentation
Precise Temperature & Pressure Control
- Adjustable temperature range: 105–134°C
- Working pressure: 0.1–0.22 MPa (max 0.23 MPa)
- Thermal stability: ±1°C heat average
Power & Configuration Options
- Power ratings: 2.5 kW, 3 kW, or 4.5 kW
- AC 220V, 50 Hz standard
- OEM customization available for specialized applications
Technical specifications
| Model | MDLPS11 (Automatic) |
|---|---|
| Chamber volumes | 35L (φ318×450 mm), 50L (φ340×550 mm), 75L (φ400×600 mm), 100L (φ440×650 mm) |
| Working pressure | 0.1–0.22 MPa |
| Maximum working pressure | 0.23 MPa |
| Operating temperature | 120–134°C |
| Adjustable temperature range | 105–134°C |
| Heat uniformity | ±1°C average |
| Timer settings | 0–99 minutes or 0–99 hours 59 minutes |
| Power consumption | 2.5 kW, 3 kW, or 4.5 kW at AC 220V, 50 Hz |
| Overall dimensions (100L) | 590×590×1080 mm |
| Transport dimensions (100L) | 680×650×1220 mm |
| Gross weight / Net weight (100L) | 105 kg / 85 kg |
| Sterilisation method | Steam sterilization |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Autoclave unit | Vertical steam sterilizer with automatic control system | 1 |
| Chamber | Stainless steel pressure vessel (size per configuration) | 1 |
| Control panel | Automatic timer and temperature adjustment interface | 1 |
| Safety valve | Pressure relief and safety mechanism | 1 |
| Drain valve | Condensate and waste water drainage | 1 |
| Power cord | AC 220V, 50 Hz connection cable | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss chamber size selection, power requirements, and delivery timelines. We offer flexible configurations and comprehensive support for clinical and industrial sterilization applications.
