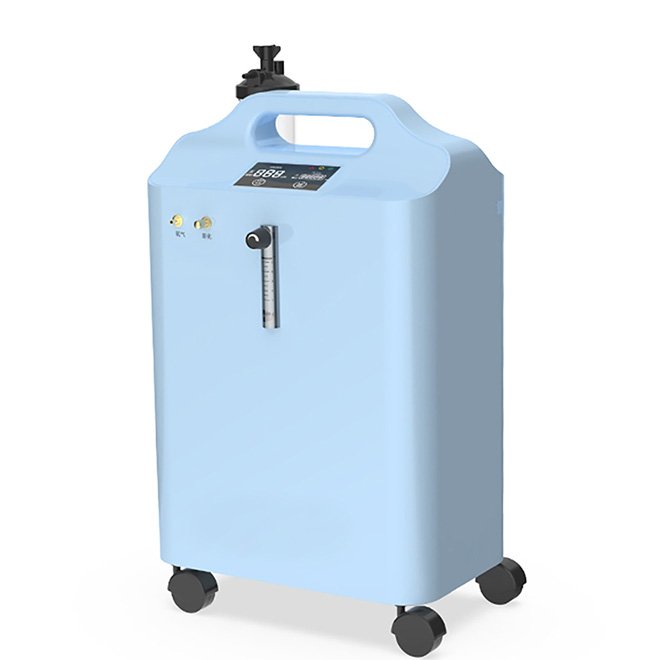

Oxygen Concentrator MDLZY60
- Oxygen concentrator MDLZY60 with PSA method
- Power supply: AC 220V/50HZ, rated power of 380VA
- Maximum recommended flow rate of 3L/min (5L/min for MDLZY60)
- Oxygen concentration of 93% with a deviation of 3%
- Oxygen pressure range: 30kPa-70kPa
- Atomization rate of >0.2mL/min (Only for MDLZY60)
- Running noise of <55dB (A weighting)
- Dimensions: 380mm x 240mm x 627mm
- Suitable for normal working environments with specific temperature, humidity, and pressure requirements
- SKU
- MDLZY60
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Oxygen Concentrator MDLZY60
High-performance PSA oxygen concentrator delivering 93% ± 3% oxygen concentration at up to 3L/min (5L/min with atomization). Designed for continuous operation in home and healthcare settings with ultra-quiet performance and reliable clinical-grade output.
Clinical overview
The MDLZY60 is a compact, high-efficiency oxygen concentrator utilizing Pressure Swing Adsorption (PSA) technology to extract and concentrate oxygen from ambient air. With a consistent output of 93% ± 3% oxygen concentration and flow rates up to 3L/min (5L/min with atomization), it meets the clinical requirements for home oxygen therapy and long-term respiratory support. The device operates continuously with minimal noise (≤55dB), making it suitable for both residential and healthcare environments.
Engineered for reliability and ease of use, the MDLZY60 features robust medical-grade construction, precise pressure regulation (30–70 kPa), and optional atomization capability for enhanced therapeutic delivery. Its compact footprint (380 × 240 × 627 mm) and efficient power consumption (380VA) make it an ideal solution for patients requiring sustained oxygen supplementation.
Key features & surgeon benefits
Consistent oxygen delivery
- 93% ± 3% oxygen concentration maintained across all flow rates
- Pressure-regulated output (30–70 kPa) with <10% flow variation under back pressure
- Reliable PSA technology for continuous operation
Quiet, unobtrusive operation
- Ultra-low noise ≤55dB (standard) / ≤58dB (atomization model)
- Compact design fits seamlessly into home and clinical settings
- Continuous operation mode for 24/7 patient support
Cost-effective therapy
- Efficient power consumption at 380VA rated power
- Minimal maintenance requirements with robust construction
- Long-term operational cost savings vs. oxygen cylinder supply
Flexible configurations
- Standard 3L/min or enhanced 5L/min atomization model (MDLZY60)
- Optional mist particle generation (median 3.0 μm, >60% <5 μm)
- OEM and custom integration available
Technical specifications
| Method | Pressure Swing Adsorption (PSA) |
|---|---|
| Power supply | AC 110V/220V / 50/60Hz |
| Rated power | 380VA (MDLZY60 with atomization) |
| Maximum flow rate | 3L/min (standard); 5L/min (MDLZY60) |
| Oxygen concentration | 93% ± 3% |
| Oxygen pressure range | 30–70 kPa |
| Flow stability | <10% change under 7 kPa back pressure |
| Operating noise | ≤55dB (A-weighted standard); ≤58dB (MDLZY60) |
| Atomization rate | >0.2 mL/min (MDLZY60 only) |
| Mist particle size | Median 3.0 μm; >60% particles <5 μm |
| Electrical classification | Type II equipment, Type B application part |
| Operation mode | Continuous |
| Dimensions | 380 × 240 × 627 mm |
| Ambient temperature (operating) | 5–40°C |
| Relative humidity (operating) | <80% RH |
| Atmospheric pressure (operating) | 86–106 kPa |
| Storage temperature | −20 to 60°C |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Oxygen Concentrator Unit | MDLZY60 main device with PSA technology | 1 |
| Power cord | AC 110V/220V/50/60Hz supply cable | 1 |
| Oxygen outlet tubing | Medical-grade delivery tubing | 1 |
| User manual | Operating and maintenance instructions | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your oxygen therapy requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery and comprehensive support for all MDLZY60 installations.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
