MDL

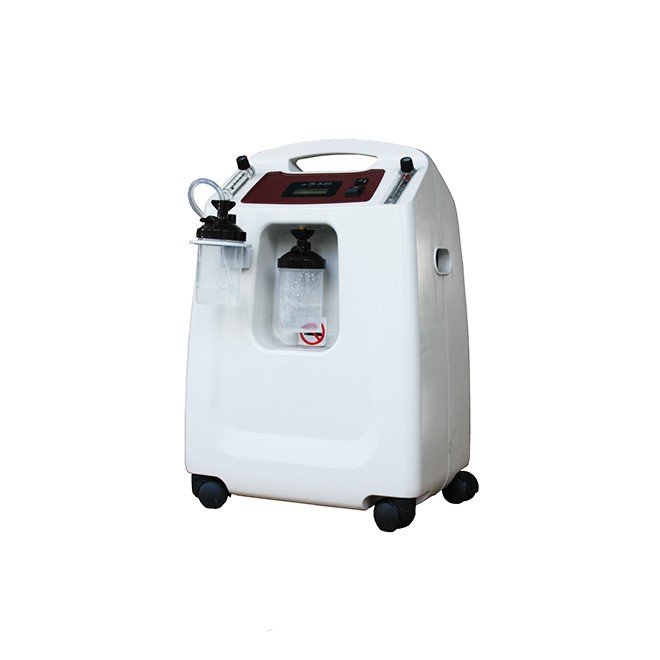

Medical 3L Oxygen Concentrator MDLZY03
4.0(3 reviews)- 8L/min oxygen concentrator with dual outlets for serving up to 2 patients simultaneously
- Oxygen flow range of 1-4 LPM at each outlet, totaling 8 LPM
- Oxygen purity level of 93%
- Low oxygen alarm feature absent
- Optional nebulizer attachment with a 4-way splitter
- Power-efficient with consumption less than 540W
- Operating noise level below 55dB(A)
- Lightweight design, weighing 42.3 lbs (19.2 kg)
- Compact dimensions of 43 x 32 x 62 cm for easy placement in various settings
- SKU
- MDLZY03
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Oxygen Therapy & Respiratory
Medical 3L Oxygen Concentrator MDLZY03
Dual-outlet 8 LPM oxygen concentrator delivering 93% ± 3% oxygen purity with low noise operation. Compact, lightweight design supports simultaneous dual-patient use or high-flow single-patient therapy with optional nebulizer capability.
Ordering Ref.
MDLZY03
ConfigurationDual outlet, 8 LPM
MaterialMedical-grade polymer & metal
ApplicationClinical & home oxygen therapy
Optional 4-way splitter and nebulizer available. OEM customisation on request.
Clinical overview
The MDLZY03 is a compact, dual-outlet oxygen concentrator engineered for flexible oxygen delivery in clinical and home care settings. With a total capacity of 8 LPM distributed across two independent flow meters, it accommodates simultaneous dual-patient therapy or delivers maximum 8 LPM flow to a single patient requiring higher oxygen demand. Each outlet provides 1–4 LPM with consistent oxygen purity of 93% ± 3%, meeting standard therapeutic requirements.
Weighing just 42.3 lbs (19.2 kg) and operating at less than 55 dB(A), the MDLZY03 prioritises portability and patient comfort. Its efficient power consumption (<540W) and compact footprint (43 × 32 × 62 cm) make it suitable for space-constrained environments. Optional nebulizer with 4-way splitter extends clinical versatility for aerosol therapy applications.
Key features & surgeon benefits
Dual-Patient Capability
Flexible Oxygen Delivery
- Two independent flow meters for simultaneous dual-patient use
- Each outlet delivers 1–4 LPM with equal distribution
- Single-patient mode supports maximum 8 LPM for high-flow demand
Workflow Efficiency
Quiet, Portable Operation
- Low noise output (<55 dB(A)) minimises patient and staff disruption
- Lightweight design (19.2 kg) enables easy transport between care areas
- Compact dimensions optimise space utilisation in clinical and home settings
Clinical Performance
Consistent Oxygen Purity
- Delivers 93% ± 3% oxygen purity across all flow rates
- Output pressure 0.05–0.07 MPa ensures reliable therapeutic delivery
- Class II Type B equipment classification meets regulatory safety standards
Versatility
Expandable Therapy Options
- Optional 4-way splitter for multi-patient aerosol therapy
- Nebulizer compatibility extends clinical applications
- Customisation available for OEM and institutional requirements
Technical specifications
| Indications | Supplemental oxygen therapy; dual-patient or high-flow single-patient applications |
|---|---|
| Oxygen flow | 1–4 LPM per outlet; 8 LPM total capacity |
| Oxygen purity | 93% ± 3% |
| Output pressure | 0.05–0.07 MPa |
| Operation noise | <55 dB(A) |
| Power consumption | <540W |
| Power supply | AC 110V/220V ± 22V / 50/60Hz |
| Net weight | 42.3 lbs (19.2 kg) |
| Operating temperature | 5°C to 40°C |
| Dimensions (L × W × H) | 43 × 32 × 62 cm |
| Equipment classification | Class II Type B |
| Optional accessories | Nebulizer with 4-way splitter |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Oxygen Concentrator Unit | MDLZY03 dual-outlet 8 LPM concentrator with dual flow meters | 1 |
| Power Cable | AC 110V/220V ± 22V / 50/60Hz mains supply cable | 1 |
| Oxygen Outlet Tubing | Standard medical-grade oxygen delivery tubing (per outlet) | 2 |
| User Manual | Operational and maintenance documentation | 1 |
Get in touch for pricing & availability
Contact our clinical sales team to discuss pricing, delivery timelines, and customisation options for the MDLZY03 oxygen concentrator. We provide comprehensive support for institutional procurement and OEM partnerships.
Phone: (424) 270-9077
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.0· 3 reviewsCouldn't be happier
Picked this up on a colleague's recommendation and setup was straightforward with clear documentation. The value at this price point is hard to beat. Happy to recommend it to colleagues.
Dr. Priya Chen, MD, FRCSVerified buyerOct 4, 2024
Meets expectations
Picked this up on a colleague's recommendation and delivery was quick and everything arrived well-packaged. Delivery took a touch longer than quoted. Would consider it again but shop around.
Nina Schmidt, MD, FRCS (Orth)Dec 8, 2024
Frequently bought together
Related products
See all →
MDL

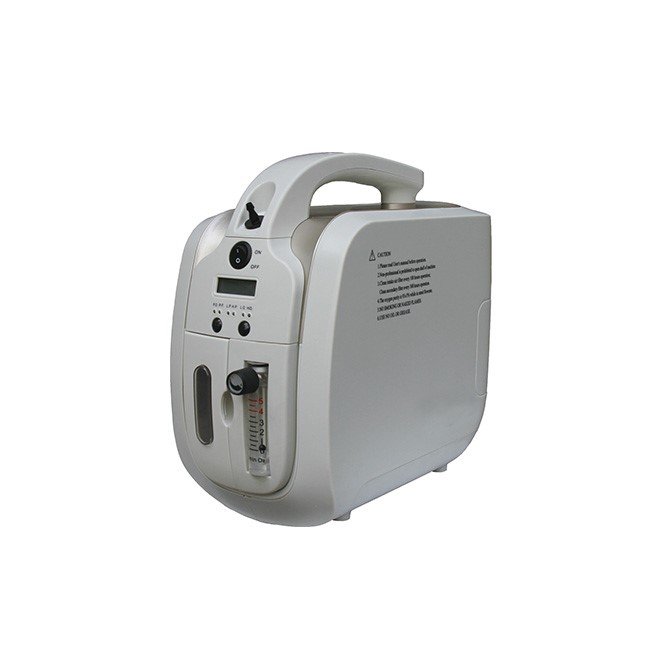

Mini Portable Battery Operated for Home & Welding & Car Use Oxygen Concentrator MDLJY01
- Mini portable oxygen concentrator for home, welding, and car use - Provides oxygen therapy with greater oxygen concentrations than ambient air - Small and mobile, perfect for traveling and fitting in a car - Operates on pressure swing adsorption principle with molecular sieve filters - Produces medical-grade oxygen up to 90% consistently - Supports flow rate of 1-5LPM and purity of 93%-38% - Outlet pressure ranges from 0.04-0.07Mpa - Quiet operation with sound level ≤45dB - Lightweight design weighing 6Kgs, powered by AC220V/110V with optional DC12V car adapter, lithium battery, battery charger, and trolley bag.
$990.00
$890.00
MDL

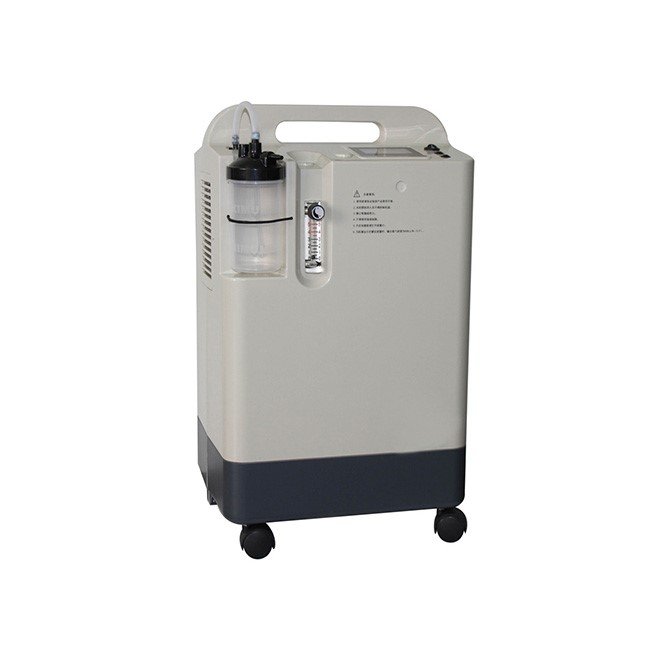

High Purity Oxygen Concentrator MDLJY3B
- High Purity Oxygen Concentrator MDLJY3B with nebulizer for atomization - Features low purity alarm and low flow alarm for safety - Equipped with a high temperature alarm for added protection - Includes a pulse oximeter for monitoring oxygen saturation levels - Offers adjustable flow rate of 0-3LPM/0-5LPM for customized usage - Maintains oxygen purity at 93% (±3%) for effective oxygen therapy - Operates quietly with a sound level of ≤43dB for minimal disruption - Lightweight design with a net weight of 16Kgs/23Kgs for easy portability - Comes with an LCD display for easy monitoring of settings and alarms
$990.00
$950.00
MDL

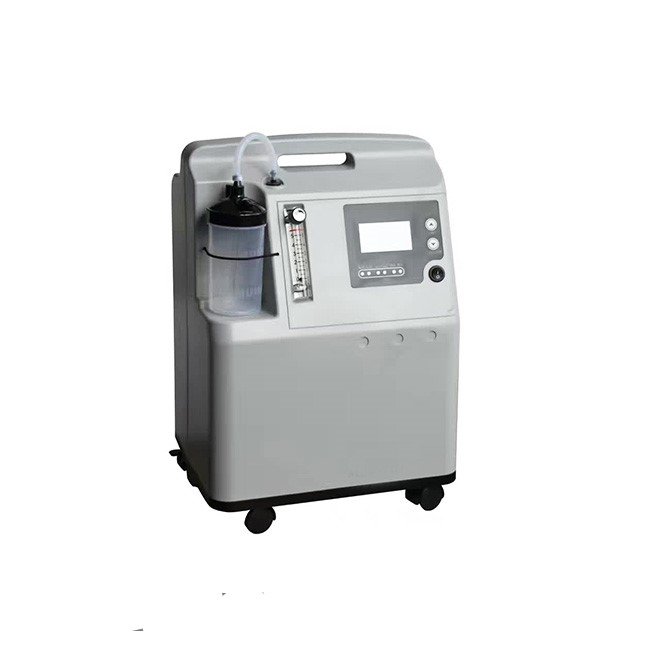

Portable Oxygen Concentrators MDLJY5A
- Portable Oxygen Concentrator MDLJY5A with nebulizer for atomization - Features low purity alarm, low flow alarm, high temperature alarm, and pulse oximeter - Offers a flow rate of 0-3LPM/0-5LPM with 93% (±3%) purity - Outlet pressure range of 0.04-0.07Mpa with sound level ≤40dB - LCD display shows switch times, operating pressure, working time, etc. - Equipped with power failure alarm and high/low pressure alarm - Weighs 16kgs and has dimensions of 350×280×540mm - Optional low purity alarm indicates oxygen purity levels
$990.00
$950.00
MDL
Medical Portable Oxygen Concentrator Machine MDLJY5B
- The Medical Portable Oxygen Concentrator Machine MDLJY5B is equipped with a nebulizer for atomization. - It features low purity, low flow, and high temperature alarms for added safety. - Comes with a pulse oximeter for monitoring oxygen saturation levels. - Offers a flow rate of 0-3LPM/0-5LPM and a purity of 93% (±3%). - Operates quietly with a sound level of ≤43dB. - Includes an LCD display for easy monitoring of settings and alarms. - Features power failure, high/low pressure alarms for system reliability. - Weighing 16Kgs/23Kgs, with dimensions of 360×300×600mm, it is portable and convenient for use at home or on the go.
$990.00
$890.00
MDL

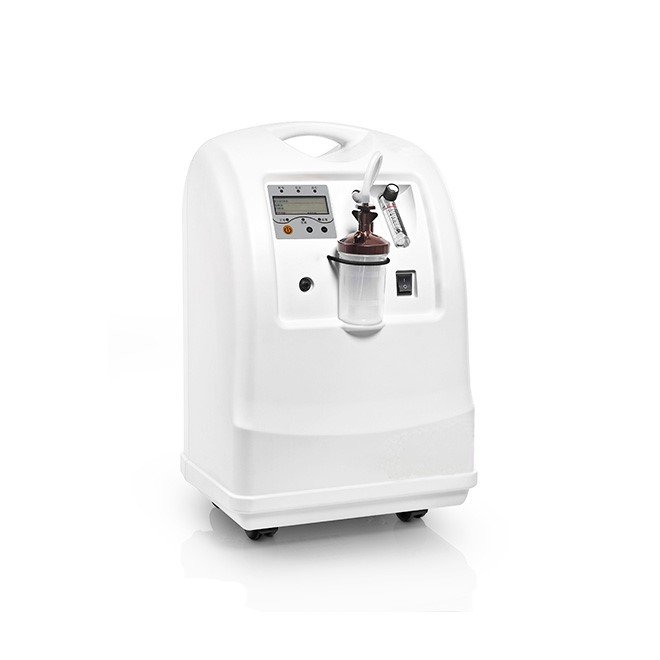

3Litre Portable Oxygen Concentrator Nebulizer, Oxygen Concentrator Portable MDL-3N
- Portable 3L/min oxygen concentrator with nebulization feature - Oxygen density of 93±3% for effective oxygen therapy - Low noise level of ≤48dB (A) for quiet operation - Power consumption of ≤320W for energy efficiency - Continuous working time of 15,000 hours for long-term use - Ideal for analyzing body composition and bio-electrical impedance - Suitable for analysis of water, fat, muscle, bone, and protein - Can be connected to a PC for data analysis - High accuracy verified by hospitals for reliable results
$1,390.00
$1,190.00
MDL
Medical Oxygen Concentrator with Oxygen Nebulization 5L/min MDL-5N
- Medical Oxygen Concentrator with Oxygen Nebulization 5L/min MDL-5N - Oxygen density of 93±3% (V/V) for effective oxygen therapy - Max. flow rate of 5L/min for quick oxygen delivery - Low noise level of ≤52dB (A) for a peaceful environment - Power consumption of ≤ 480W for energy efficiency - Continuous working time of 15,000 hours for long-term use - Comes with oxygen nebulization feature for additional respiratory support - Compact design with dimensions of 465*375*710 mm for easy placement - Ideal for patients needing reliable oxygen therapy at home
$995.00
$895.00
MDL

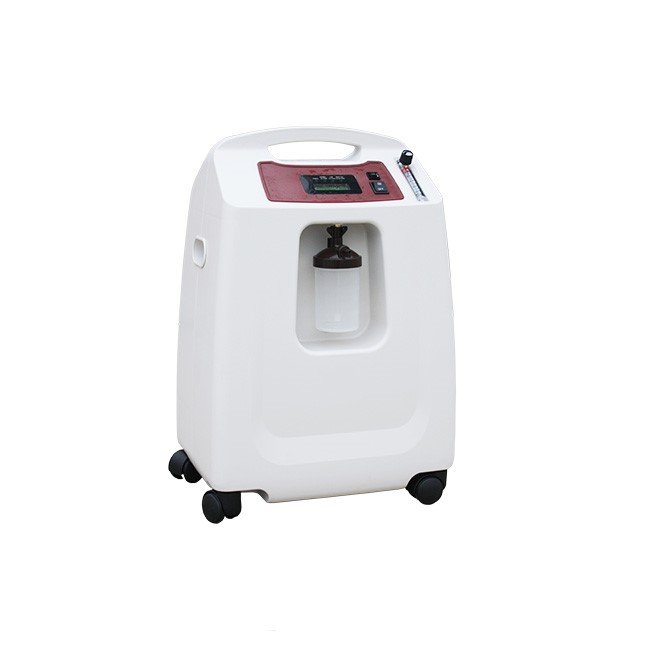

24 Hours Work Continuously 8L Portable Oxygen Concentrator Medical Oxygen Concentrator MDLZY02
