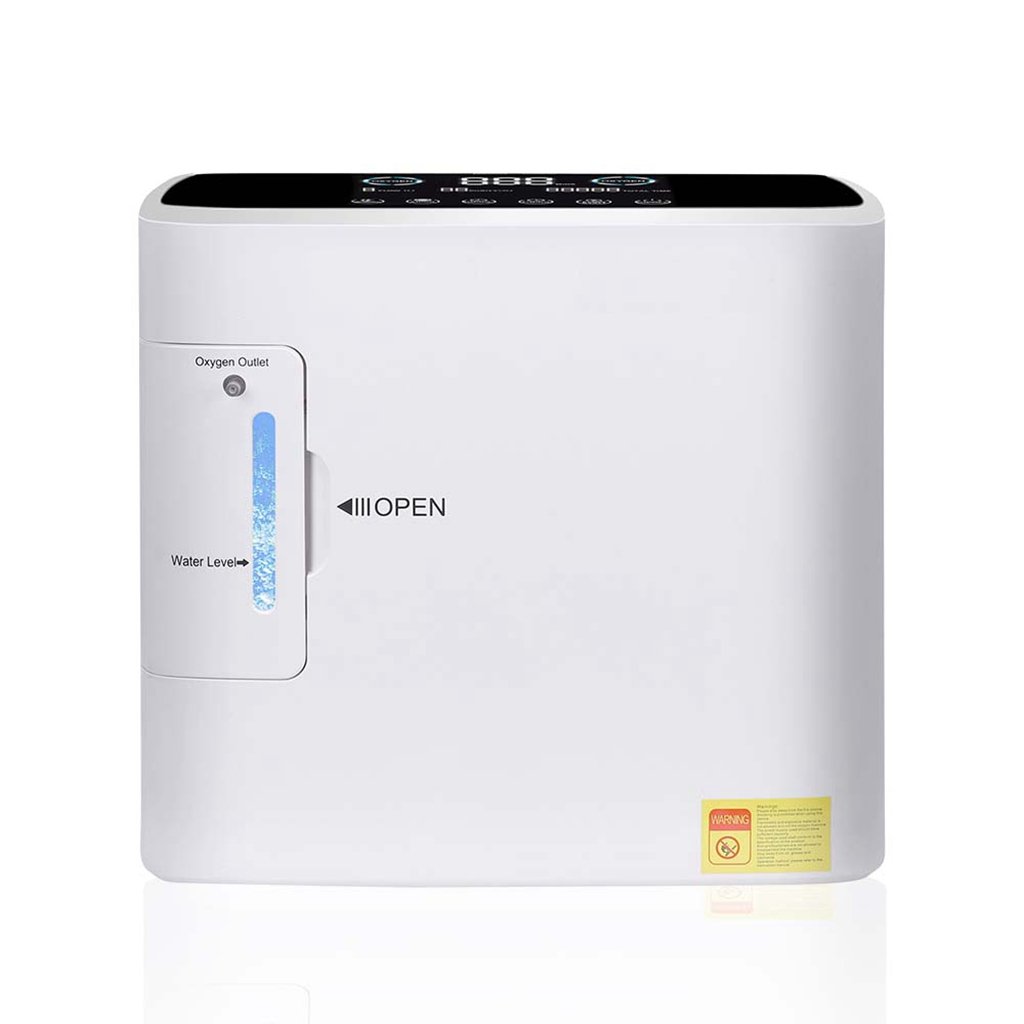

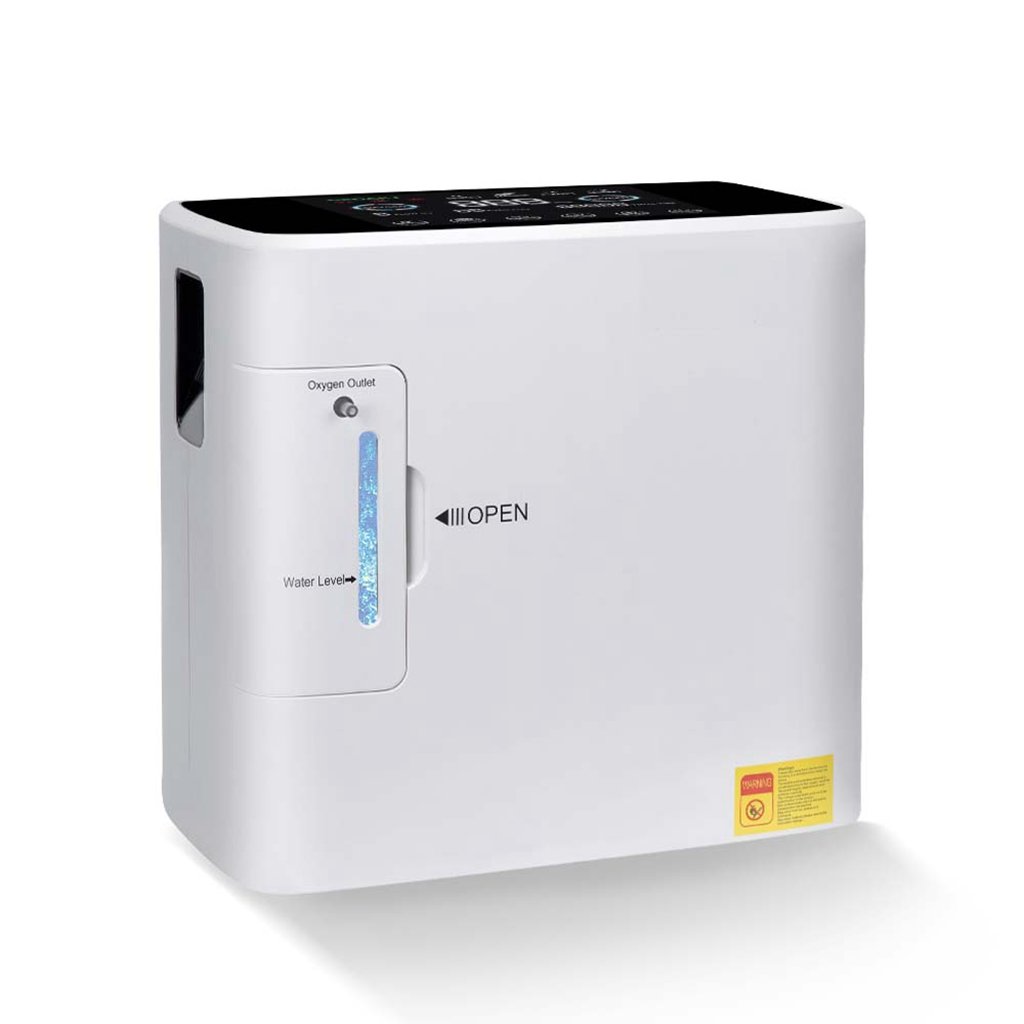

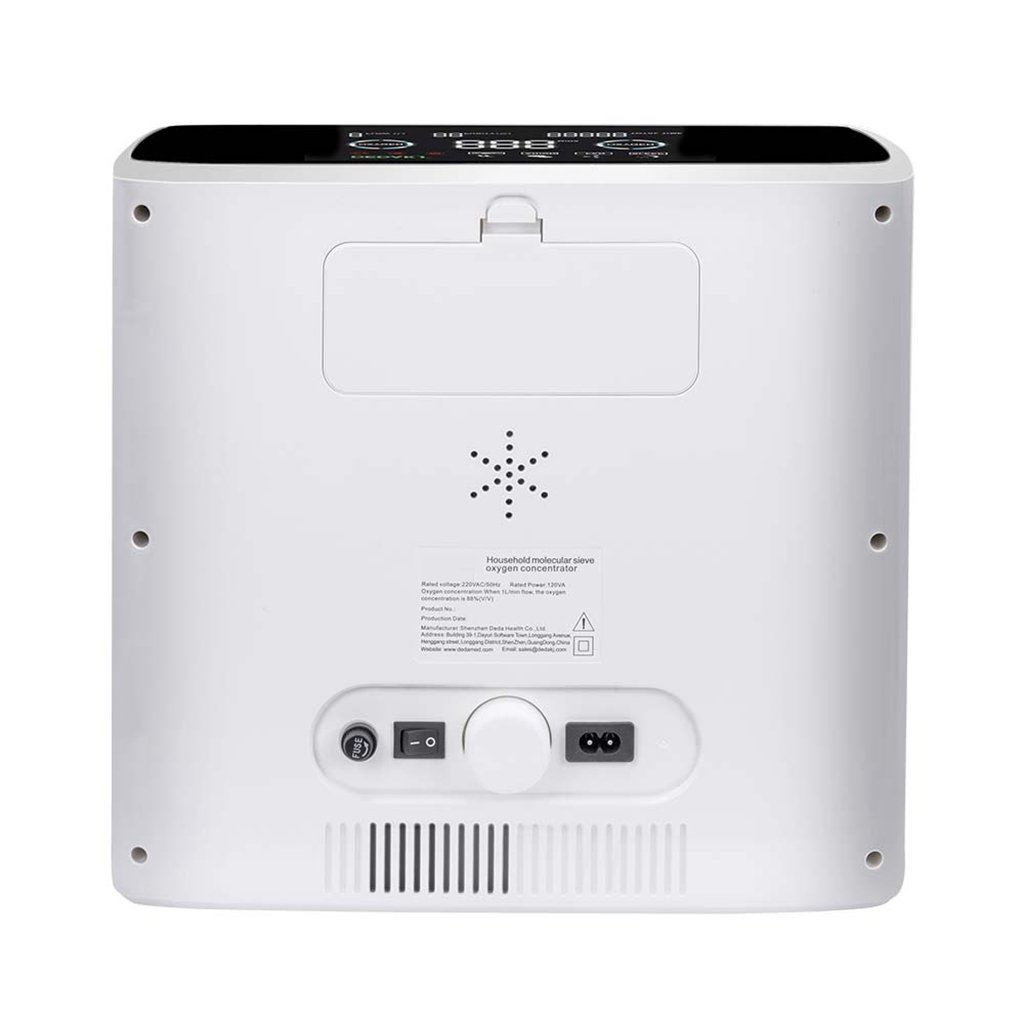

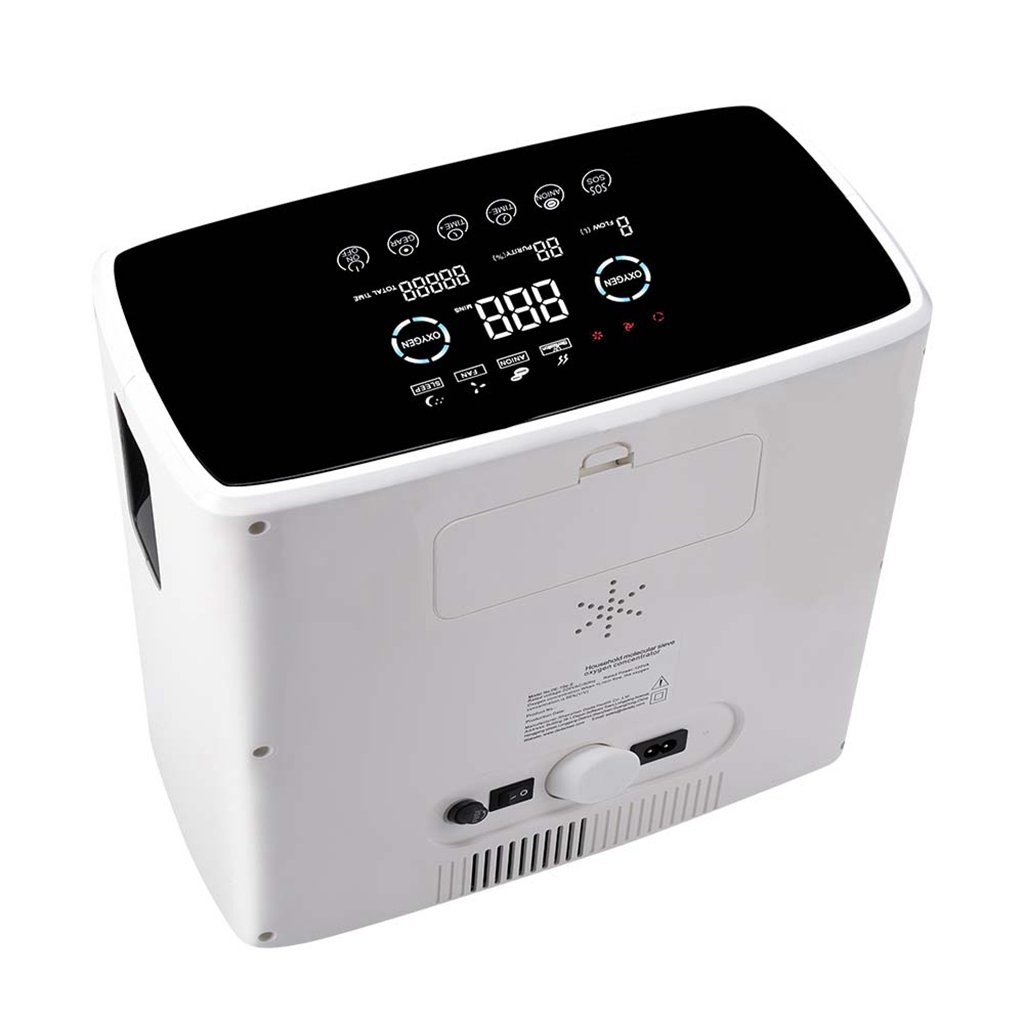

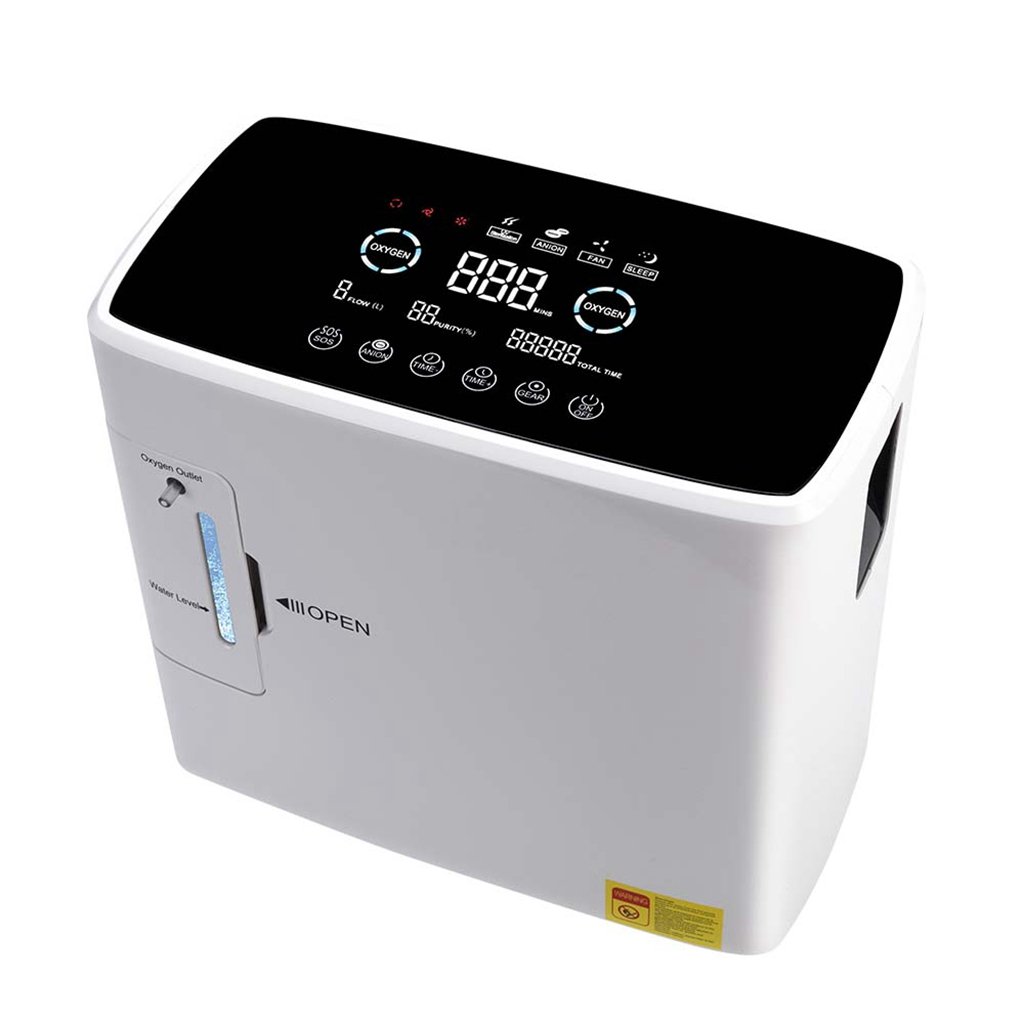

Oxygen Concentrator 6L Touch Screen MDLZY43
- Oxygen concentration adjustable from 30% to 90%
- HD LCD touch screen for easy display control
- Lightweight design at only 6.5kg
- Low operating noise level of 40-45dB
- Supports oxygen output ranging from 1L to 6L per minute
- Features negative ion function with 6 million/cm3
- Includes pre-set time function with up to 180 minutes
- Equipped with automatic power-off protection for safety
- Supports oxygen supply for two individuals
- SKU
- MDLZY43
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Oxygen Concentrator 6L Touch Screen MDLZY43
Compact, clinically reliable oxygen concentrator with adjustable 30–90% oxygen concentration, HD touch screen control, and dual-user capability. Ideal for home care, clinical monitoring, and portable oxygen therapy applications requiring consistent, high-purity oxygen delivery.
Clinical overview
The MDLZY43 is a portable, pressure swing adsorption (PSA) oxygen concentrator designed for reliable oxygen therapy in home care, clinical, and mobile settings. With adjustable oxygen concentration from 30–90% (±3% accuracy) and output ranging from 1–6 L/min, it delivers consistent, high-purity oxygen to meet diverse patient needs. The device combines compact design (6.5 kg), quiet operation (40–45 dB), and intuitive HD LCD touch screen control, making it suitable for long-term therapy and acute oxygen supplementation.
Advanced safety features include automatic power-off protection, real-time oxygen concentration monitoring, and intelligent failure alarms. The integrated negative ion function (6 million ions/cm³) enhances air quality, while dual-user capability and car function support flexible deployment across multiple care environments. Infrared remote control (18 m range) and programmable timer functions (up to 180 minutes) enable convenient, patient-centered operation.
Key features & surgeon benefits
Clinically Accurate Oxygen Delivery
- Adjustable 30–90% oxygen concentration with ±3% accuracy
- Real-time oxygen concentration monitoring display
- Dual automatic power-off protection for enhanced safety
- Intelligent failure alarm system
Intuitive Touch Screen Interface
- HD LCD touch screen for easy parameter adjustment
- Infrared remote control (18 m operating range)
- Programmable timer function (up to 180 minutes)
- Sleeping mode for patient comfort
Lightweight & Versatile Deployment
- Compact design: 340 × 185 × 305 mm, 6.5 kg net weight
- Dual oxygen supply for two concurrent users
- Car function for mobile oxygen therapy
- Quiet operation (40–45 dB) suitable for home environments
Enhanced Oxygen & Ion Generation
- Negative ion function generating 6 million ions/cm³
- Oxygen accumulative time tracking
- Pressure swing adsorption (PSA) technology for consistent output
- Multiple inhalation methods: nasal cannula & ear-hanging oxygen
Technical specifications
| Indications | Chronic respiratory conditions, hypoxemia, home oxygen therapy, portable oxygen supplementation |
|---|---|
| Oxygen concentration | 30–90% (±3% accuracy), adjustable |
| Oxygen output range | 1–6 L/min adjustable; maximum 6 L/min |
| Generation method | Pressure Swing Adsorption (PSA) |
| Display control | HD LCD touch screen with infrared remote (18 m range) |
| Rated voltage | AC 220 ± 22V (or 110V), 50 ± 1 Hz |
| Input power | 120 VA |
| Net weight | 6.5 kg |
| Operating noise | 40–45 dB |
| Dimensions | 340 × 185 × 305 mm |
| Inhalation method | Nasal cannula, ear-hanging oxygen inhaler |
| Negative ion function | 6 million ions/cm³ |
| Timer function | Pre-set time up to 180 minutes |
| Special features | Sleeping mode, car function, dual-user oxygen supply, oxygen accumulative time tracking, intelligent failure alarm |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Oxygen Concentrator Unit | MDLZY43 6L/min with HD LCD touch screen | 1 |
| Nasal Cannula | Standard oxygen delivery interface | 2 |
| Ear-hanging Oxygen Inhaler | Alternative inhalation method | 1 |
| Infrared Remote Control | 18 m operating range | 1 |
| Power Cable | AC mains connection | 1 |
| User Manual | Multilingual operation & maintenance guide | 1 |
| Oxygen Tubing | Standard medical-grade tubing | 2 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, OEM customisation, and delivery timelines. We provide comprehensive technical support and fast shipping worldwide.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
