- Multi-purpose test instrument for oscillometric NIBP Monitors
- Generates pressures up to 400 mmHg (53.3 kPa)
- Provides dynamic blood pressure simulations
- Includes pressure gauge testing and leak testing functions
- Offers simulations for adult, neonate, and user-defined conditions
- Features arrhythmias and respiratory artifact simulations
- Built-in air chamber to simulate different cuffs
- 65k colors, 4.3" LCD display
Professional multi-purpose test instrument for oscillometric Non-Invasive Blood Pressure (NIBP) monitors. Delivers reference-grade accuracy with dynamic waveform simulation, comprehensive testing functions, and portable operation for hospital biomedical engineering, field service, and clinical calibration laboratories.

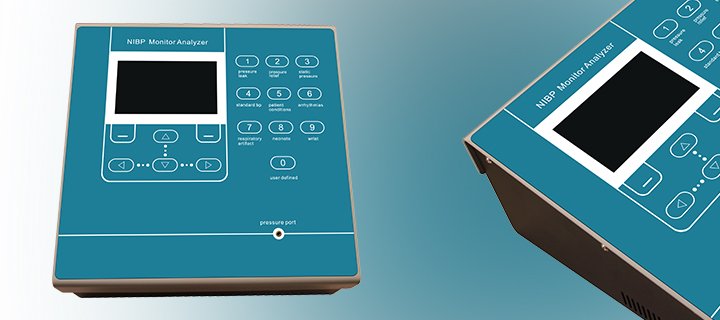

The MS200 NIBP Simulator is a professional-grade test instrument designed for comprehensive verification and calibration of oscillometric non-invasive blood pressure monitors. As healthcare facilities face increasing regulatory scrutiny and patient safety demands, accurate NIBP monitor performance verification has become essential. The MS200 addresses this critical need by providing reference-quality pressure generation with physiologically realistic oscillometric waveform simulation, enabling detection of measurement errors that basic pressure calibrators cannot identify.
Modern NIBP monitors employ sophisticated oscillometric algorithms that analyze pulse envelope characteristics to extract systolic, diastolic, and mean arterial pressures. Testing these monitors requires more than static pressure verification—it demands dynamic waveform simulation that exercises the complete measurement chain. The MS200 generates realistic oscillometric pulses with correct amplitude, frequency, and morphology, revealing algorithm failures and artifact rejection deficiencies that static testing misses. Combined with comprehensive testing functions including leak detection, safety valve verification, and arrhythmia simulation, the MS200 provides the diagnostic capability needed to ensure NIBP monitor reliability across diverse clinical populations and challenging measurement conditions.
| Indications | NIBP monitor calibration, verification, and quality assurance testing; pressure gauge testing; leak detection; safety valve verification |
|---|---|
| Sizes / range | 0–400 mmHg (0–53.3 kPa); compatible with all standard arm and wrist cuffs |
| Material | Medical-grade polymers, precision pressure sensors, stainless steel connectors |
| Sterilisation | Non-sterile; external surfaces cleanable with standard hospital disinfectants |
| Packaging | Protective carrying case with foam insert; includes AC adapter, USB cable, tubing, and user manual |
| Warranty | 2 Year Manufacturer Warranty |
| Display | 4.3" high-resolution LCD with 65,000 colors |
| Pressure Accuracy | ±1 mmHg (NIST-traceable calibration) |
| Maximum Pressure | 400 mmHg (53.3 kPa) |
| Pump System | Built-in internal pump; no external air source required |
| Air Chamber | Internal chamber for adult and neonate cuff simulation |
| Patient Types | Adult and neonate modes with distinct compliance characteristics |
| Predefined Scenarios | 8 standard variation patterns covering normal to hypertensive ranges |
| Custom Simulations | User-defined blood pressure values and heart rate |
| Arrhythmia Patterns | Atrial fibrillation, premature ventricular contractions, bigeminy, and other irregular rhythms |
| Artifact Simulation | Respiratory motion artifacts and other measurement disturbances |
| Leak Detection Range | 0–10 mmHg/minute with quantitative measurement |
| Power Supply | AC adapter (100–110V/240V) and rechargeable lithium battery |
| Battery Life | 8+ hours continuous operation |
| Data Storage | Internal memory for test results; USB export capability |
| Connectivity | USB port for data export and software updates |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Storage Temperature | −20°C to 55°C (−4°F to 131°F) |

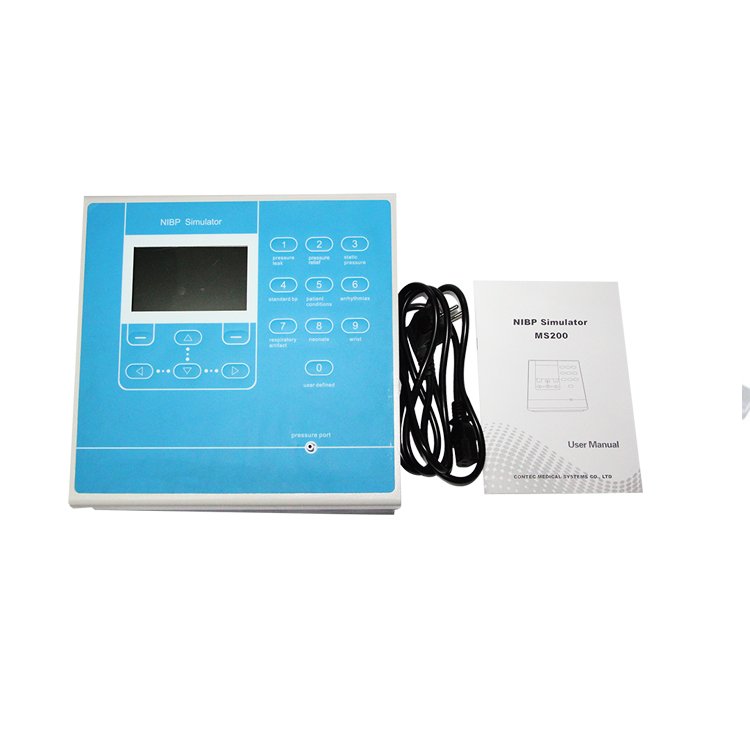

| Item | Description | Qty |
|---|---|---|

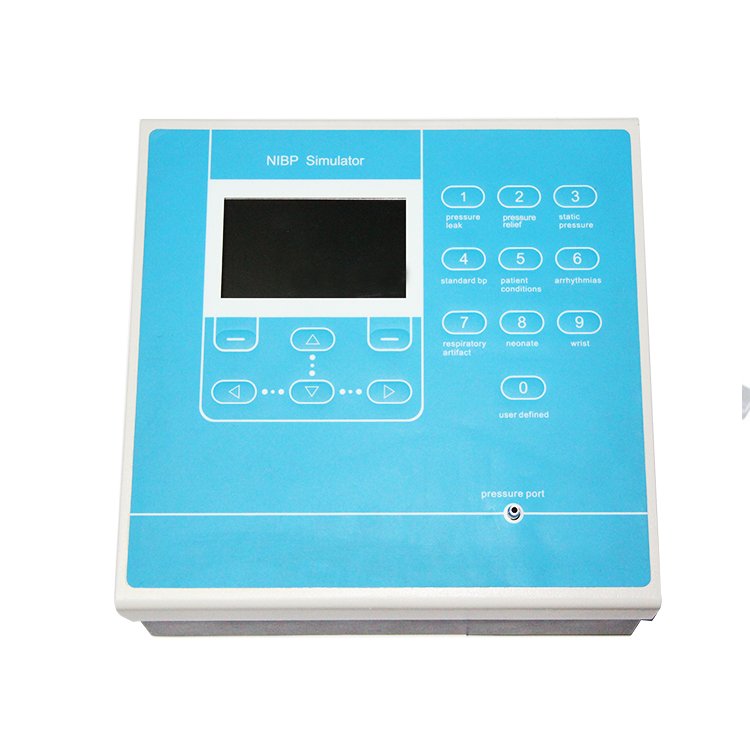

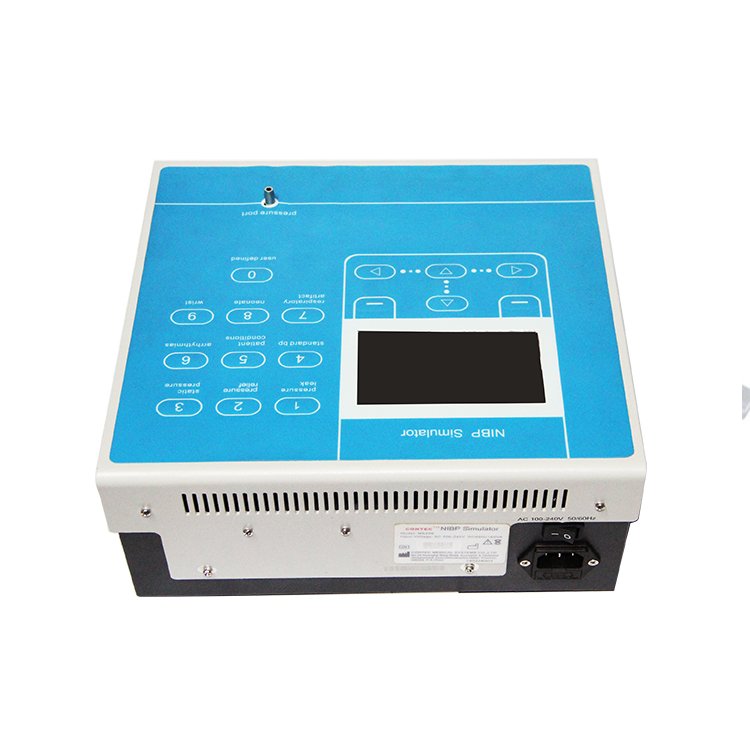

| MS200 Main Unit | Portable NIBP simulator with integrated pump, pressure sensor, and 4.3" LCD display | 1 |
| AC Power Adapter | Universal voltage input (100–110V/240V); outputs 12V DC for charging and operation | 1 |
| Rechargeable Battery | Lithium-ion battery; pre-installed in unit; 8+ hour operating life | 1 |
| USB Data Cable | Standard USB-A to device connector for data export and software updates | 1 |
| Pressure Connection Tubing | Medical-grade tubing with standard NIBP monitor connectors | 1 set |
| Carrying Case | Protective hard case with foam insert for transport and storage | 1 |
| User Manual | Comprehensive operating instructions, specifications, and troubleshooting guide | 1 |
| Calibration Certificate | NIST-traceable calibration documentation confirming ±1 mmHg accuracy | 1 |
The MS200 NIBP Simulator is an essential investment for any healthcare facility committed to accurate blood pressure monitoring and patient safety. Contact our sales team for current pricing, volume discounts, and delivery timelines. We provide comprehensive support including installation assistance, staff training, and ongoing technical support.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
