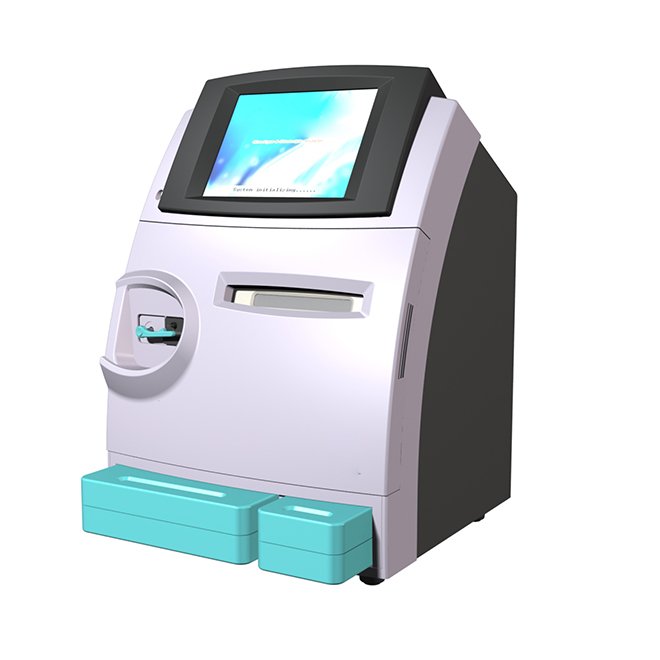

Blood Gas Analyzer MDLAB37
Advanced point-of-care blood gas and chemistry analysis with intuitive touch-screen operation, infrared human detection, and comprehensive multi-parameter measurement. Delivers rapid results in under 90 seconds with automatic quality control and integrated thermal printing for immediate clinical decision-making.
Clinical overview
The MDLAB37 blood gas and chemistry analyzer combines rapid turnaround with comprehensive multi-parameter measurement, enabling clinicians to make informed decisions at the point of care. With analysis times under 90 seconds and support for whole blood, serum, plasma, dialysate, and cerebrospinal fluid samples, the MDLAB37 is ideal for emergency departments, intensive care units, and clinical laboratories requiring fast, reliable results.
The analyzer measures critical parameters including pH, partial pressures of carbon dioxide and oxygen (pCO₂, pO₂), electrolytes (potassium, sodium, chloride), ionized calcium, hematocrit, blood pressure, glucose, and lactate—all from a single 95 µL sample. Automatic quality control and programmable calibration ensure consistent accuracy, while integrated barcode reading and thermal printing streamline workflow and documentation.
Key features & surgeon benefits
Intuitive Operation & Fast Results
- 10.4-inch TFT touch screen for easy navigation
- Analysis time under 90 seconds for rapid clinical decisions
- Integrated barcode reader supports up to 14 barcode types for seamless data entry
- Built-in thermal printer (70 mm) for immediate result documentation
Comprehensive Multi-Parameter Analysis
- pH, pCO₂, pO₂, electrolytes (K⁺, Na⁺, Cl⁻), ionized calcium, hematocrit
- Glucose and lactate measurement from single 95 µL sample
- Support for whole blood, serum, plasma, dialysate, and CSF
- Infrared human detector for enhanced measurement accuracy
Automatic QC & Robust Data Management
- Automatic QC cartridge for quality assurance without manual intervention
- Programmable 1-point and 2-point calibration options
- Data storage capacity exceeding 10,000 records
- Serial RS-232, TCP/IP, and USB connectivity for laboratory integration
Flexible Calibrants & Portability
- Simple, flexible calibrants cartridge system for easy maintenance
- Nickel-metal hydride battery (3.0 Ah) for portable operation
- Compact benchtop design suitable for emergency, ICU, and laboratory settings
- Fast data input for efficient clinical workflow
Technical specifications
| Sample Types | Whole blood, serum, plasma, dialysate, cerebrospinal fluid |
|---|---|
| Measured Parameters | pH (6.0–9.0), pCO₂ (0.667–26.67 kPa / 5.0–200.0 mmHg), pO₂ (0–106.7 kPa / 0–800.0 mmHg), K⁺ (0.50–10.00 mmol/L), Na⁺ (50.0–200.0 mmol/L), Cl⁻ (20.0–200.0 mmol/L), Ca²⁺ (0.10–5.00 mmol/L), Hct (12.0–65.0%), glucose (1.1–66.7 mmol/L), lactate (0.4–30.0 mmol/L) |
| Input Parameters | Patient temperature, hemoglobin, FiO₂, blood pressure |
| Sample Volume | 95 µL whole blood (120 µL with glucose and lactate); 50 µL capillary blood |
| Analysis Time | Less than 90 seconds |
| Calibration | Automatic, programmable; 1-point and 2-point options |
| Data Storage | Over 10,000 records |
| Display | 10.4-inch TFT touch screen |
| Printer | Built-in thermal printer, 70 mm width |
| Barcode Reader | Integrated; supports up to 14 barcode types |
| Connectivity | Serial RS-232, TCP/IP, USB port |
| Battery | Nickel-metal hydride, 3.0 Ah |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | MDLAB37 benchtop blood gas and chemistry analyzer with 10.4-inch touch screen | 1 |
| Calibrants Cartridge | Flexible and simple calibrants cartridge system for automatic calibration | 1 |
| QC Cartridge | Automatic quality control cartridge for routine QC verification | 1 |
| Thermal Printer | Built-in 70 mm thermal printer for result documentation | Integrated |
| Barcode Reader | Integrated barcode reader supporting up to 14 barcode types | Integrated |
| Battery | Nickel-metal hydride rechargeable battery, 3.0 Ah | 1 |
| Power Adapter | AC power adapter for mains operation | 1 |
| User Manual | Comprehensive operation and maintenance documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, volume discounts, and delivery timelines for the MDLAB37 blood gas analyzer. We offer flexible ordering options and comprehensive technical support.
