A B Scan Ophthalmic Ultrasound Pachymeter MDLPU21
Advanced portable ultrasound pachymeter with 5.7-inch color touch LCD screen, 10-hour rechargeable battery, and built-in thermal printer. Delivers high-resolution measurements (±0.02mm) for comprehensive ocular biometry including ACD, lens thickness, vitreous depth, and axial length across multiple examination modes.
Clinical overview

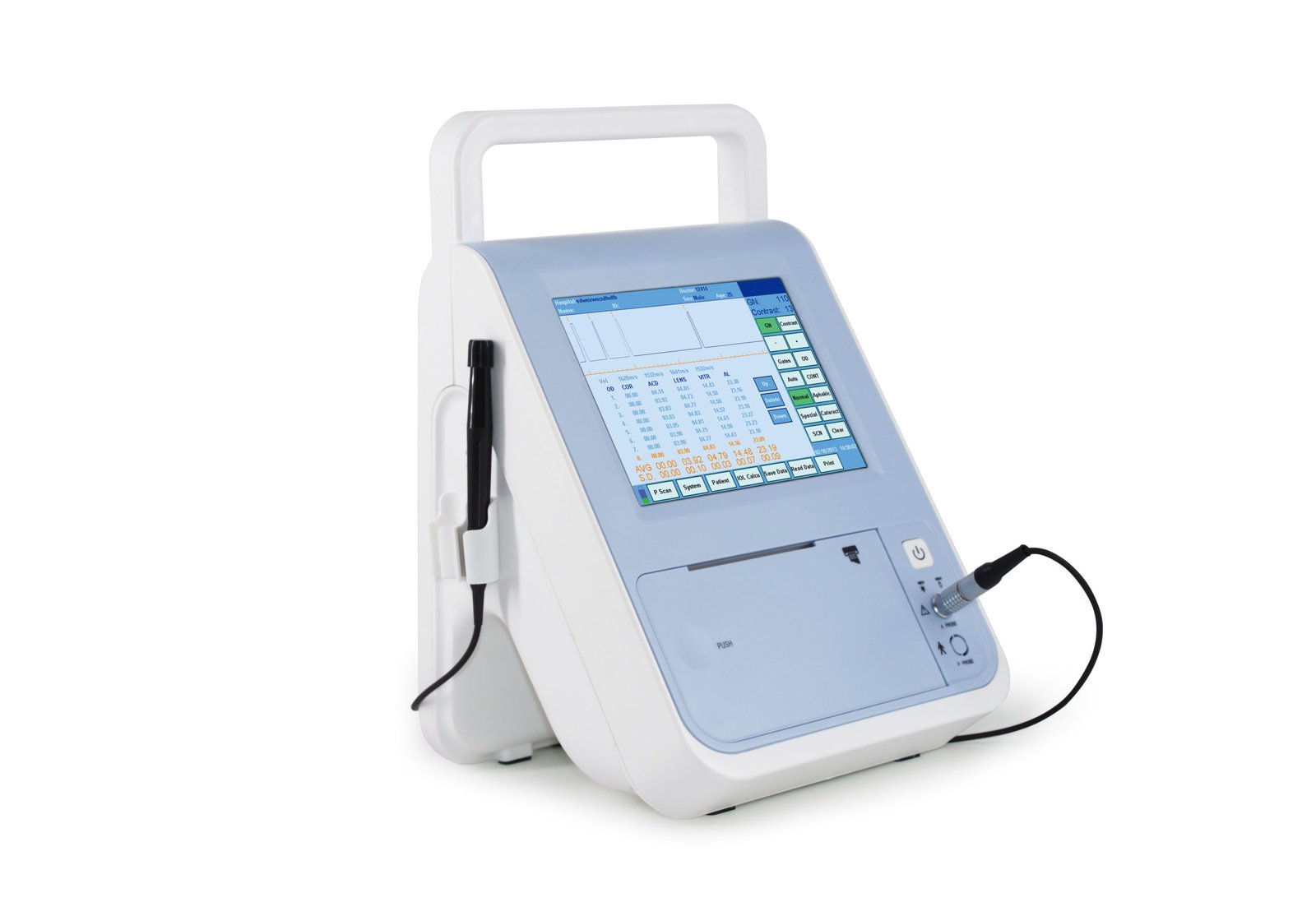

The MDLPU21 is a compact, portable A/B scan ophthalmic ultrasound pachymeter designed for rapid, accurate ocular biometry in clinical and office-based settings. With a 10 MHz probe frequency and ±0.02 mm measurement accuracy, it delivers reliable data for intraocular lens power calculations, cataract assessment, and comprehensive axial measurements. The device supports multiple examination modes—normal, aphakic, pseudophakic, and dense cataract—enabling clinicians to adapt measurement protocols to diverse patient presentations.
Featuring a 5.7-inch color touch LCD screen, intuitive interface, and built-in thermal printer, the MDLPU21 streamlines workflow and documentation. The 10-hour rechargeable battery and lightweight 1.7 kg design ensure portability across clinic locations. Multi-language support (Chinese, English, Russian, French, Spanish, Portuguese) and direct USB/I-station connectivity facilitate integration into existing practice management and workstation systems.
Key features & surgeon benefits
Comprehensive Ocular Biometry
- Simultaneous A/B scan measurement modes
- ACD, lens thickness, vitreous depth, and axial length in one session
- Six IOL calculation formulas (SRK-II, SRK-T, Binkhorst, Holladay, Hoffer-Q, Haigis)
Rapid, Portable Operation

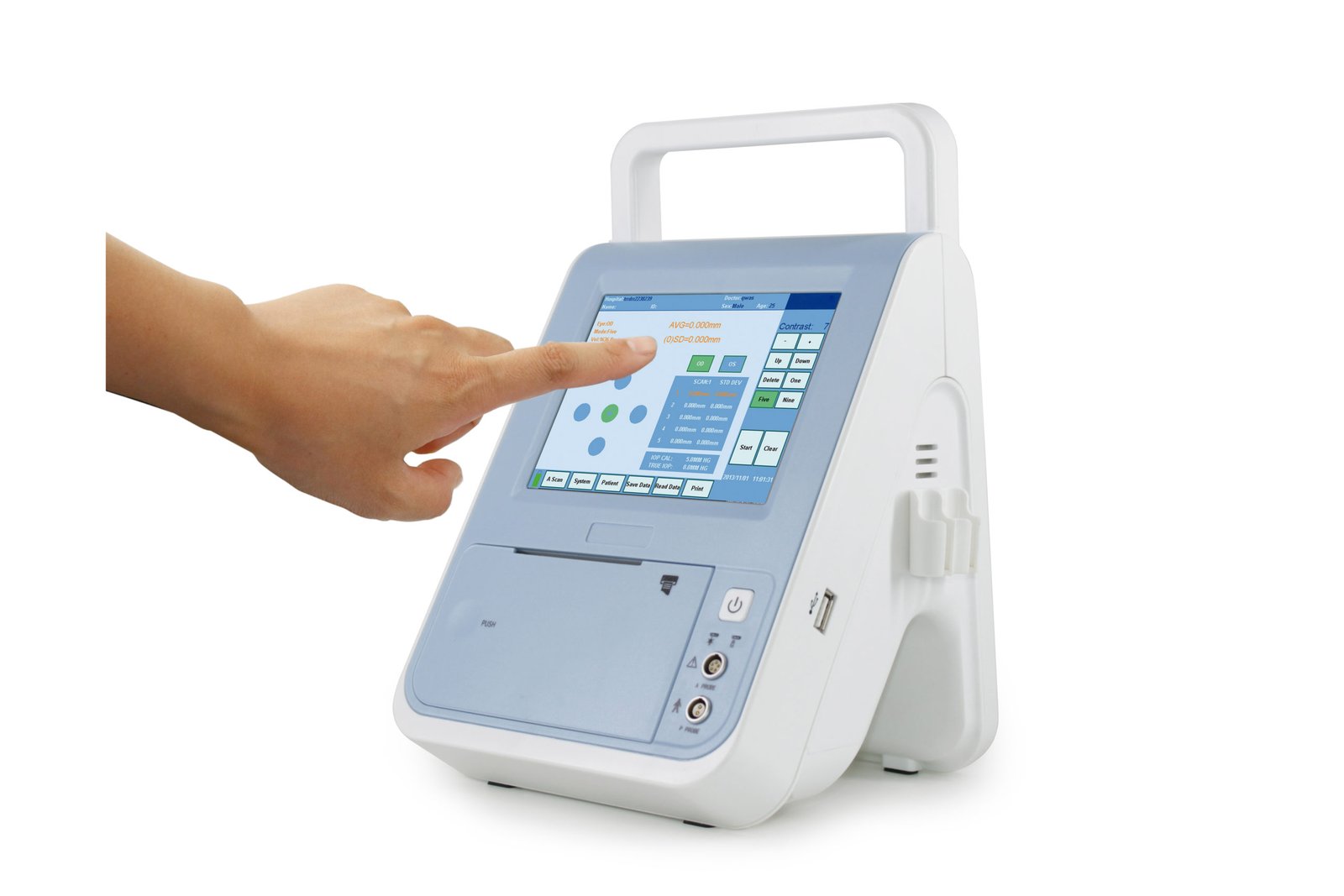

- 5.7-inch color touch screen with intuitive navigation
- One-key thermal print for instant documentation
- 10-hour battery life; no tethering required
Clinical-Grade Resolution
- ±0.02 mm measurement accuracy
- 0.01 mm resolution with 10 MHz probe frequency
- Adjustable gain (0–120 dB) for optimal signal in all conditions
Seamless System Connectivity
- USB port for direct PC data transfer
- I-station workstation compatibility
- Multi-language interface; OEM customisation available
Technical specifications
| Probe Frequency | 10 MHz |
|---|---|
| Resolution | 0.01 mm |
| Measurement Accuracy | ±0.02 mm |
| Gain Adjustable Range | 0–120 dB |
| Measurement Range | 15–35 mm (velocity 1640 m/s) |
| Measurement Parameters | ACD, Lens thickness, Vitreous depth, Axial length (AXL) |
| Examination Modes | Normal, Aphakic, Pseudophakic, Dense cataract |
| Measurement Modes | Immersion, Contact, Auto, Manual |
| IOL Formulas | SRK-II, SRK-T, Binkhorst, Holladay, Hoffer-Q, Haigis |
| Display | 5.7-inch color touch LCD screen |
| Battery | Rechargeable; 10-hour operating time |
| Printer | Built-in thermal printer with one-key print |
| Connectivity | USB port; I-station workstation support |
| Languages | Chinese, English, Russian, French, Spanish, Portuguese |
| Net Weight | 1.7 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | A/B Scan Ophthalmic Ultrasound Pachymeter with 5.7-inch color touch LCD display | 1 |

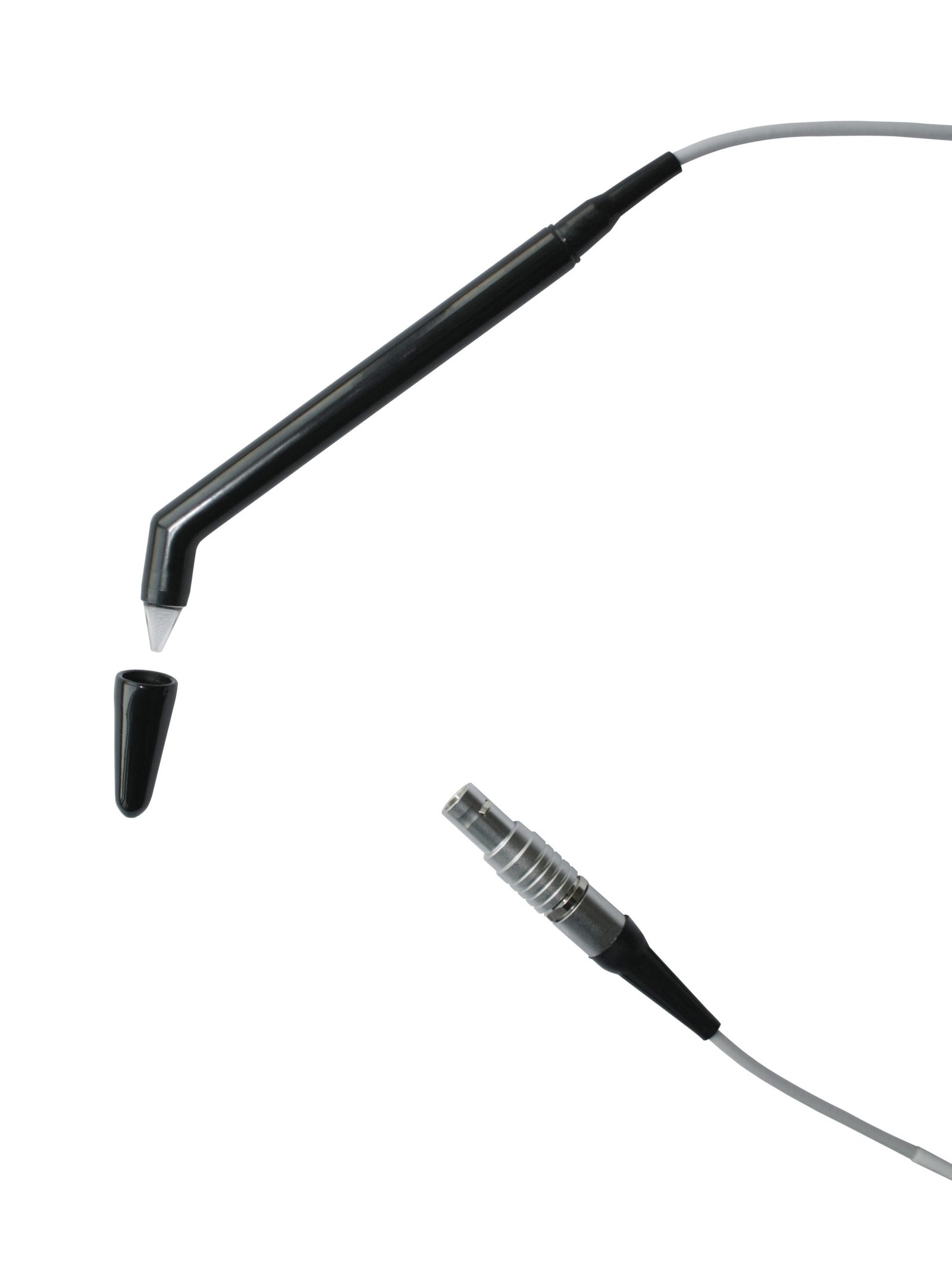

| Probe | 10 MHz ultrasound transducer with cable | 1 |
| Footswitch | Ergonomic control pedal for measurement activation | 1 |
| Power Supply | AC adapter with rechargeable battery module | 1 |
| Thermal Printer | Built-in thermal printer (paper rolls included) | Integrated |
| USB Cable | For PC connectivity and data transfer | 1 |
| Probe Cover / Sheath | Disposable protective covers for hygiene | Pack of 100 |
| Coupling Gel | Ultrasound transmission gel (contact/immersion) | 1 bottle |
| User Manual | Multi-language instruction guide and quick reference | 1 |
| Carrying Case | Protective transport case for portability | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, arrange a product demonstration, or discuss customisation options for your clinic or hospital. We offer flexible delivery, training, and comprehensive after-sales support.
