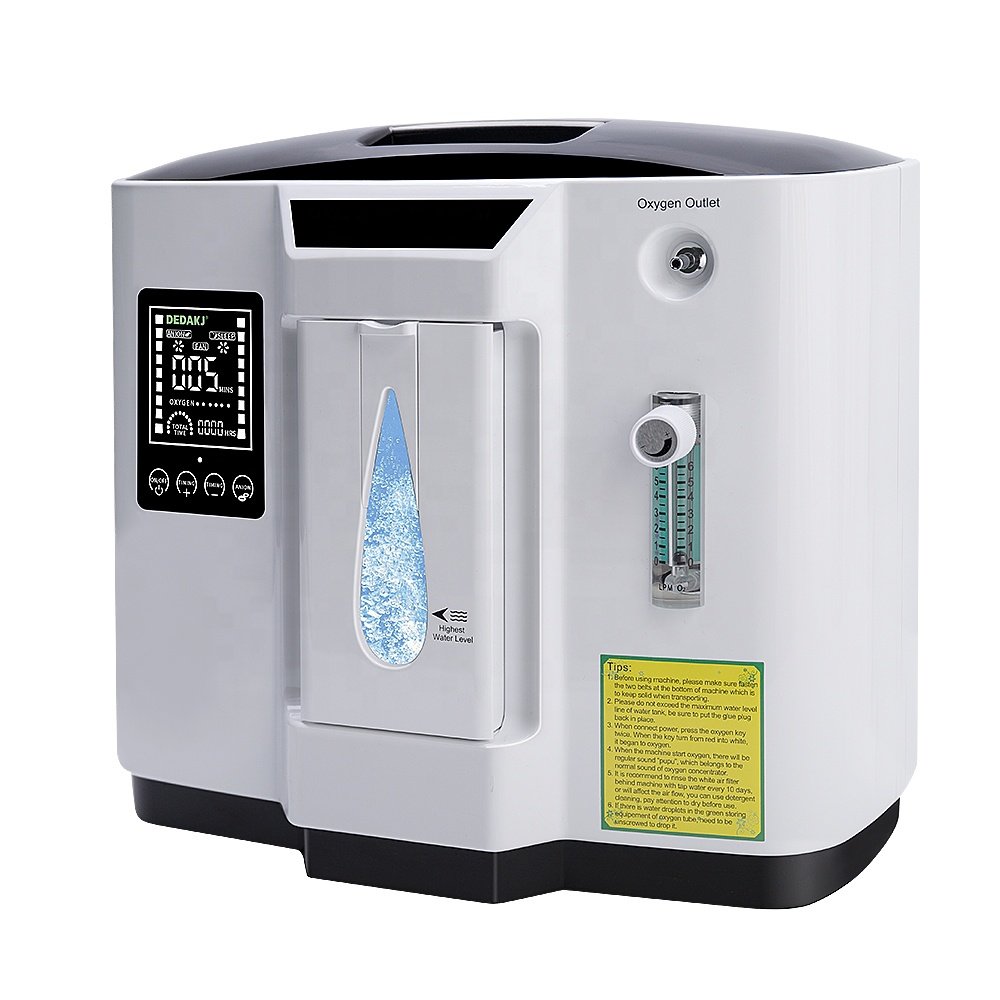

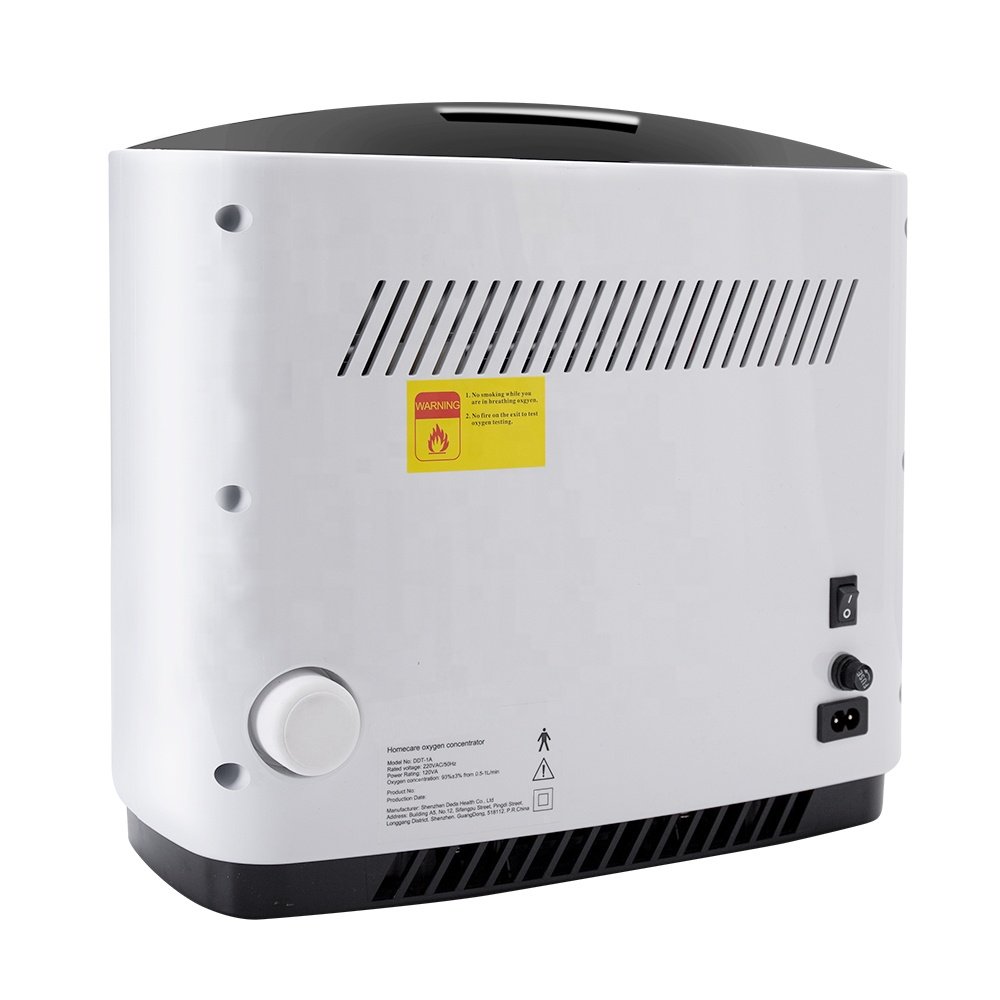

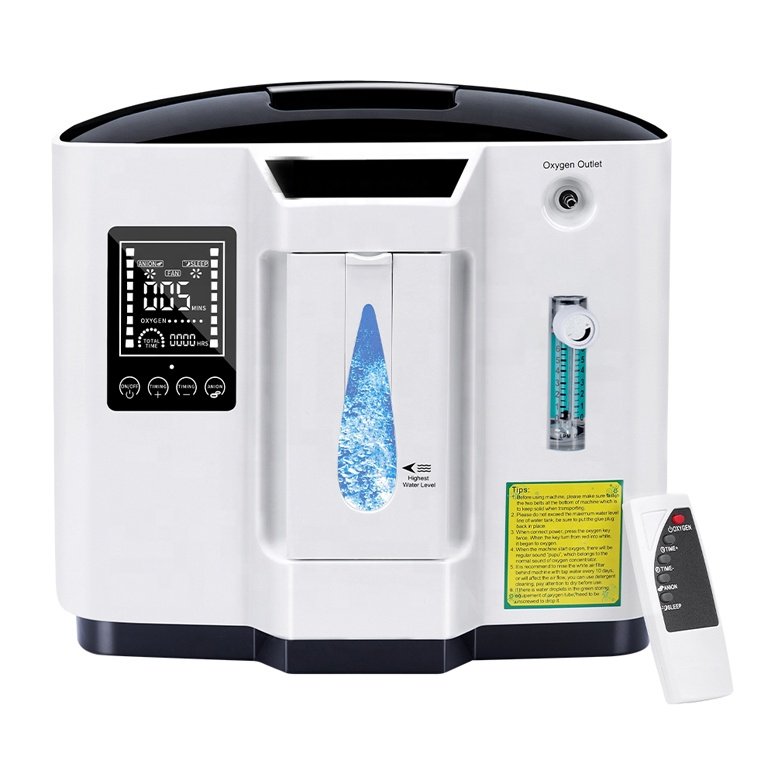

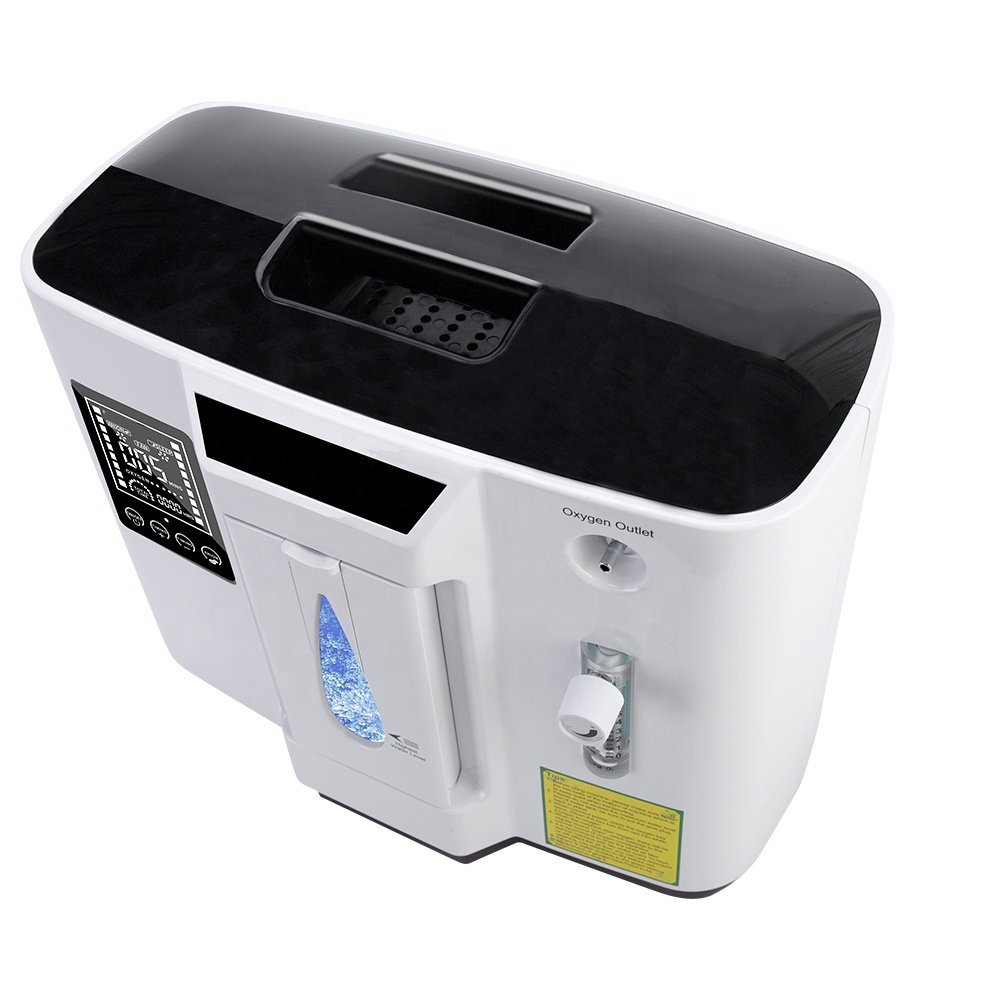

6L Oxygen Concentrator Machine MDLZY39
- Oxygen generation method: Pressure Swing Adsorption(PSA)
- Oxygen flow rate: Adjustable from 0 to 6L/min
- Oxygen concentration: Adjustable from 30% to 90%
- Operating noise level: ≤45dB(A)
- Size: 340mm x 180mm x 310mm
- Net weight: 6.0kg
- Display control: LED light display with Intelligent chip control and infrared remote control
- SKU
- MDLZY39
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
6L Oxygen Concentrator Machine MDLZY39
Advanced PSA-based oxygen generation system delivering adjustable flow rates from 0–6 L/min with oxygen concentration up to 90%. Compact, quiet, and intelligent—designed for reliable home and clinical use with LED display and infrared remote control.
Clinical overview
The MDLZY39 is a Class II medical device oxygen concentrator engineered for continuous home and clinical oxygen therapy. Utilising Pressure Swing Adsorption (PSA) technology, it efficiently extracts oxygen from ambient air and delivers it at adjustable concentrations (30–90% ±3%) and flow rates (0–6 L/min). This makes it suitable for patients requiring supplemental oxygen across a range of respiratory conditions and oxygen saturation targets.
With intelligent chip control, LED display feedback, and infrared remote operation, the MDLZY39 prioritises user convenience and ease of monitoring. Its compact footprint (340 × 180 × 310 mm) and lightweight design (6.0 kg) enable flexible placement in bedrooms, living areas, or clinical settings. Operating at just 45 dB(A), it provides quiet, unobtrusive oxygen generation without disrupting rest or daily activities.
Key features & surgeon benefits
PSA-Based Oxygen Generation
- Pressure Swing Adsorption (PSA) technology for reliable, continuous oxygen extraction
- Adjustable oxygen concentration from 30–90% (±3%)
- Oxygen pressure range 0.02–0.05 MPa for safe, controlled delivery
User-Friendly Operation
- LED light display with real-time status monitoring
- Intelligent chip control for automatic regulation
- Infrared remote control for convenient adjustment from distance
Quiet, Compact Design
- Ultra-quiet operation at 45 dB(A)—ideal for bedside use
- Compact dimensions (340 × 180 × 310 mm) fit any room layout
- Lightweight at 6.0 kg for easy repositioning
Adjustable Flow & Concentration
- Variable flow rate from 0–6 L/min to match patient requirements
- Dual voltage operation: AC220±22V 50Hz or AC110±10V 60Hz
- Low power consumption at 120 VA
Technical specifications
| Oxygen Generation Method | Pressure Swing Adsorption (PSA) |
|---|---|
| Rated Voltage | AC220±22V 50±1Hz / AC110±10V 60Hz |
| Rated Power | 120 VA |
| Oxygen Flow Rate | 0–6 L/min (adjustable) |
| Oxygen Concentration | 30–90% (±3%) adjustable |
| Oxygen Pressure | 0.02–0.05 MPa |
| Operating Noise Level | ≤45 dB(A) |
| Dimensions | 340 mm (L) × 180 mm (W) × 310 mm (H) |
| Net Weight | 6.0 kg |
| Display & Control | LED light display, intelligent chip control, infrared remote |
| Classification | Class II Medical Device |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | 6L Oxygen Concentrator Machine MDLZY39 with PSA technology | 1 |
| Power Cable | AC power cord with appropriate plug configuration | 1 |
| Infrared Remote Control | Wireless remote for flow and concentration adjustment | 1 |
| Oxygen Outlet Tubing | Standard medical-grade oxygen delivery tubing | 1 |
| User Manual | Multilingual operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, customisation options, and delivery timelines for the MDLZY39 oxygen concentrator. We offer flexible configurations and OEM partnerships for healthcare facilities and distributors.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
