Wireless Ultrasound Scanner MDLPU65
- Type: Linear
- Frequency: 10/12Mhz
- Depth: 20~50mm
- Elements: 128
- Net weight: 210g
- Battery Life: 5~8 years
- Voltage: 3.7v
- Capacity: 4200mAh
- Standby: ~12h
- SKU
- MDLPU65
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping

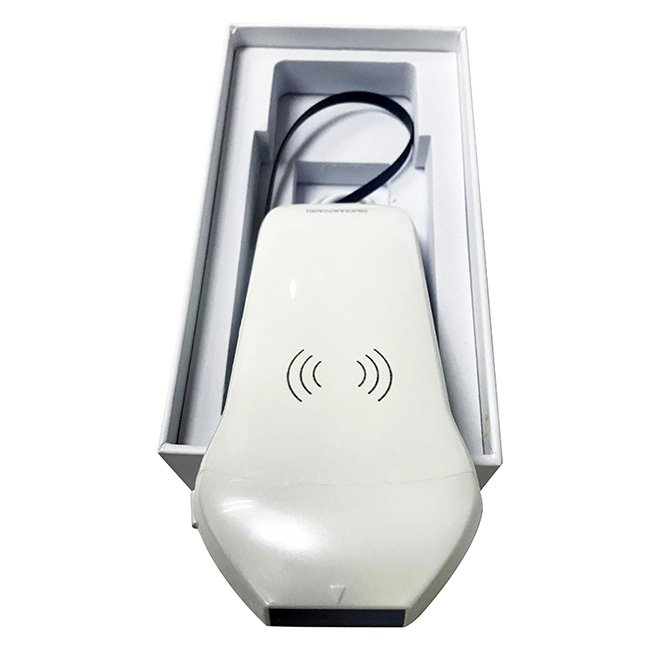

Wireless Ultrasound Scanner MDLPU65
A portable, wireless linear ultrasound scanner delivering high-resolution imaging with 128 elements and dual-frequency capability. Engineered for clinical professionals requiring reliable, lightweight diagnostic imaging with extended battery life and rapid deployment.
Clinical overview
The MDLPU65 is a compact, wireless linear ultrasound scanner designed for point-of-care and clinical diagnostic applications. With 128 piezoelectric elements operating at 10/12 MHz, it delivers high-resolution B-mode imaging across a 20–50 mm depth range, making it suitable for musculoskeletal, vascular, and soft tissue assessment. The wireless architecture eliminates cable constraints, enabling seamless integration with tablets, smartphones, and clinical workstations across iOS and Android platforms.
Weighing only 210 grams and powered by a replaceable 4200 mAh lithium battery with 5–8 year lifespan, the MDLPU65 combines portability with extended operational endurance. Boot-up times under 5 seconds and 12-hour standby capability ensure rapid clinical deployment and minimal downtime, making it ideal for busy diagnostic departments, mobile clinics, and remote healthcare settings.
Key features & surgeon benefits
High-Resolution Diagnostics
- 128-element linear array for superior spatial resolution
- Dual-frequency operation (10/12 MHz) optimises penetration and detail
- 20–50 mm depth range covers most clinical applications
Lightweight & Wireless
- Only 210 g net weight for one-handed operation
- Wireless connectivity eliminates cable tethering
- Compact 23 mm probe length for ergonomic handling
Extended Battery Life
- 5–8 year battery lifespan with user-replaceable 4200 mAh cell
- ~12 hour standby for full-shift clinical use
- Sub-5 second boot-up for rapid deployment
Platform Flexibility
- Compatible with iOS and Android devices
- Seamless tablet and smartphone integration
- OEM customisation and firmware support available
Technical specifications
| Probe Type | Linear array |
|---|---|
| Frequency | 10/12 MHz (dual-frequency) |
| Elements | 128 |
| Depth Range | 20–50 mm |
| Probe Length | 23 mm |
| Net Weight | 210 g |
| Gross Weight | 1.1 kg |
| Battery Type | Replaceable 4200 mAh lithium-ion |
| Battery Voltage | 3.7 V |
| Battery Life | 5–8 years |
| Standby Time | ~12 hours |
| Boot-up Time | Generally <5 seconds (platform-dependent) |
| Connectivity | Wireless (iOS & Android compatible) |
| Sterilisation | As applicable |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Wireless Linear Probe | MDLPU65 128-element linear array, 10/12 MHz | 1 |
| Rechargeable Battery | 4200 mAh lithium-ion, 3.7 V, user-replaceable | 1 |
| USB Charging Cable | Standard USB charging interface | 1 |
| Protective Carrying Case | Padded case for transport and storage | 1 |
| User Documentation | Quick-start guide and technical manual | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, OEM integration, and customisation options for the MDLPU65 wireless ultrasound scanner. We offer flexible delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
