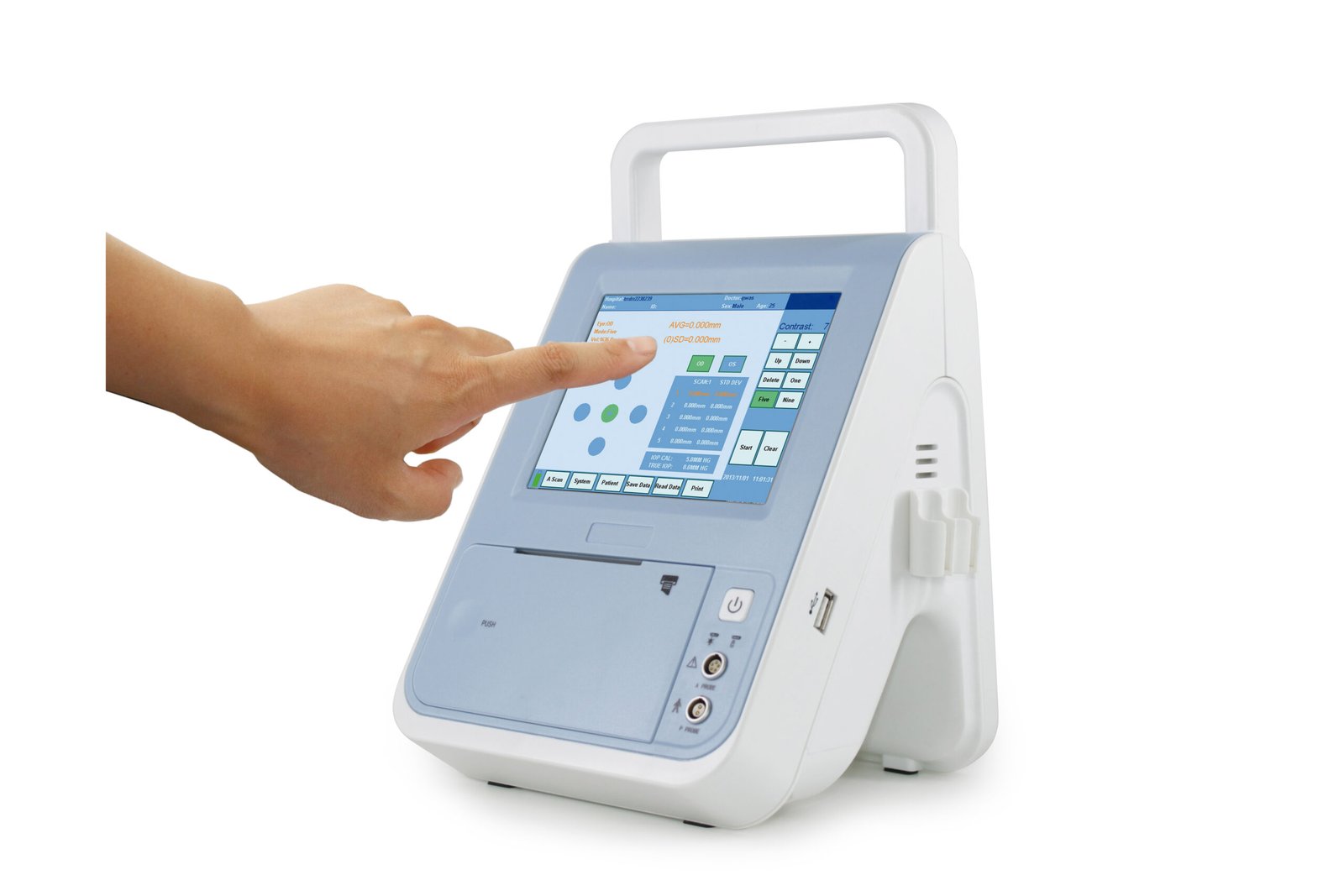

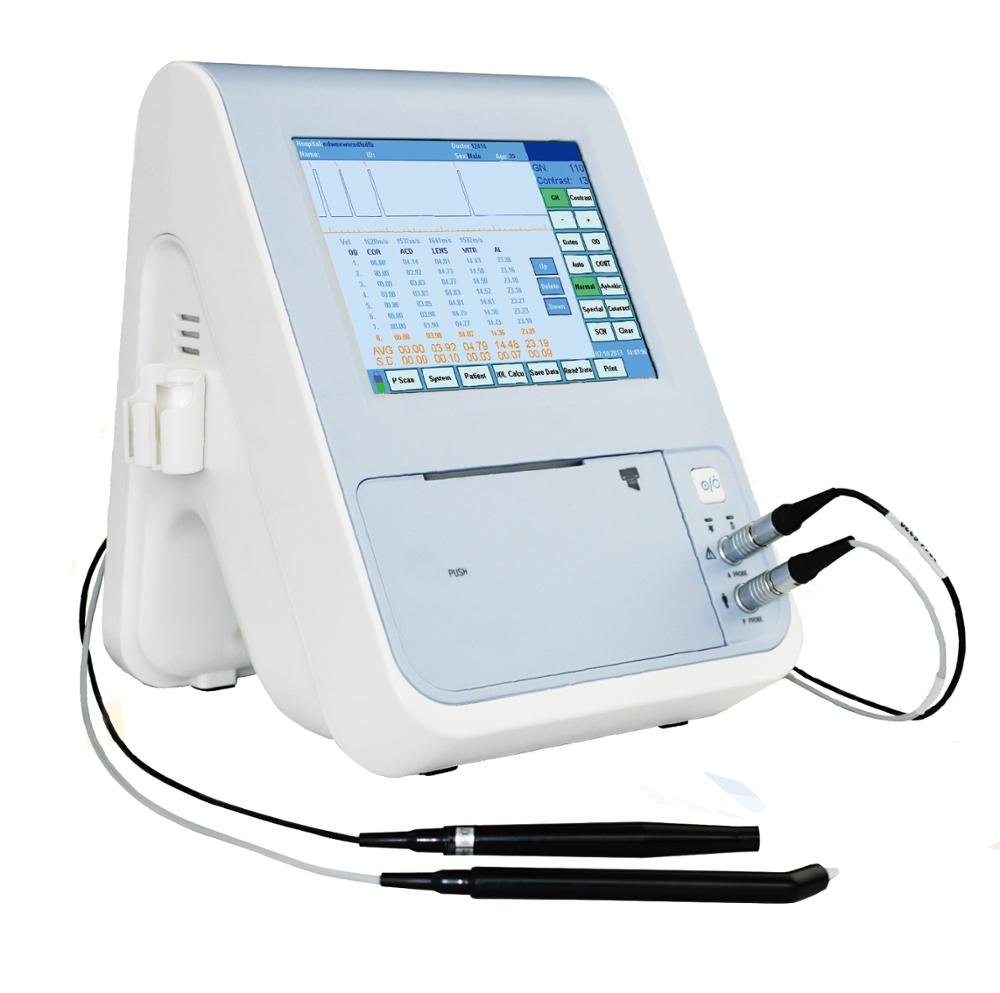

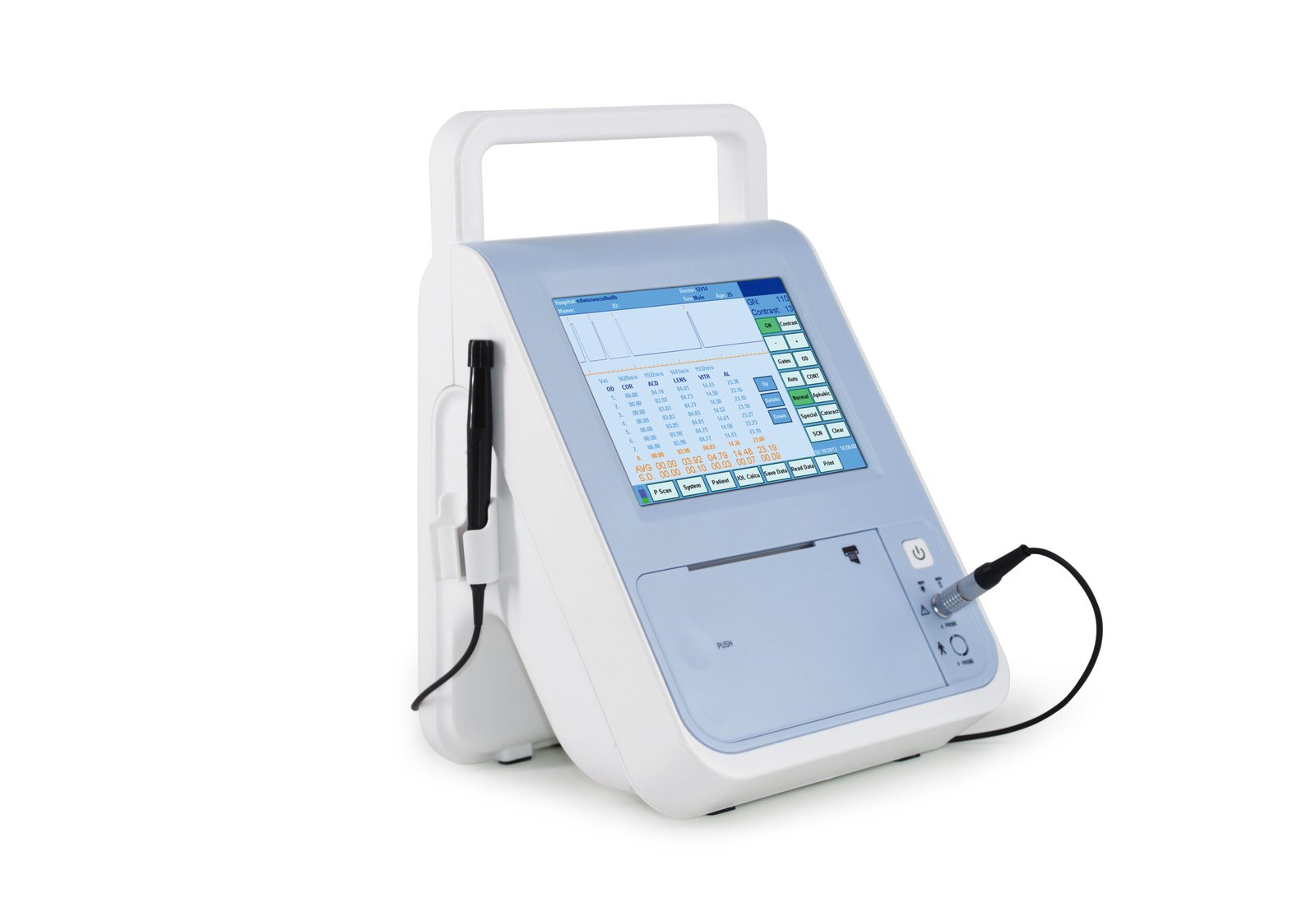

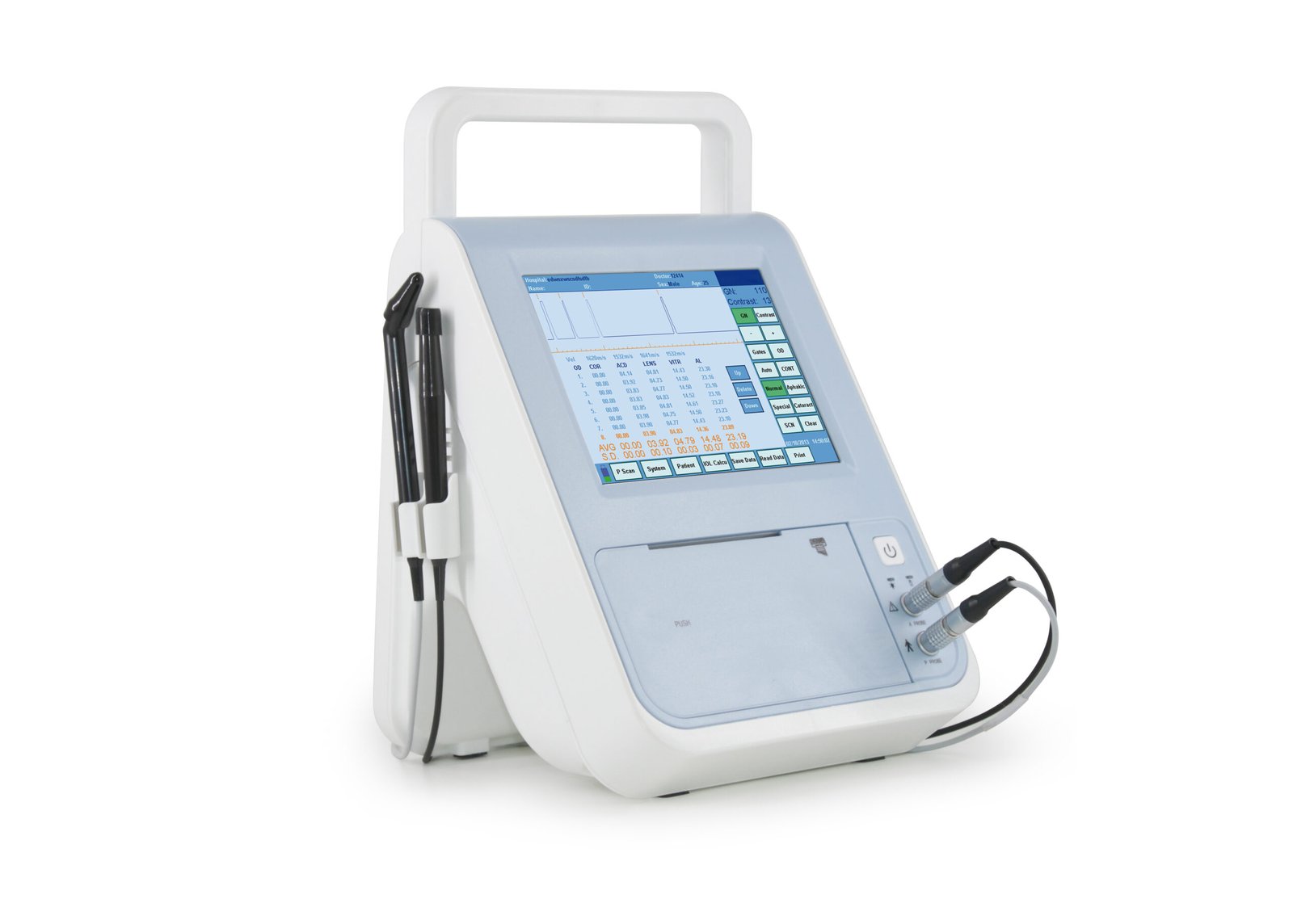

A B Scan Ophthalmic Ultrasound Pachymeter MDLPU21
- Portable A B Scan Ophthalmic Ultrasound Pachymeter MDLPU21 with a 5.7 inch color touch LCD screen
- Rechargeable battery lasting up to 10 hours for seamless operation
- Built-in thermal printer for easy and quick printing
- USB port for direct connection to your PC
- Support for I-station workstation connection for enhanced functionality
- Lightweight design at 1.7Kg for increased portability
- Probe Frequency: 10 MHZ, Resolution: 0.01mm, Accuracy: ±0.02mm
- Measurement range: 15~35 mm (vel 1640m/s) for precise measurements
- SKU
- MDLPU21
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
A B Scan Ophthalmic Ultrasound Pachymeter MDLPU21
Advanced portable ultrasound pachymeter with 5.7-inch color touch LCD screen, 10-hour rechargeable battery, and built-in thermal printer. Delivers high-resolution measurements (±0.02mm) for comprehensive ocular biometry including ACD, lens thickness, vitreous depth, and axial length across multiple examination modes.
Clinical overview
The MDLPU21 is a compact, portable A/B scan ophthalmic ultrasound pachymeter designed for rapid, accurate ocular biometry in clinical and office-based settings. With a 10 MHz probe frequency and ±0.02 mm measurement accuracy, it delivers reliable data for intraocular lens power calculations, cataract assessment, and comprehensive axial measurements. The device supports multiple examination modes—normal, aphakic, pseudophakic, and dense cataract—enabling clinicians to adapt measurement protocols to diverse patient presentations.
Featuring a 5.7-inch color touch LCD screen, intuitive interface, and built-in thermal printer, the MDLPU21 streamlines workflow and documentation. The 10-hour rechargeable battery and lightweight 1.7 kg design ensure portability across clinic locations. Multi-language support (Chinese, English, Russian, French, Spanish, Portuguese) and direct USB/I-station connectivity facilitate integration into existing practice management and workstation systems.
Key features & surgeon benefits
Comprehensive Ocular Biometry
- Simultaneous A/B scan measurement modes
- ACD, lens thickness, vitreous depth, and axial length in one session
- Six IOL calculation formulas (SRK-II, SRK-T, Binkhorst, Holladay, Hoffer-Q, Haigis)
Rapid, Portable Operation
- 5.7-inch color touch screen with intuitive navigation
- One-key thermal print for instant documentation
- 10-hour battery life; no tethering required
Clinical-Grade Resolution
- ±0.02 mm measurement accuracy
- 0.01 mm resolution with 10 MHz probe frequency
- Adjustable gain (0–120 dB) for optimal signal in all conditions
Seamless System Connectivity
- USB port for direct PC data transfer
- I-station workstation compatibility
- Multi-language interface; OEM customisation available
Technical specifications
| Probe Frequency | 10 MHz |
|---|---|
| Resolution | 0.01 mm |
| Measurement Accuracy | ±0.02 mm |
| Gain Adjustable Range | 0–120 dB |
| Measurement Range | 15–35 mm (velocity 1640 m/s) |
| Measurement Parameters | ACD, Lens thickness, Vitreous depth, Axial length (AXL) |
| Examination Modes | Normal, Aphakic, Pseudophakic, Dense cataract |
| Measurement Modes | Immersion, Contact, Auto, Manual |
| IOL Formulas | SRK-II, SRK-T, Binkhorst, Holladay, Hoffer-Q, Haigis |
| Display | 5.7-inch color touch LCD screen |
| Battery | Rechargeable; 10-hour operating time |
| Printer | Built-in thermal printer with one-key print |
| Connectivity | USB port; I-station workstation support |
| Languages | Chinese, English, Russian, French, Spanish, Portuguese |
| Net Weight | 1.7 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | A/B Scan Ophthalmic Ultrasound Pachymeter with 5.7-inch color touch LCD display | 1 |

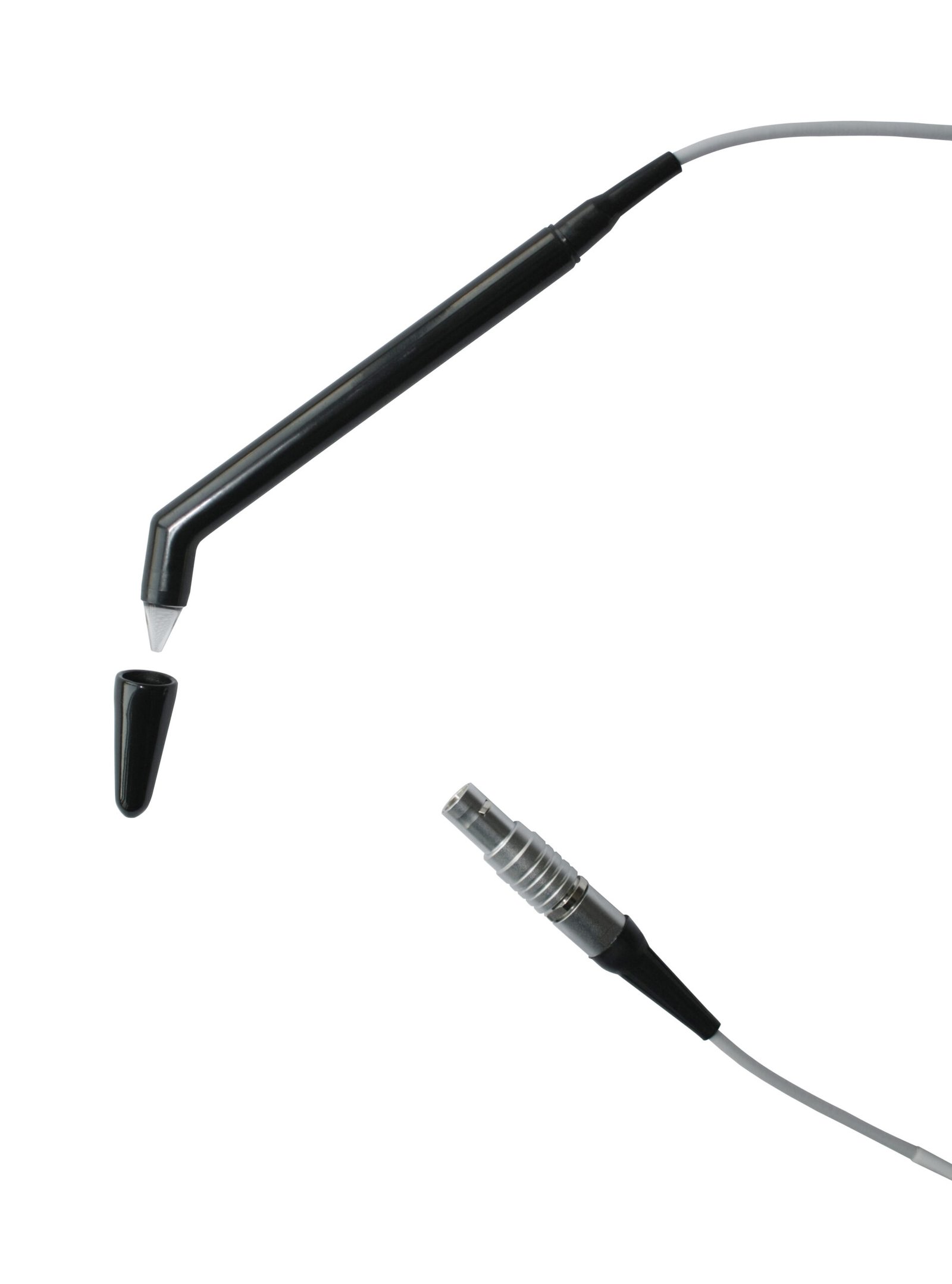

| Probe | 10 MHz ultrasound transducer with cable | 1 |
| Footswitch | Ergonomic control pedal for measurement activation | 1 |
| Power Supply | AC adapter with rechargeable battery module | 1 |
| Thermal Printer | Built-in thermal printer (paper rolls included) | Integrated |
| USB Cable | For PC connectivity and data transfer | 1 |
| Probe Cover / Sheath | Disposable protective covers for hygiene | Pack of 100 |
| Coupling Gel | Ultrasound transmission gel (contact/immersion) | 1 bottle |
| User Manual | Multi-language instruction guide and quick reference | 1 |
| Carrying Case | Protective transport case for portability | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, arrange a product demonstration, or discuss customisation options for your clinic or hospital. We offer flexible delivery, training, and comprehensive after-sales support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →
3D Ultrasound Machine MDLCU23
- 10.4' color LCD full screen display, angle adjustable - One-key-light keyboard function for black room use - Quick look up stored image function for increased efficiency - Multi-functional knob design for quick adjustment in multi-mode - Transmitted signal accuracy control - Image optimization imaging technique - Adaptive color artifact removal technique - Abundant measuring software available
3D Laptop Ultrasound Machine MDLPU34
- 15 inch LCD screen for clear display - Working frequency range of 2.0MHz to 10MHz - Multiple display modes including B, B+B, B+M, M, and 4B - Convex array scanning range from 60° to 150° - Image processing features like gamma corrections, digital filtering, and pseudo-color processing - Obstetric measurements for gestational weeks and fetus weight estimation - Built-in battery with over 5 hours of usage - Compact and portable design weighing only 4Kg - Comes with standard accessories including a convex probe and aluminum trunk
3D Full Digital Laptop Ultrasound Scanner MDLPU25
- 15-inch LCD screen display - Wide scanning range from 60° to 150° - Various display modes including B, B+B, B+M, M, 4B - Adjustable gain control with 8 segments TGC - Image processing features like γ corrections, digital filtering, and pseudo color processing - High image gray-scale with 256 levels - Obstetric measurements for gestational weeks and fetus weight - Built-in battery with over 5 hours of work time
4D Full Digital Trolley Color Doppler Ultrasound MDLCU30
- Full digital trolley color Doppler ultrasound machine - Advanced signal processing for clear imaging - Broad range of displaying modes for versatility - Intelligent image processing technologies for enhanced results - Extensive measurement packages for different specialties - Deep scanning depth up to 300mm - Multiple image storage formats and large storage capacity - Equipped with various input/output ports for connectivity
Wireless Veterinary Ultrasound Probe MDLPU36
- Wireless veterinary ultrasound probe for convenient and hassle-free use - Compatible with Apple devices such as IPAD mini, IPAD air, and IPHONE - Offers high-quality imaging with a scanning system of sector sweep - Features a frequency of 3.5MHz/5MHz for accurate results - Allows measurements of distance, area, and obstetrics - Lightweight design with a weight of 200 grams for easy handling - Long-lasting battery that can last up to 5 hours - Ideal for veterinary professionals for efficient diagnosis and monitoring
Wireless Ultrasound Scan Linear Probe MDLPU35
- The Wireless Ultrasound Scan Linear Probe MDLPU35 is compatible with tablets or smartphones, making it easy to use on the go. - It features advanced digital imaging technology for clear and accurate images. - This probe has a built-in and replaceable battery for convenience. - With wireless connectivity, it is easy to operate in various settings like emergency, clinic, outdoor, and vet inspections. - The device is compact and lightweight, making it easy to carry around. - It comes with an intelligent terminal platform for powerful expansion functions like application, storage, communication, and printing. - The probe has a scanning system with array sweep technology for efficient scanning.

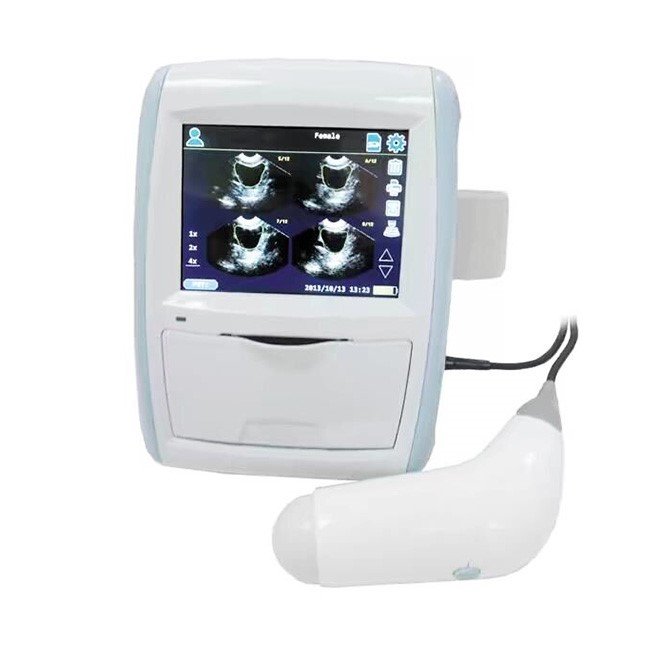

Portable Ultrasound Bladder Scanner Machine MDLPU38
