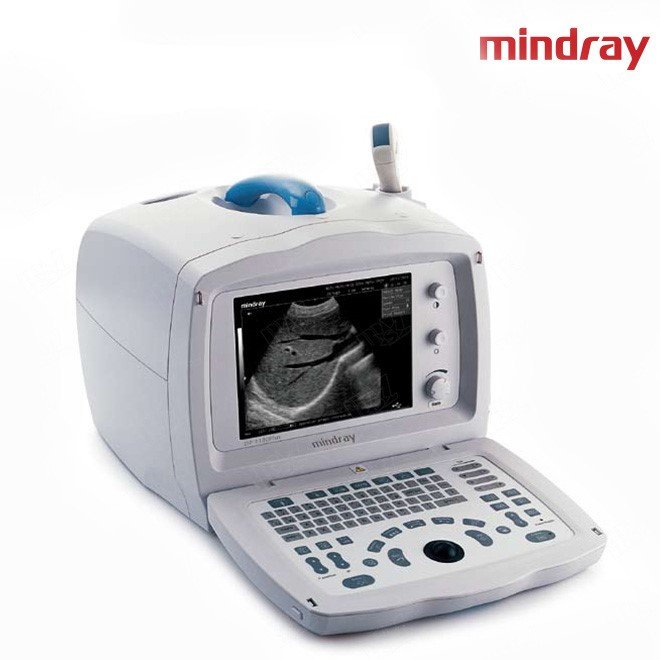

Ultrasonic Diagnostic Imaging System Mindray DP-1100Plus
The Mindray DP-1100Plus Ultrasonic Diagnostic Imaging System is a cost-effective and user-friendly solution for all-digital ultrasound imaging. With powerful preset functions and easy manual-free operation, this system offers exceptional image quality and portability. Key features include:
- All digital imaging technology
- User-defined image parameter groups
- Abundant measurement items like volume and heart rate
- Special measurement packages for abdomen, obstetrics, gynecology, and orthopedics
- Includes a 10' non-interlaced monitor and one transducer connector
- Offers 128-frame CINE loop and 90-frame image storage
- Comes with measurement and calculation software packages for enhanced functionality
- SKU
- DP-1100PLUS
- Brand
- Mindray
- Availability
- In stock
- ✓ Worldwide shipping
Mindray DP-1100Plus Ultrasonic Diagnostic Imaging System
An affordable, all-digital ultrasound system delivering proven image quality with intuitive operation and portability. The DP-1100Plus combines powerful preset functions and user-defined imaging modes to meet diverse clinical requirements across multiple specialties.
Clinical overview
The Mindray DP-1100Plus is a compact, all-digital ultrasound system engineered for clinicians who demand reliable diagnostic imaging without complexity. Its 10″ non-interlaced monitor delivers clear, artifact-free visuals essential for accurate diagnosis across abdominal, obstetric, gynecologic, and orthopedic applications.
With 128-frame CINE loop capability and 90-frame image storage, the system captures dynamic sequences for comprehensive clinical assessment. Powerful user-defined image parameter groups and examination modes allow rapid protocol customization, while abundant measurement items—including volume, stenosis, and heart rate calculations—support evidence-based clinical reporting. The system's portable design and intuitive operation make it ideal for diverse medical settings, from primary care clinics to specialized imaging centers.
Key features & surgeon benefits
All-Digital Imaging Technology
- High-quality all-digital signal processing
- 10″ non-interlaced monitor for artifact-free visualization
- 128-frame CINE loop for dynamic imaging capture
Intuitive Operation & Portability
- Powerful preset functions and manual-free operation
- User-defined image parameter groups and examination modes
- Easy to transport and operate across multiple clinical settings
Comprehensive Measurement Packages
- Abundant measurement items: volume, stenosis, heart rate, and more
- Specialized packages for abdomen, obstetrics, gynecology, and orthopedics
- Extensive clinical reporting for evidence-based diagnosis
Configurable Transducer Options
- One standard transducer connector; optional second connector available
- Multiple transducer choices for varied imaging needs
- 90-frame image storage for efficient data management
Technical specifications
| Indications | Abdominal, obstetric, gynecologic, and orthopedic imaging |
|---|---|
| Display | 10″ non-interlaced monitor |
| Transducer Connectors | One standard; optional second connector available |
| CINE Loop | 128-frame dynamic imaging capture |
| Image Storage | 90-frame capacity |
| Measurement Capabilities | Volume, stenosis, heart rate, and specialty-specific calculations |
| Sterilisation | Transducers sterilizable per manufacturer guidelines |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | DP-1100Plus ultrasound system | 1 |
| Monitor | 10″ non-interlaced display | 1 |
| Transducer Connector | Standard connector port | 1 |
| CINE Loop | 128-frame dynamic imaging capability | Integrated |
| Image Storage | 90-frame capacity | Integrated |
| Software Packages | Measurement and calculation software for abdomen, obstetrics, gynecology, orthopedics | Included |
Optional transducers & accessories
| Item | Description | Frequency Range |
|---|---|---|
| 35C50EB | Electronic convex array transducer | 2.5 / 3.5 / 5.0 MHz |
| 75L38EB | Electronic linear array transducer | 5.0 / 7.5 / 10 MHz |
| 65EC10EB | Electronic endocavity transducer | 5.0 / 6.5 / 8.0 MHz |
| 65C15EA | Electronic micro-convex array transducer | 5.0 / 6.5 / 8.0 MHz |
| 35C20EA | Electronic micro-convex array transducer | 2.5 / 3.5 / 6.0 MHz |
| Second Connector | Additional transducer connector port | N/A |
| Needle-Guided Brackets | Biopsy and intervention guidance system | N/A |
| Mobile Trolley | Wheeled transport cart | N/A |
| Transportation & Operation Bag | Protective carrying case | N/A |
| Hand Carried Bag | Compact portable bag | N/A |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, transducer options, and delivery timelines. We provide comprehensive support and customization for clinical and institutional requirements.
