- Portable ultrasound scanner with high resolution imaging capabilities
- Real-time picture uploading to PC for convenient data management
- Comes with a 3.5MHz convex probe and additional optional probes
- Features a 12-inch imported LCD monitor for clear visualization
- Offers adjustable scan depth from 40mm to 240mm
- Provides various measurement options including distance, circumference, area, and volume
- Includes standard accessories such as charger, gel, and user manual
Advanced High-Resolution Diagnostic Imaging System
Experience professional-grade ultrasound imaging with the MDLPU49, featuring advanced digital beam-forming, real-time dynamic processing, and a 12-inch LCD monitor. This versatile diagnostic system supports multiple probe configurations and delivers exceptional image clarity with 256 grayscale levels for comprehensive clinical applications.

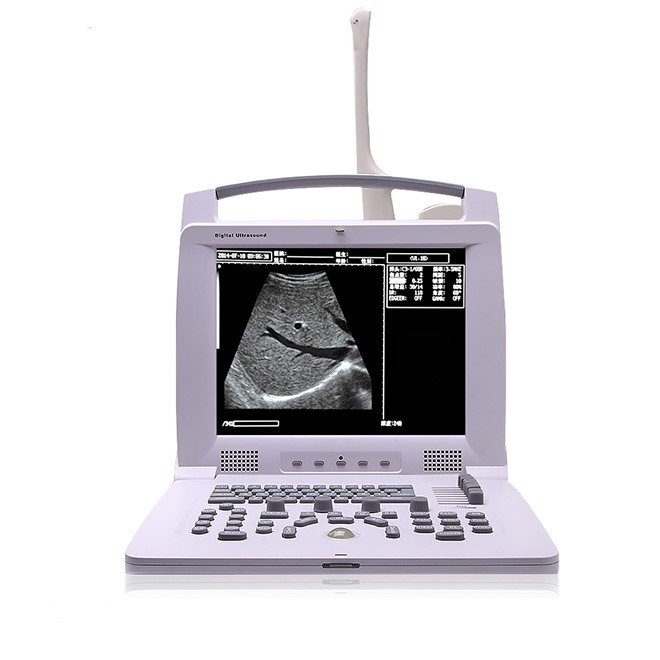

The MDLPU49 Portable Ultrasound Scanner represents a breakthrough in mobile diagnostic imaging technology, combining professional-grade performance with exceptional portability. This convex linear ultrasound scanning diagnostic system delivers high-resolution imaging through advanced micro-computer control and cutting-edge digital signal processing technologies including digital scan converter (DSC), digital beam-forming (DBF), and real-time dynamic aperture (RDA) capabilities.
Designed for clinical versatility, the MDLPU49 integrates sophisticated imaging technologies such as real-time dynamic receiving apodization, real-time dynamic receiving focusing (DRF), digital frequency scan (DFS), and 8-segment digital TGC with frame correlation processing. These advanced features work in concert to ensure exceptional image clarity, stability, and high resolution across all clinical applications, making it an indispensable tool for modern diagnostic facilities, mobile clinics, emergency departments, and point-of-care imaging scenarios.
| Indications | Obstetrics, gynecology, cardiology, abdominal imaging, emergency medicine, musculoskeletal, vascular studies, interventional guidance, primary care |
|---|---|
| Probe Frequencies | 2.5MHz, 3.5MHz, 5.0MHz (convex); 6.5MHz, 7.5MHz, 8.5MHz (linear); 5.5MHz–7.5MHz (trans-vaginal) |
| Scan Depth Range | 40mm–240mm (16 adjustable levels) |
| Display Depth | 240mm maximum |
| Detection Depth | ≥160mm (3.5MHz convex), ≥80mm (7.5MHz linear), ≥60mm (6.5MHz trans-vaginal) |
| Lateral Resolution | ≤2mm (depth ≤80mm), ≤3mm (80–130mm) for convex; ≤1mm (depth ≤60mm) for linear |
| Axial Resolution | ≤2mm (depth ≤80mm), ≤3mm (80–130mm) for convex; ≤1mm (depth ≤60mm) for linear |
| Blind Zone | ≤5mm (convex), ≤3mm (linear), ≤7mm (trans-vaginal) |
| Monitor | 12-inch imported LCD display |
| Display Modes | B, B+B, B+M, M, 4B |
| Grayscale Levels | 256 levels |
| Cine Loop Capacity | 809 frames maximum |
| Image Storage | 32 frames permanent storage |
| Probe Elements | 96 elements |
| Probe Connectors | 2 connectors |
| Dynamic Range | 100dB–130dB |
| Focus Positions | 5 adjustable levels |
| Video Output | PAL-D, VGA |
| Power Supply | AC 110V/220V ± 22V, 50MHz ± 1MHz |
| Measurement Functions | Distance, circumference, area, volume, heart rate; obstetric calculations (GA, FW, EDD) |
| Sterilisation | Probes: standard disinfection; main unit: non-sterile |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Scanner Body | MDLPU49 main unit with 12-inch LCD display and control panel | 1 |
| Convex Probe | 3.5MHz convex transducer for abdominal and obstetric imaging | 1 |
| Charger with Wire Set | Complete AC power adapter and connection cables | 1 set |
| Ultrasound Gel | Standard medical-grade coupling gel bottle | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
Contact our sales team to discuss pricing, optional probe configurations, and delivery timelines. We offer flexible purchasing options and comprehensive technical support for all MDLPU49 systems.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
