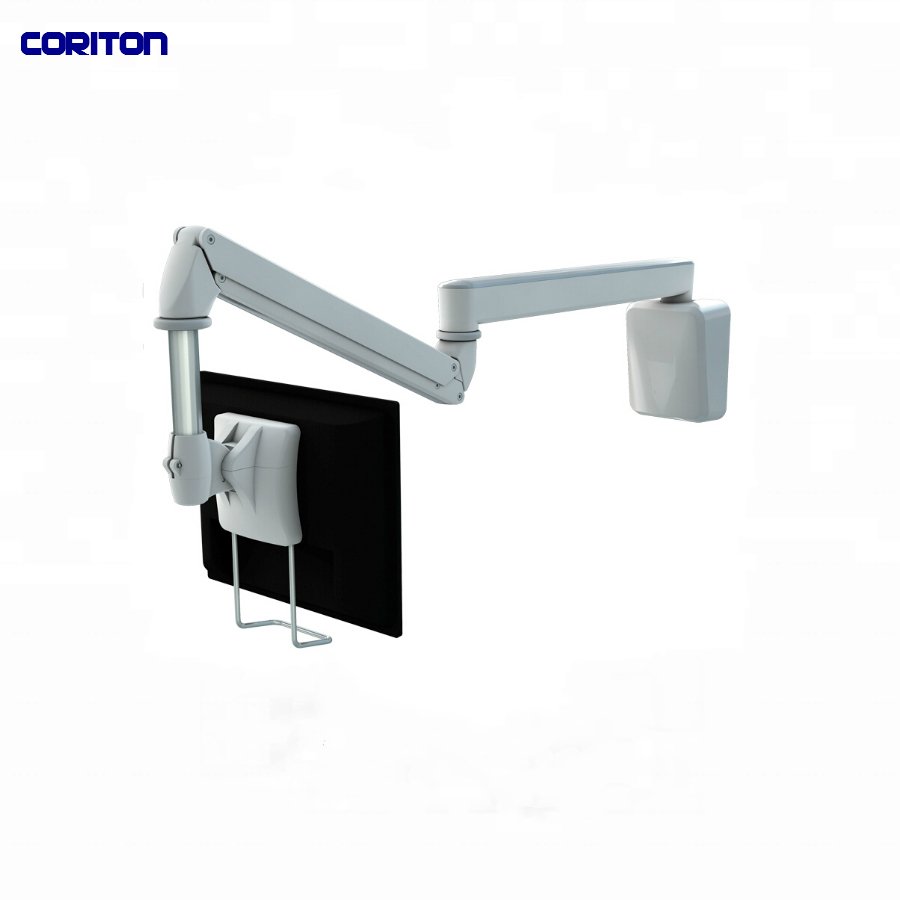

Long Arm Hospital Monitor LCD/TV Wall Mount
Professional-grade articulating wall mount designed for single LCD/TV displays in clinical and hospital environments. Features dual extended arms with 671 mm height adjustment range, 360° pivot support, and flexible swivel/tilt hinges for optimal viewing angles in any care setting.
Clinical overview
The Long Arm Hospital Monitor Wall Mount is engineered for demanding clinical environments where flexible display positioning and reliable stability are essential. With dual extended arms providing 671 mm of height adjustment and comprehensive articulation (±185° swivel, −60° to +20° tilt, 360° pivot), this mount accommodates diverse viewing angles and ergonomic requirements across patient care, diagnostic imaging, and monitoring stations.
Constructed from durable steel, aluminum alloy, and high-grade plastic, the mount supports single LCD/TV displays from 15″ to 24″ with a weight capacity of 2.5–6.5 kg. User-adjustable torque and tension controls enable personalized positioning and secure hold, while integrated cable management maintains a clean, professional installation. The robust 11.4 kg frame ensures stability even in high-traffic clinical areas.
Key features & surgeon benefits
Comprehensive Positioning
- ±185° swivel hinge for side-to-side adjustment
- −60° to +20° tilt for optimal viewing angle
- 360° pivot support for portrait/landscape orientation
- Dual arm swivel: ±90° (primary) and ±185° (secondary)
Flexible Height Adjustment
- 671 mm (26.42″) vertical reach for ergonomic positioning
- User-adjustable torque and tension controls
- Arm tilt range −55° (down) to +25° (up)
- Dual extended arms (2 included) for extended reach
Robust Construction
- Steel, aluminum alloy, and plastic materials for long-term reliability
- Net weight 11.4 kg (25.08 lbs) ensures stability
- Supports 2.5–6.5 kg display weight range
- M4 screw fastening for secure assembly
Professional Integration
- VESA mounting patterns: 100×100 mm and 75×75 mm
- Integrated cable management system for clean setup
- Compatible with 15″ to 24″ single monitors
- Wall-mounted installation for space efficiency
Technical specifications
| Indications | Hospital workstations, clinical monitoring stations, diagnostic imaging displays, patient bedside monitoring |
|---|---|
| Display Compatibility | Single LCD/TV monitors, 15″ to 24″ |
| Weight Capacity | 2.5–6.5 kg (5.5–14.3 lbs) |
| Material | Steel, Aluminum Alloy, Plastic |
| Mount Weight | 11.4 kg (25.08 lbs) |
| Dimensions (W×H×D) | 200 × 1295 × 1407 mm (7.87″ × 50.98″ × 55.39″) |
| VESA Mounting Patterns | 100×100 mm, 75×75 mm |
| Height Adjustment Range | 671 mm (26.42″) |
| Swivel Range (Hinge) | ±185° |
| Tilt Range (Hinge) | −60° to +20° |
| Pivot Support | 360° |
| Arm Swivel (Primary) | ±90° |
| Arm Swivel (Secondary) | ±185° |
| Arm Tilt Range | −55° (down) to +25° (up) |
| Extended Arms Included | 2 |
| Cable Management | Yes — Integrated system |
| User Torque Adjustment | Available |
| Tension Torque Adjustment | Yes |
| Fastening | M4 screws |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Wall Mount Bracket Assembly | Main mounting frame with integrated hinge module | 1 |
| Extended Arm (Primary) | First articulating arm with ±90° swivel | 1 |
| Extended Arm (Secondary) | Second articulating arm with ±185° swivel | 1 |
| Display Support Plate | VESA-compatible mounting plate (100×100 mm / 75×75 mm) | 1 |
| Cable Management Clips | Integrated cable routing system | As applicable |
| Hardware Kit | M4 fasteners, wall anchors, and assembly screws | 1 set |
Get in touch for pricing & availability
Contact our clinical solutions team to discuss your hospital or workstation mounting requirements, request a detailed quote, or arrange a product demonstration. We offer flexible configurations and OEM customization options.
