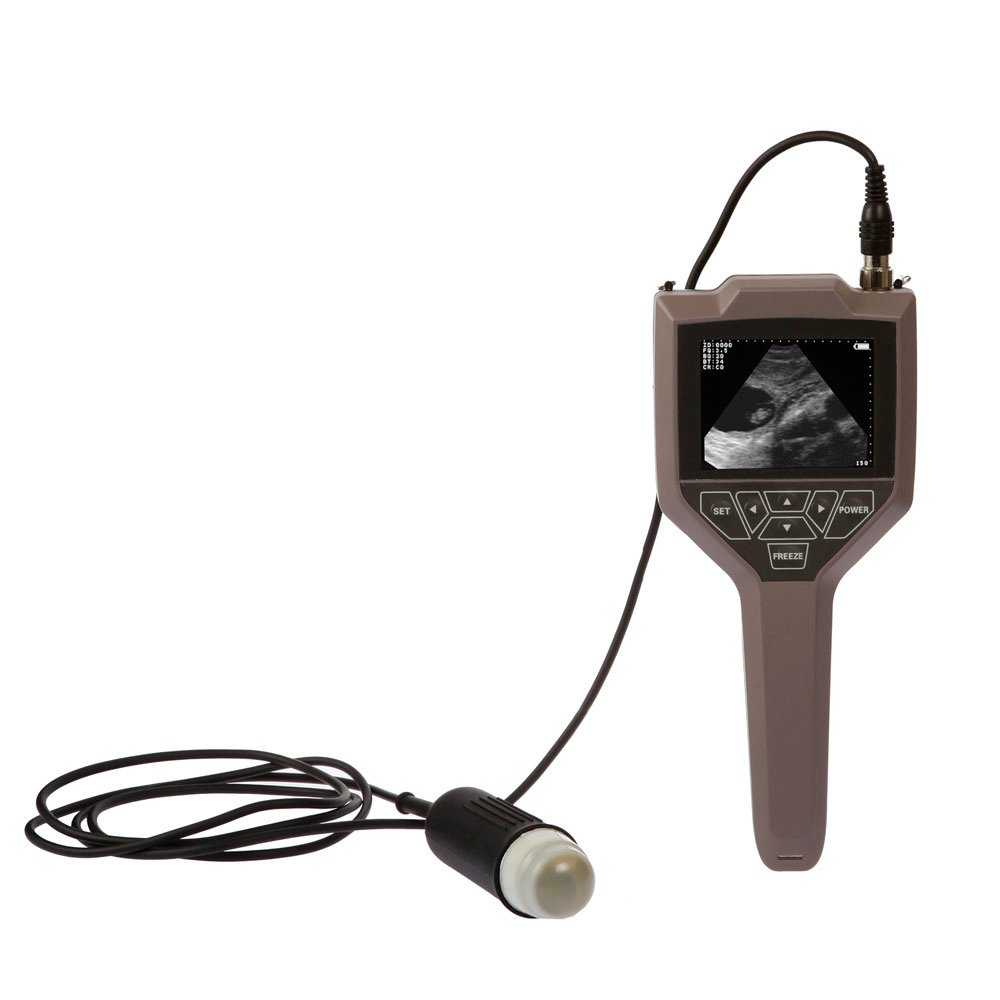

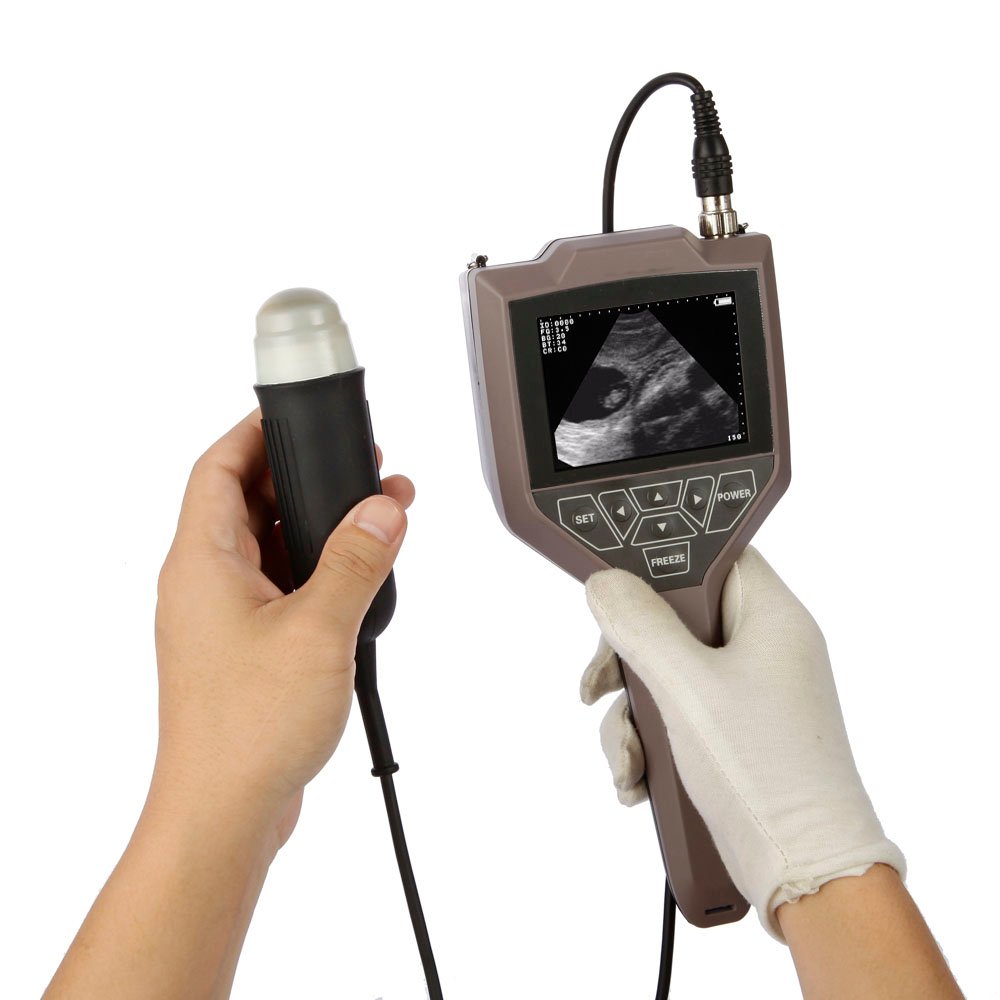

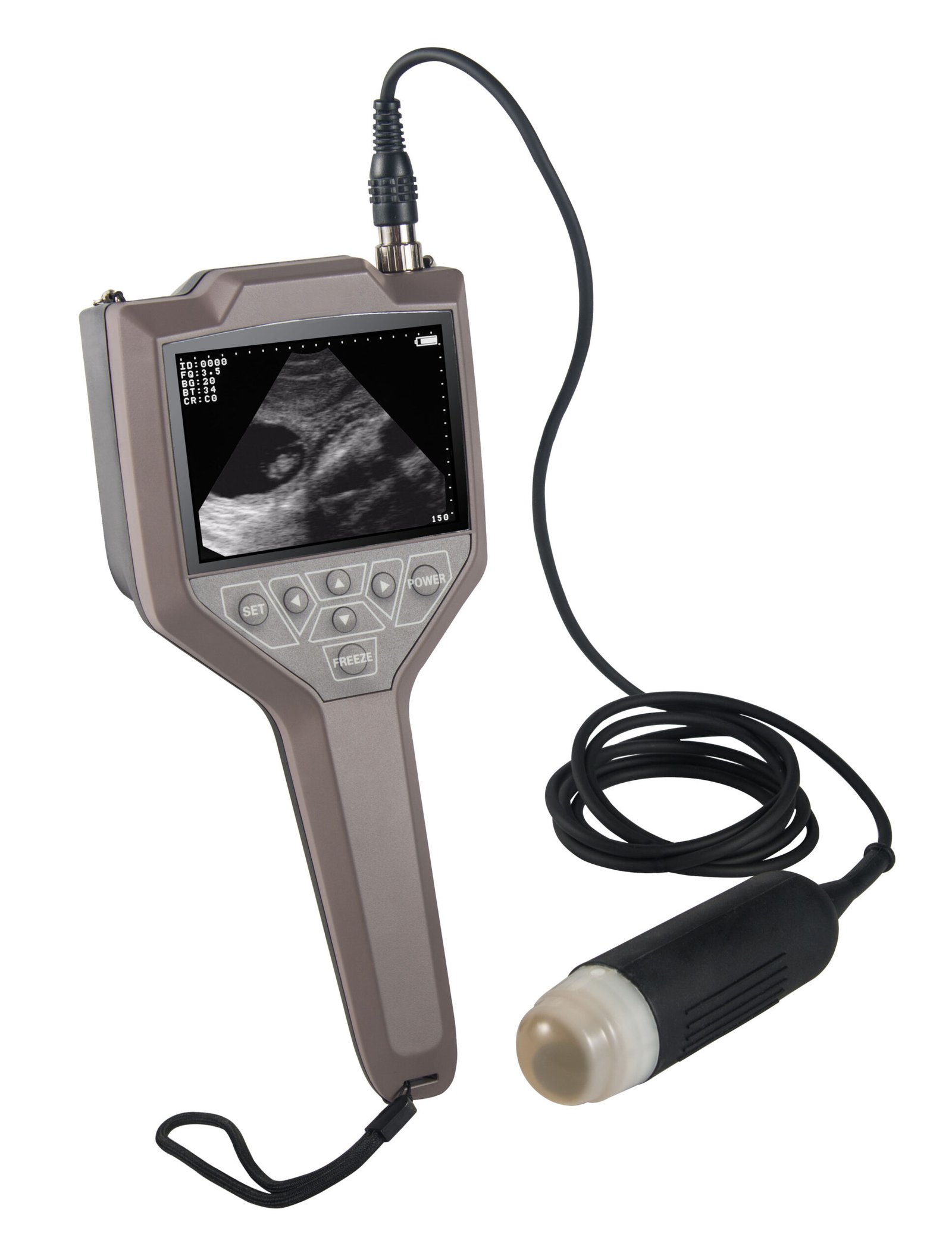

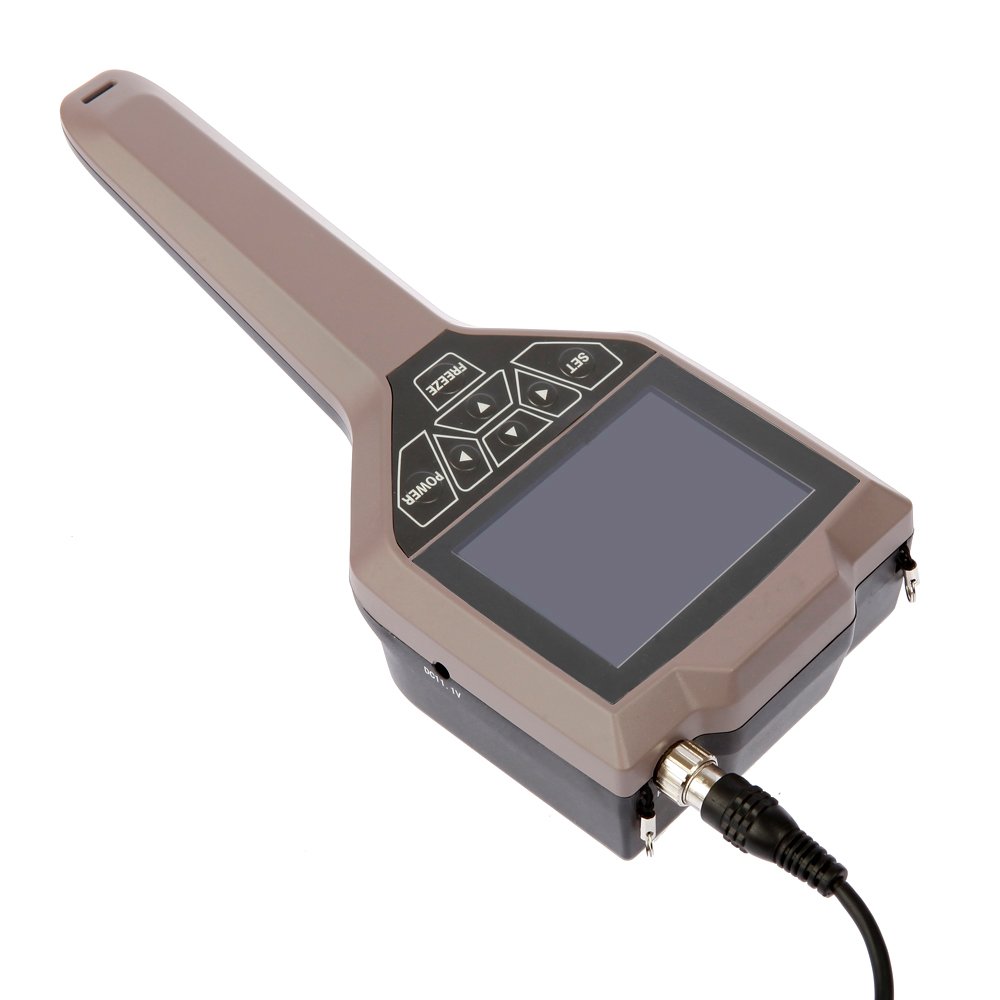

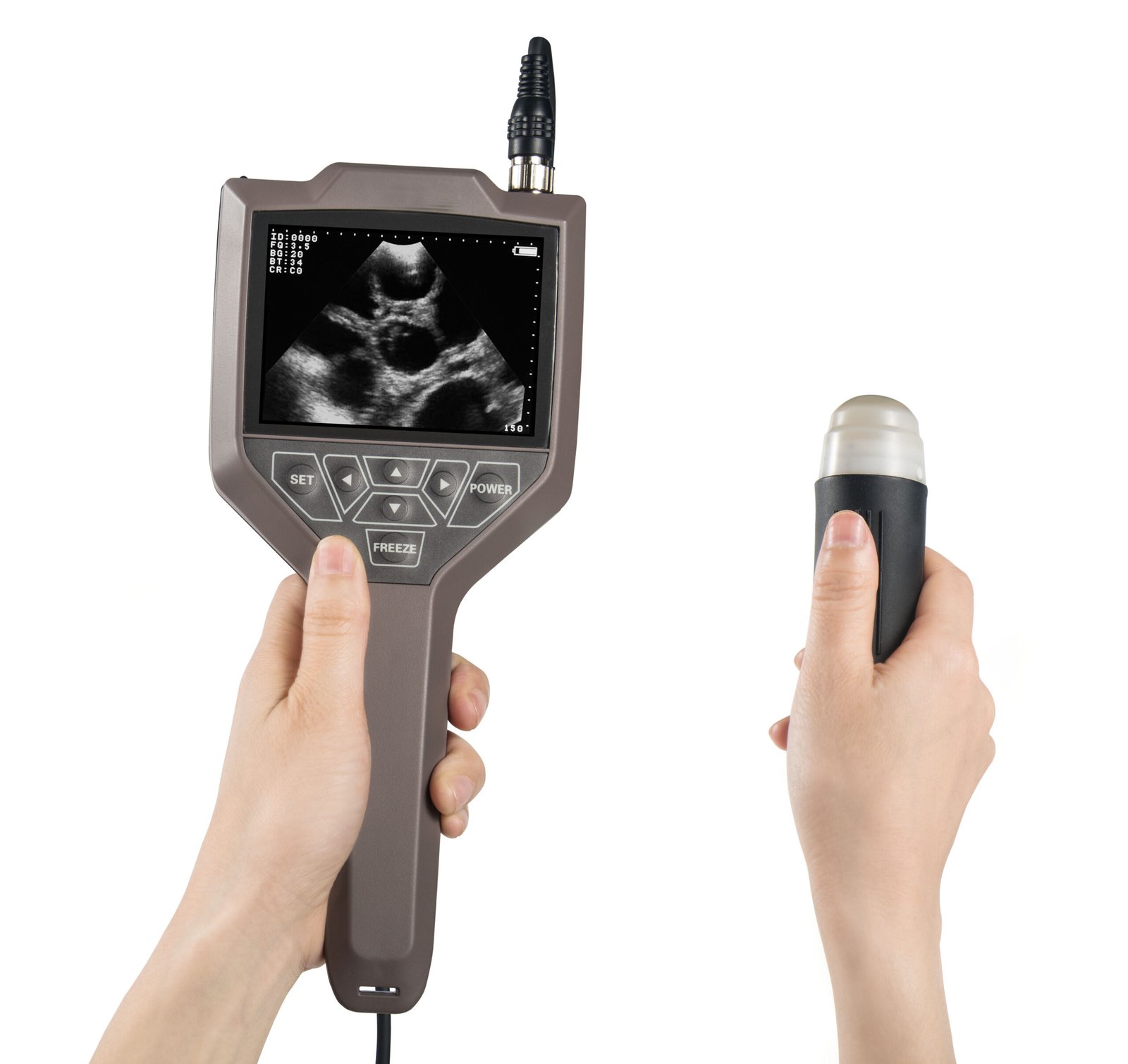

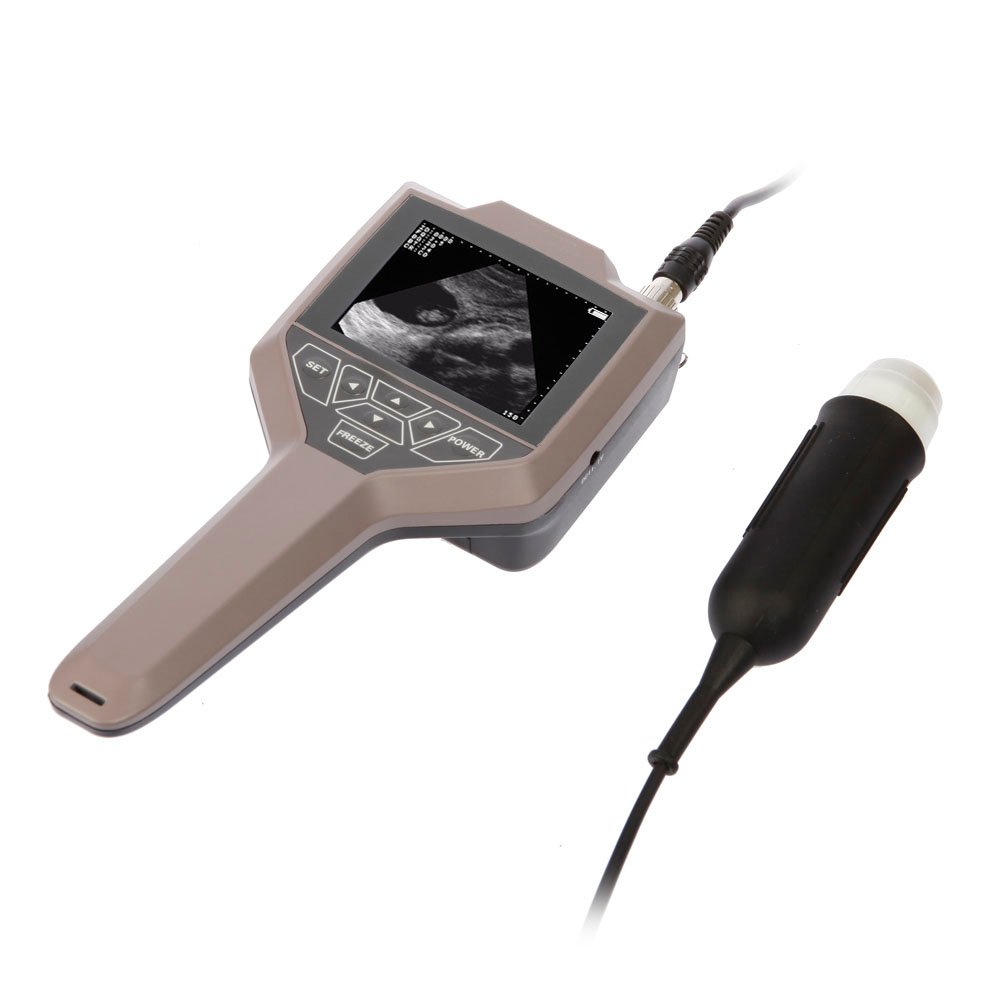

Full Digital Swine And Ovine Ultrasound Scanner Machine MDLVU43
- Lightweight and ergonomic design for comfortable use
- High-quality images for accurate pregnancy checks at an early stage
- Waterproof and dustproof probe for easy cleaning
- Suitable for use in harsh breeding farm conditions
- Long battery life of 14 hours for continuous operation
- Permanent storage of 128 frames without image loss
- Ideal for early pregnancy diagnosis in pigs and sheep
- SKU
- MDLVU43
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Full Digital Swine and Ovine Ultrasound Scanner Machine MDLVU43
Advanced full-digital ultrasound system engineered for livestock breeding operations. Delivers high-quality B-mode and M-mode imaging with early pregnancy detection capability in pigs (day 19) and sheep (day 25). Lightweight, durable, and field-ready with dual-battery operation for extended farm use.
Clinical overview
The MDLVU43 is a full-digital ultrasound scanner purpose-built for livestock breeding operations, particularly swine and ovine herds. Equipped with advanced digital core technology, it delivers high-quality B-mode and M-mode imaging for accurate early pregnancy detection. The system achieves pregnancy diagnosis as early as day 19 in pigs and day 25 in sheep, enabling rapid breeding herd management decisions and optimised reproductive performance.
Designed for harsh farm field conditions, the MDLVU43 combines durability with user-friendly operation. Its lightweight 325 g design and ergonomic construction ensure comfortable handling during extended scanning sessions. The waterproof and dustproof detachable probe withstands frequent cleaning and exposure to farm environments, while dual Li-ion batteries provide up to 14 hours of continuous operation—sufficient for a full working day without recharge.
Key features & surgeon benefits
Rapid Pregnancy Diagnosis
- Day 19 pregnancy detection in pigs
- Day 25 pregnancy detection in sheep
- Accelerates breeding cycle management and herd planning
Extended Field Operation
- Dual batteries for 14 hours continuous use (7 hours per battery)
- Lightweight at only 325 g for comfortable all-day handling
- Includes aluminum alloy carry case for secure transport
Advanced Digital Imaging
- Full-digital core technology for superior image clarity
- 256-level grayscale with 90° scanning angle
- 128-frame permanent storage without image loss on power-off
Farm-Ready Reliability
- Waterproof and dustproof detachable probe
- Simple, robust design resistant to harsh field conditions
- Easy cleaning with flowing water for hygiene compliance
Technical specifications
| Indications | Early pregnancy diagnosis in swine and ovine; breeding herd management |
|---|---|
| Sizes / range | Display depth ≥190 mm; probe frequencies 2.5/3.5/5.0 MHz; penetration range 9–18 cm |
| Material | Aluminum alloy housing; waterproof and dustproof detachable probe |
| Sterilisation | Waterproof probe cleanable with flowing water; no autoclave required |
| Packaging | Aluminum alloy carry case with neck strap and hand strap |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| MDLVU43 Machine | Full digital ultrasound scanner with 3.8" TFT LCD display | 1 |
| Abdominal Mechanical Sector Probe | Detachable waterproof probe; frequencies 2.5/3.5/5.0 MHz | 1 |
| Li-ion Battery | High-capacity rechargeable battery; 7 hours operation per charge | 2 |
| Battery Charger | AC 110V–250V, 50/60 Hz universal input | 1 |
| Neck Strap | Ergonomic carrying strap for hands-free transport | 1 |
| Hand Strap | Secure grip strap for stable handheld operation | 1 |
| Aluminum Alloy Carry Case | Protective case for device and accessories storage and transport | 1 |
| User Guide | Comprehensive operating and maintenance manual | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, and customisation options for the MDLVU43 ultrasound system. We offer fast delivery and comprehensive post-sale support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
