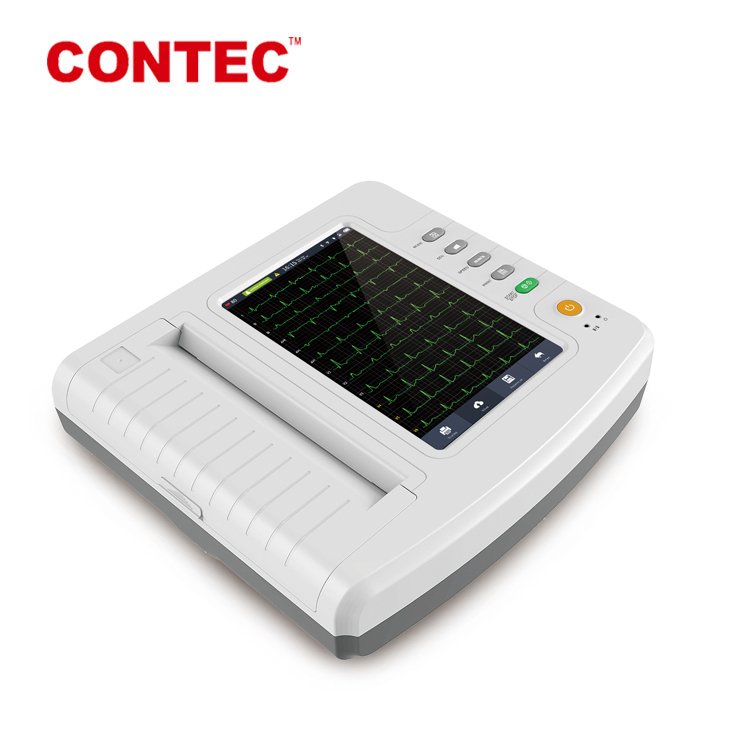

ECG1212G Electrocardiograph
A comprehensive 12-lead electrocardiograph system with high-resolution 10.1″ color LCD touchscreen, integrated thermal printer, and advanced auto-measurement capabilities. Designed for clinical environments, home visits, and patient examinations with extended battery life and extensive case storage.
Clinical overview
The ECG1212G is a fully integrated electrocardiograph system capable of simultaneous 12-lead ECG signal collection with real-time waveform display and automated analysis. The device combines a high-resolution 10.1″ color LCD touchscreen interface with a built-in thermal printer, enabling immediate ECG report generation in clinical and field settings. Advanced signal processing includes power frequency filtering (50/60 Hz), baseline correction, and EMG filtering (25/35 Hz) to ensure diagnostic-quality waveforms.
Equipped with auto-measurement and auto-interpretation functions, the ECG1212G automatically calculates routine cardiac parameters including heart rate, PR interval, P duration, QRS duration, QT/QTc interval, axis measurements, and amplitude indices. The device stores up to 4000 cases with full historical review, modification, and export capabilities (DAT, PDF, XML, BMP, JPEG formats). Dual-language interface (Chinese/English), extended battery life (10 hours standby, 3+ hours continuous printing), and USB connectivity for external peripherals make it ideal for hospital departments, clinics, and mobile health screening programs.
Key features & surgeon benefits
Simultaneous 12-Lead Collection
- Synchronous 12-lead ECG signal capture with zero phase lag
- Support for standard 12-lead and Cabrera-lead waveform display modes
- Flexible 3/6/12-lead display options for clinical workflow optimization
10.1″ High-Resolution Touchscreen
- Full-touch color LCD with function buttons for intuitive operation
- Real-time display of HR, sensitivity, paper speed, filter state, and battery status
- Comprehensive on-screen prompts for lead-off, overload, and system status alerts
Integrated Thermal Printer
- Multiple printing modes: auto M×N, M×N+1, M×N+2, rhythm, and manual formats
- Automatic timing and arrhythmia-triggered printing for continuous monitoring
- Full customization of report content: waveforms, parameters, diagnosis, histograms, and trend charts
Auto-Measurement & Case Management
- Automatic measurement and interpretation of HR, intervals, axes, and amplitudes
- Built-in memory for 4000+ cases with 10-second data save intervals
- Historical case review, modification, transmission, and export to multiple formats
Technical specifications
| Indications | Cardiac rhythm monitoring, ECG signal collection, arrhythmia detection, diagnostic electrocardiography |
|---|---|
| Lead Configuration | 12-lead simultaneous collection; 3/6/12-lead display; Cabrera-lead support |
| Display | 10.1″ high-resolution color LCD with full-touch interface and function buttons |
| Printer | Built-in thermal printer with multiple printing modes and formats |
| Signal Processing | Power frequency filter (50/60 Hz), baseline filter, EMG filter (25/35 Hz) |
| Auto-Measurement Parameters | HR, PR interval, P duration, QRS duration, QT/QTc interval, P/QRS/T axis, amplitude indices |
| Memory Capacity | 4000+ cases with 10-second data save intervals |
| Power Supply | AC/DC (50/60 Hz) with built-in rechargeable lithium battery; over-current and over-voltage protection |
| Battery Life | Up to 10 hours standby; 3+ hours continuous printing |
| Connectivity | USB support for external keyboard, mouse, scanner, and printer |
| Interface Languages | Chinese, English (with virtual keyboard support) |
| Export Formats | DAT, PDF, XML, BMP, JPEG |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | ECG1212G Electrocardiograph with 10.1″ touchscreen and integrated thermal printer | 1 |
| Patient Cable | 12-lead ECG patient cable with standard connectors | 1 |
| Electrodes | Disposable ECG electrodes (adhesive pads) | As applicable |
| Power Supply | AC adapter with protective circuits and charging cable | 1 |
| Thermal Paper | Thermal printing paper rolls for ECG output | As applicable |
| USB Cable | USB connectivity cable for external peripherals | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, schedule a product demonstration, or discuss customization options for your clinical facility or OEM integration needs.
