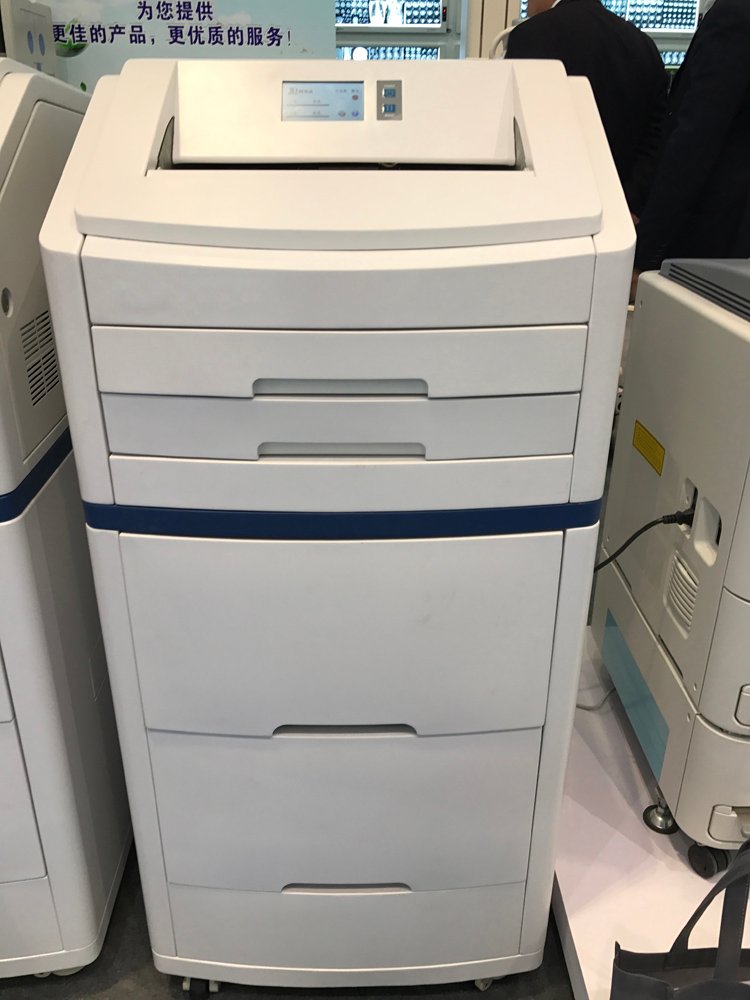

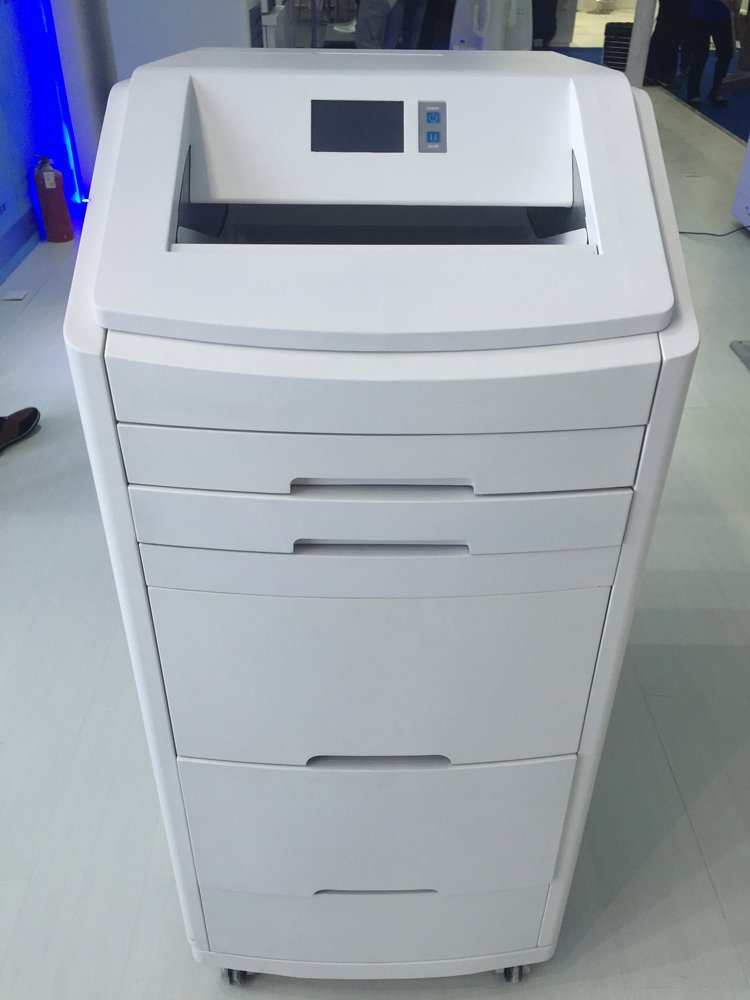

Digital Thermal Imaging Printer MDLDY01
High-speed direct thermal imaging printer delivering professional-grade medical imaging output. Engineered for radiology, cardiology, and diagnostic imaging departments requiring consistent, high-resolution thermal film production with seamless DICOM integration and intuitive operation.
Clinical overview
The MDLDY01 Digital Thermal Imaging Printer is a professional-grade diagnostic imaging device engineered to deliver consistent, high-resolution thermal film output for medical imaging departments. Utilising direct thermal imaging technology with easy daylight loading, the MDLDY01 eliminates the complexity of traditional wet-chemistry processing while maintaining superior image quality. The 12-bit resolution with 4096 gradation levels ensures diagnostic-grade clarity across all film sizes, supporting seamless integration with existing DICOM3 workflows.
With dual film supply trays (100 sheets each) and a 50-sheet output capacity, the MDLDY01 supports high-volume imaging environments. Automatic densitometer calibration guarantees optimal image quality without manual intervention, while the intuitive LCD control panel provides real-time status monitoring and fault alerts. Ethernet connectivity and TCP/IP interface enable rapid integration into networked imaging systems, making the MDLDY01 an ideal choice for radiology, cardiology, and multi-specialty diagnostic centres.
Key features & surgeon benefits
High-Speed Output
- 80 sheets/hour (14×17) and 100 sheets/hour (8×10)
- Supports four film sizes for flexible imaging workflows
- 320 dpi geometric resolution (12.3 pixels/mm)
Seamless Integration
- DICOM3 image format support for direct EHR compatibility
- 10/100 base-T Ethernet and TCP/IP interface
- Automatic calibration via built-in densitometer
Consistent Quality
- 12-bit resolution with 4096 gradation levels
- Factory-sealed input cassettes ensure film integrity
- Comprehensive image control (contrast, grayscale, rotation, saturation, scale)
User-Friendly Design
- Light-background LCD display with online status and fault alerts
- Direct thermal imaging—easy daylight loading, no chemical processing
- Auto-ranging 100–240V power supply with low standby consumption (75W)
Technical specifications
| Indications | Medical imaging output, diagnostic imaging departments, radiology, cardiology, clinical imaging |
|---|---|
| Sizes / range | 8×10, 10×12, 11×14, 14×17 inches |
| Material | Medical thermal film (blue) |
| Printing technique | Direct thermal imaging (easy daylight loading) |
| Film throughput | 80 sheets/hour (14×17); 100 sheets/hour (8×10) |
| Resolution | 12-bit (4096 gradation); 320 dpi (12.3 pixels/mm) |

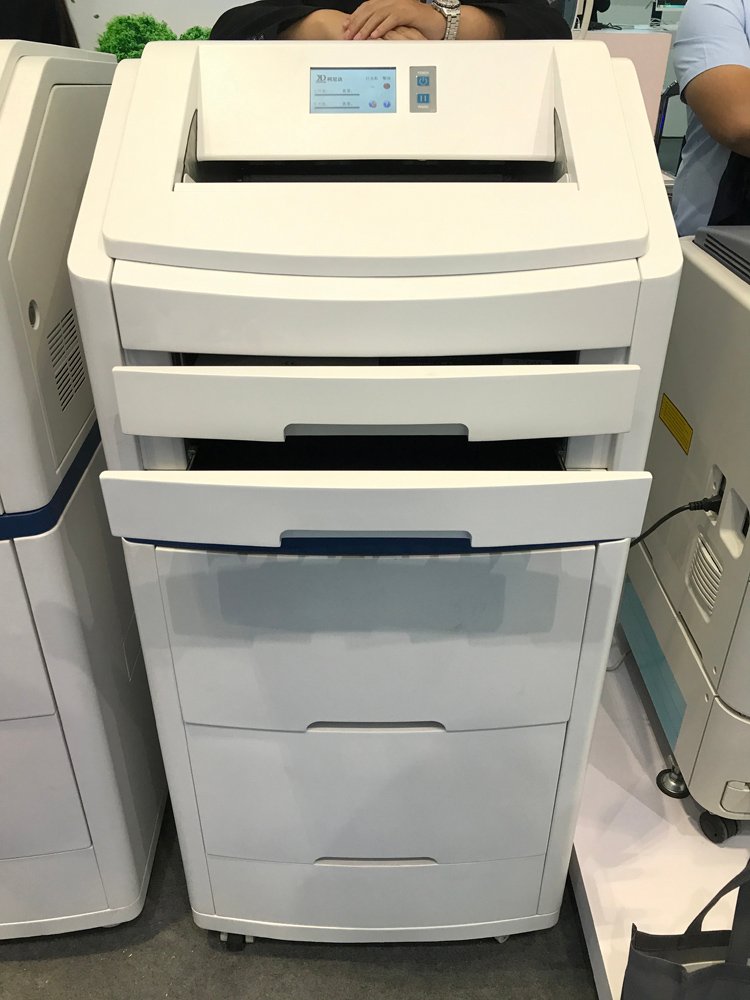

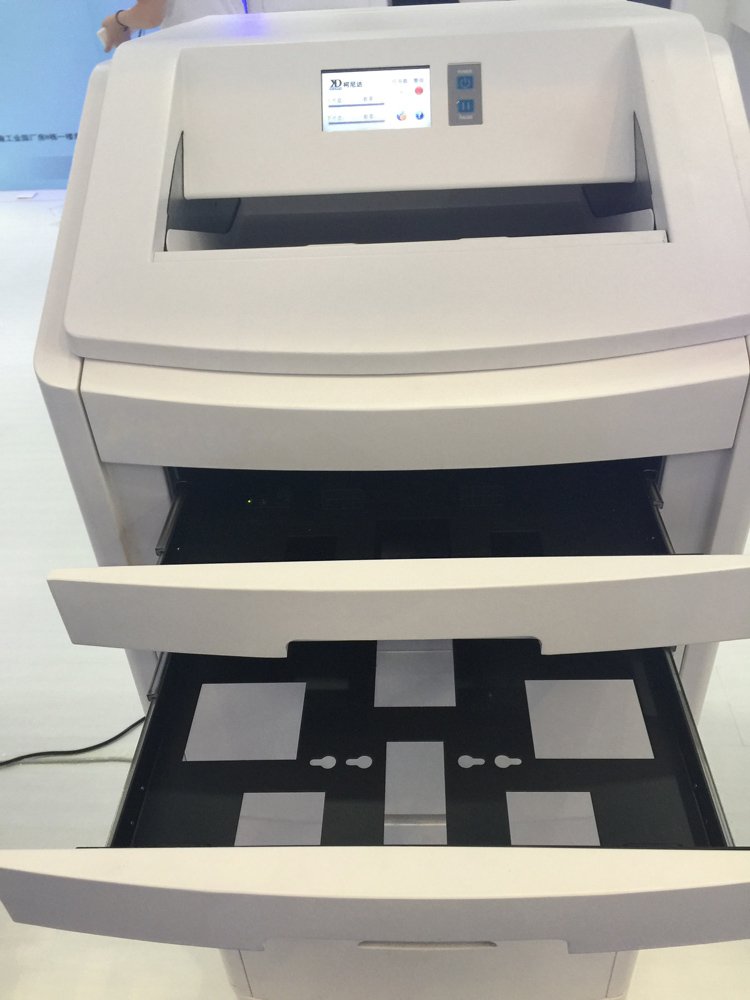

| Film supply tray | 2 supply trays, 100 sheets per tray |
| Film output tray | 1 output tray, 50 sheets capacity |
| Connectivity | 10/100 base-T Ethernet (RJ-45) |
| Interface | TCP/IP |
| Image format | DICOM3 |
| Image quality | Built-in densitometer automatic calibration |
| Image control | Contrast, grayscale, polar, rotate, saturation, scale |
| Control panel | Light-background LCD display (online, alarm, fault, state status) |
| Processor | Intel |
| Internal memory | 2 GB |
| Disk capacity | 320 GB |

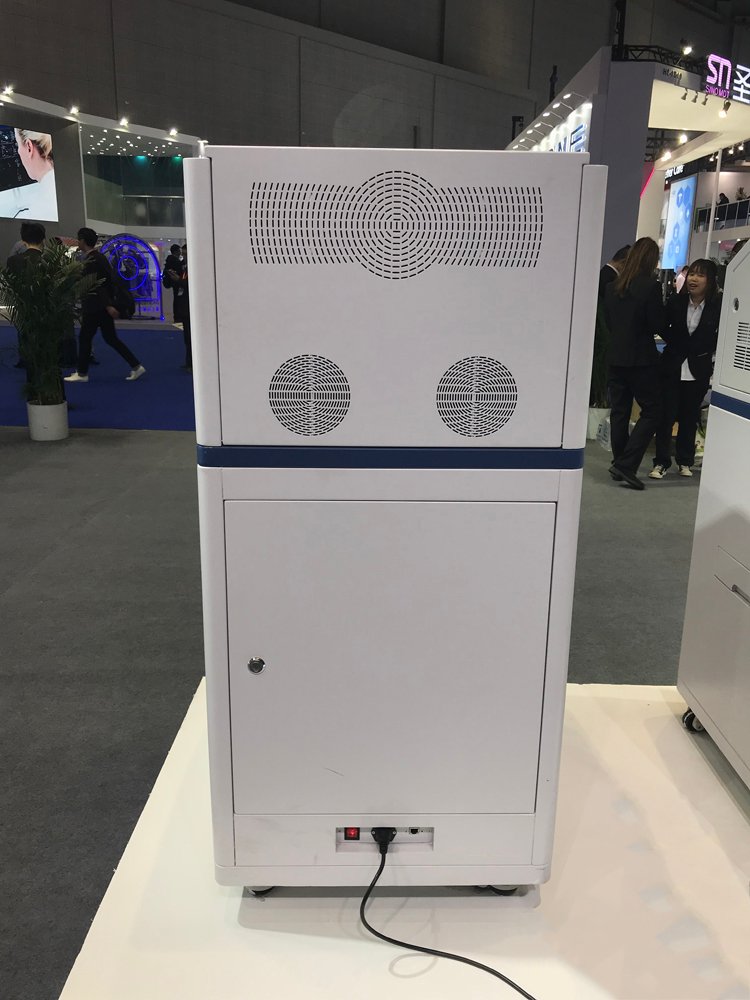

| Power requirements | Auto-ranging 100–240V, 50/60 Hz; printing 600W, standby 75W |
| Weight | 87.1 kg |
| Dimensions | 556 × 770 × 1250 mm (21.9″ × 30.5″ × 49.3″) |
| Operating temperature | 15–30°C |
| Operating humidity | 10–70% |
| Optimum temperature | 22.2°C |
| Optimum humidity | 10–80% |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| MDLDY01 Printer Unit | Complete digital thermal imaging printer with dual-tray configuration, LCD control panel, and integrated densitometer | 1 |
| Power Cable | Auto-ranging 100–240V power supply cable with regional plug adapters | 1 |
| Ethernet Cable | 10/100 base-T Ethernet (RJ-45) network cable | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
| Quick Start Guide | Setup and basic operation reference | 1 |
| Sample Film Cassette | Factory-sealed input cassette (film type and size as ordered) | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your imaging department’s requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery options and comprehensive support for all MDLDY01 installations.
