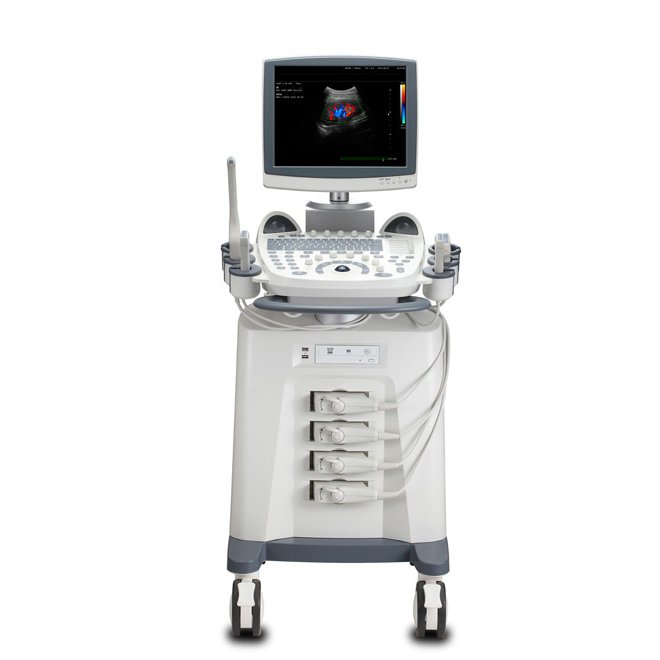

Diagnostic Color Doppler Ultrasound System MDLCU53
- Advanced technology combined with ultrasound image processing for accurate diagnostics
- Equipped with functions for scanning, measurement, calculation, display, and more
- Large-screen LCD color monitor for clear and high-resolution imaging
- Lightweight and compact design for easy portability
- Input Voltage: AC 100V-242V for versatile power supply options
- Standard configuration includes a 15-inch flicker-free LCD display with adjustable settings
- Options for additional probes for different imaging needs
- SKU
- MDLCU53
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Diagnostic Color Doppler Ultrasound System MDLCU53
Advanced diagnostic color Doppler ultrasound system with general ultrasound image scanning, measurement, and calculation capabilities. Features a large 15-inch LCD color monitor with high resolution and rich grayscale imaging. Lightweight at 65.0 kg with continuous working time exceeding 8 hours, supporting versatile optional probes for comprehensive examination types.
Clinical overview
The MDLCU53 is an advanced diagnostic color Doppler ultrasound system built on proven computer and front-end ultrasound image processing technology. It combines domestic and international engineering expertise to deliver reliable, high-quality diagnostic imaging for general ultrasound applications. The system supports comprehensive scanning, measurement, calculation, display, query, body marking, annotation, printing, and medical records storage functions—enabling efficient workflow and complete documentation in clinical environments.
With its flicker-free 15-inch LCD color monitor, the MDLCU53 provides high image sensitivity, excellent resolution, and rich grayscale detail for clear diagnostic visualization. The lightweight, mobile design (65.0 kg) and extended continuous working time (>8 hours) make it ideal for busy diagnostic departments and point-of-care settings requiring portability without compromising image quality.
Key features & surgeon benefits
Superior Image Quality
- 15-inch flicker-free LCD color monitor
- High resolution with rich grayscale detail
- Adjustable contrast and brightness controls
- Angle-adjustable screen for ergonomic viewing
Comprehensive Functionality
- General ultrasound scanning with measurement and calculation
- Medical records storage and printing capabilities
- Body marking and annotation tools
- Query and display functions for efficient documentation
Mobile & Efficient
- Lightweight design at 65.0 kg
- Continuous working time exceeding 8 hours
- Compact footprint for flexible placement
- Reliable power supply (AC 100V–242V, 200 VA)
Probe Options
- Support for multiple optional probe types
- Convex, linear, transvaginal, and phased array options
- Micro convex and volume probe compatibility
- Customizable configurations for diverse applications
Technical specifications
| Indications | General ultrasound imaging, diagnostic scanning, measurement, calculation, and documentation |
|---|---|
| Display | 15-inch LCD flicker-free color monitor with adjustable contrast, brightness, and angle |
| Dimensions | Length: 990 mm; Width: 690 mm; Height: 1200 mm |
| Net Weight | 65.0 kg |
| Power Supply | Input voltage AC 100V–242V; Input power 200 VA; Frequency 50/60 Hz |
| Continuous Working Time | Greater than 8 hours |
| Control Panel | Switch, buttons, alphanumeric keys, knobs, and function keys |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | MDLCU53 Diagnostic Color Doppler Ultrasound System with 15-inch LCD display and control panel | 1 |
| Display Module | 15-inch flicker-free LCD color monitor with adjustable controls | 1 |
| Control Panel | Integrated switches, buttons, alphanumeric keys, knobs, and function keys | 1 |
| Power Cable | AC power supply cable (100V–242V compatible) | 1 |
Optional probes & accessories
| Probe Type | Model | Application |
|---|---|---|
| Convex Probe | 35C50K | General abdominal and obstetric imaging |
| Linear Probe | 75L40K | Superficial structures and vascular imaging |
| Linear Probe | 10L25J | High-frequency superficial imaging |
| Transvaginal Probe | 65C10K | Gynecological and obstetric applications |
| Micro Convex Probe | 65C15D | Pediatric and cardiac imaging |
| Micro Convex Probe | 35C20H | Focused abdominal and cardiac applications |
| Volume Probe | 35D40J | 3D/4D imaging and volumetric assessment |
| Phased Array Probe | 30P16A | Cardiac and deep tissue imaging |
