CMS800G Fetal Monitor
Advanced Real-Time Maternal & Fetal Monitoring System
The CMS800G Fetal Monitor provides real-time acquisition of Fetal Heart Rate (FHR), TOCO contractions, and fetal movement data, delivering critical reference information for clinical obstetrical care. This compact and versatile monitoring system can operate independently or integrate seamlessly with central monitoring systems to create comprehensive network monitoring solutions for modern obstetrical departments.
Clinical Overview
The CMS800G Fetal Monitor represents a significant advancement in obstetrical monitoring technology, designed to provide healthcare professionals with accurate, real-time data essential for maternal and fetal care. This sophisticated monitoring system continuously acquires and displays Fetal Heart Rate (FHR), Tocodynamometer (TOCO) measurements for uterine contractions, and fetal movement (FMOV) data, creating a comprehensive picture of fetal well-being throughout pregnancy and labour.
Engineered with both functionality and practicality in mind, the CMS800G features a compact design that adapts to various clinical environments. Whether placed horizontally on a cart, mounted on a wall to save space, or integrated into a central monitoring network, this versatile system delivers consistent, reliable performance. The high-quality colour LCD display with a 60-degree convertible screen ensures optimal viewing angles for healthcare providers, while the intuitive interface facilitates efficient operation during critical monitoring situations. With capabilities including continuous 24-hour real-time monitoring, 12-hour data storage and playback, built-in thermal printing, and network connectivity via RJ45 interface, the CMS800G provides a complete solution for modern obstetrical departments seeking to enhance patient care through advanced monitoring technology.
Key Features & Surgeon Benefits
High-Quality Colour LCD
- 60° convertible screen for optimal viewing angles
- Clear, real-time display of FHR curves and TOCO tracings
- Normal FHR range (120–160 BPM) clearly marked for rapid assessment
Extended Continuous Surveillance
- 24-hour continuous real-time monitoring without interruption
- 12-hour data storage with full playback and review capability
- Supports prolonged labour, induction, and high-risk pregnancy observation
Flexible Deployment & Integration
- Compact design: horizontal placement or wall-mounted configuration
- Built-in RJ45 Ethernet for central monitoring system integration
- Multi-language interface (Chinese and English) for diverse settings
Comprehensive Alarm & Printing
- Adjustable FHR upper/lower limit alarms with customisable thresholds
- Built-in high-resolution thermal printer for immediate documentation
- Probe-off and signal-loss alarms for monitoring integrity
Technical Specifications
| Parameter | Specification |
|---|---|
| Indications | Antepartum monitoring, labour and delivery surveillance, high-risk pregnancy assessment, non-stress testing, twins monitoring, obstetrical triage |
| FHR Measurement Range | 50–240 BPM (beats per minute) |
| FHR Accuracy | ±2 BPM |
| Normal FHR Range Indicator | 120–160 BPM (highlighted on display) |
| TOCO Measurement | 0–100 relative units |
| Fetal Movement Detection | Manual recording with event marker |
| Ultrasound Transducer | 9-crystal broad beam transducer, 1.0 MHz nominal frequency |
| Display Type | High-resolution colour LCD with 60° convertible screen |
| Continuous Monitoring Duration | 24 hours real-time capability |
| Data Storage Capacity | 12 hours continuous curve storage with playback |
| Printer Type | Built-in high-resolution thermal printer with extended life |
| Print Speed Options | 1 cm/min, 2 cm/min, 3 cm/min (selectable) |
| Network Interface | Built-in RJ45 Ethernet port for central monitoring system |
| Alarm Functions | Adjustable FHR upper/lower limit alarms, probe-off alarm, signal loss alarm |
| Language Options | Chinese and English interface |
| Twins Monitoring | Optional dual-channel capability with independent tracking |
| Mounting Options | Horizontal placement or wall-mounted configuration |
| Power Supply | AC 100–240V, 50/60 Hz with battery backup |
| Safety Classification | Class I, Type BF applied part |
| Sterilisation | Transducers: high-level disinfection or sterilisation; main unit: surface disinfection |
| Warranty | 2 Year Manufacturer Warranty |

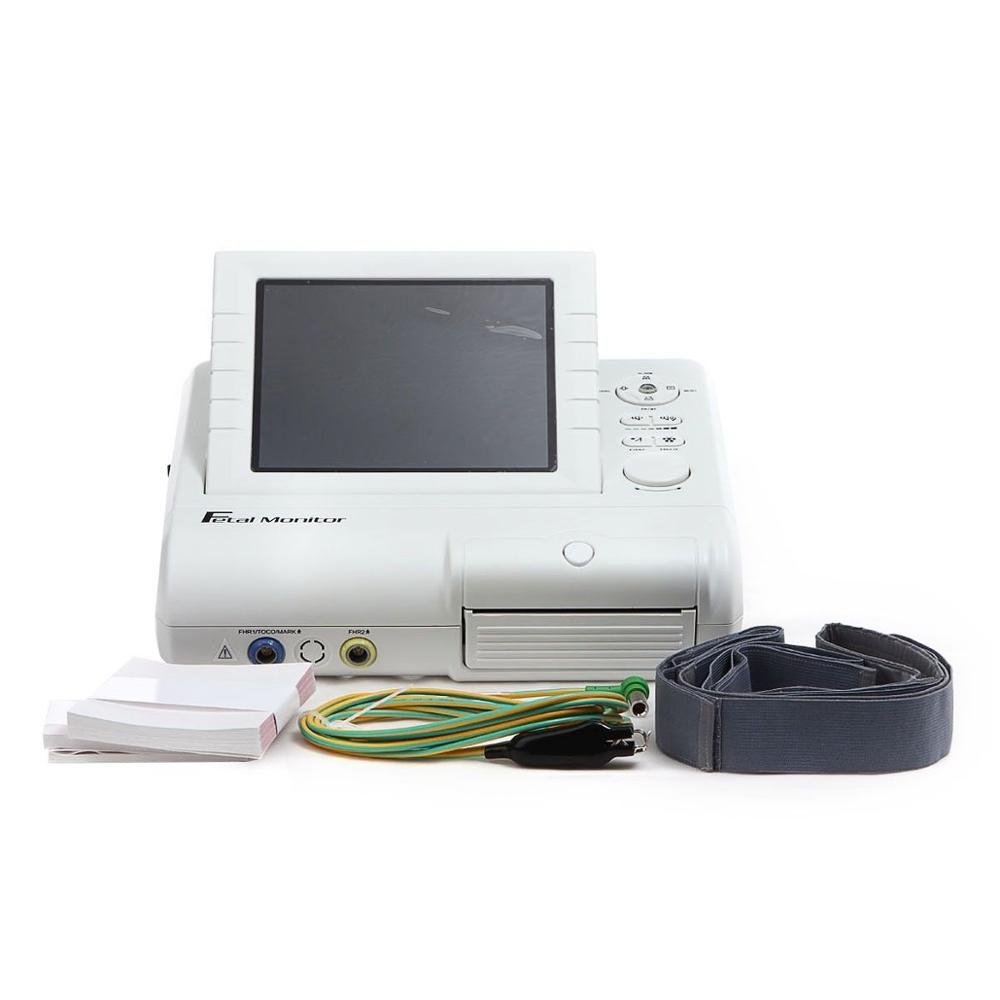

Standard Instrument Composition
| Item | Description | Qty |
|---|---|---|
| Main Monitor Unit | CMS800G fetal monitor with colour LCD display and integrated thermal printer | 1 |
| FHR Transducer | 9-crystal broad beam ultrasound transducer (1.0 MHz) for fetal heart rate acquisition | 1 |
| TOCO Transducer | Tocodynamometer transducer for uterine contraction measurement | 1 |
| Transducer Cables | Shielded cables for FHR and TOCO transducers with secure connectors | 2 |
| Thermal Paper Roll | High-resolution thermal recording paper (standard roll) | 2 |
| Ultrasound Gel | Medical-grade ultrasound coupling gel for transducer contact | 1 bottle |
| Power Cable | AC power cable with appropriate regional connector | 1 |
| User Manual | Comprehensive operation and maintenance manual (Chinese and English) | 1 |
| Quick Reference Guide | Quick-start guide for routine operation and troubleshooting | 1 |
| Mounting Bracket | Adjustable mounting bracket for horizontal or wall-mounted installation | 1 |
Get in Touch for Pricing & Availability
Contact our sales team to discuss the CMS800G Fetal Monitor, request a detailed quotation, arrange a product demonstration, or explore customisation options for your obstetrical department.
