CMS60D-VET Veterinary Pulse Oximeter
Compact, portable pulse oximeter designed for veterinary clinics and animal hospitals. Measures SpO₂ and pulse rate via tongue or ear probe with real-time waveform display, data storage, and PC connectivity for comprehensive patient monitoring.
Clinical overview
The CMS60D-VET is a photoelectric pulse oximeter employing advanced oxyhemoglobin inspection technology combined with capacity pulse scanning and recording. Designed specifically for veterinary applications, it measures blood oxygen saturation (SpO₂) and pulse rate through non-invasive tongue or ear placement, making it ideal for routine monitoring in family and pet hospital settings.
With its compact form factor (110 × 60 × 23 mm, ~120g), the device offers exceptional portability without compromising measurement accuracy. The colour display provides real-time waveform visualization, pulse rate bar graphs, and SpO₂ values, while integrated data storage and PC connectivity enable comprehensive patient record management and trend analysis.
Key features & surgeon benefits
Compact & lightweight design
- Weighs only ~120g with batteries
- Dimensions 110 × 60 × 23 mm
- Easy to carry between examination rooms
Simple operation & display
- User-friendly interface with function menu
- Colour display (160 × 128 resolution)
- Real-time pulse waveform visualization
Long battery life & low power
- Up to 44 hours of continuous operation
- Standard 2 × AA dry batteries
- Power consumption <100 mA
Storage & PC integration
- SpO₂ and PR value storage
- Real-time data upload to PC
- Included software disk for analysis
Technical specifications
| Indications | Veterinary monitoring; family and pet hospital applications |
|---|---|
| SpO₂ measuring range | 0–100% (1% resolution) |
| SpO₂ accuracy | 70–100%: ±2%; below 70%: unspecified |
| Pulse rate range | 30–250 bpm (1 bpm resolution) |
| Pulse rate accuracy | ±2 bpm or ±2% (whichever is larger) |
| Weak filling performance | SpO₂ ±4%, PR ±2 bpm or ±2% at 0.4% pulse-filling ratio |
| Light resistance | Deviation <±1% between artificial/natural light and darkroom |
| Display | Colour display, 160 × 128 resolution |
| Power supply | 2 × AA dry batteries (DC 2.6–3.6V) |
| Battery life | Up to 44 hours continuous operation |
| Power consumption | <100 mA |
| Dimensions | 110(L) × 60(W) × 23(H) mm |
| Weight | ~120g (with 2 × AA batteries) |
| Safety classification | Interior Battery, BF Type |
| Warranty | 2 Year Manufacturer Warranty |

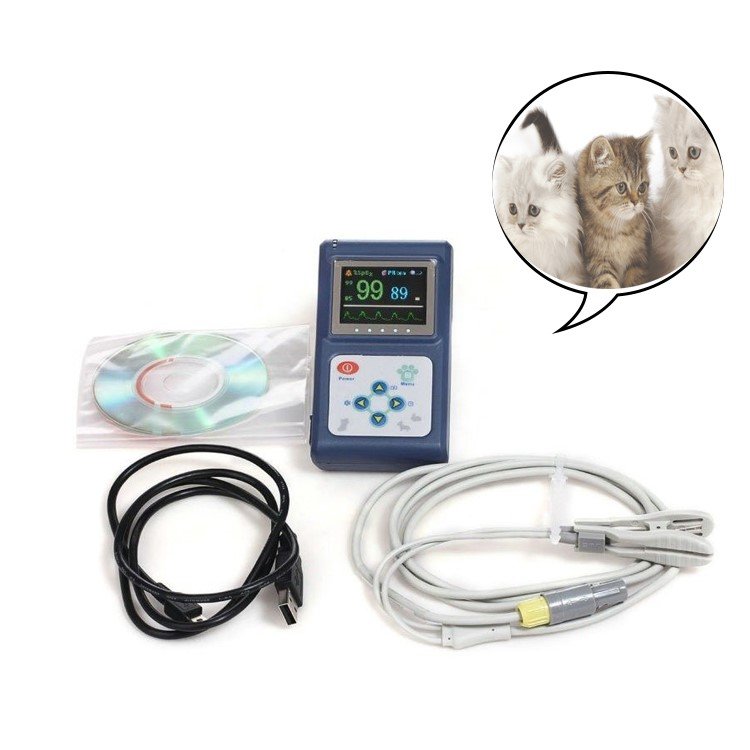

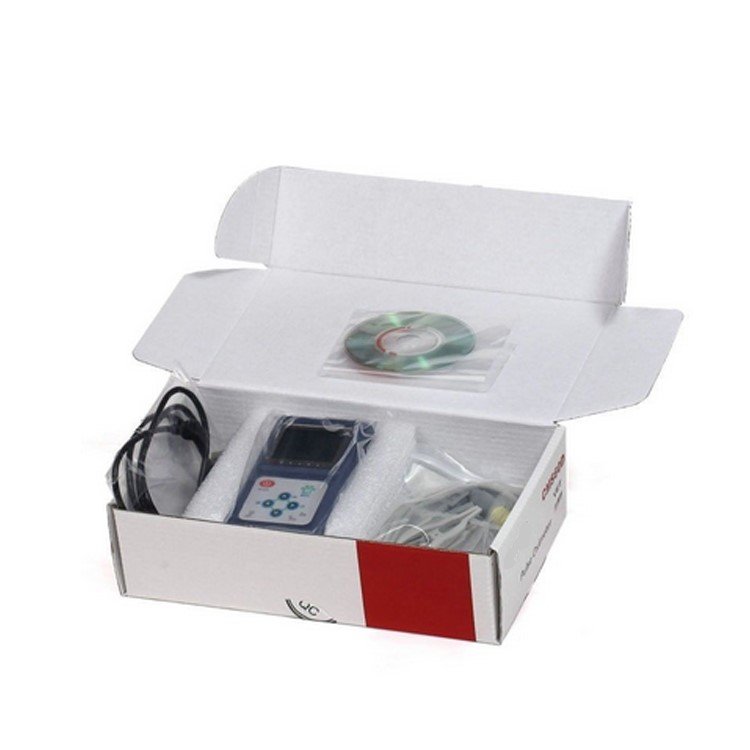

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Pulse oximeter | CMS60D-VET main unit with colour display | 1 |
| Animal tongue probe | External SpO₂ probe for tongue or ear measurement | 1 |

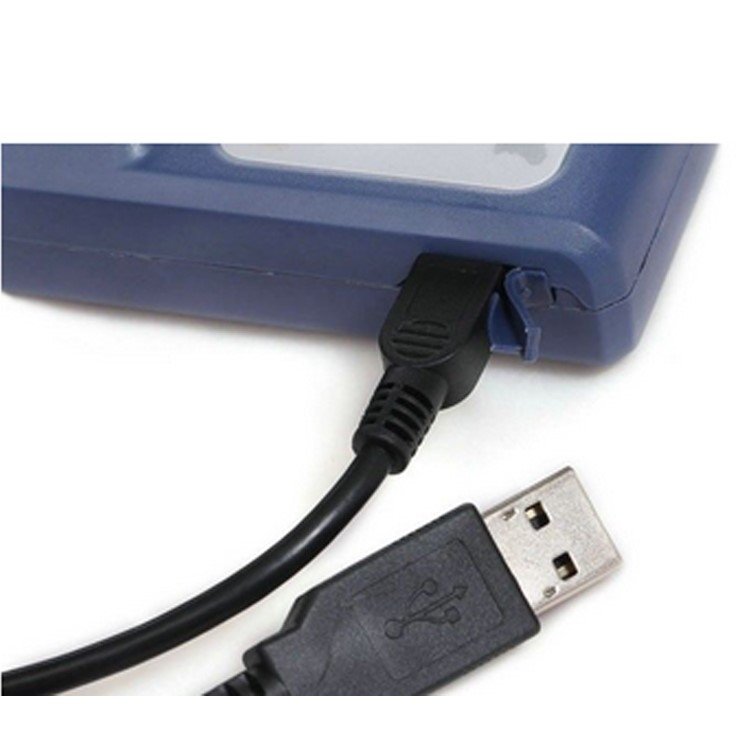

| Data line | USB/serial data cable for PC connectivity | 1 |
| Software disk | PC software for data analysis and storage management | 1 |
| User manual | Comprehensive operating and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customisation options, or schedule a product demonstration. We offer fast delivery and comprehensive support for all veterinary devices.
