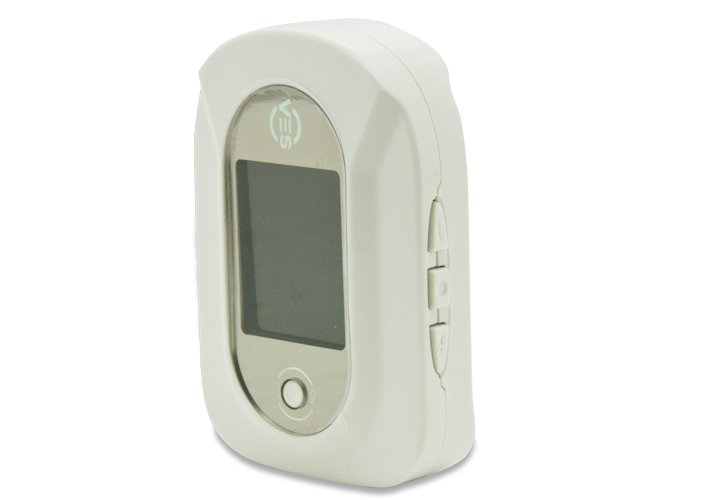

CMS-VE Visual Electronic Stethoscope
Advanced multi-functional electronic stethoscope with real-time ECG waveform display, integrated pulse oximetry, and heart rate tracking for comprehensive cardiovascular and respiratory assessment.
Clinical overview
The CMS-VE Visual Electronic Stethoscope represents a significant advancement in diagnostic auscultation technology. By combining traditional stethoscope functionality with modern electronic monitoring capabilities, this innovative device provides healthcare professionals with a comprehensive tool for cardiovascular and respiratory assessment. Utilizing state-of-the-art piezo sensor technology, the CMS-VE captures heart and lung sounds with exceptional clarity and precision, enabling accurate diagnosis and patient monitoring across diverse clinical settings.
Designed for versatility and ease of use, the CMS-VE is suitable for a wide range of healthcare environments including family practices, hospitals, private clinics, and community medical facilities. The device features an intuitive interface that displays real-time ECG waveforms, heart rate measurements, pulse oximetry data including SpO2 levels and pulse rate, along with pulse waveforms. With its compact and portable design, adjustable volume control with 16 distinct levels, and intelligent alarm system for SpO2 and pulse rate thresholds, the CMS-VE enhances patient care while providing medical professionals with the critical information needed for informed clinical decisions.
Key features & surgeon benefits
Advanced Sensor Technology
- Latest generation piezoelectric sensor for superior acoustic sensitivity
- Captures heart and lung sounds with exceptional clarity and minimal distortion
- Detects subtle cardiovascular and respiratory abnormalities
Multi-Modal Assessment
- Real-time ECG waveform display with continuous heart rate calculation
- Integrated pulse oximetry with SpO2 and pulse rate measurement
- Comprehensive vital sign data in single portable device
Streamlined Clinical Practice
- Eliminates need for multiple separate diagnostic devices
- Compact, lightweight design for mobile healthcare applications
- Intuitive interface reduces training time and cognitive load
Adaptable Performance
- 16-step adjustable volume control for optimal audio perception
- Programmable alarm thresholds for SpO2 and pulse rate limits
- Dual auscultation modes optimized for cardiac and pulmonary assessment
Technical specifications
| Indications | Cardiology assessment, respiratory monitoring, primary care medicine, critical care units, home healthcare, pediatric care, nursing facilities, emergency medicine |
|---|---|
| Sizes / range | Single portable unit; adjustable sensor sensitivity for pediatric and adult patients |
| Material | Medical-grade components; piezoelectric sensor; LCD display with backlight |
| Sterilisation | Medical-grade disinfection compatible; sensor head and earpieces cleanable with approved disinfectants |
| Packaging | Protective carrying case included; compact portable design |
| Warranty | 2 Year Manufacturer Warranty |

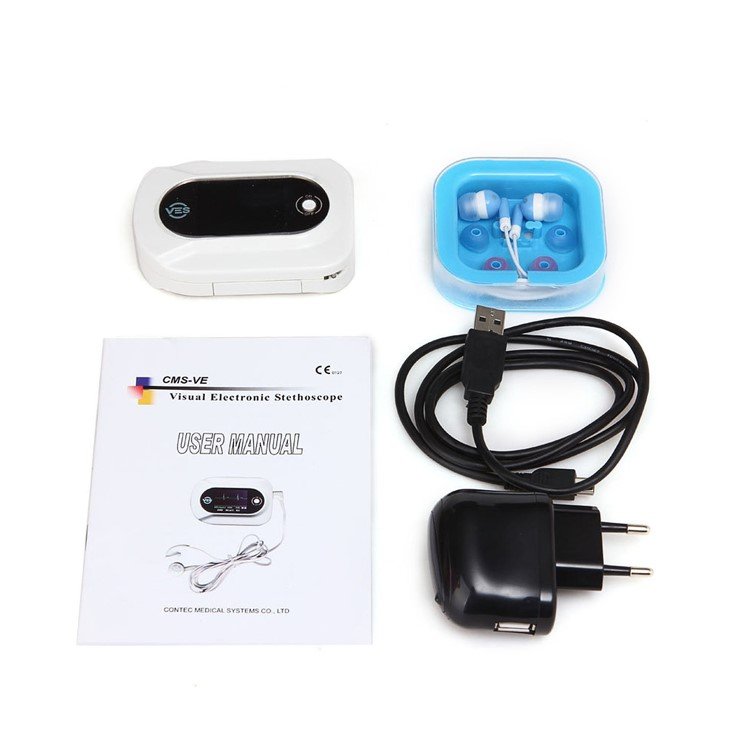

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| CMS-VE Main Unit | Electronic stethoscope with LCD display, ECG monitoring, and integrated controls | 1 |
| SpO2 Probe | Pulse oximetry sensor for oxygen saturation and pulse rate measurement | 1 |
| Earphone Set | Adjustable earpieces with 16-level volume control | 1 pair |
| Sensor Head | Piezoelectric sensor assembly for cardiac and pulmonary auscultation | 1 |
| Rechargeable Battery | Energy-efficient power source with up to 8 hours continuous operation | 1 |
| Charging Cable | USB charging cable for battery recharge | 1 |
| Carrying Case | Protective case for device transport and storage | 1 |
| User Manual | Comprehensive operating instructions and technical documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the CMS-VE Visual Electronic Stethoscope, request detailed specifications, arrange a product demonstration, or place an order. We provide comprehensive support for healthcare facilities, clinics, and individual practitioners.
