Automatic Urine Analyzer Machine MDLBW02
Advanced AI-powered urine analysis system with computer vision technology. Delivers rapid, accurate results across 13 diagnostic parameters with integrated thermal printing and large-capacity data storage for high-volume laboratory environments.
Clinical overview
The MDLBW02 is a fully automated urine analyzer combining artificial intelligence and advanced computer vision technology to deliver consistent, clinically reliable results. The system processes up to 514 samples per hour, making it ideal for high-throughput laboratory settings. Its 7-inch touch-screen interface simplifies operation, while the integrated high-speed thermal printer provides immediate result documentation.
With support for 10, 11, and 12-parameter test strips, the analyzer measures 13 key diagnostic parameters: glucose, bilirubin, ketone, specific gravity, pH, blood, protein, urobilinogen, nitrite, leucocyte, ascorbic acid, creatinine, and calcium ion. Large-capacity memory stores millions of test results, enabling comprehensive record retrieval and quality assurance tracking. Seamless integration with hospital information systems (HIS) and laboratory information systems (LIS) via RS232, WiFi, and network interfaces streamlines workflow and data management.
Key features & surgeon benefits
Comprehensive 13-Parameter Testing
- Glucose, bilirubin, ketone, and specific gravity detection
- pH, blood, protein, and urobilinogen analysis
- Nitrite, leucocyte, ascorbic acid, creatinine, and calcium ion measurement
High-Speed Automated Processing
- 514 samples per hour throughput capacity
- 7-inch touch-screen interface for intuitive operation
- Built-in thermal printer for immediate on-site result documentation
Robust Storage & Integration
- Large-capacity memory stores millions of test results
- HIS/LIS connectivity via RS232, WiFi, and network interfaces
- Query and retrieve results by record number for audit and compliance
Compact, Durable Construction
- Weighs less than 5 kg for flexible laboratory placement
- Embedded Linux operating system for stable, secure operation
- AC 100–240V universal power supply; 20VA consumption
Technical specifications
| Measurement Principle | Artificial intelligence + computer vision technology |
|---|---|
| Test Parameters | 13 parameters: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC, CRE, CAL |
| Compatible Test Strips | 10, 11, and 12-parameter strips |
| Test Speed | 514 samples per hour |

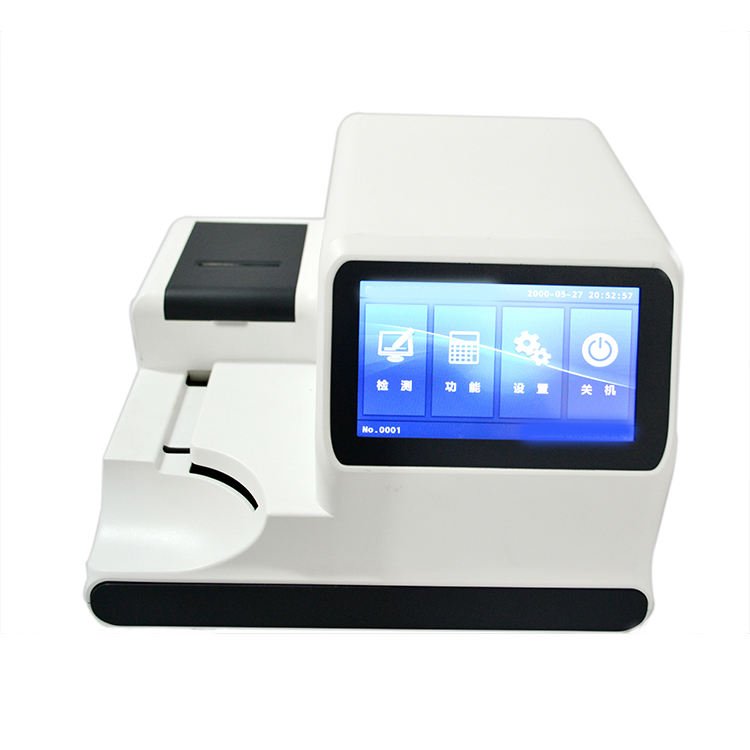

| Display | 7-inch touch-screen display |
| Printer | Built-in high-speed thermal printer |
| Data Storage | Large-capacity memory; stores millions of test results with record query capability |
| Power Supply | AC 100–240V ± 10%, 50–60 Hz |
| Power Consumption | 20 VA |
| Operating Environment | 15–35 °C; humidity <85% |
| Net Weight | <5 kg |
| Operating System | Embedded Linux |

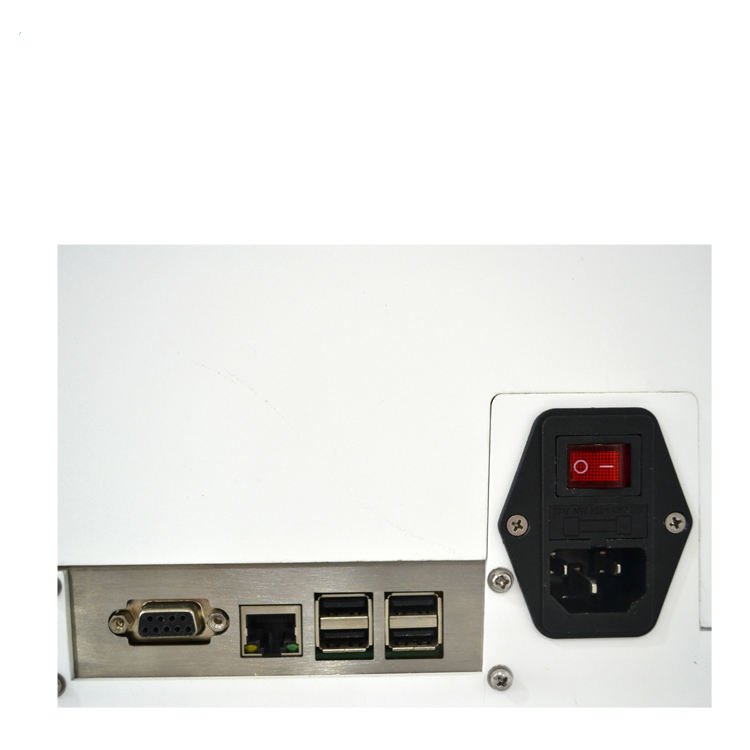

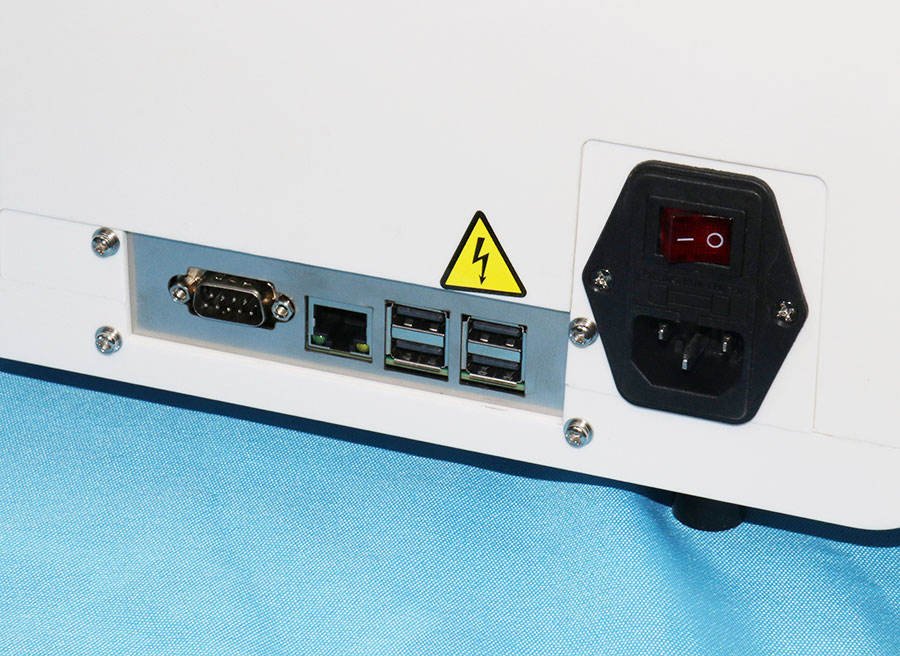

| Connectivity | RS232, WiFi, network interface; external sediment analysis and HIS/LIS integration |
| Warranty | 2 Year Manufacturer Warranty |
| After-Sales Support | Online technical support |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Analyzer Unit | MDLBW02 Automatic Urine Analyzer with integrated thermal printer and 7-inch touch display | 1 |
| Power Cable | AC 100–240V universal power supply cable | 1 |
| User Manual | Multilingual operation and maintenance guide | 1 |
| Quality Control Materials | Calibration and control solutions (as applicable) | As applicable |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the MDLBW02. We provide comprehensive technical support and training to ensure seamless integration into your laboratory workflow.
