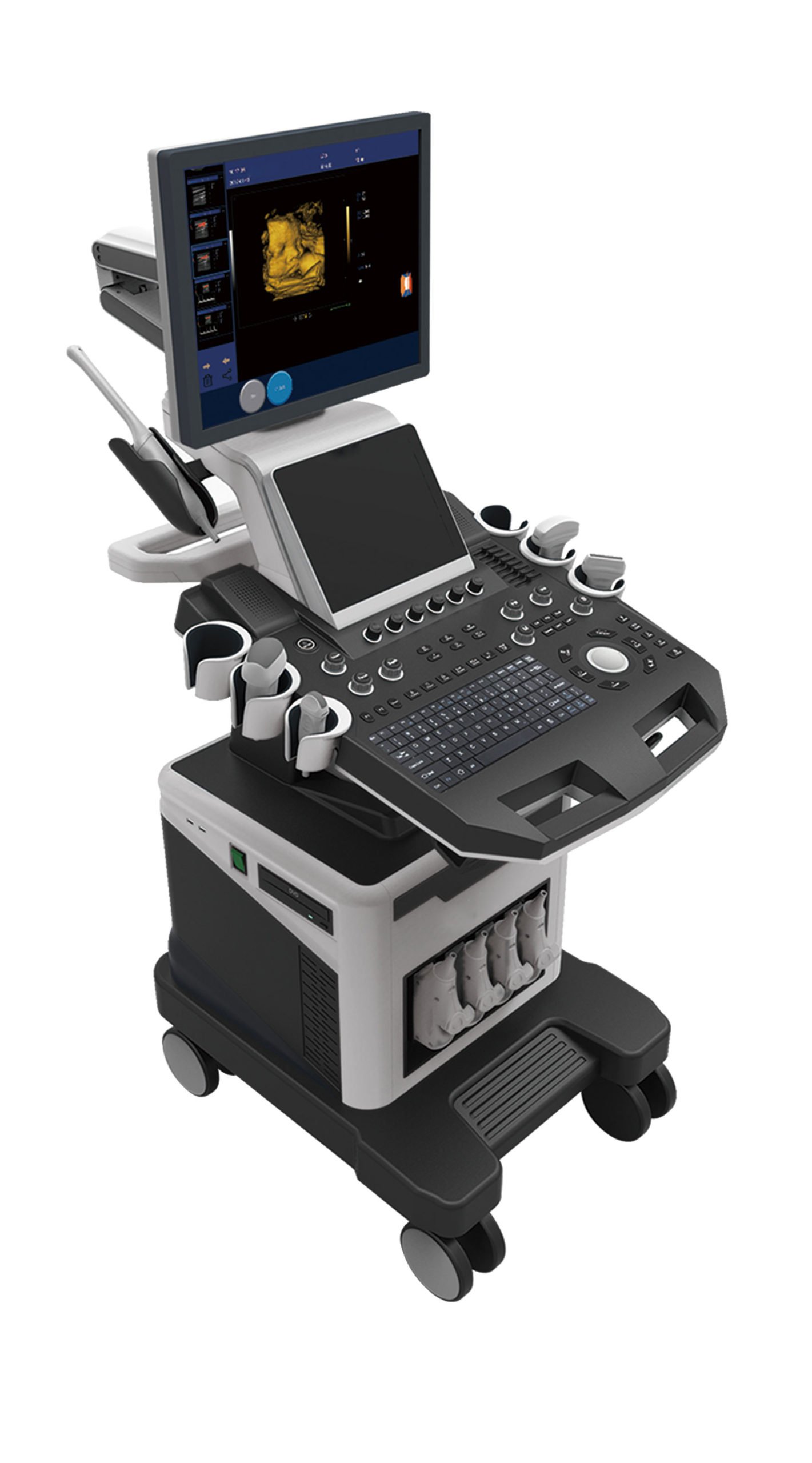

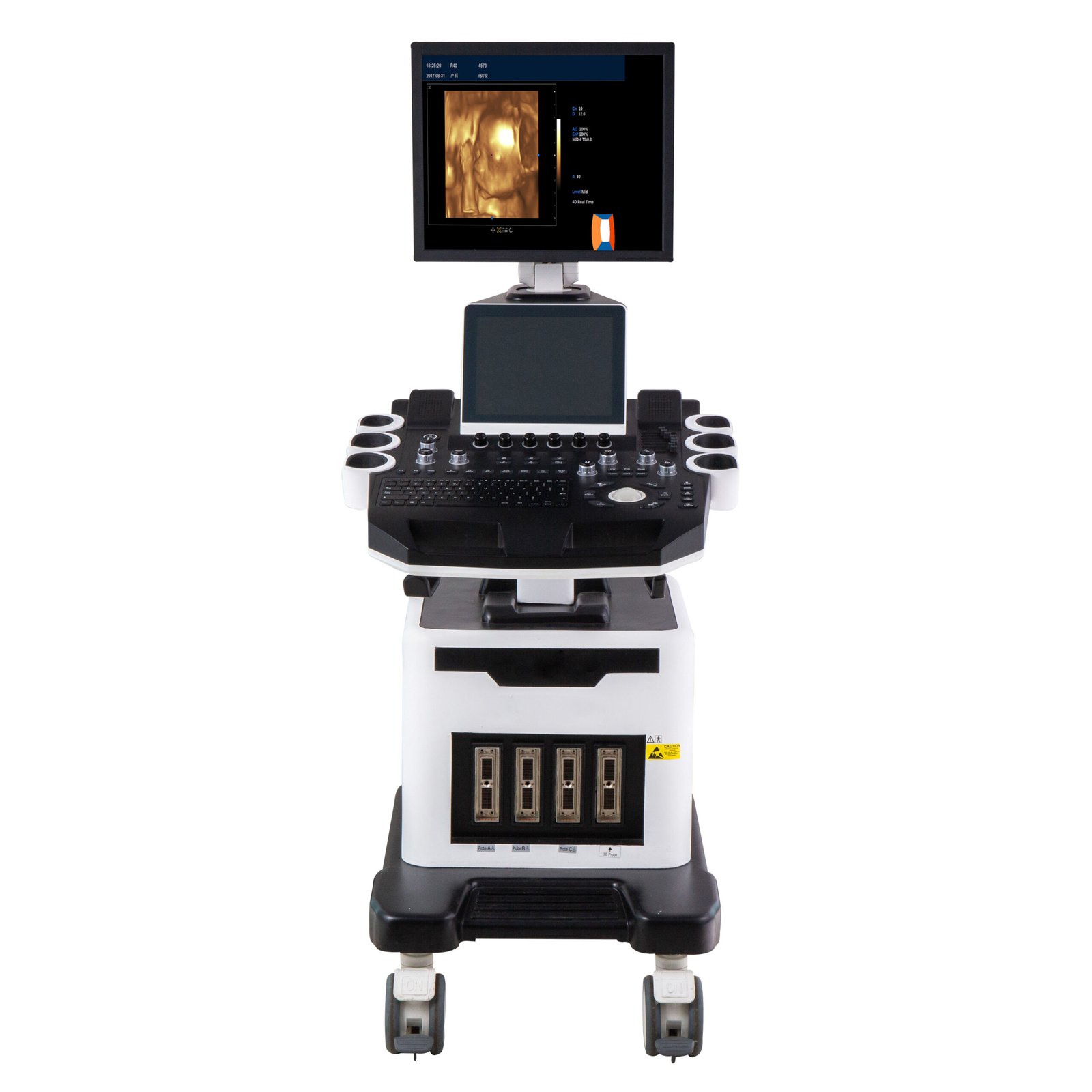

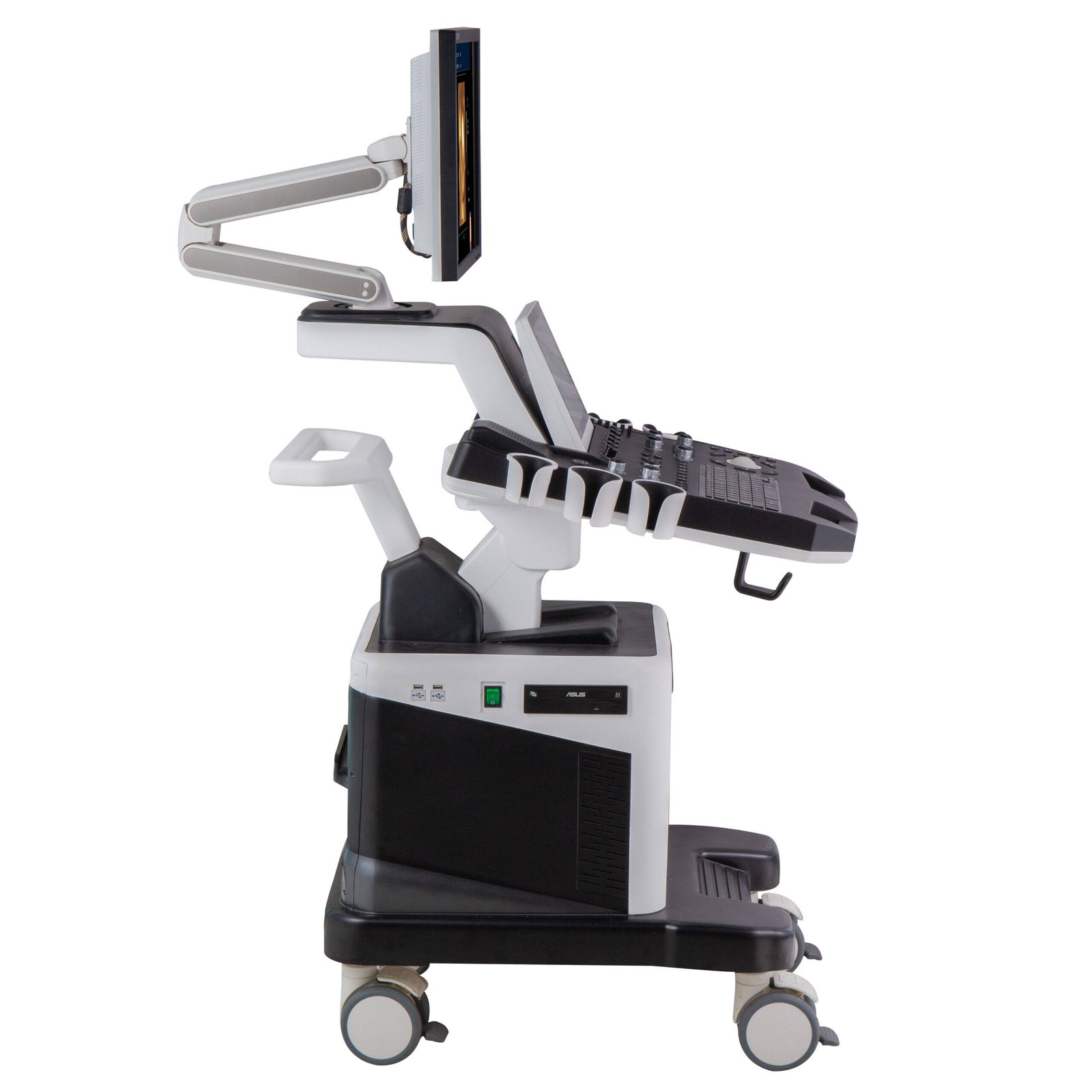

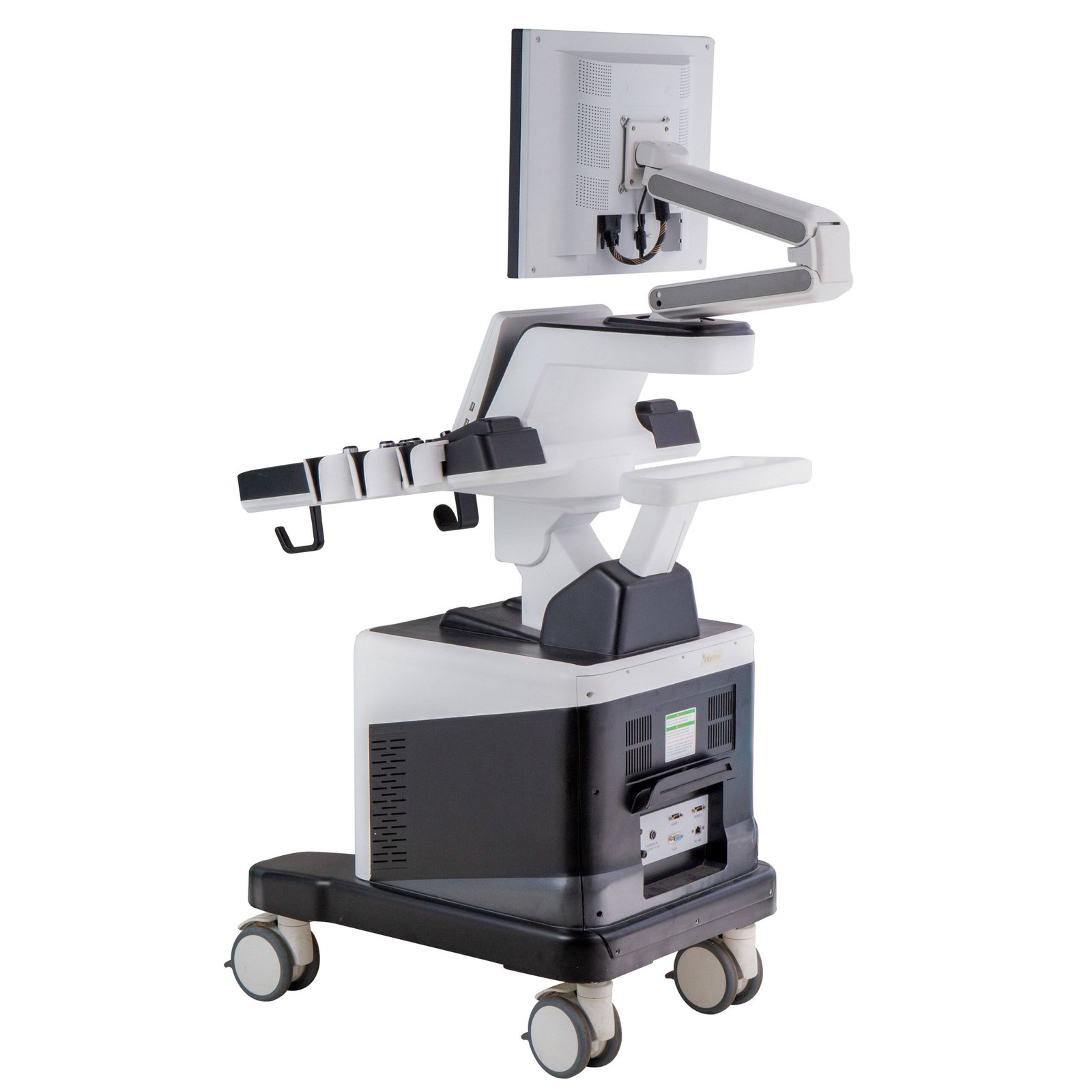

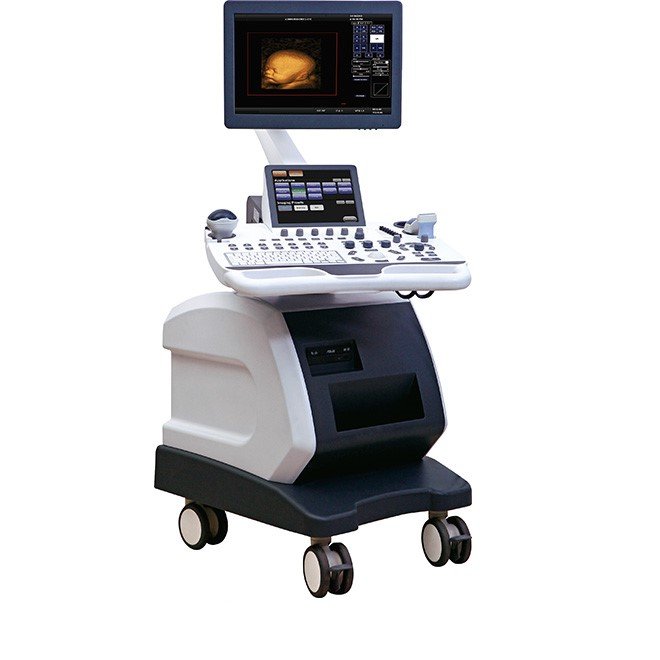

4D Color Doppler Ultrasound System MDLCU41
- The 4D Color Doppler Ultrasound System MDLCU41 3.0 VERSION offers advanced clinical operation features for ease of use.
- It provides automatic image optimization and parameter preset functions for efficient diagnosis.
- The system includes intelligence amplification and color hiding technology for enhanced imaging capabilities.
- With a variety of high-frequency probe configurations and dynamic range up to 260 db, it ensures clear and detailed images.
- Equipped with advanced imaging technologies like compound imaging and tissue harmonic imaging for improved diagnostic accuracy.
- The system also features color Doppler imaging with real-time spectrum analysis and adaptive speckle suppression technology.
- Its system configuration includes various display modes, full digital gray-scale imaging, and real-time 3D imaging capabilities.
- SKU
- MDLCU41
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
4D Color Doppler Ultrasound System MDLCU41
Advanced multi-application diagnostic imaging system with real-time 4D technology, dual monitors, and comprehensive Doppler capabilities. Delivers exceptional image quality across abdominal, cardiac, OB/GYN, vascular, and musculoskeletal applications with intelligent automation and DICOM compliance.
Clinical Overview
The 4D Color Doppler Ultrasound System MDLCU41 represents a breakthrough in diagnostic imaging technology, delivering exceptional diagnostic capabilities across multiple clinical specialties. Built on a Windows Embedded operating system with Intel i5 processor and dual-monitor configuration, this advanced system combines a 19-inch medical-grade monitor with a 10.4-inch touch screen interface for intuitive operation and optimal visualization. The system's comprehensive imaging modes include 2D, 3D, 4D, Color Doppler, Power Doppler, PW/CW Doppler, and Tissue Doppler, providing healthcare professionals with complete diagnostic flexibility for complex clinical assessments.
Engineered for clinical excellence, the MDLCU41 features advanced technologies including Compound Imaging, Speckle Reduction Imaging, and Tissue Harmonics Imaging that enhance image quality and diagnostic accuracy. The system supports four active probe ports with a wide range of transducer types including convex, linear, sector phased, micro convex, 4D volume convex, endocavity, and veterinary linear probes. With DICOM compliance and multiple export options including USB, Ethernet, and network storage, the MDLCU41 seamlessly integrates into modern healthcare IT infrastructures while delivering superior imaging performance for abdominal, OB/GYN, cardiac, vascular, small parts, pediatric, and musculoskeletal applications.
Key Features & Surgeon Benefits
Superior Resolution & Clarity
- Dynamic range up to 260 dB with 15–145 dB visible adjustment
- Longitudinal resolution ≤1 mm, horizontal ≤0.5 mm
- Scanning depth ≥360 mm for comprehensive penetration
- Compound imaging reduces artifacts and enhances border definition
- Tissue harmonic imaging with three advanced technologies
Intelligent Automation & Efficiency
- One-key automatic optimization adjusts all parameters instantly
- Customizable presets for liver, kidney, gallbladder, uterus, ovaries
- Five programmable shortcut buttons for frequent functions
- Dual-monitor configuration separates imaging from control
- Task lamp navigation guides operators through procedures
Multi-Specialty Capability
- Eight primary clinical applications with specialized measurement packages
- Four active probe ports supporting seven transducer types
- Real-time 4D imaging for obstetric and cardiac applications
- Full Doppler suite: Color, Power, PW, CW, Tissue, Directional
- Supports abdominal, cardiac, OB/GYN, vascular, urology, pediatric, and musculoskeletal
Seamless Data Management
- Full DICOM 3.0 compliance with Store, Print, Working List, Structured Reports
- Multiple export formats: DICOM, JPG, BMP, PNG, AVI
- 560GB storage capacity with E-COM graphic management system
- Ethernet, USB, DVD/CD, and network storage connectivity
- Editable bilingual diagnostic reports with embedded images
Technical Specifications
| Model | MDLCU41 3.0 VERSION |
|---|---|
| SKU | MDLCU41 |
| Operating System | Windows Embedded (CN, EN language) |
| Processor | Intel i5 with 4GB RAM, 120GB SSD + 500GB HDD |

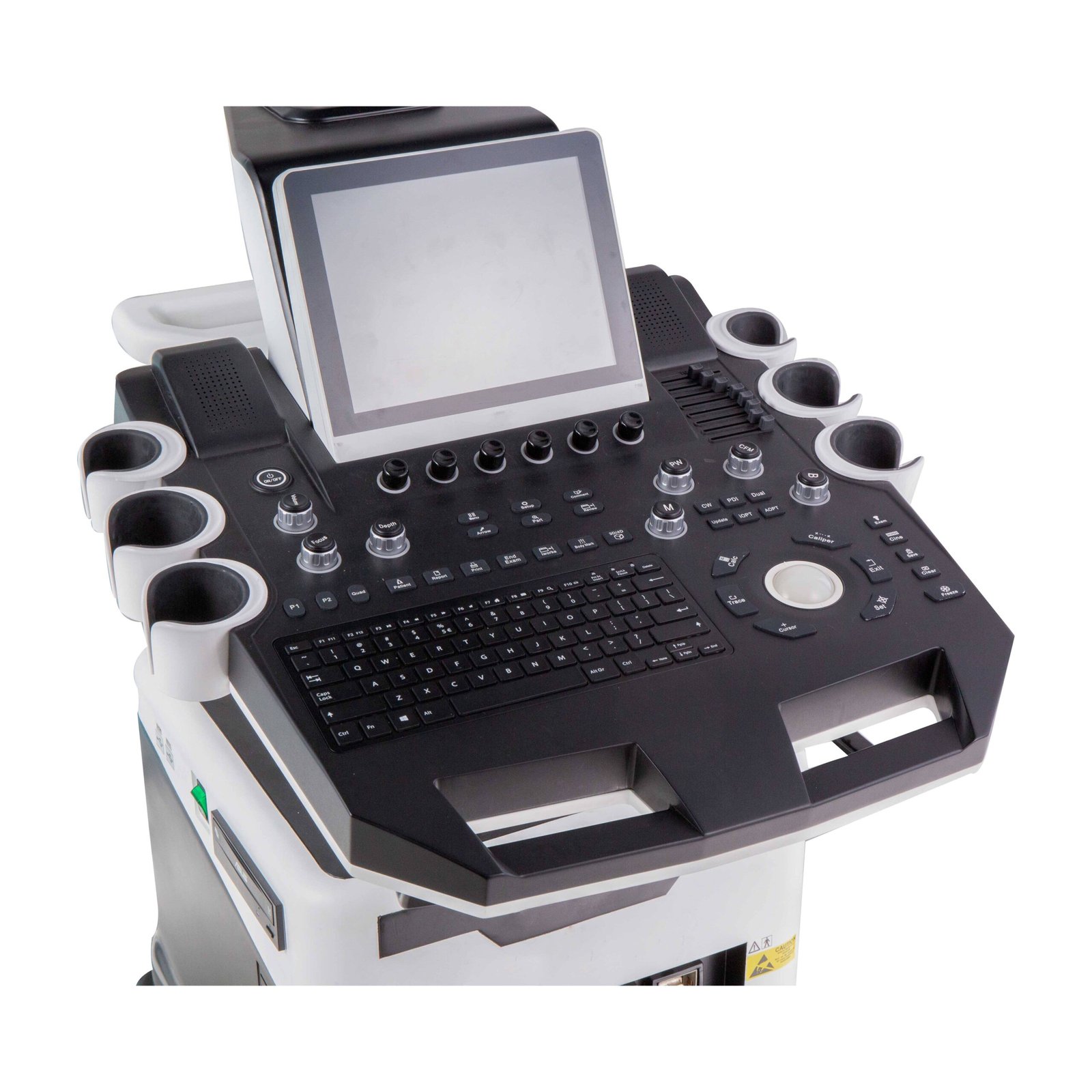

| Display | 19" medical monitor (1280×1024) + 10.4" LED touch screen |
| Imaging Modes | 2D, 3D, 4D, Color Doppler, Power Doppler, PW/CW Doppler, Tissue Doppler, Color M-Mode, Free Steering M-Mode |
| Advanced Features | Compound Imaging, Speckle Reduction, Tissue Harmonics, 4D Real-Time, Auto Optimization, Tissue Doppler, Multi-Beam, IMT, Trapezoidal Imaging, iBank Database |
| Dynamic Range | Up to 260 dB (15–145 dB visible adjustable) |
| Image Resolution | Longitudinal ≤1 mm, Horizontal ≤0.5 mm |
| Scanning Depth | ≥360 mm |

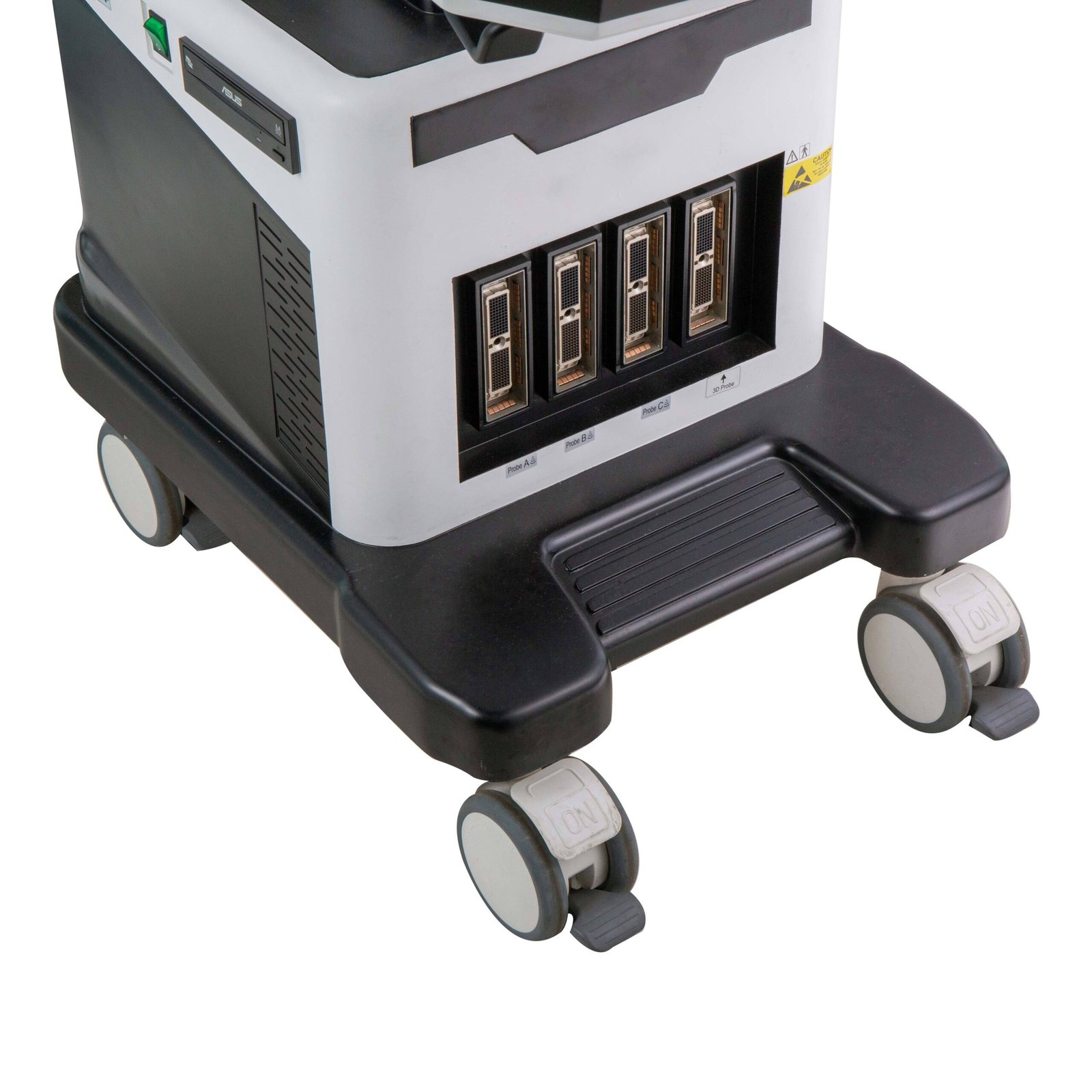

| Probe Ports | 4 Active Ports |
| Transducer Types | Convex (2.5–5.0 MHz), Linear (6.0–14.0 MHz), Sector Phased (2.0–5.5 MHz), Micro Convex, 4D Volume Convex (2.0–5.5 MHz), Endocavity (5.0–9.0 MHz), Veterinary Linear |
| Blood Flow Sensitivity | ≤1 mm/s |
| Maximum Blood Flow Velocity | PWD ≥12,300 mm/s, CW ≥33,200 mm/s |
| Sample Width Range | 0.5–40 mm |
| Cine Memory | >10 seconds, 750 frames |
| Scanning Angles | Abdominal probe ≥105°, Intracavity probe ≥160°, Convex probe 20°–85° adjustable |
| Storage Capacity | 560GB Hard Disk |
| DICOM Modes | Store, Print, Working List, Storage Commitment, Structured Reports |
| Export Options | DICOM, Ethernet, JPG/BMP/PNG, AVI, Network Storage, USB, DVD/CD+R(W) |

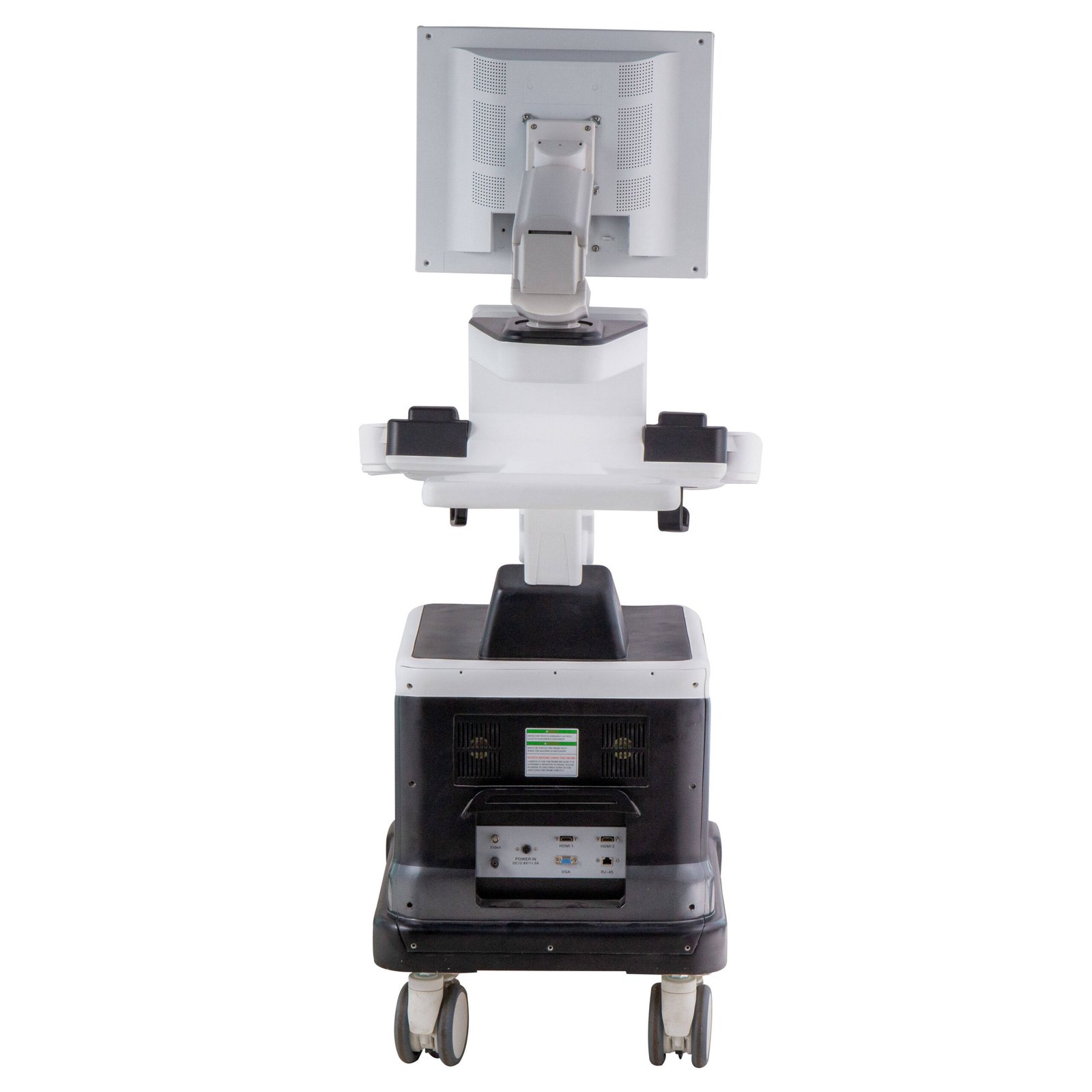

| Input/Output | VGA, 2 USB Ports, Ethernet, DICOM, Built-in Speakers |
| Applications | Abdominal, OB/GYN, Urology, Cardiac, Vascular, Small Parts, Pediatric, Musculoskeletal |
| Warranty | 2 Year Manufacturer Warranty |
Standard Instrument Composition
| Item | Description | Qty |
|---|---|---|
| Main Console Unit | MDLCU41 ultrasound system with Windows Embedded OS, Intel i5 processor, dual monitors | 1 |
| 19" Medical Monitor | High-resolution medical-grade display (1280×1024) | 1 |
| 10.4" Touch Screen Monitor | LED touch interface for menu and parameter control | 1 |
| Probe Ports | Four active transducer connection ports | 4 |
| Convex Probe | 2.5–5.0 MHz for abdominal imaging | 1 |
| Linear Probe | 6.0–14.0 MHz for small parts and musculoskeletal | 1 |
| Phased Array Probe | 2.0–5.5 MHz for cardiac imaging | 1 |
| 4D Volume Probe | 2.0–5.5 MHz for real-time 4D obstetric imaging | 1 |
| Endocavity Probe | 5.0–9.0 MHz for transvaginal examinations | Optional |
| Micro Convex Probe | Specialized convex design for pediatric applications | Optional |
| Veterinary Linear Probe | Specialized probe for veterinary applications | Optional |
| Gel Warmer | Maintains optimal ultrasound gel temperature | 1 |
| Probe Holders | Secure mounting for transducers | 4 |
| Power Supply | AC power adapter and cable | 1 |
| USB Connectivity | 2 USB ports for data export and peripherals | 2 |
| Ethernet Cable | For DICOM and network connectivity | 1 |
| Documentation | User manual, technical specifications, warranty certificate | 1 set |
Get in Touch for Pricing & Availability
The MDLCU41 is a premium diagnostic ultrasound system designed for multi-specialty imaging centers, hospitals, and advanced clinical practices. Contact our sales team for detailed pricing, lease options, probe configurations, and volume discounts.
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
