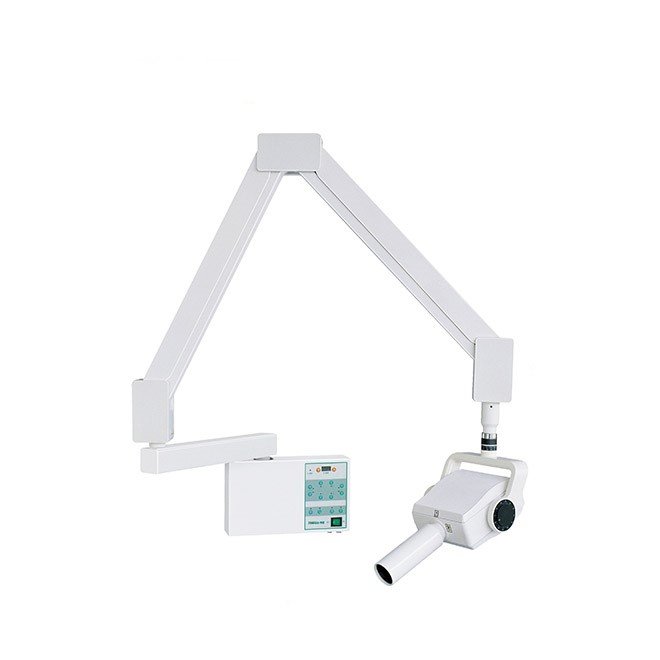

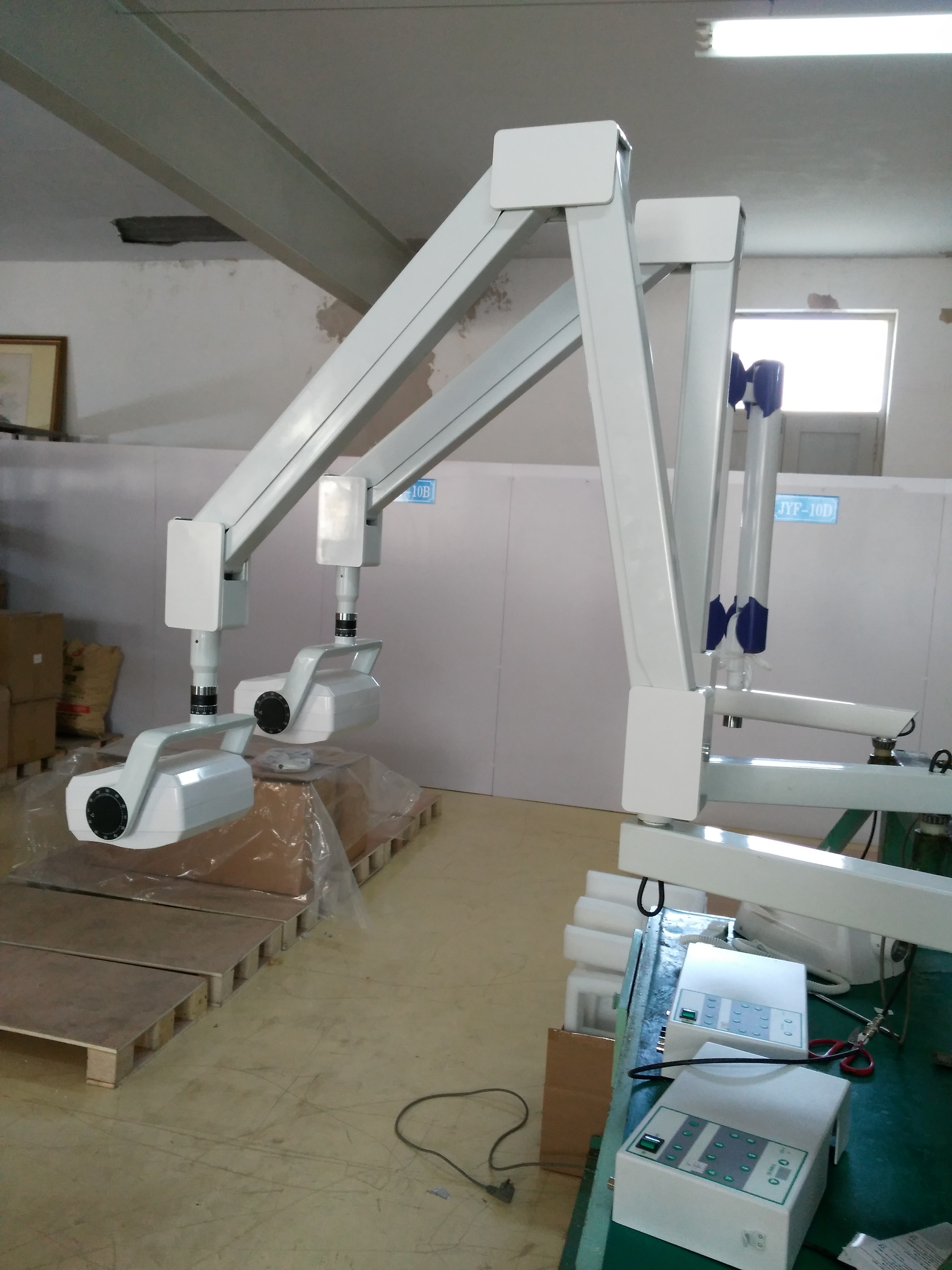

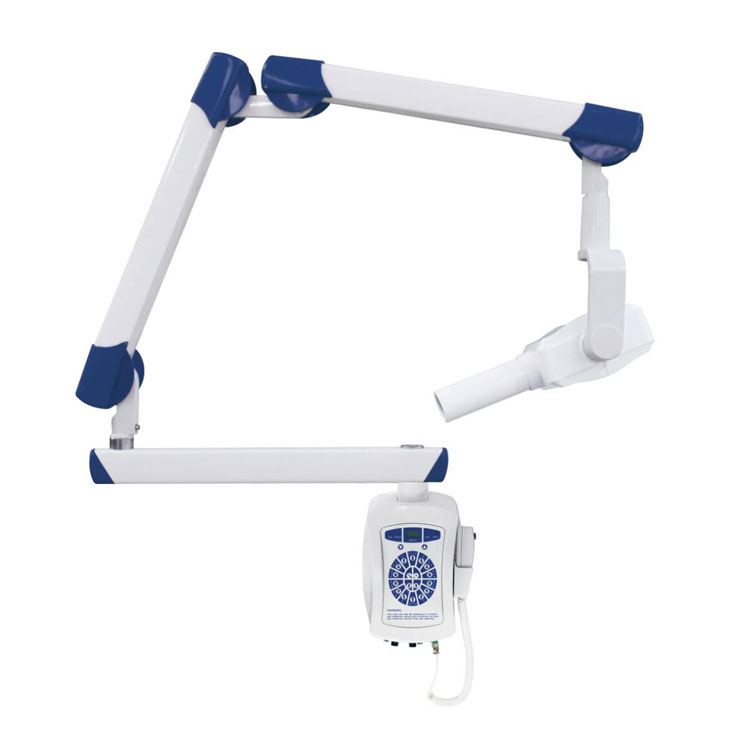

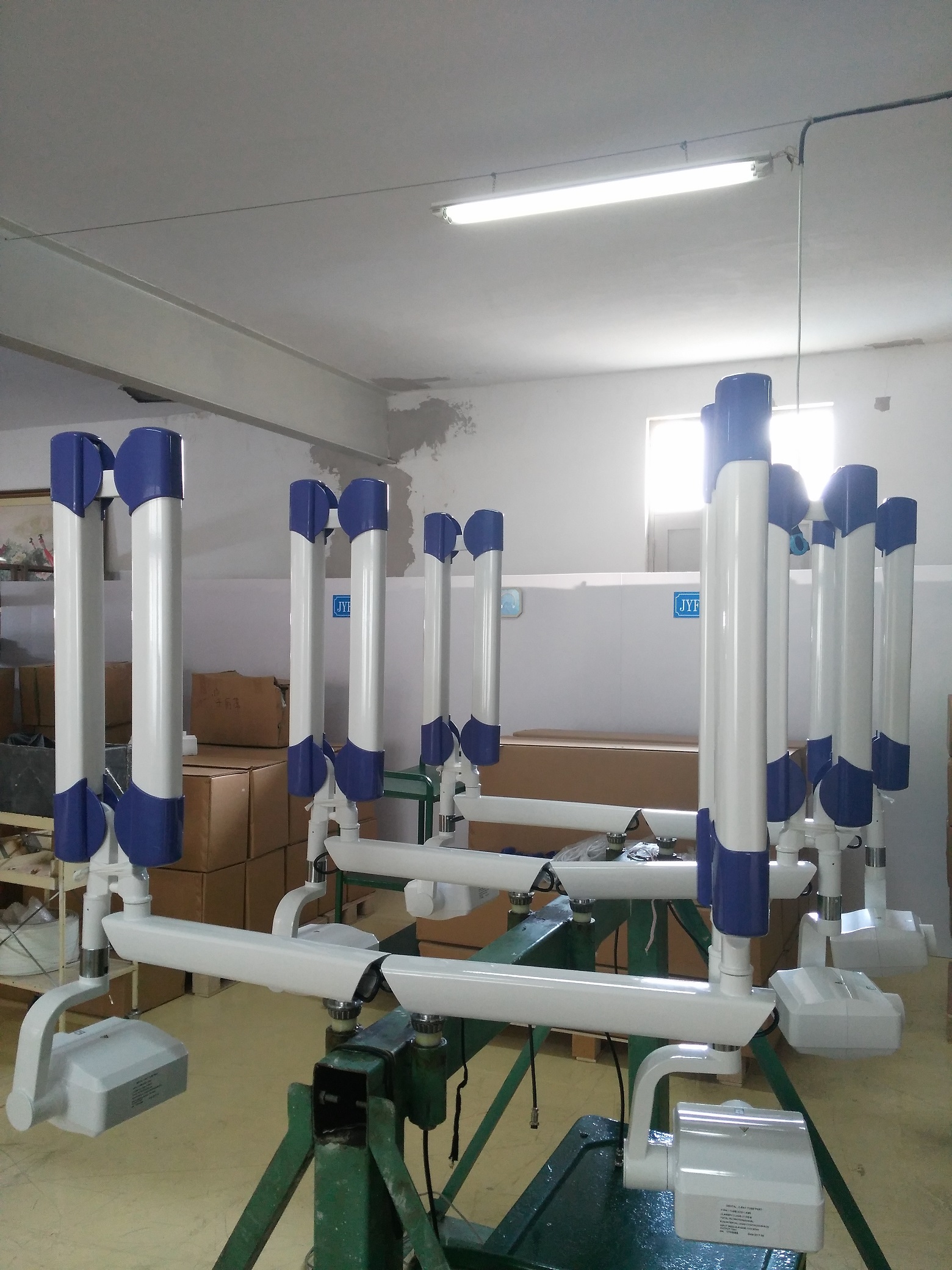

Wall-Mounted Intra-Oral Dental X-Ray Machine MDLDX02
- Wall-Mounted Intra-Oral Dental X-Ray Machine MDLDX02 is an essential diagnostic equipment for dentists.
- Features a simple structure with the x-ray generator, central controller, and unit frame integrated into one unit.
- Provides good protection with radiation levels lower than national standards.
- Equipped with a digital circuit for accurate exposure time.
- Mainly used in synthesis hospitals, cavity specialty hospitals, and dental clinics for taking dental x-rays.
- Structure includes x-ray generator, central controller, and machine frame.
- Operates on a power supply of AC 220V ±10%, 50Hz, 1KVA.
- SKU
- MDLDX02
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Wall-Mounted Intra-Oral Dental X-Ray Machine MDLDX02
Compact, wall-mounted intra-oral X-ray system designed for efficient space utilization in dental clinics and specialty hospitals. Delivers high-quality diagnostic imaging with precise digital exposure control and radiation levels well below national protection standards.
Clinical overview
The MDLDX02 is an essential diagnostic imaging device for dental professionals, combining a simplified integrated structure with robust radiation protection. The x-ray generator, central controller, and machine frame are engineered as a unified system, eliminating unnecessary complexity while maintaining clinical precision. Radiation output is significantly lower than national protection standards, ensuring patient safety during routine intra-oral examinations.
Designed for synthesis hospitals, cavity specialty hospitals, and dedicated dental clinics, the MDLDX02 delivers consistent, high-quality radiographic images through a fixed kV and mA configuration with adjustable exposure time control. The digital circuit architecture enables accurate mAs modulation by precise exposure time adjustment, providing clinicians with reproducible imaging protocols and reduced retake rates.
Key features & surgeon benefits

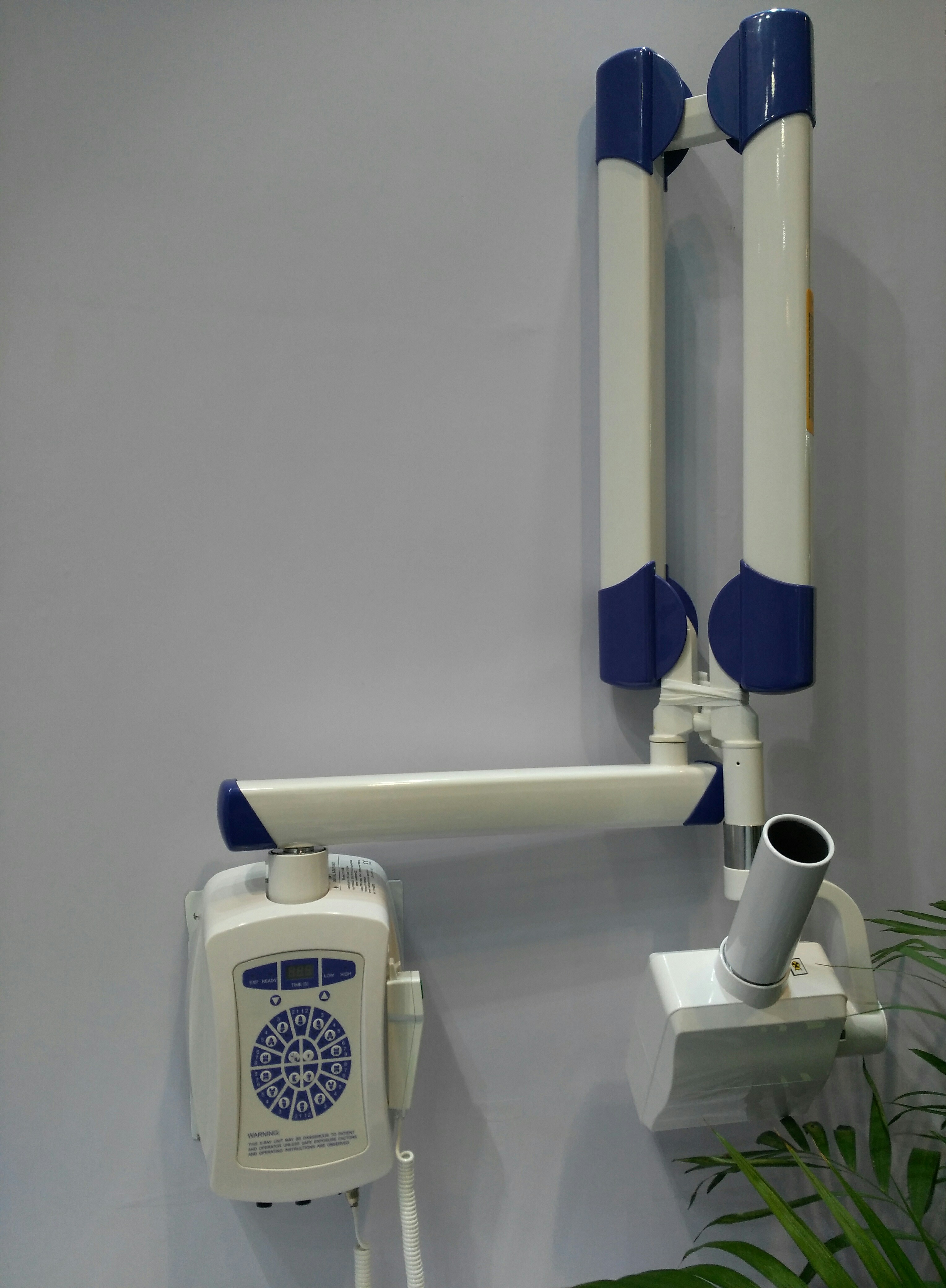

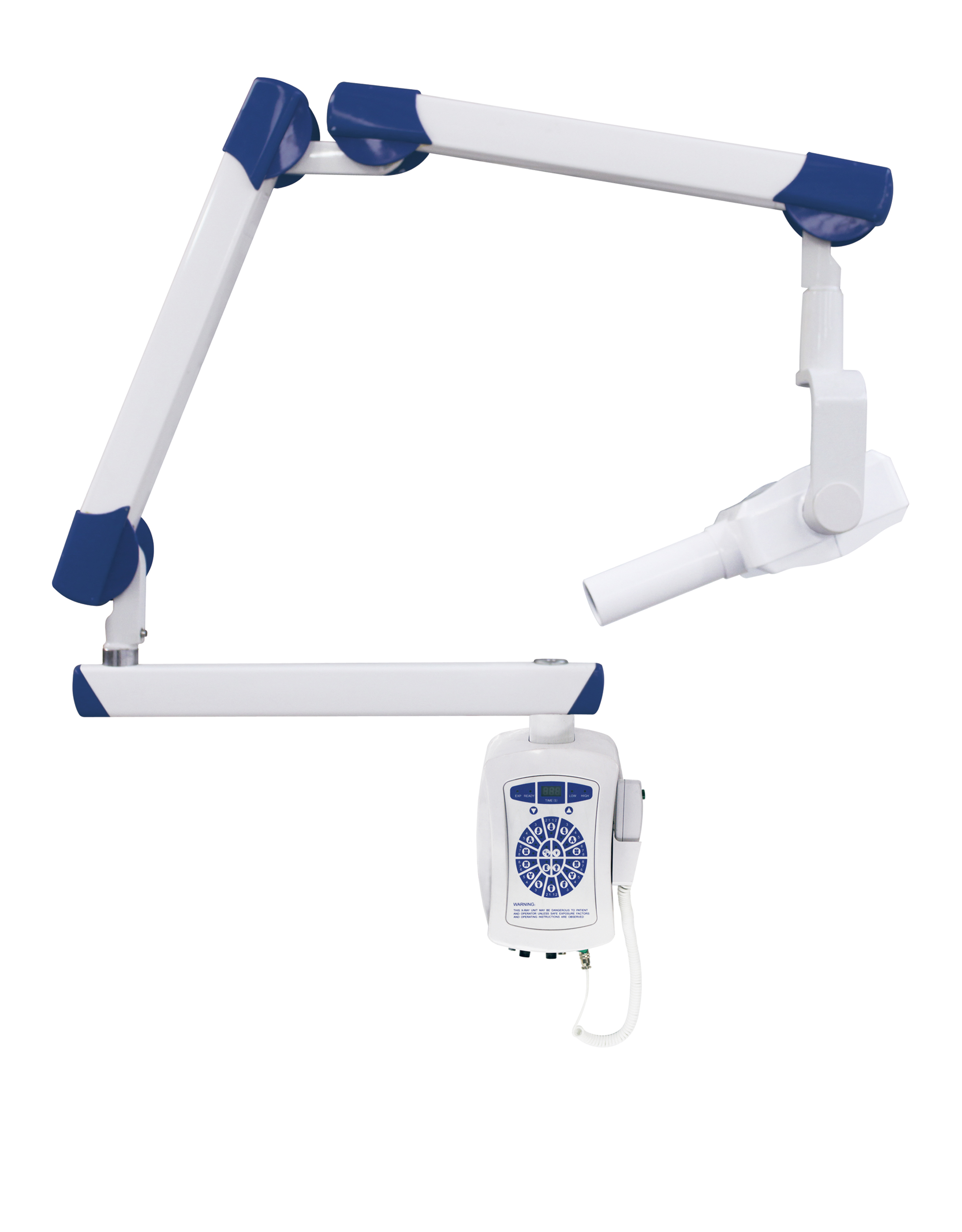

Space-Efficient Wall Mount
- Compact wall-mounted configuration maximizes clinic floor space
- Integrated x-ray generator, controller, and frame in single unit
- Total weight 35 kg ensures stable, secure installation
Precision Diagnostic Output
- 60 kVp tube voltage optimized for intra-oral radiography
- Digital exposure time control from 0.1 to 4 seconds
- Consistent image quality with fixed kV/mA parameters
Radiation Protection
- Radiation levels significantly below national protection standards
- Class I electro-medical device with Type B classification
- 2.5 mm AL total filtration reduces patient dose
Digital Precision Control
- Digital circuit ensures accurate exposure time modulation
- Adjustable mAs via exposure time variation
- Reliable AC power operation: 110V/220V±10%, 50/60Hz, 1 KVA
Technical specifications
| Classification | Electro-medical, Class I, Type B |
|---|---|
| Power Supply | AC 110V/220V±10%, 50/60Hz, 1 KVA |
| Tube Voltage | 60 kVp |
| Tube Current | 8 mA, 0.5 mA |
| Total Filtration | 2.5 mm AL |
| Exposure Time Range | 0.1 – 4 seconds |
| Total Weight | 35 kg |
| Installation | Wall-mounted |
| Warranty | 2 Year Manufacturer Warranty |

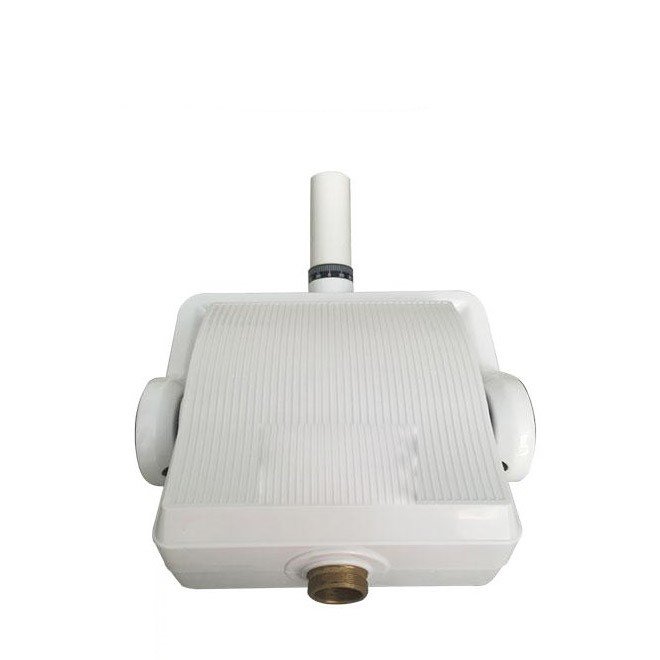

X-ray tube & generator specifications
| Parameter | Specification |
|---|---|
| Top Working Voltage | 70 kV |
| Focus Value | 0.8 mm |
| Target Angle | 12° |
| Tube Current | 2.5 A |
| Filament Voltage | 5±0.5 V |
| Working Frequency | 50–60 Hz |
| Perspective Loading | 210 W |
| Anode Thermal Capacity | 7 kJ |
| Total AL Equivalent Filtration | 2 mm AL |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Wall-Mounted X-Ray Unit | Integrated x-ray generator, central controller, and machine frame assembly | 1 |
| Power Supply Cable | AC 110V/220V±10%, 50/60Hz connection | 1 |
| Control Panel | Digital exposure time adjustment interface | 1 |
| Mounting Hardware | Wall installation brackets and fasteners | 1 set |
Get in touch for pricing & availability
Contact our sales team to request a detailed quotation, arrange a product demonstration, or discuss customisation options for your dental facility. We provide comprehensive support and fast delivery worldwide.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
