Specifications
Ultrasonic parameters: BUA (ultrasonic amplitude attenuation), SOS (ultrasonic sound velocity), OI (bone mass index)
Measurement method: full dry type (no liquid inside and outside the equipment, no temperature control device required), two-way ultrasonic transmission and reception
Probe frequency: 0.5MHz ± 10%
Broadband at 4.-6db: >60%
Measurement time: ≤ 25 seconds
Test repeatability: OPR≤±1%
Measurement accuracy: SOS ≤ ± 2%
Test repeatability: BUA ≤ ± 5%
Diagnostic parameters: BUA, OI value, T value, Z value, SOS, OPR, adult ratio, age ratio
Ultrasonic output TIS: 2.8*10 -3mW/cm2
Calibration (correction): automatic calibration of the human body simulation module
Temperature compensation system: Automatically compensates for measurement deviation caused by temperature
Built-in reference database: Asian, European, Middle Eastern and African databases
Standard dual USB interface output, built-in thermal printer (suitable for out-of-office operation), and can output different types of printer output reports.
Diagnostic report output; automatic test data diagnosis, built-in print report output. Diagnostic information can be entered in the diagnostic report, and an external printer output report is also provided. The software supports sending the PACS network system.
Measurement site and probe spacing: Automatically adjust the probe measurement spacing to direct contact with the heel.
Product Introduction

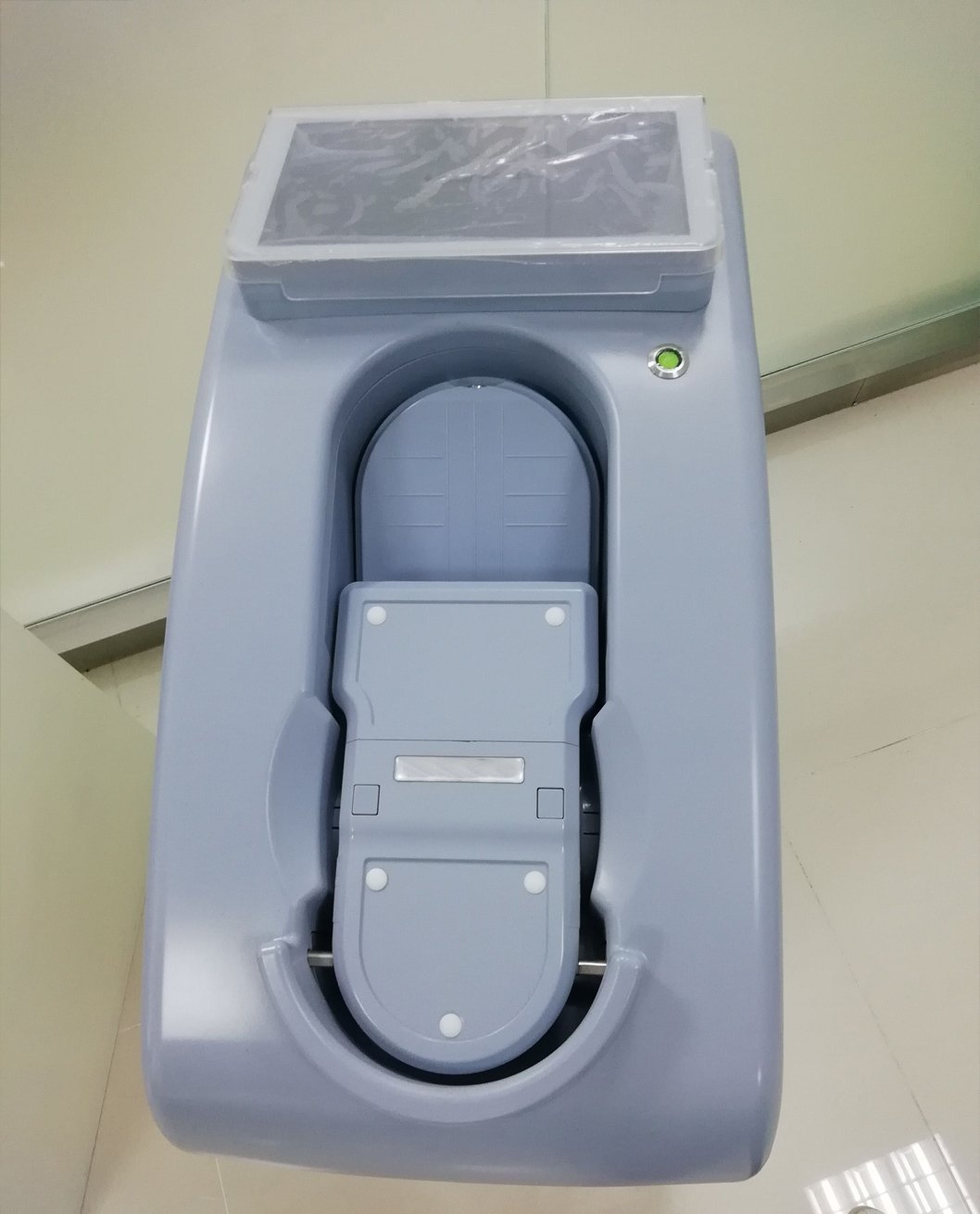

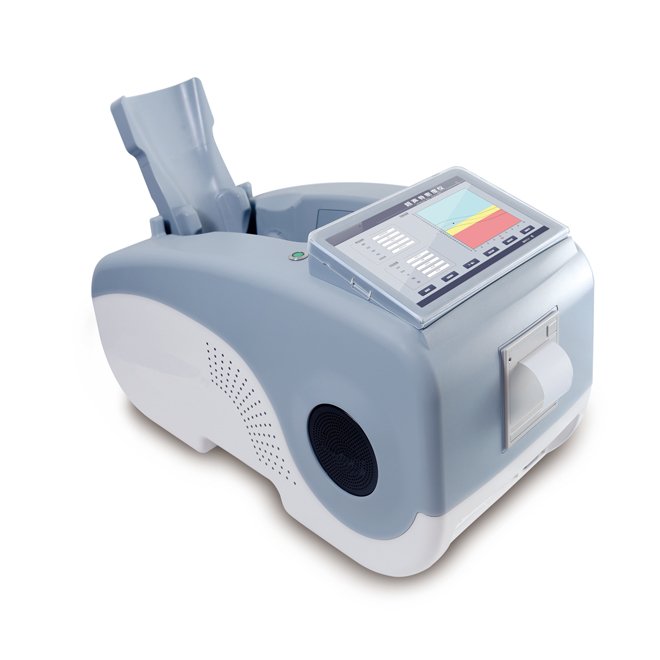

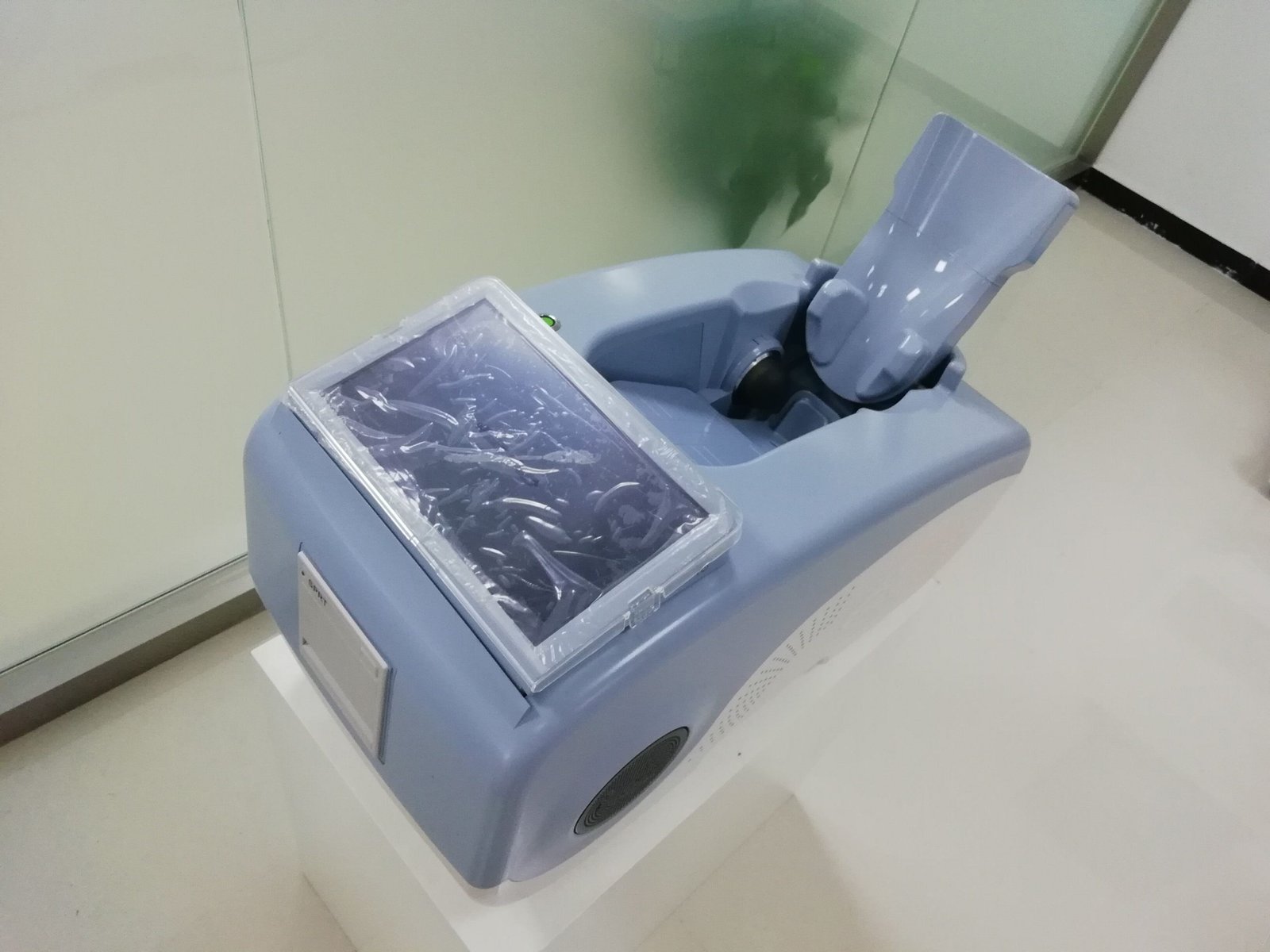

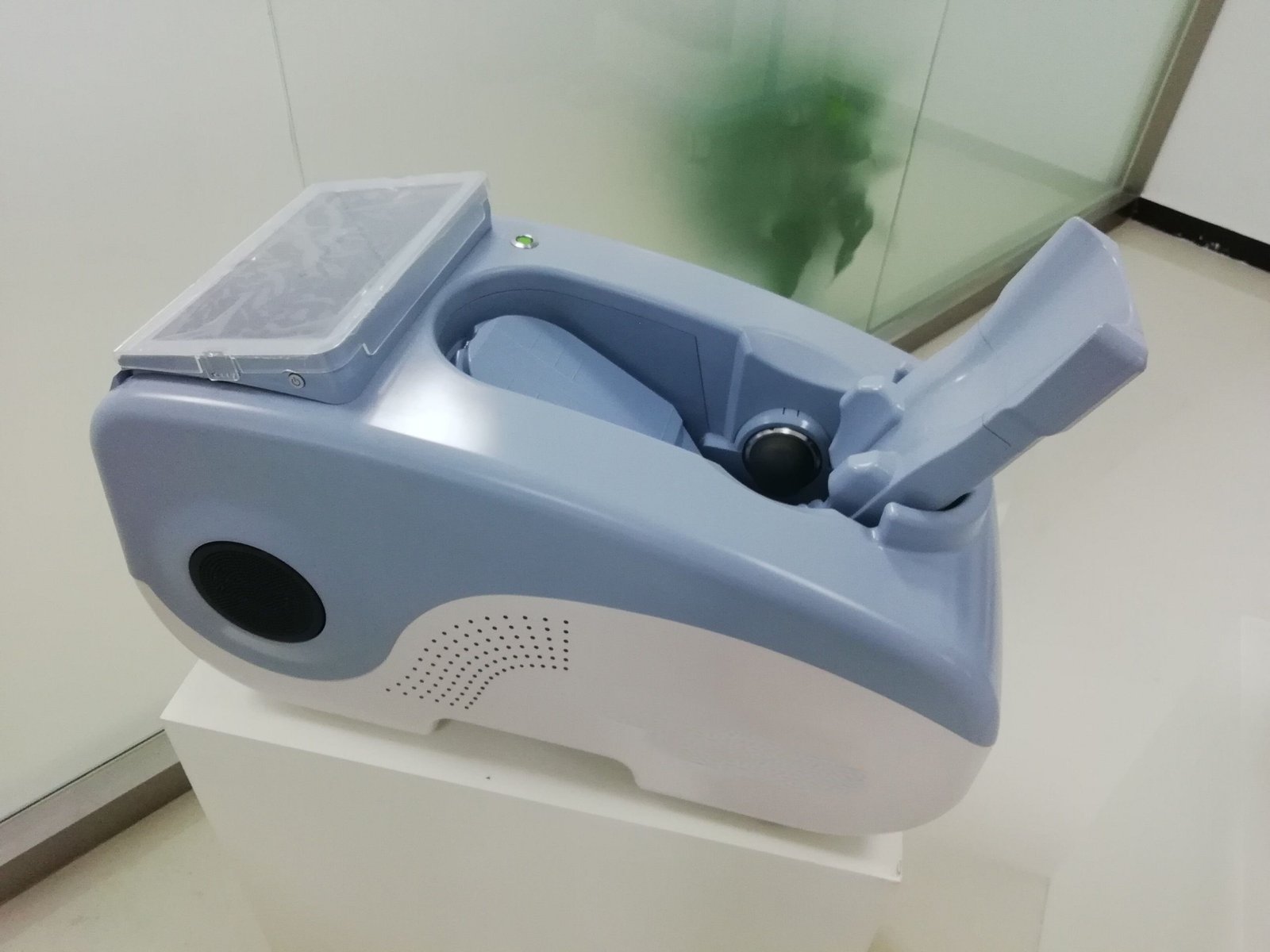

MSLBD07 Ultrasound Bone Densitometer retains the excellent design of this series products, configuration upgrade comprehensive. The measurement, display and multimedia functions integrate perfectly. Do not need to connect any external equipment, with fully optimized operating software that make users operate quickly, only need few steps that can get accurate measurement results and reports.
New features
Equipped with 10.1-inch touch screen make the operation more convenient, do not need to connect any external devices that can save more work space.
Built-in computer system, support Windows XP / 7 / 8 / 10 operating system, reserved for external VGA, keyboard and mouse interface, with network transmission function.
Using a large number of patented technology, oil balloon probe and the air pressure control that can adjust the probe pressure automatically and maintain the foot position soft and comfortable, easy to get measure results.
Using ultrasound to measure the calcaneal bone density that can reflect the body bone mineral density, the measurement process is noninvasive, especially suitable for pregnant women, children and other special populations.
Suitable for different types of medical and physical examination institutions, the product can provide detailed clinical reference data for the elderly osteoporosis and teenager bone development.
Technical Specifications
1.Ultrasonic parameters: BUA (ultrasonic amplitude attenuation), SOS (ultrasonic sound velocity), OI (bone mass index)
2.Measurement method: full dry type (no liquid inside and outside the equipment, no temperature control device required), two-way ultrasonic transmission and reception
3.Probe frequency: 0.5MHz ± 10%
Broadband at 4.-6db: >60%
5.Measurement time: ≤ 25 seconds
6.Test repeatability: OPR≤±1%
7.Measurement accuracy: SOS ≤ ± 2%
8.Test repeatability: BUA ≤ ± 5%
9.Diagnostic parameters: BUA, OI value, T value, Z value, SOS, OPR, adult ratio, age ratio
10.Ultrasonic output TIS: 2.8*10 -3mW/cm2
11.Calibration (correction): automatic calibration of the human body simulation module
12.Temperature compensation system: Automatically compensates for measurement deviation caused by temperature
13.Built-in reference database: Asian, European, Middle Eastern and African databases
14.Standard dual USB interface output, built-in thermal printer (suitable for out-of-office operation), and can output different types of printer output reports.
15.and equipped with two foot auxiliary stations to adapt to various foot detection.
16.Diagnostic report output; automatic test data diagnosis, built-in print report output. Diagnostic information can be entered in the diagnostic report, and an external printer output report is also provided. The software supports sending the PACS network system.
17.Measurement site and probe spacing: Automatically adjust the probe measurement spacing to direct contact with the heel.
18.Bone Density Software Test System: Human bone density test software automatically locates the ultrasound probe and automatically searches for the best signal. Automatically prompts that the test site is placed correctly.
19.Built-in computer host and built-in 10.1-inch touch screen display operation.
20.Complete calculation parameters:
Adult: T value, Z value, age ratio, adult ratio, OPR (measurement repeatability), OI (bone index), SOS (sound rate), BUA (ultrasonic amplitude attenuation)
