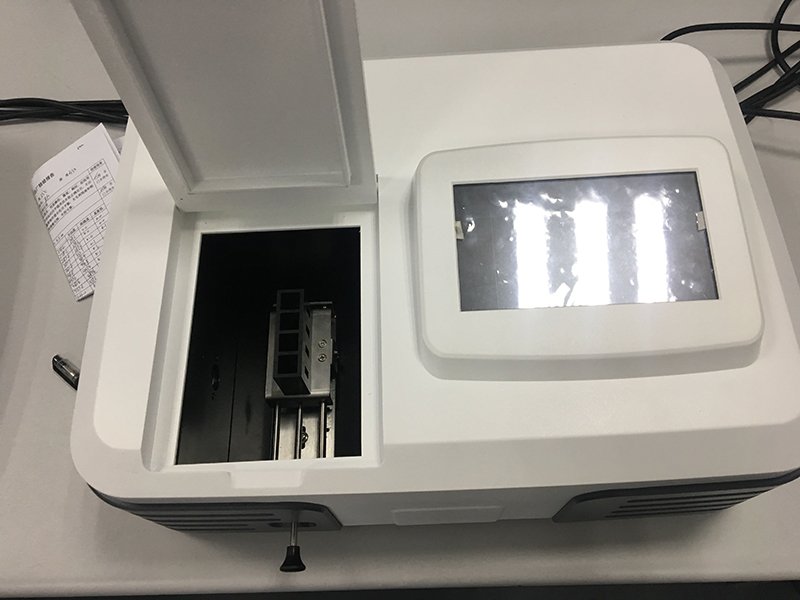

Portable UV/Vis Spectrophotometer MDLUV15
High-precision spectroscopy system with 190–1000 nm wavelength range, touch screen control, and standalone operation for clinical chemistry, pharmaceutical analysis, and molecular biology applications.
Clinical overview
The MDLUV15 Portable UV/Vis Spectrophotometer delivers research-grade analytical performance in a compact, user-friendly design. This advanced spectroscopy system combines precision optics with intuitive 800×480 touch screen control, enabling standalone operation for quantitative analysis, wavelength scanning, kinetics studies, and spectrum measurement across diverse laboratory applications. The instrument is engineered with a rigid 8 mm die-cast aluminum optical mount and high-quality imported deuterium and tungsten lamps, ensuring exceptional wavelength accuracy (±0.5 nm) and minimal stray light (≤0.05% T @ 220 nm) essential for reliable clinical chemistry, pharmaceutical quality control, and molecular biology work.
At only 20 kg, the MDLUV15 offers true portability without compromising analytical performance. Automatic wavelength calibration, powerful onboard memory, USB data export, and direct A4 format printing capability streamline workflow and regulatory documentation. The system supports multiple measurement modes including DNA/protein quantification, enzyme kinetics, multi-wavelength analysis, and multi-component determination, making it ideal for clinical laboratories, pharmaceutical manufacturers, research institutions, and quality control facilities requiring flexible, accurate spectroscopic analysis.
Key features & surgeon benefits
Exceptional Wavelength Accuracy
- ±0.5 nm wavelength accuracy across 190–1000 nm range
- ≤0.2 nm repeatability for consistent quantitative results
- Ultra-low stray light (≤0.05% T @ 220 nm) for trace analysis
- Holographic grating monochromator with 2 nm spectral bandwidth
- Imported deuterium and tungsten lamps for full spectral coverage
Standalone Touch Screen Operation
- 800×480 pixel high-resolution display for clear spectrum visualization
- Direct system settings and measurement control on instrument
- No external computer required for routine analysis
- Automatic wavelength calibration and positioning recovery
- Multiple measurement modes: spectrum, quantitative, kinetics, multi-wavelength
Integrated Memory & Output
- Powerful onboard memory for methods, calibration curves, and results
- Direct A4 format printing without computer connection
- USB export for PC integration and LIMS connectivity
- Comprehensive data storage for multi-user laboratory operation
- Rapid method recall and standardized procedure execution
Lightweight Rugged Design
- Only 20 kg weight for true portability between locations
- Compact 460×380×180 mm footprint saves bench space
- 8 mm die-cast aluminum optical mount ensures stability
- Maintains optical alignment during relocation
- Durable construction protects sensitive optical components
Technical specifications
| Indications | Clinical chemistry, pharmaceutical analysis, DNA/RNA quantification, enzyme kinetics, microbiology, environmental testing, food & beverage analysis, hematology |
|---|---|
| Wavelength range | 190–1000 nm (UV-Visible spectrum) |
| Wavelength accuracy | ±0.5 nm |
| Wavelength repeatability | ≤0.2 nm |
| Spectral bandwidth | 2 nm |
| Photometric range | 0–200% Transmittance; −4.0 to 4.0 Absorbance |
| Photometric accuracy | ±0.3% T (0–100% T) |
| Stray light | ≤0.05% T @ 220 nm (NaI); ≤0.3% T @ 360 nm (NaNO₂) |
| Light sources | Imported Deuterium (D₂) lamp and Tungsten (W) halogen lamp |
| Detector | Silicon photodiode |
| Optical system | Single beam with holographic grating monochromator |
| Optical mount | 8 mm die-cast aluminum rigid base |
| Display | 800×480 pixel high-resolution touch screen |
| Data output | USB interface for PC connection and data export |
| Printing | Direct A4 format printing capability |
| Calibration | Automatic wavelength calibration with holmium oxide standards |
| Cuvette compatibility | Standard 10 mm rectangular cuvettes (glass, quartz, plastic); micro-volume adapters available |
| Dimensions (L×W×H) | 460 × 380 × 180 mm |
| Weight | 20 kg (lightweight portable design) |
| Power supply | AC 110V/60Hz or 220V/50Hz (switchable) |
| Operating temperature | 5–35°C |
| Relative humidity | ≤85% (non-condensing) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| MDLUV15 Spectrophotometer | Main instrument unit with touch screen, optical system, and sample compartment | 1 |
| Power cord | AC power cable with voltage selector (110V/220V) | 1 |
| USB cable | USB 2.0 interface cable for PC connectivity | 1 |
| Sample cuvettes | Standard 10 mm quartz cuvettes for UV/Vis measurements | 2 |
| Calibration standards | Holmium oxide filter for wavelength calibration verification | 1 |
| User manual | Comprehensive operating instructions and technical documentation | 1 |
| Quick reference guide | Laminated operation summary for common measurement modes | 1 |
| Carrying case | Protective transport case for portable operation | 1 |
