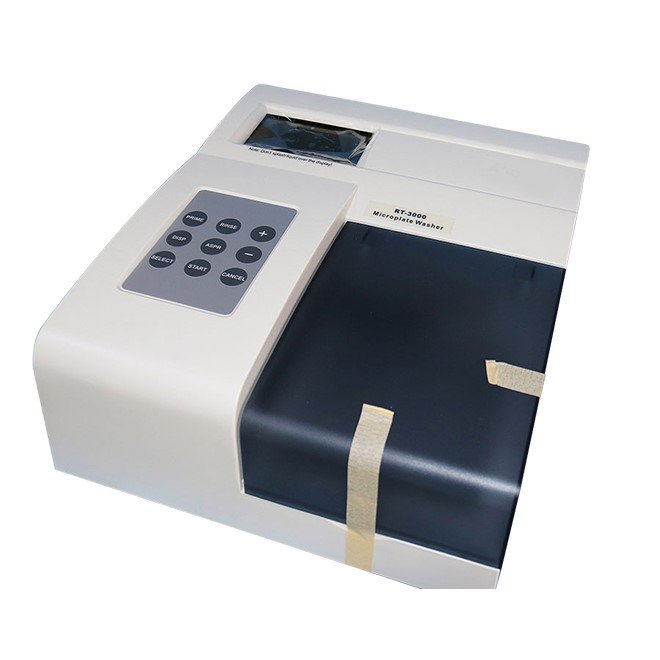

Microplate Reader, Microplate Washer RT-3000
Fully automated microplate washing system with Windows-based operation and large LCD display. Compatible with flat, U, and V-bottom strips and plates. Delivers precision washing with adjustable pressure, volume, and time settings for reliable laboratory workflows.
Clinical overview
The RT-3000 Microplate Washer is a fully automated system designed for high-volume microplate washing in clinical and research laboratories. With intuitive Windows-based operation and a large 5-inch LCD display, the system simplifies protocol setup and execution. The device accommodates flat, U, and V-bottom microplates and strips, making it versatile for diverse assay formats including ELISA, immunoassays, and high-throughput screening applications.
Featuring dual manifold options (12-way and 8-way), automatic vacuum and pressure monitoring, and programmable liquid level detection with alert functionality, the RT-3000 ensures consistent, reliable washing performance. The compact footprint (390×330×177 mm) and lightweight design (8.5 kg) make it ideal for space-constrained laboratory environments without compromising throughput or precision.
Key features & surgeon benefits
Intuitive Operation & Protocol Management
- Windows-based operating system with large 5-inch LCD display
- Program and store up to 50 custom wash protocols in memory
- Automatic and manual positioning for maximum flexibility
Broad Plate & Strip Compatibility
- Supports flat, U, and V-bottom microplates and strips
- Compatible with 96-well, 48-well plates and 1–12 strip configurations
- 12-way or 8-way manifold options for varied throughput needs
Precise Washing & Monitoring
- Dispense precision CV <2.0% with residual volume ≤3 μL
- Automatic vacuum and pressure monitoring with automatic rinse cycles
- Adjustable washing pressure, volume, and time settings (50–3000 μL range)
Ease of Use & Reliability
- No special airtight bottle required for wash solution
- Liquid level detection with automatic alert function
- Easy maintenance design for minimal downtime
Technical specifications
| Plate Mode | 96-well, 48-well plate or 1–12 strip |
|---|---|
| Dispense Precision | CV <2.0% |
| Residual Volume | ≤3 μL |
| Washing Volume (8-way) | 50–3000 μL |
| Washing Volume (12-way) | 50–2000 μL |
| Washing Cycles | Maximum 99 cycles |
| Soaking Time | 0–24 hours programmable |
| Display | 5-inch LCD |
| Bottle Capacity | 2 liters each (multiple bottles) |
| Memory | 50 washing protocols |
| Interface | RS232 |
| Power Supply | AC 100–240V, 50/60 Hz |
| Net Weight | 8.5 kg |
| Dimensions (L×W×H) | 390×330×177 mm |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| RT-3000 Washer Unit | Complete microplate washer with manifold and control module | 1 |
| Manifold Assembly | 12-way or 8-way manifold (as configured) | 1 |
| Wash Bottles | 2-liter capacity bottles for wash solution | 2 |
| Power Cable | AC power supply cord (100–240V) | 1 |
| User Manual | Windows operation guide and protocol programming instructions | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your microplate washing requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery and customisation options to meet your laboratory’s specific needs.
