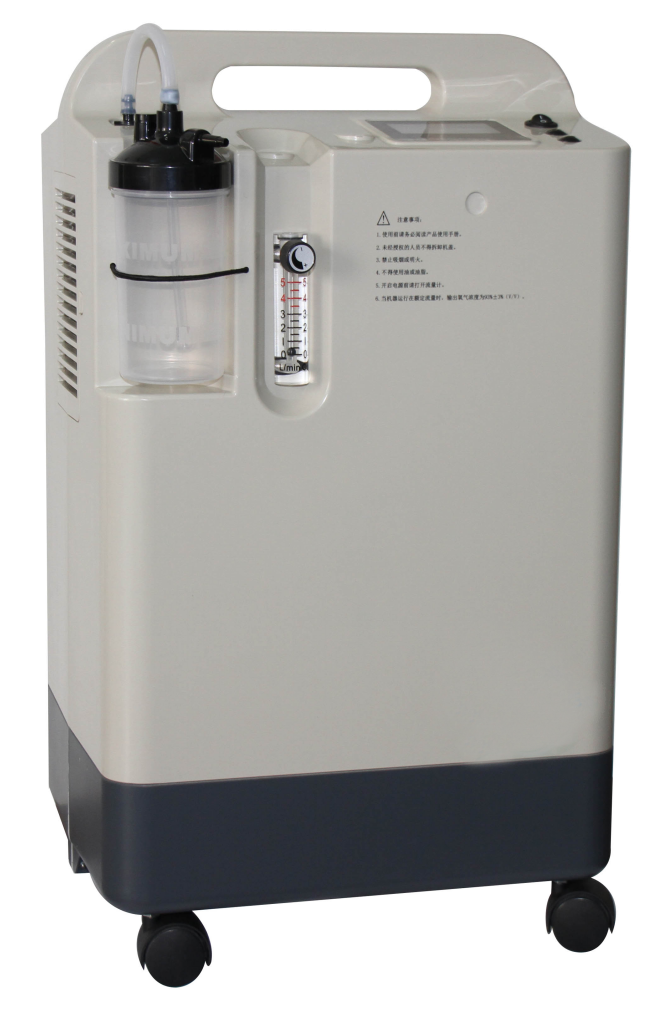

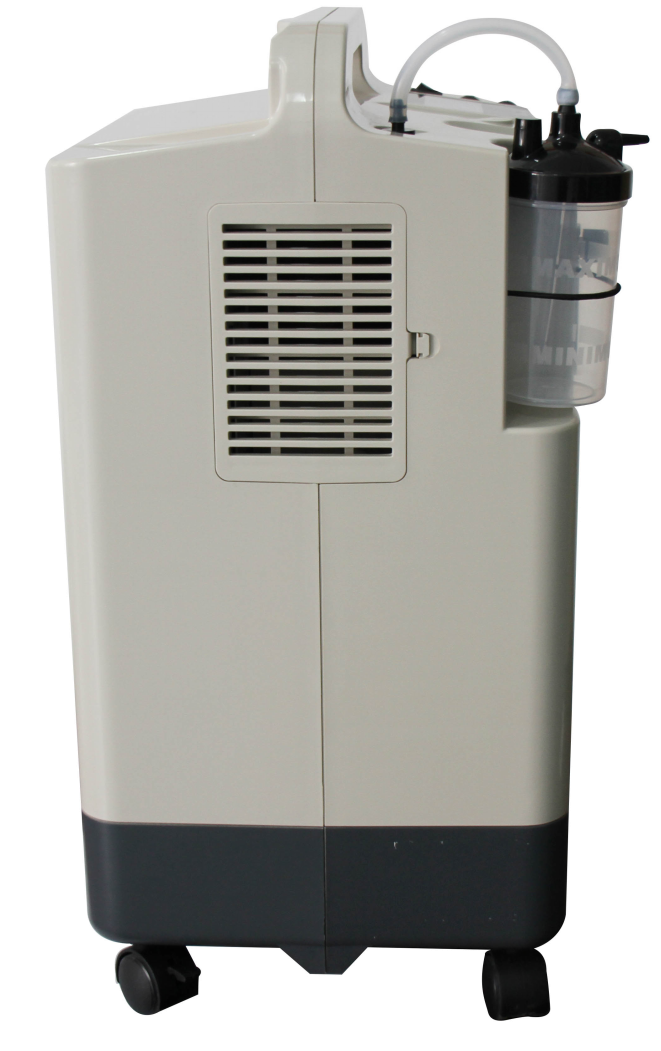

Medical Portable Oxygen Concentrator Machine MDLJY5B
A compact, lightweight oxygen concentrator designed for home and clinical use. Features integrated nebulizer function, pulse oximetry monitoring, and intelligent alarm systems. Delivers 93% oxygen purity with adjustable flow rates and whisper-quiet operation for patient comfort and safety.
Clinical overview
The MDLJY5B is a medical-grade portable oxygen concentrator engineered for reliable oxygen therapy delivery in home, clinic, and mobile care settings. It combines oxygen concentration technology with integrated nebulizer functionality, allowing simultaneous oxygen delivery and medication atomization. The device maintains consistent oxygen purity of 93% (±3%) across both 0–3 LPM and 0–5 LPM flow rate options, ensuring therapeutic efficacy for a wide range of patient needs.
Built-in safety monitoring includes low purity and low flow alarms, high temperature protection, and power failure alerts. The integrated pulse oximeter enables real-time oxygen saturation assessment, supporting clinical decision-making. Quiet operation at ≤43 dB minimizes patient and caregiver disturbance, while the compact 360×300×600 mm footprint and 16–23 kg weight facilitate portability without compromising performance.
Key features & surgeon benefits
Dual Oxygen & Nebulizer Delivery
- Combined oxygen therapy and medication atomization in one device
- Reduces equipment footprint and setup complexity
- Supports comprehensive respiratory care protocols
Intelligent Alarm & Oximetry Systems
- Low purity, low flow, and high temperature alarms prevent unsafe operation
- Built-in pulse oximeter for continuous SpO₂ monitoring
- Power failure detection ensures uninterrupted care awareness
Lightweight, Quiet, User-Friendly
- Compact 360×300×600 mm design fits diverse care environments
- ≤43 dB operation supports patient comfort and rest
- LCD display shows time, pressure, and preset flow duration (10 min–40 hrs)
Dual Flow Rate & Customisation
- 0–3 LPM and 0–5 LPM options accommodate varied patient acuity
- Adjustable outlet pressure 0.04–0.07 MPa for precise therapy titration
- OEM customisation available for institutional requirements
Technical specifications
| Indications | Oxygen therapy, respiratory support, medication nebulization |
|---|---|
| Flow Rate | 0–3 LPM or 0–5 LPM (selectable) |
| Oxygen Purity | 93% (±3%) |
| Outlet Pressure | 0.04–0.07 MPa |
| Sound Level | ≤43 dB |
| Power Consumption | ≤300 W (0–3 LPM) / ≤400 W (0–5 LPM) |
| Net Weight | 16 kg (0–3 LPM) / 23 kg (0–5 LPM) |
| Dimensions | 360 × 300 × 600 mm |
| Display | LCD with switch times, operating pressure, working time, accumulated time, preset duration (10 min–40 hrs) |
| Alarms | Power failure, high/low pressure, low purity (<82%), low flow, high temperature |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Oxygen Concentrator Unit | MDLJY5B portable concentrator with integrated nebulizer and pulse oximeter | 1 |
| Power Cable | Medical-grade power supply cord | 1 |
| Oxygen Tubing | Standard medical oxygen delivery tubing | 1 |
| Nebulizer Cup | Medication atomization chamber | 1 |
| Pulse Oximeter Probe | Finger clip SpO₂ sensor | 1 |
| User Manual | Operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our medical device specialists to discuss MDLJY5B availability, volume pricing, and customisation options for your facility or distribution network.
