LED Screen Vet Immunofluorescence Analyzer Machine MDLYT04
- LED Screen Vet Immunofluorescence Analyzer Machine MDLYT04
- Excitation light source: LED
- Test Specimen: Whole blood, serum, plasma, urine, and feces
- Interface: Serial Port, USB, Ethernet network
- Built-in Printer: Thermal printer
- Size: 245*220*138mm±5mn
- Temperature range: 5℃~40℃; Transportation Environment: -10℃~+50℃
- Weight: 1.5kg±300g
- Power supply voltage: AC100-240V
- SKU
- MDLYT04
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping

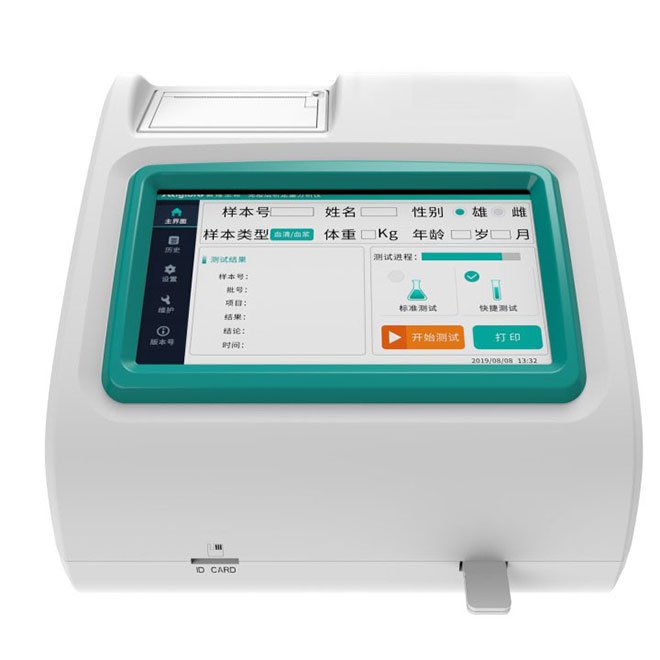

LED Screen Vet Immunofluorescence Analyzer Machine MDLYT04
Compact, portable immunofluorescence analyzer designed for veterinary laboratories. The MDLYT04 delivers rapid, accurate analysis of whole blood, serum, plasma, urine, and fecal specimens with LED excitation technology and integrated thermal printing for seamless workflow integration.
Clinical overview
The MDLYT04 is a compact, high-performance immunofluorescence analyzer engineered for veterinary diagnostic laboratories. Utilizing LED excitation at 365 nm with absorption detection at 610 nm, it provides rapid, reliable analysis of multiple specimen types including whole blood, serum, plasma, urine, and fecal samples. The instrument's lightweight design (1.5 kg) and small footprint (245 × 220 × 138 mm) make it ideal for point-of-care and laboratory environments with space constraints.
Built-in thermal printing, multi-interface connectivity (Serial Port, USB, Ethernet), and broad operating temperature tolerance (5–40°C) ensure seamless integration into diverse clinical workflows. The MDLYT04 delivers consistent performance with repeatability and stability coefficients of ≤15%, meeting the precision demands of modern veterinary diagnostics.
Key features & surgeon benefits
Multi-Specimen Capability
- Analyzes whole blood, serum, plasma, urine, and feces
- Single platform for diverse diagnostic workflows
- Reduces need for multiple instruments
Integrated Printing & Connectivity
- Built-in thermal printer for immediate result documentation
- Serial Port, USB, and Ethernet network interfaces
- Seamless data transfer and laboratory information system integration
Compact & Portable Design
- Lightweight (1.5 kg) and space-efficient footprint
- Minimal power requirements (AC 100–110V/240V)
- Reduced operational and infrastructure costs
Precision & Stability
- Repeatability and stability CV ≤15%
- LED excitation technology for consistent performance
- Broad environmental tolerance (5–40°C, 10–80% humidity)
Technical specifications
| Excitation Light Source | LED |
|---|---|
| Excitation Wavelength | 365 nm (center) |
| Absorption Wavelength | 610 nm (center) |
| Test Specimens | Whole blood, serum, plasma, urine, feces |
| Interfaces | Serial Port, USB, Ethernet network |
| Built-in Printer | Thermal printer |
| Dimensions | 245 × 220 × 138 mm (±5 mm) |
| Weight | 1.5 kg (±300 g) |
| Repeatability | CV ≤15% |
| Stability | CV ≤15% |
| Operating Temperature | 5–40°C (41–104°F) |
| Operating Humidity | 10–80% (no condensation) |
| Atmospheric Pressure | 700–1060 hPa |
| Power Supply | AC 100–110V/240V |
| Transport Temperature | −10 to +50°C |
| Transport Humidity | ≤85% |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| MDLYT04 Analyzer | LED Screen Vet Immunofluorescence Analyzer Machine | 1 |
| Thermal Printer | Built-in thermal printer module | 1 |
| Power Cable | AC 100–110V/240V universal power supply | 1 |
| Interface Cables | Serial Port, USB connectivity | 1 set |
| User Manual | Operation and maintenance documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the MDLYT04. We provide comprehensive support and technical guidance to ensure optimal integration into your veterinary diagnostic workflow.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
