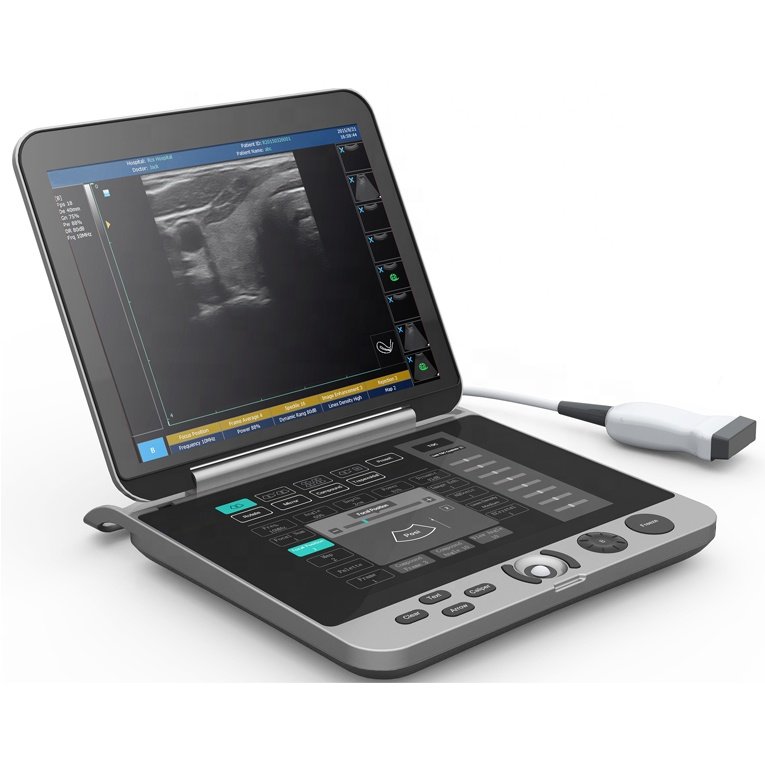

Laptop Ultrasound Machine with Touch Screen Keyboard MDLPU44
Compact, portable laptop-based ultrasound system with 12.1-inch LED touch screen and advanced multi-frequency imaging capabilities. Delivers clinical-grade B, B+B, 4B, B+M, M, and Compound Imaging with trapezoid and THI technology for comprehensive diagnostic coverage across abdominal, obstetrical, gynecological, cardiac, and specialty applications.
Clinical overview
The MDLPU44 is a compact, Windows-based laptop ultrasound system engineered for clinicians requiring portable, multi-application diagnostic imaging. Its 12.1-inch LED touch screen display and lightweight design (28.5×28×3.5 cm) enable point-of-care scanning across abdominal, obstetrical, gynecological, cardiac, small parts, urological, vascular, orthopedic, and musculoskeletal applications. The system combines advanced imaging processing—including 8-Segment TGC, one-key image optimization, and THI technology—with intelligent workflow management for seamless image capture, archiving, and review on internal hard disk or USB storage.
Multi-frequency probe support delivers B, B+B, 4B, B+M, M, and Compound Imaging modes with trapezoid imaging capability, ensuring diagnostic flexibility across diverse clinical scenarios. Full patient database solutions, cine memory (up to 1024 B-mode frames or 12.5 seconds M-mode), and standard connectivity (USB, LAN, HDMI OUT) integrate the MDLPU44 into existing hospital information systems and enable remote consultation and education.
Key features & surgeon benefits
Multi-Specialty Imaging
- Nine clinical applications in one portable system
- Multi-frequency probe support for 2D imaging modes
- Trapezoid and Compound Imaging for enhanced field-of-view
Intelligent Image Management
- Full patient database with capture and review functionality
- Cine memory: 1024 B-mode frames or 12.5 seconds M-mode
- Archive to hard disk, USB, or temporary cine storage
Cost-Effective Portability
- Lightweight design (28.5×28×3.5 cm) reduces transport burden
- AC power operation with standard Windows system reduces infrastructure cost
- Single transducer connector simplifies probe management
Flexible Integration
- USB, LAN, and HDMI OUT ports for seamless hospital network integration
- Multi-language support (English/Chinese) with software updates via USB
- OEM customization available for specialized workflows
Technical specifications
| Indications | Abdominal, Obstetrical, Gynecological, Cardiac, Small Parts, Urological, Vascular, Orthopedics, MSK |
|---|---|
| Sizes / range | 12.1-inch LED display (1024×768 resolution) |
| Dimensions | 28.5 × 28 × 3.5 cm |
| Display Language | English / Chinese |
| System | Windows PC-based |
| Power | AC power operation |
| Imaging Modes | B, B+B, 4B, B+M, M, Compound Imaging, Trapezoid Imaging |
| Image Processing | 8-Segment TGC, AQ Sonic & E Crystal, one-key image optimization, Multiple Beam Formation, THI technology |
| Cine Memory | B mode: 1024 frames; M mode: 12.5 seconds |
| Image Formats | Single-frame: BMP; Multi-frame: AVI |
| Connectivity | 1 USB port, 1 LAN port, 1 HDMI OUT port |
| Storage | Hard disk and USB mobile storage; temporary cine memory |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | 12.1-inch LED touch screen laptop ultrasound system | 1 |
| Display Monitor | 12.1-inch LED (1024×768) | 1 |
| Transducer Connector | Single connector for multi-frequency probes | 1 |
| Handle | Integrated carrying handle | 1 |
| USB Port | For software updates and data transfer | 1 |
| LAN Port | For network connectivity | 1 |
| HDMI OUT Port | For external display output | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customization options for the MDLPU44 laptop ultrasound system. We provide comprehensive support and rapid deployment for clinical and hospital environments.
