5 Liter Oxygen Concentrator MDLZY35
Ultra-quiet portable oxygen concentrator with smart voice control and advanced 8-stage filtration system. Delivers consistent 93%±3% oxygen concentration at adjustable flow rates (1–5 LPM) for reliable home oxygen therapy. Weighs just 5.5 kg with integrated handles for easy mobility.
Clinical overview

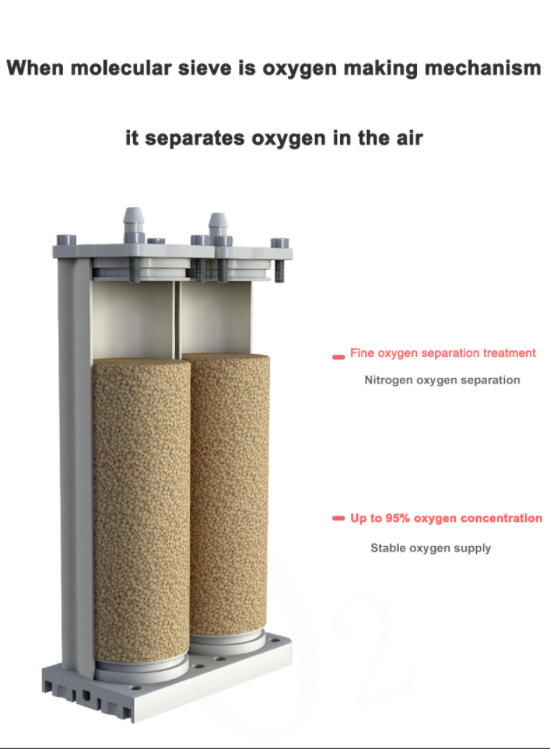

The MDLZY35 is a medical-grade 5-liter portable oxygen concentrator engineered for reliable home oxygen therapy across diverse respiratory conditions. Using pressure swing adsorption (PSA) technology with premium lithium molecular sieve, the device extracts and concentrates oxygen from ambient air, delivering consistent 93%±3% oxygen concentration at adjustable flow rates from 1 to 5 liters per minute. This flexibility accommodates varying patient needs—from mild hypoxemia requiring low-flow supplementation to severe respiratory compromise necessitating higher oxygen delivery.
The concentrator is specifically designed for patient-centered home care, addressing real-world barriers to oxygen therapy compliance. Its ultra-quiet 42dB operation eliminates the sleep disruption that causes many patients to abandon prescribed nighttime oxygen therapy. The smart voice broadcast system provides audio confirmation of device status and maintenance alerts, improving accessibility for elderly users and those with visual impairments. Eight-stage advanced filtration ensures medical-grade oxygen purity while protecting internal components from household contaminants. Weighing only 5.5 kg with integrated carrying handles, the MDLZY35 enables mobility throughout the home, supporting more active lifestyles and reducing isolation associated with stationary oxygen equipment. The device’s 48-hour continuous operation capability and stable performance across environmental conditions make it suitable for patients requiring uninterrupted oxygen supply in diverse climates and living situations.
Key features & surgeon benefits
42dB Ultra-Quiet Performance
- Whisper-quiet operation quieter than normal conversation
- Sound-dampening materials and precision compressor design
- Enables uninterrupted sleep and household activities
- Eliminates noise-related therapy non-compliance
8-Stage Advanced Filtration
- Comprehensive multi-layer purification system
- Removes particulates, bacteria, and environmental contaminants
- Protects molecular sieve from degradation
- Extends equipment lifespan and maintains oxygen purity
Voice Control & Remote Operation
- Smart voice broadcast announces status and maintenance needs

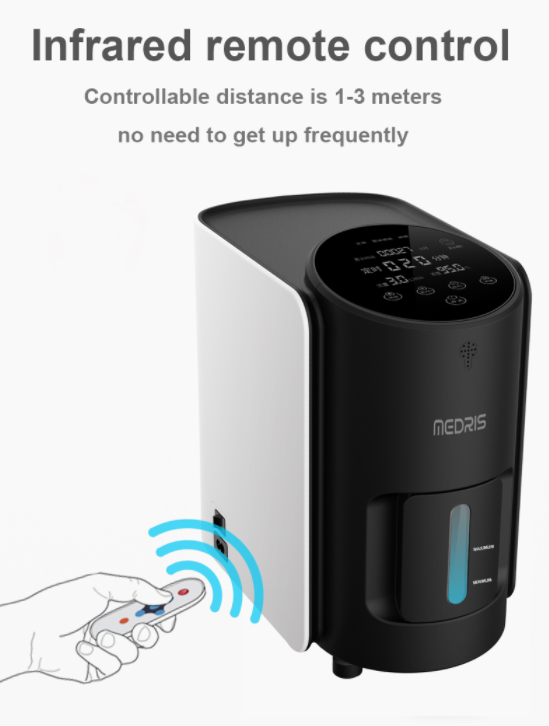

- Wireless remote control for bedside operation

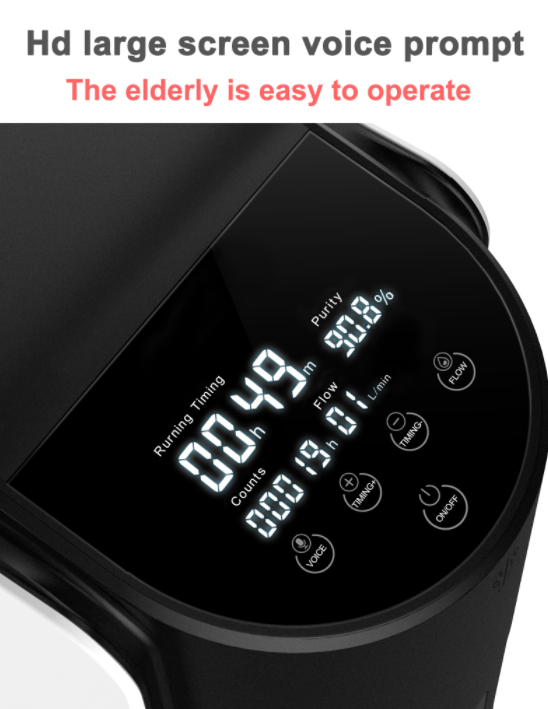

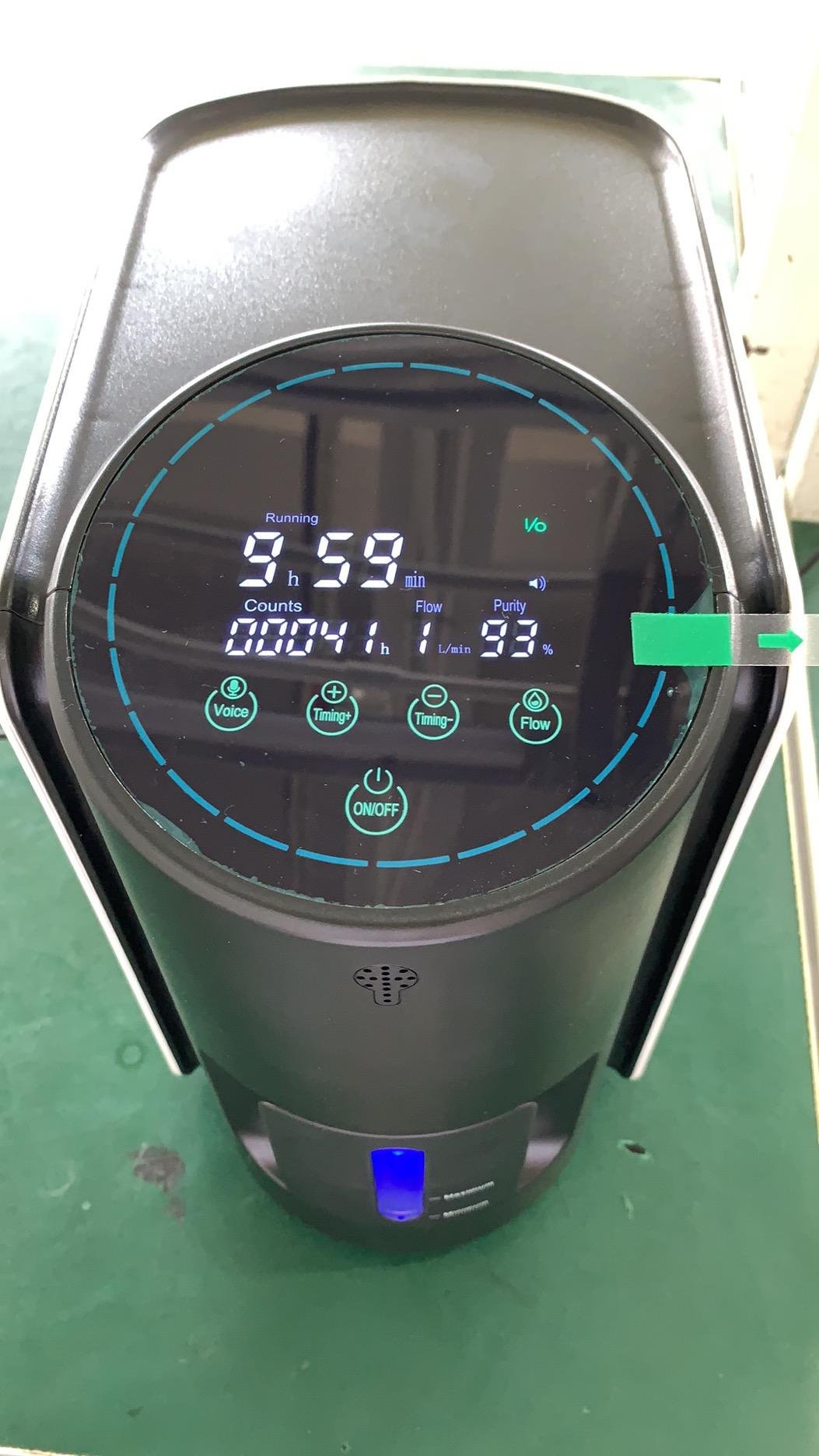

- Large LCD display with backlight for clear visibility
- Programmable timer function for energy efficiency
Lightweight & Compact Design
- Only 5.5 kg (12.1 lbs) for easy single-person transport
- Compact 305×180×300mm footprint minimizes space requirements
- Integrated carrying handles for mobility between rooms
- Supports active lifestyle and reduces patient isolation
Technical specifications
| Product Model | MDLZY35 Portable Oxygen Concentrator |
|---|---|
| Indications | COPD, pulmonary fibrosis, cardiac conditions, respiratory infections, sleep apnea, post-surgical recovery, altitude-related hypoxia, geriatric care |
| Oxygen Flow Rate | 1–5 liters per minute (adjustable) |
| Oxygen Concentration | 93% ± 3% at all flow settings |
| Technology | Pressure Swing Adsorption (PSA) with Lithium Molecular Sieve |
| Noise Level | 42 dB(A) – ultra-quiet operation |
| Dimensions | 305mm × 180mm × 300mm (12″ × 7″ × 11.8″) |
| Net Weight | 5.5 kg (12.1 lbs) |
| Gross Weight | 7.5 kg (16.5 lbs) with packaging |
| Power Input | AC 110V or 220V, ≤120VA |
| Compressor Type | Oil-free air compressor |
| Filtration System | 8-stage advanced filtration |
| Display | Large LCD screen with backlight |
| Control Interface | Smart touch controls + wireless remote control |
| Voice Function | Smart voice broadcast system |
| Timer Function | Programmable auto-shutdown |
| Continuous Operation | Up to 48 hours stable output |
| Outlet Connection | Standard oxygen tubing connector |
| Mobility Features | Integrated handles for easy transport |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| MDLZY35 Concentrator Unit | 5-liter portable oxygen concentrator with PSA technology | 1 |
| Power Cord | AC power cable (110V or 220V as specified) | 1 |
| Oxygen Tubing | Standard medical-grade oxygen delivery tubing | 1 |
| Nasal Cannula | Standard dual-prong nasal oxygen delivery interface | 1 |
| Wireless Remote Control | Battery-powered remote for flow rate and timer adjustment | 1 |
| Intake Air Filter | Replaceable particle filter for air intake | 1 |
| User Manual | Comprehensive operating and maintenance instructions | 1 |
| Warranty Card | 2-year manufacturer warranty documentation | 1 |
Get in touch for pricing & availability
Contact our medical device specialists to discuss the MDLZY35 oxygen concentrator, obtain detailed pricing, arrange product demonstrations, or explore customisation options for bulk orders and OEM partnerships.
Email: info@medicaldevicelab.com
Hours: Monday–Friday, 8 AM–6 PM PST | 24/7 Emergency Support Available
