High Speed Refrigerated Centrifuge MDLHC45
- Superior performance with microprocessor control and frequency conversion motor
- Easy operation with touch panel and digital display
- Programmable application for variety of rotors
- Best centrifugal effect with customizable acceleration and deceleration times
- Safe and reliable with protection from over speed, over temperature, and imbalance
- Max speed of 21000r/min and max RCF of 52300×g
- Max capacity of 4000ml with temperature range from -20℃ to +40℃
- SKU
- MDLHC45
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping

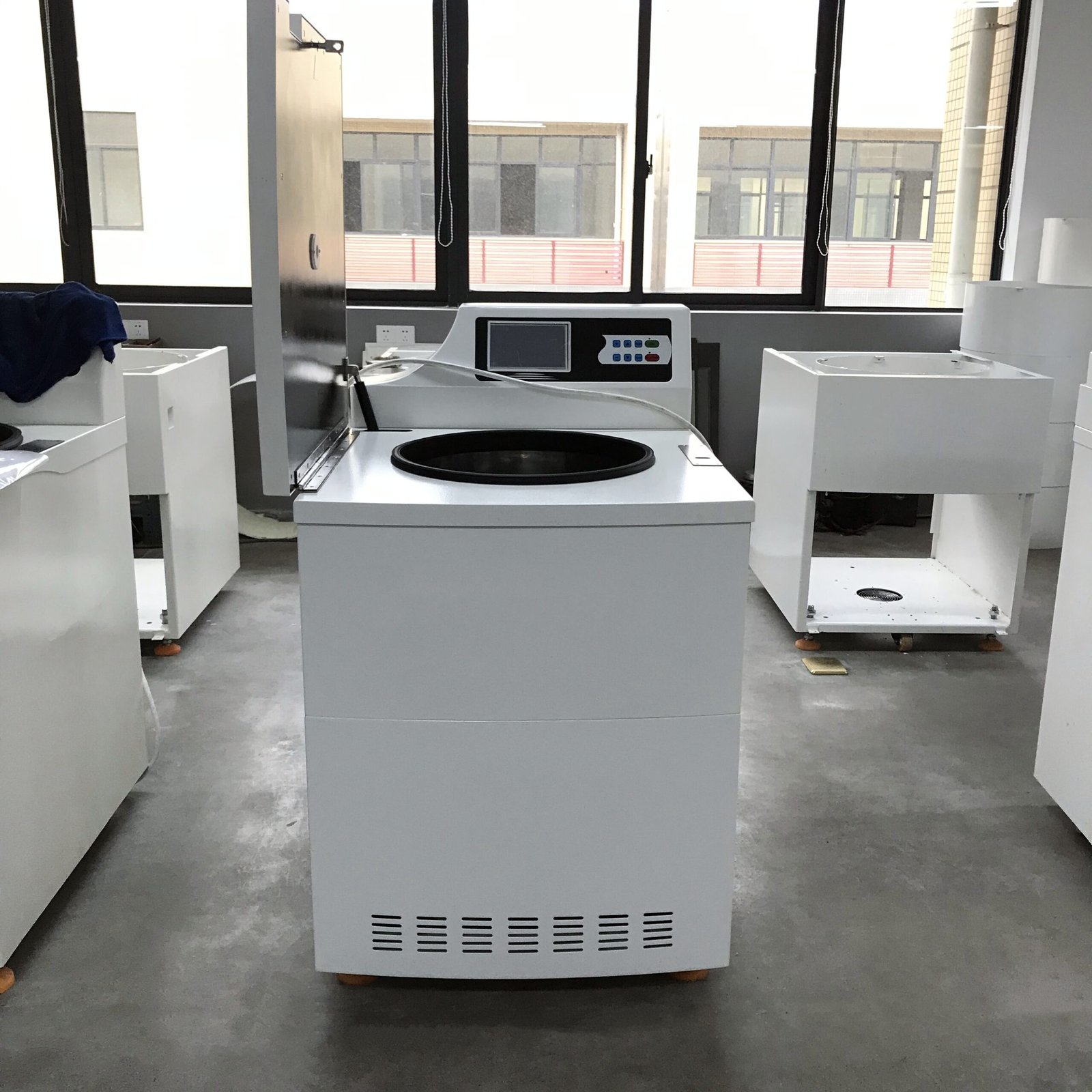

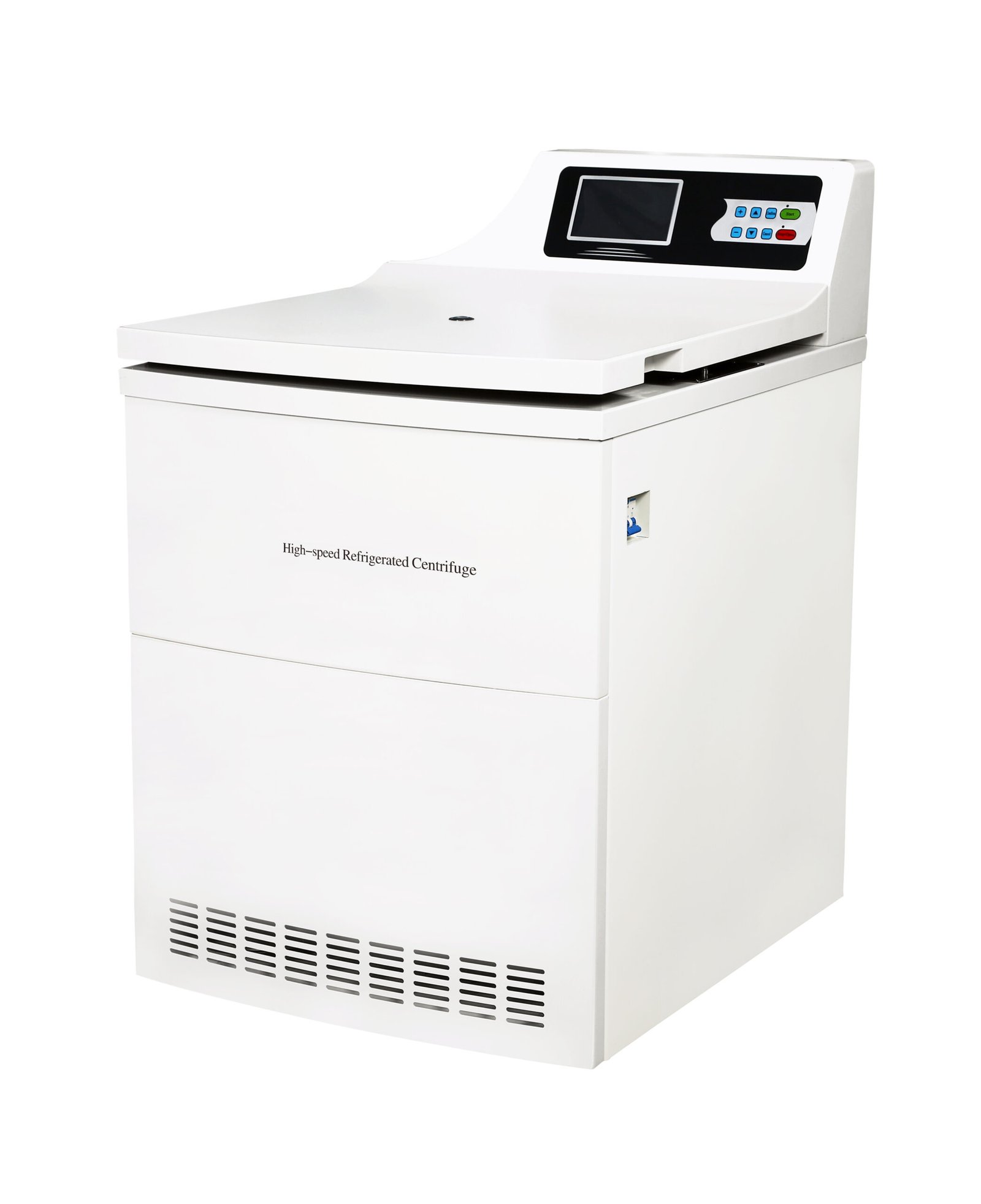

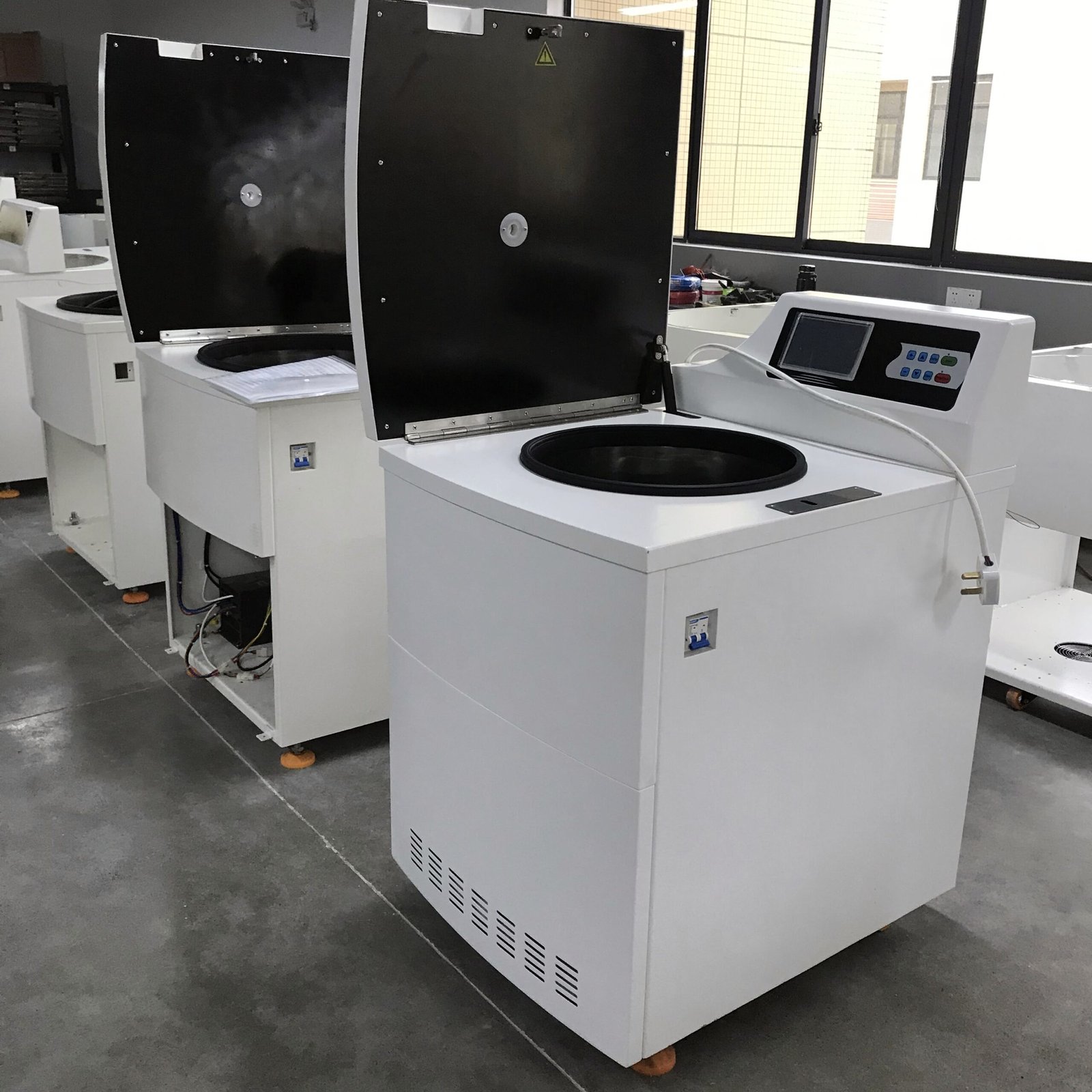

High Speed Refrigerated Centrifuge MDLHC45
Advanced microprocessor-controlled centrifugation system delivering superior performance with frequency conversion motor technology. Designed for clinical laboratories, research facilities, and diagnostic centers requiring precision separation at speeds up to 21,000 r/min with integrated temperature control from −20°C to +40°C.
Clinical overview
The MDLHC45 is a high-performance refrigerated centrifuge engineered for demanding laboratory environments. With microprocessor control and frequency conversion motor technology, it eliminates carbon dust pollution while extending operational lifespan. The system achieves maximum speeds of 21,000 r/min and RCF values up to 52,300×g, making it ideal for rapid sample separation in clinical diagnostics, hematology, immunology, and research applications.
Designed with clinician and technician workflows in mind, the MDLHC45 features an intuitive touch panel interface, digital display, and programmable application protocols. Automatic RCF calculations, customizable acceleration and deceleration settings (0–9 grades), and comprehensive safety protections ensure both precision and operator safety in high-throughput laboratory settings.
Key features & surgeon benefits
Superior Centrifugal Power
- Maximum speed 21,000 r/min with RCF up to 52,300×g
- Speed accuracy ±20 r/min for reproducible results
- Rapid acceleration/deceleration (1 min 30 s to full speed)
Intuitive Operation
- Touch panel with digital display for easy control
- Programmable applications for multiple rotor types
- Automatic RCF calculation eliminates manual computation
Advanced Safety & Longevity
- Frequency conversion motor eliminates carbon dust pollution
- Over-speed, over-temperature, and imbalance protection
- Automatic electronic and mechanical lock mechanisms
Temperature Control & Customisation
- Wide temperature range −20°C to +40°C with ±1°C accuracy
- Multiple rotor configurations (1000–4000 ml capacity)
- Customizable acceleration and deceleration rates
Technical specifications
| Model | MDLHC45 |
|---|---|
| Maximum Speed | 21,000 r/min |
| Maximum RCF | 52,300×g |
| Maximum Capacity | 4000 ml |
| Speed Accuracy | ±20 r/min |
| Temperature Range | −20°C to +40°C |
| Temperature Accuracy | ±1°C |
| Acceleration/Deceleration Rates | 0–9 grades (adjustable) |
| Shortest Acceleration Time | 1 min 30 s (0–21,000 r/min) |
| Shortest Deceleration Time | 1 min 40 s (21,000 r/min to 0) |
| Warranty | 2 Year Manufacturer Warranty |

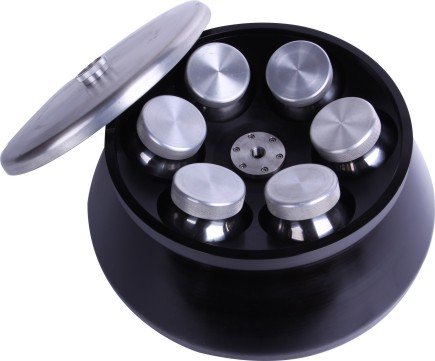

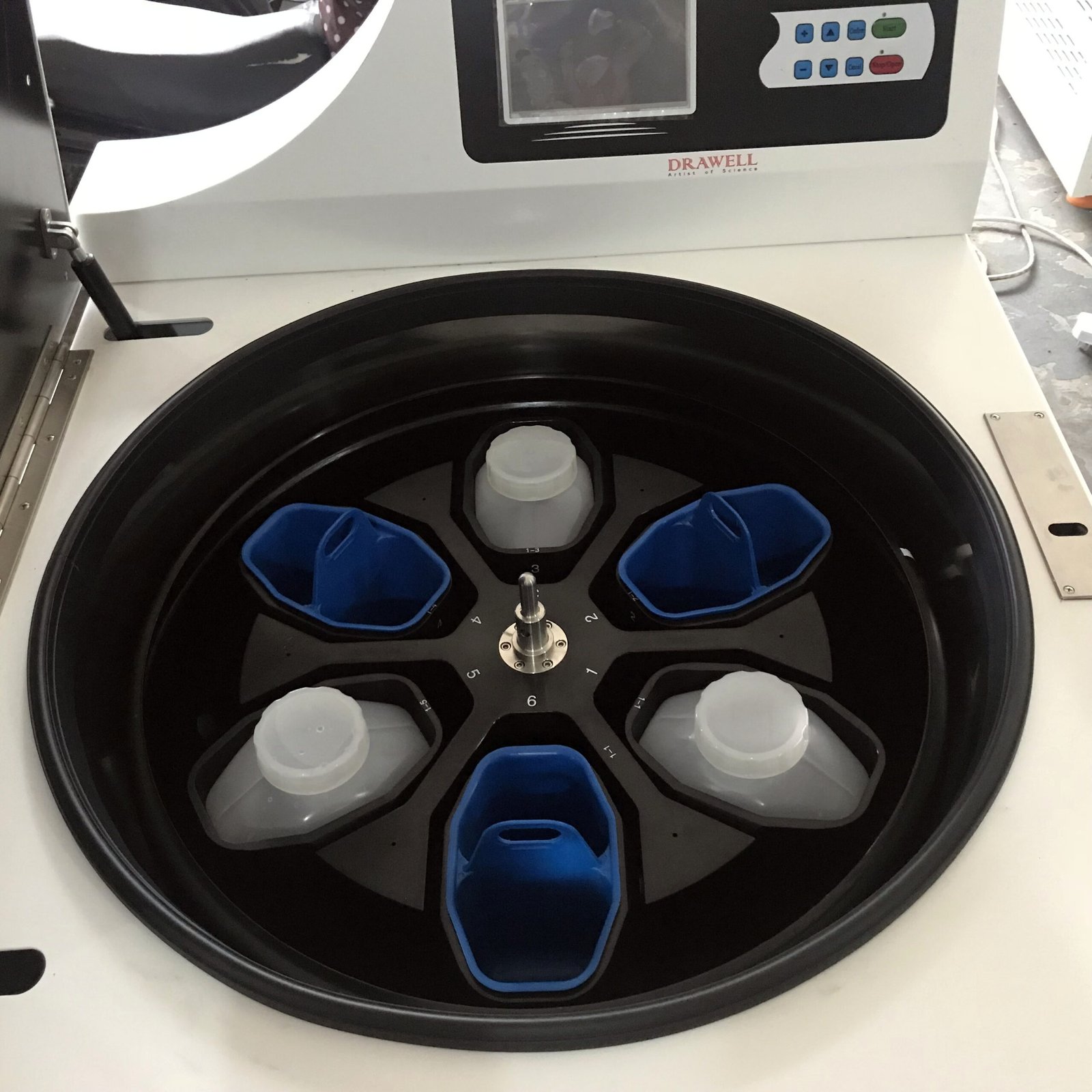

Standard rotor configurations
| Rotor Type | Max Speed | Max RCF | Capacity | Flow Rate |
|---|---|---|---|---|
| Fixed-angle rotor 1 | 14,000 r/min | 21,500×g | 1000 ml | 200–600 ml/min |
| Swing-bucket rotor 1 | 8,000 r/min | 9,500×g | 3000 ml | 200–800 ml/min |
| Fixed-angle rotor 2 | 16,000 r/min | 28,100×g | 1000 ml | 200–600 ml/min |
| Swing-bucket rotor 2 | 10,000 r/min | 14,800×g | 3000 ml | 200–800 ml/min |
Get in touch for pricing & availability
Contact our sales team to discuss your laboratory's centrifugation requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
