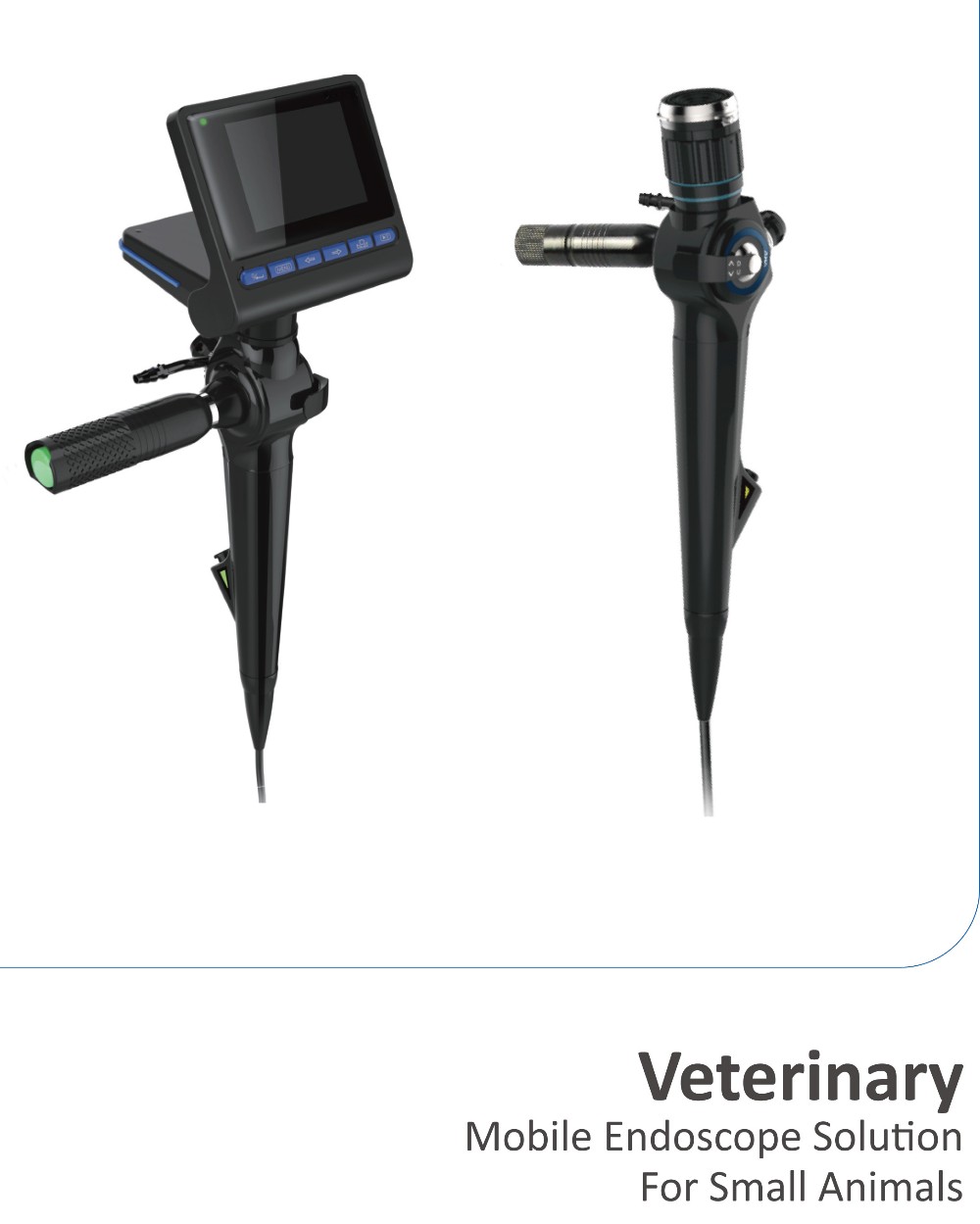

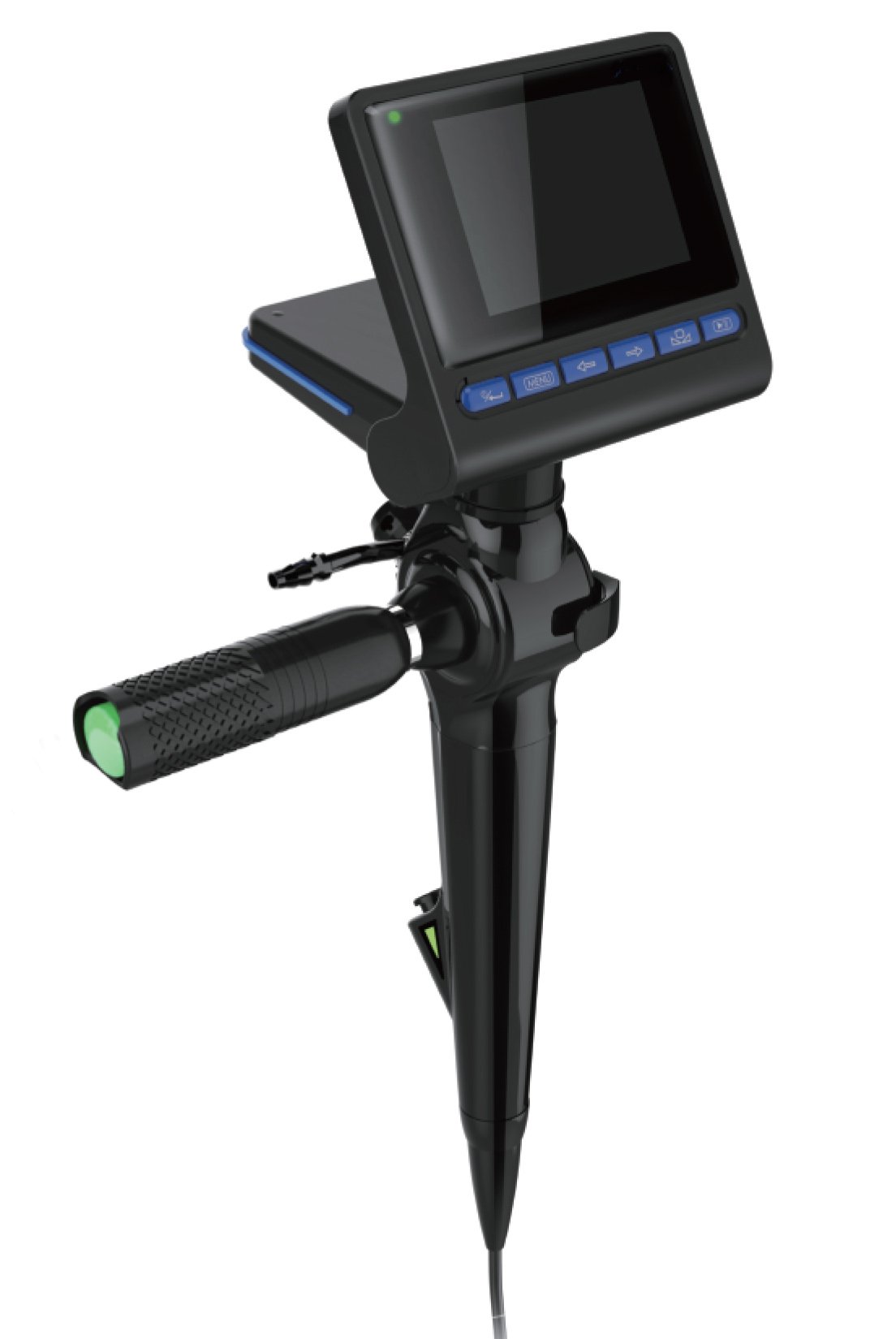

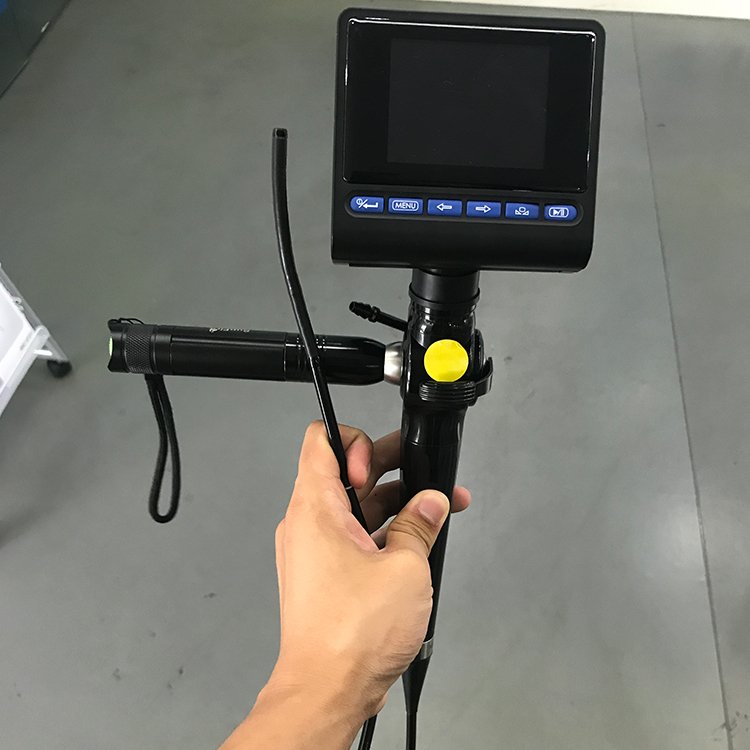

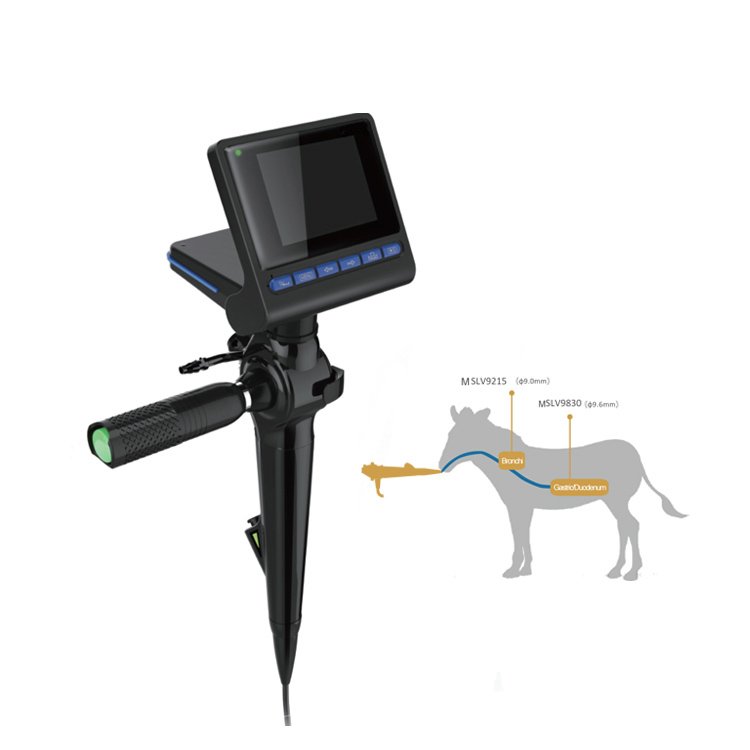

Portable Video Endoscope
The MSV5010 & 6010 are the self-contained ambulatory endoscopy systems. With integral screen,battery and recording capabilities, the MSLV5010 & 6010 are extremely cost-effective.
The complete ambulatory system has a broad range of applications including ear, nose, throat,urinary tract and bladder amongst others. With two-way angulation of 180 [up] and 160″ [down]the tip deflection also allows visualisation behind the palate.
The ambulatory video bronchoscope is the perfect solution for in surgery or ambulatory diagnosis.
Endoscope supplied with:
Leak tester , biopsy forceps, battery pack, video recording head for moving image and stills, cleaning brush, aspiration catheter, operation manual, channel irrigator, protective case fortransport
BBF Protable Fiber Endoscope
Portable design provides the most convenient and quick endoscopy.
Equiped with portable LED light source, which can provide bright and high quality lightingunder any circumstances.
Waterproof design for the insertion tube, convenient for cleaning and disinfection.
Working length
|
1500mm, 1000mm
|
Diameter of distal end
|
φ5.2mm, φ5.8mm
|
Diameter of Instrument channel
|
2.2 mm, 2.6mm
|
Range of bending
|
160°U / 130°D
|
camera
|
High resoluton CMOS camera
|
Field of view
|
≧100° (forward viewing)
|
Depth of field
|
3-50mm
|
Full air-tightness
|
Specifications
Description |
High resolution CMOS camera |
Field of view: ≧100° (forward viewing) |
Depth of field: 3-50mm |
Range of tip bending: 160°U / 130°D |
Diameter of distal end: φ5.2mm |
Diameter of insertion tube: φ5.0mm |
Instrument channel: 1.5mm |
Working length: 1000mm |
Full air-tightness |
