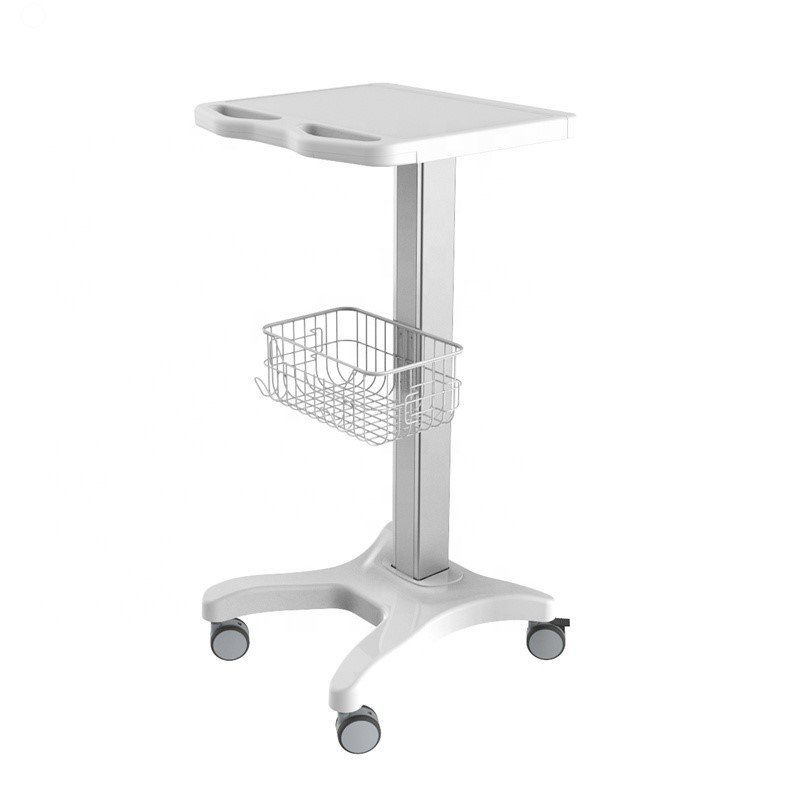

Computer Trolley / ECG / Ultrasound Trolley
The TR700-100-3 is a versatile, mobile workstation designed for clinical environments requiring flexible equipment positioning. Built with durable aluminum alloy, ABS, and steel plate construction, this trolley delivers reliable performance for ECG, ultrasound, and computer-based diagnostic applications with secure storage and smooth mobility.
Clinical overview
The TR700-100-3 mobile workstation is engineered for clinical environments where flexible equipment positioning and secure storage are essential. Ideal for ECG monitoring, ultrasound imaging, and computer-based diagnostic workflows, this trolley combines mobility with stability, enabling clinicians to position equipment precisely where needed while maintaining organized access to supplies and accessories.
With a robust aluminum alloy frame, integrated drawer storage, and smooth-rolling casters, the TR700-100-3 supports efficient clinical operations across general practice, cardiology, radiology, and emergency departments. The manual lift adjustment mechanism allows ergonomic positioning without requiring electrical power, reducing maintenance complexity and ensuring reliable performance in resource-constrained settings.
Key features & surgeon benefits
Smooth, controlled movement
- 4-inch casters with 2 brake-equipped wheels for secure positioning
- Enables rapid repositioning between patient stations
- Reduces setup time and improves workflow efficiency
Integrated drawer organization
- 265×470×142 mm drawer with 25 kg capacity
- Secure storage for accessories, cables, and consumables
- Keeps equipment organized and immediately accessible
Robust construction
- Aluminum alloy frame with ABS and steel plate reinforcement
- Screw-fixed assembly ensures long-term stability
- Designed for high-frequency clinical use
Adjustable positioning
- Manual lift adjustment for optimal clinician ergonomics
- 1000 mm standard height accommodates diverse user preferences
- Reduces fatigue during extended diagnostic procedures
Technical specifications
| Model | TR700-100-3 |
|---|---|
| Brand | ORTHOPROMED |
| Indications | ECG monitoring, ultrasound imaging, computer-based diagnostics, clinical workstations |
| Table dimensions | 473×323 mm (excluding handle) |
| Table max load capacity | 30 kg |
| Drawer dimensions | 265×470×142 mm |
| Drawer max load capacity | 25 kg |
| Trolley height | 1000 mm |
| Height adjustment | Manual lift |
| Casters | 4 inch (2 with brakes) |
| Material | Aluminum alloy, ABS, steel plate |
| Installation method | Fixation by screws |
| Package dimensions | 144×77×32 cm |
| Gross weight | 11 kg |
| Certifications | ISO 9001, ISO 13485, TÜV CE, RoHS, FDA |
| Warranty | 2 Year Manufacturer Warranty |

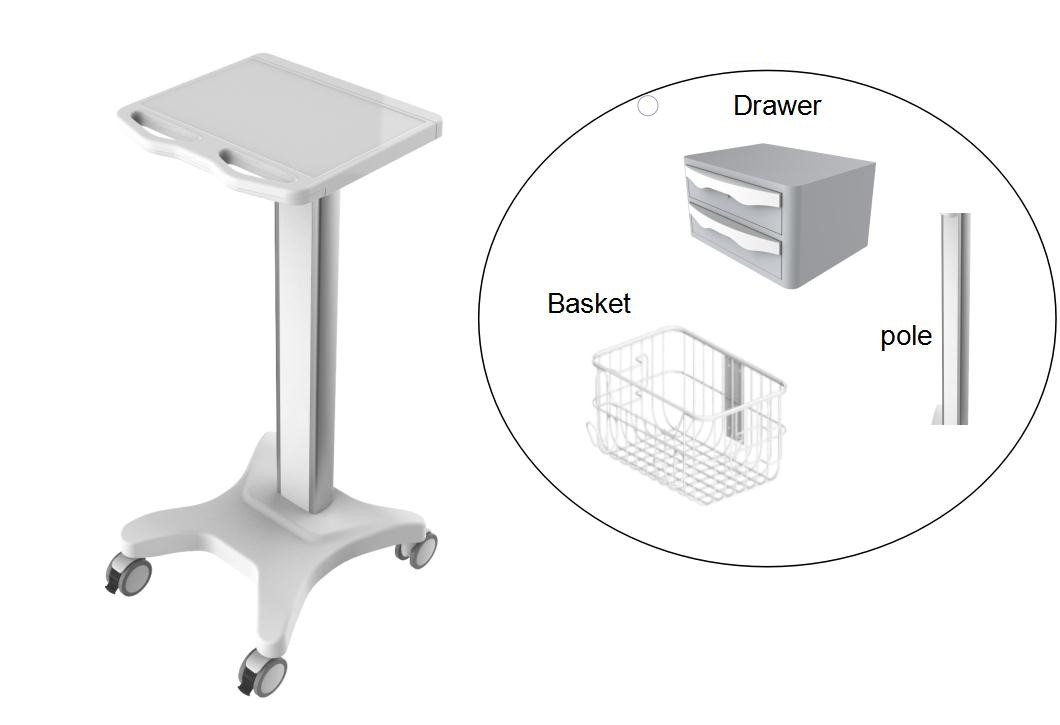

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Mobile workstation frame | Aluminum alloy with ABS and steel plate construction | 1 |
| Work surface / table | 473×323 mm top with 30 kg capacity | 1 |
| Storage drawer | 265×470×142 mm with 25 kg capacity | 1 |
| Caster wheels | 4-inch wheels (2 with brakes) | 4 |
| Manual lift mechanism | Height adjustment system | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your clinical workstation requirements, bulk ordering options, and customisation possibilities. We offer competitive pricing, fast delivery, and comprehensive post-sale support.
