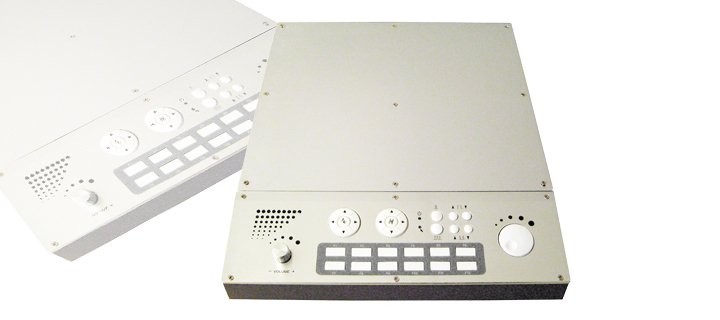

CMS6600B EMG/EP System
Advanced neurophysiological diagnostic platform for comprehensive nerve and muscle function assessment with high-speed data acquisition and automated analysis.
The CMS6600B EMG/EP System is a professional-grade diagnostic platform that records bioelectricity activity of nerve and muscle tissue to determine functional state and provide accurate auxiliary diagnosis. This comprehensive system combines electromyography with evoked potential testing, supporting EMG, motor and sensory nerve conduction studies, F wave, H-reflex, repetitive nerve stimulation, blink reflex, visual evoked potential, brainstem auditory evoked potential, and somatosensory evoked potential testing.
Clinical Overview
The CMS6600B EMG/EP System represents a comprehensive neurophysiological diagnostic platform designed to assess nerve and muscle function with exceptional precision. This advanced system records bioelectricity activity across multiple modalities, enabling clinicians to determine functional states and provide accurate auxiliary diagnoses for a wide range of neuromuscular and central nervous system disorders. The integration of electromyography with evoked potential testing capabilities provides a complete examination platform suitable for peripheral neuropathy evaluation, neuromuscular junction assessment, motor neuron disease diagnosis, myopathy characterization, and central pathway integrity evaluation.
The CMS6600B combines professional-grade signal acquisition with intuitive clinical workflow design. High-speed data collection captures rapid bioelectrical events with exceptional fidelity, while electromagnetic interference suppression and photoelectric isolation ensure clean, artifact-free recordings even in electrically challenging environments. The powerful normal values database automatically contrasts patient findings with age and gender-matched normative data, facilitating rapid interpretation and identification of pathological changes with statistical confidence. Flexible software architecture allows customization of testing protocols, report formats, and system parameters to meet specific institutional requirements and individual clinician preferences.
Key Features & Surgeon Benefits
Comprehensive Testing Modalities
- EMG, motor and sensory nerve conduction studies
- F wave, H-reflex, repetitive nerve stimulation
- Blink reflex, VEP, BAEP, SEP testing
Streamlined Clinical Operation
- Professional EMG/EP operation platform
- Neuro and muscle navigation system
- Pre-programmed protocols with rapid setup
Advanced Signal Processing
- High-speed data collection up to 100kHz
- Electromagnetic interference suppression
- Low-noise amplification with >100MΩ input impedance
Flexible Software Architecture
- Customizable testing protocols and parameters
- Configurable report templates and analysis tools
- Institutional workflow integration support
Technical Specifications
| Specification | Details |
|---|---|
| EMG Channels | 4 channels with independent amplification and filtering |
| EP Channels | 2 channels for evoked potential recording |
| Sampling Rate | Up to 100kHz per channel for high-resolution data capture |
| Input Impedance | >100MΩ for optimal signal quality |
| Common Mode Rejection Ratio | >100dB at 50/60Hz for superior noise rejection |
| Frequency Response | 0.1Hz – 10kHz for comprehensive signal analysis |
| Stimulator Output | 0–100mA constant current, 0.05–1000ms duration |
| Safety Classification | Class I medical device with Type CF applied parts |
| Isolation | Photoelectric isolation for patient and operator safety |
| Display | High-resolution color LCD for clear waveform visualization |
| Data Storage | Internal memory with USB export capability |
| Power Supply | AC 100–240V, 50/60Hz with battery backup option |
| Hardware Design | Compact, integrative configuration for portability |
| Warranty | 2 Year Manufacturer Warranty |
Standard System Components
| Component | Description | Qty |
|---|---|---|
| Main EMG/EP Unit | Integrated system with 4 EMG channels and 2 EP channels, high-speed ADC, signal processing electronics | 1 |
| Stimulator Module | Constant current stimulator with adjustable intensity (0–100mA) and pulse duration (0.05–1000ms) | 1 |
| EMG Electrode Set | Disposable needle and surface electrodes for muscle and nerve recording | As applicable |
| Stimulation Electrodes | Surface electrodes for nerve stimulation with safety features | As applicable |
| Reference Electrode | Ground electrode for circuit completion and noise reduction | 1 |
| Display Monitor | High-resolution color LCD with touchscreen interface for waveform visualization and control | 1 |
| Keyboard and Mouse | Input devices for protocol selection, parameter adjustment, and data entry | 1 set |
| Software Platform | Professional EMG/EP operating system with pre-programmed protocols, normal values database, and analysis tools | 1 license |
| Data Management System | Internal storage with USB export, patient database, and report generation capabilities | Integrated |
| Power Supply Unit | AC adapter with universal voltage input (100–240V, 50/60Hz) and battery backup option | 1 |
| Cables and Connectors | Shielded cables with safety connectors, photoelectric isolation interfaces | Complete set |
| Carrying Case | Protective case for transport and storage of main unit and accessories | 1 |
| User Documentation | Operating manual, protocol guides, safety information, and troubleshooting reference | 1 set |
| Training and Support | Initial system setup, operator training, and lifetime technical support | Included |
Get in Touch for Pricing & Availability
Contact our sales team to discuss the CMS6600B EMG/EP System, request pricing, arrange a demonstration, or explore customization options for your clinical or research environment.
